Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
Ethernet interface type
Gigabit Ethernet, 10 Gigabit Ethernet
Maximum data transfer rate
10000 Mbit/s
Networking standards
IEEE 802.1as,IEEE 802.1p,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ad
Ethernet LAN
Y
Ethernet LAN data rates
10,1000 Mbit/s
Fiber ethernet cabling technology
10GBASE-LR,10GBASE-SR
Supported network protocols
TCP, UDP, IP
VLAN tagging
Y
Maximum operating distance
10 m
LAN controller
Intel® X710
Intel Virtual Machine Device Queues (VMDq)
Yes
PCI-SIG* SR-IOV Capable
Yes
On-chip QoS and Traffic Management
Yes
Intel Flexible Port Partitioning
Yes
Speed & slot width
8.0 GT/s, x8 Lane
Intelligent Offloads
Yes
iWARP/RDMA
No
Intel Ethernet Power Management
Yes
Intel Data Direct I/O Technology
Yes
Network interface card cable medium
Copper
Cable type
SFP+ Direct Attached Twinaxial Cabling up to 10m
Market segment
Server
Target market
Artificial Intelligence, High Performance Computing
Flow control support
Y
Management protocols
PXE, SNMP, RMON
Number of VLANs
4096
Intel® Virtualization Technology (Intel® VT)
VT-c
Intel Trusted Execution Technology
N
Embedded options available
N
Intel Virtual Machine Device Queues (VMDq)
Y
PCI-SIG* SR-IOV Capable
Y
On-chip QoS and Traffic Management
Y
Intel Flexible Port Partitioning
Y
Storage-over-ethernet
Y
Speed & slot width
8.0 GT/s, x8 Lane
Message signal interrupt
N
Low halogen options available
N
Intelligent Offloads
Y
iWARP/RDMA
N
Fiber Channel over Ethernet
Y
Intel Ethernet Power Management
Y
Intel Data Direct I/O Technology
Y
Intel Virtualization Technology for Connectivity (VT-c)
Y
Interface type
PCIe v3.0 (8.0 GT/s)
Storage Over Ethernet
iSCSI, NFS
Conflict-Free
Y
Born on date
Q4'14
Launch date
Q4'14
Network interface card cable medium
Copper
Network interface card type
Server
Product brief URL
http://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/ethernet-x710-brief.pdf
Product name

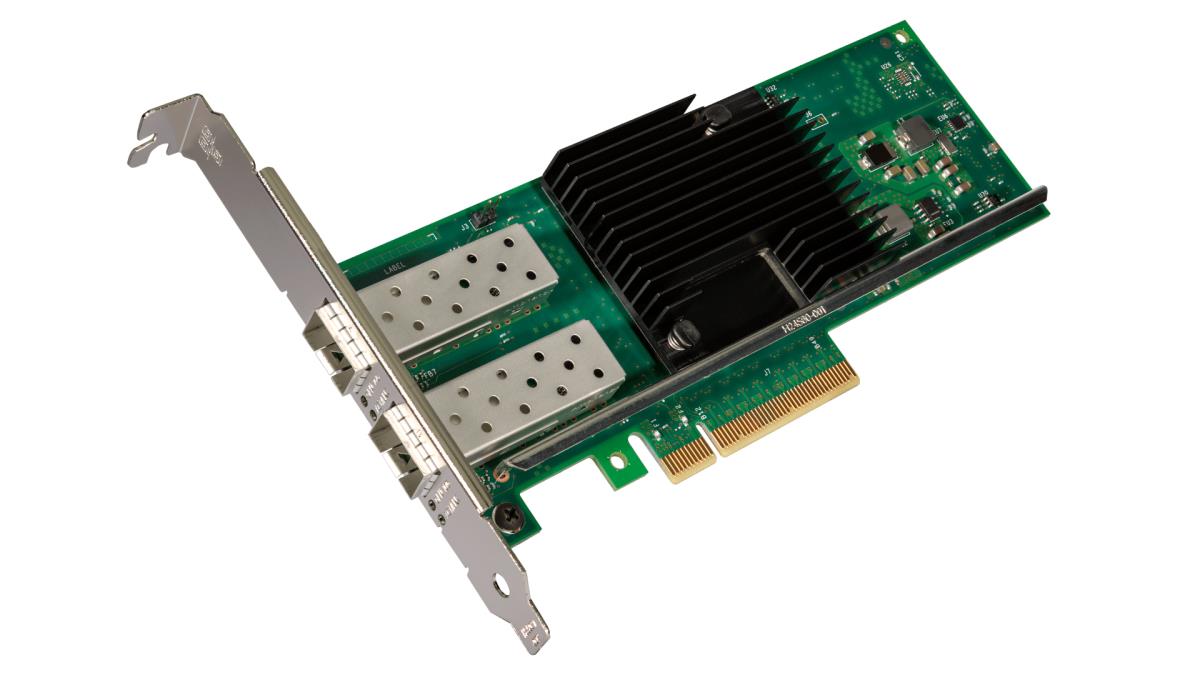

Intel Ethernet Converged Network Adapter X710-DA2
Product type
Network Interface Card
Status
Launched
Number of QPI links
Dual
Last change
64826824
Processor family
700 Network Adapters (up to 40GbE)-700 Network Adapters (up to 40GbE)
Ethernet adapter ARK ID
83964
Harmonized System (HS) code
8517620090
Export Control Classification Number (ECCN)
5A991
Commodity Classification Automated Tracking System (CCATS)
NA
Controller type
Intel® Ethernet Controller X710
Cabling type
SFP+ Direct Attached Twinaxial Cabling up to 10m
Bracket height
Low-Profile (LP) / Full-Height (FH)
Product family
Intel 10 Gigabit server adapter
Product series
700 Series Network Adapters (up to 40GbE)
Product codename
Fortville
