Product Details
Introduction
Superior connections for quality digital video performance._x000D_
_x000D_

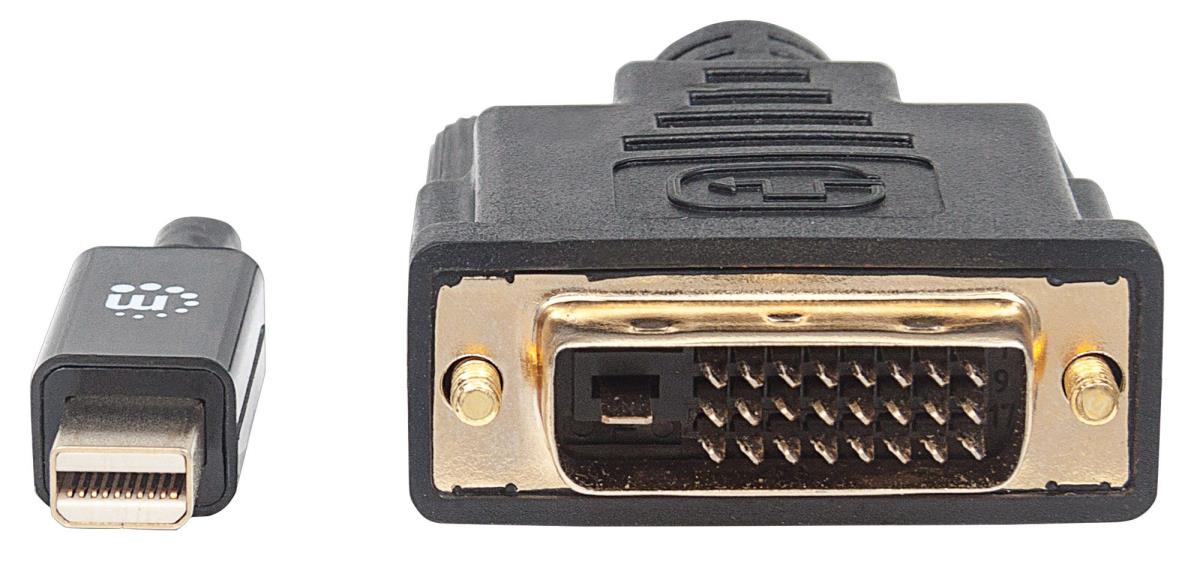

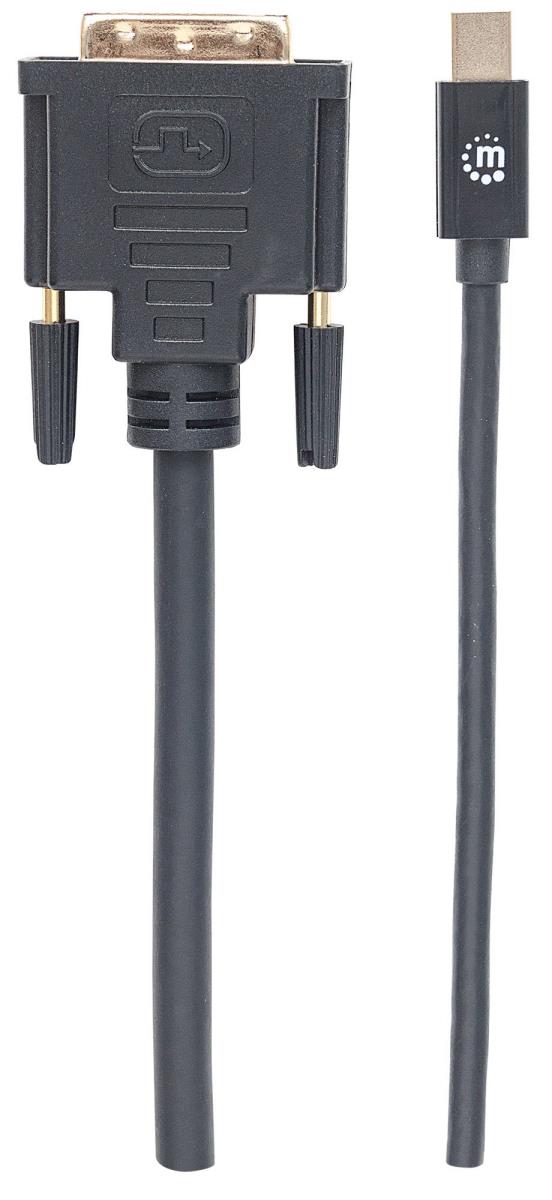

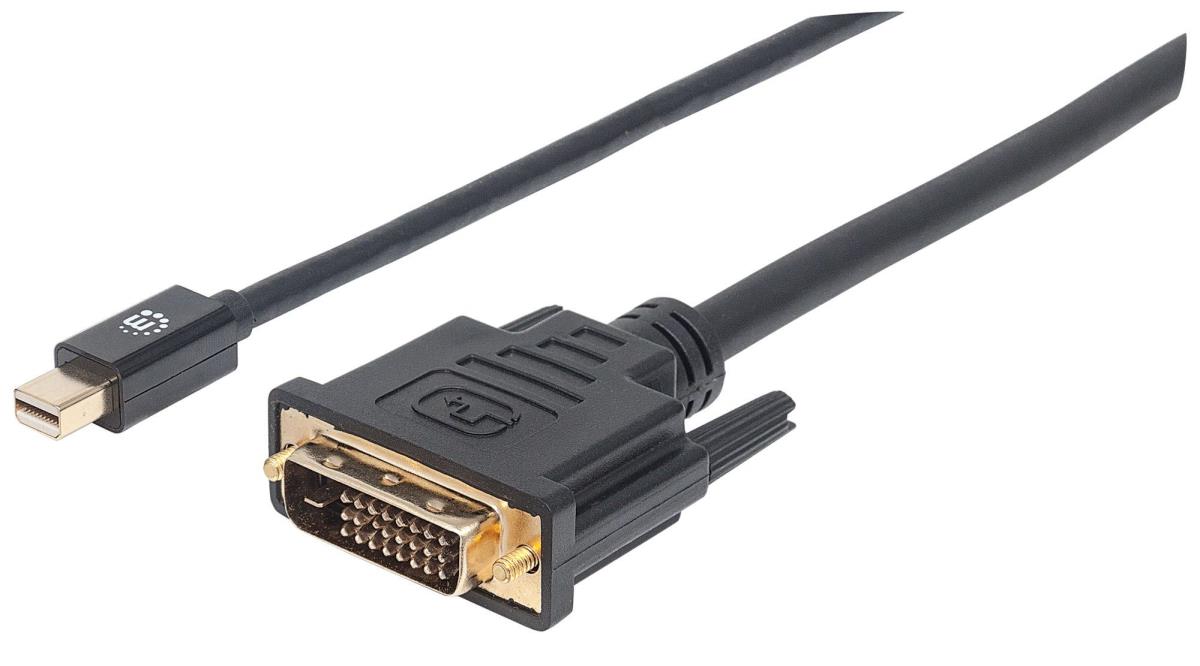

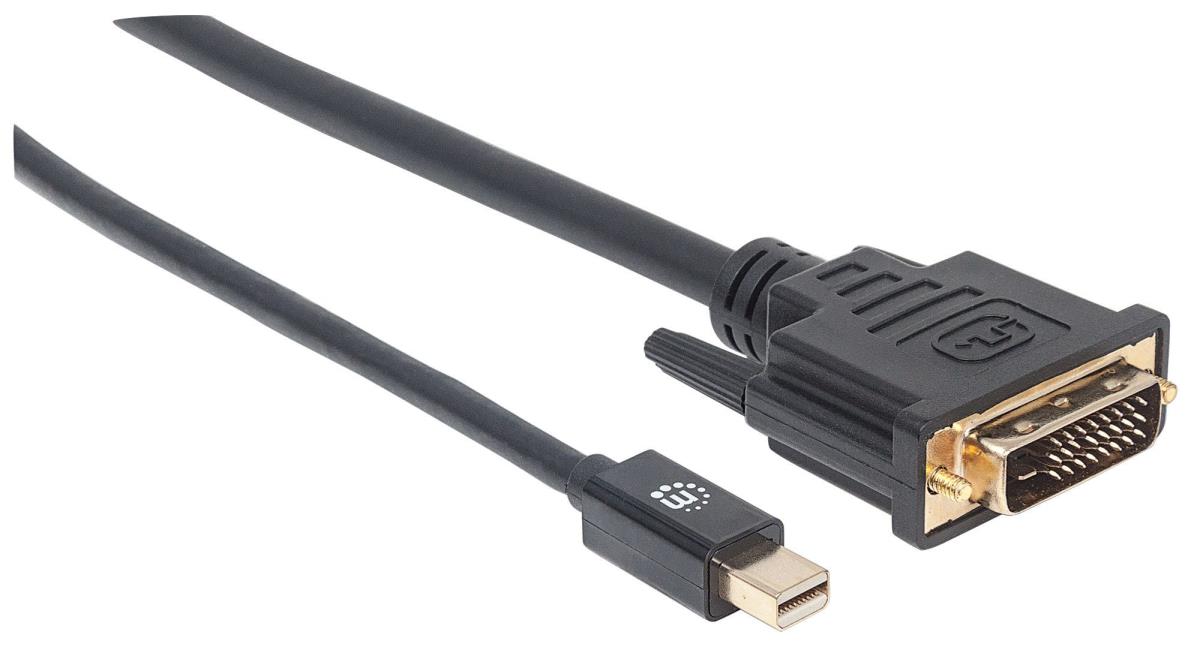

Manhattan Mini DisplayPort 1.2a to DVI Cables help deliver the brightest, most accurate colours and sharpest detail when connecting high-definition monitors, LCD and plasma displays, digital projectors and other DVI- or DP-equipped display devices. Manhattan Mini DisplayPort 1.2a to DVI Cables are engineered and constructed of quality materials to deliver dependable signals in digital video applications. Full foil and braided shielding, moulded boots with strain relief, protective PVC jackets and gold-plated connections help provide maximum conductivity and clear, crisp signal transmissions with reduced distortion.
Features
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Connector contacts plating
Gold
Cable length
1.8 m
Connector 1
Mini DisplayPort
Connector 2
DVI-D
Connector 1 gender
Male
Connector 2 gender
Male
HDCP
Y
DisplayPort version
1.2a
Dual Link DVI
Y
Supported video modes
1080p
Data transfer rate
2.7 Gbit/s
Maximum refresh rate
60 Hz
Product colour
Black
Magnetically shielded
Y
Jacket material
Polyvinyl chloride (PVC)
AWG wire size
28
Converter type
Passive video converter
Certification
UL 20276
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-10 - 80 °C
Operating relative humidity (H-H)
0 - 96%
Weight & dimensions
Weight
190 g
Packaging data
Quantity per pack
1 pc(s)
Package type
Polybag
Information
| Part Number: | 152150 |
