Product Details
Introduction

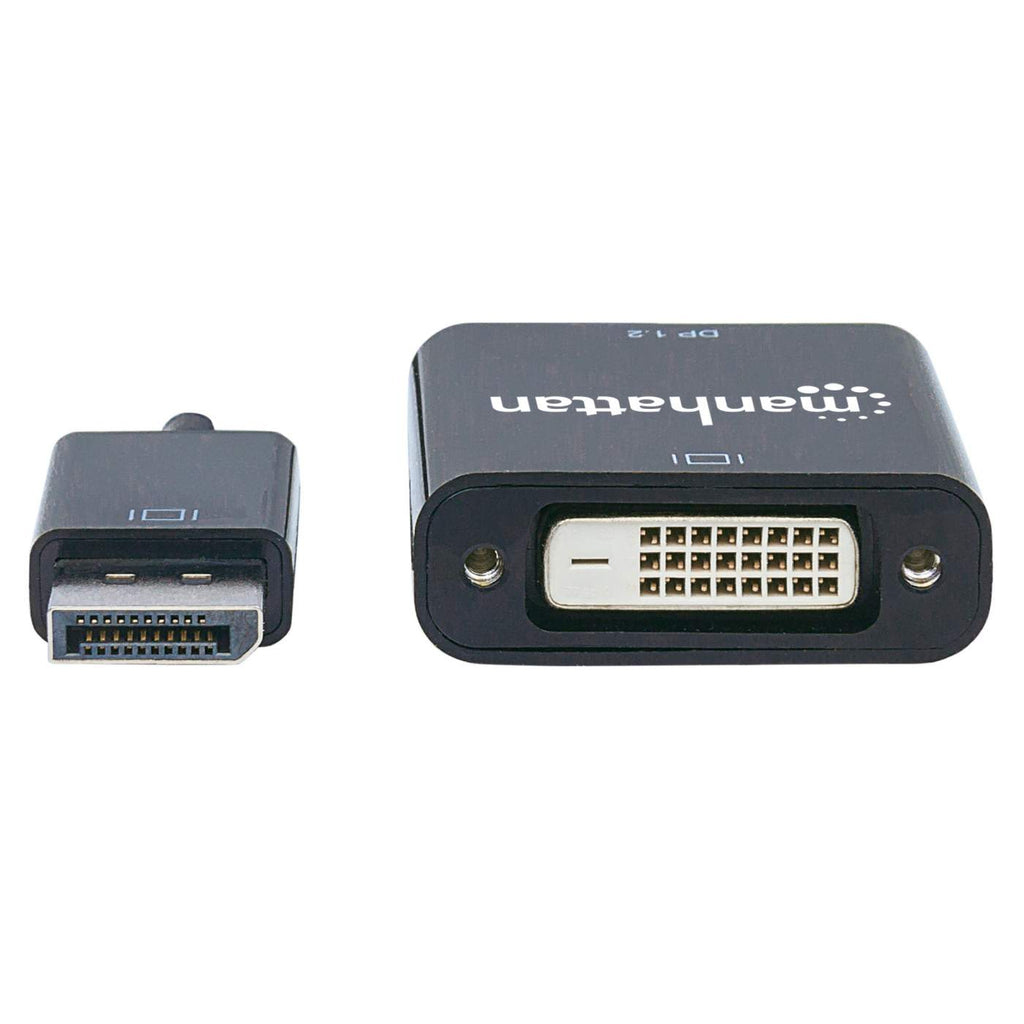

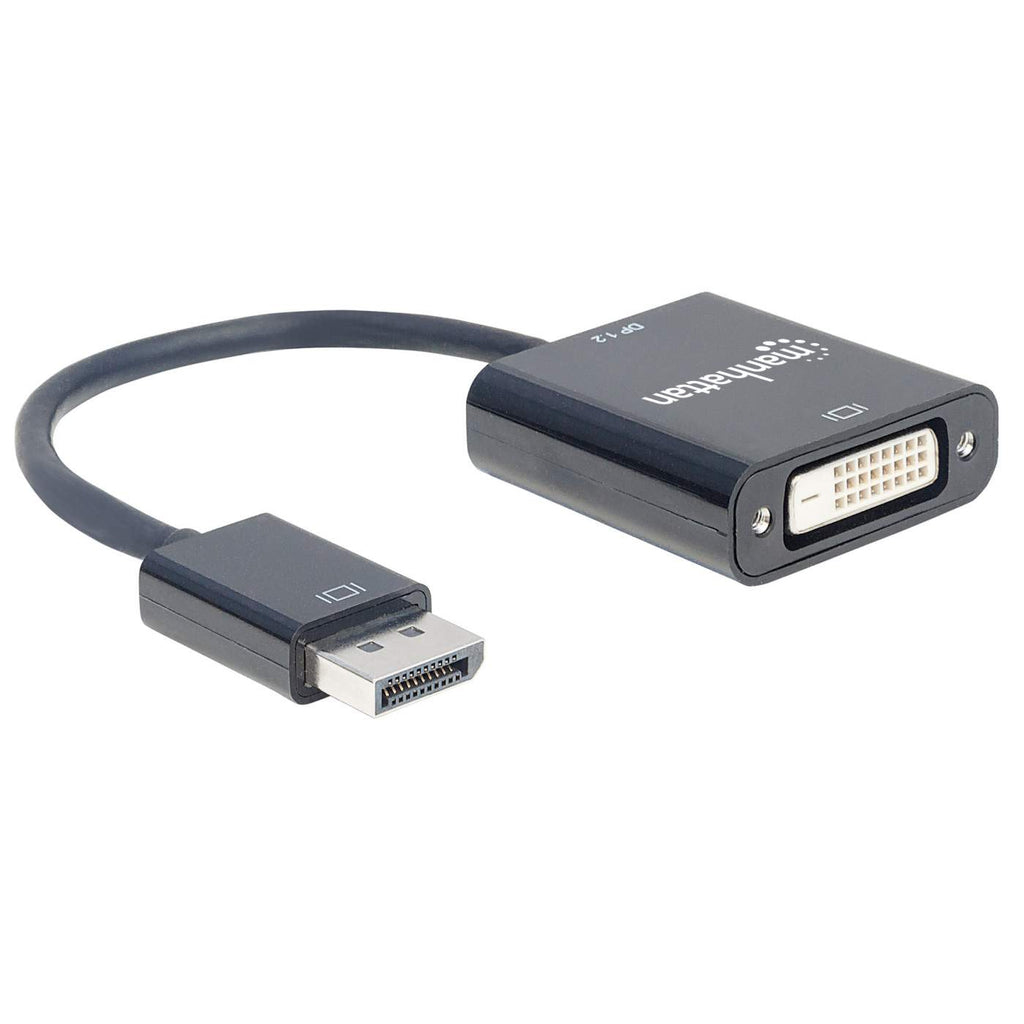

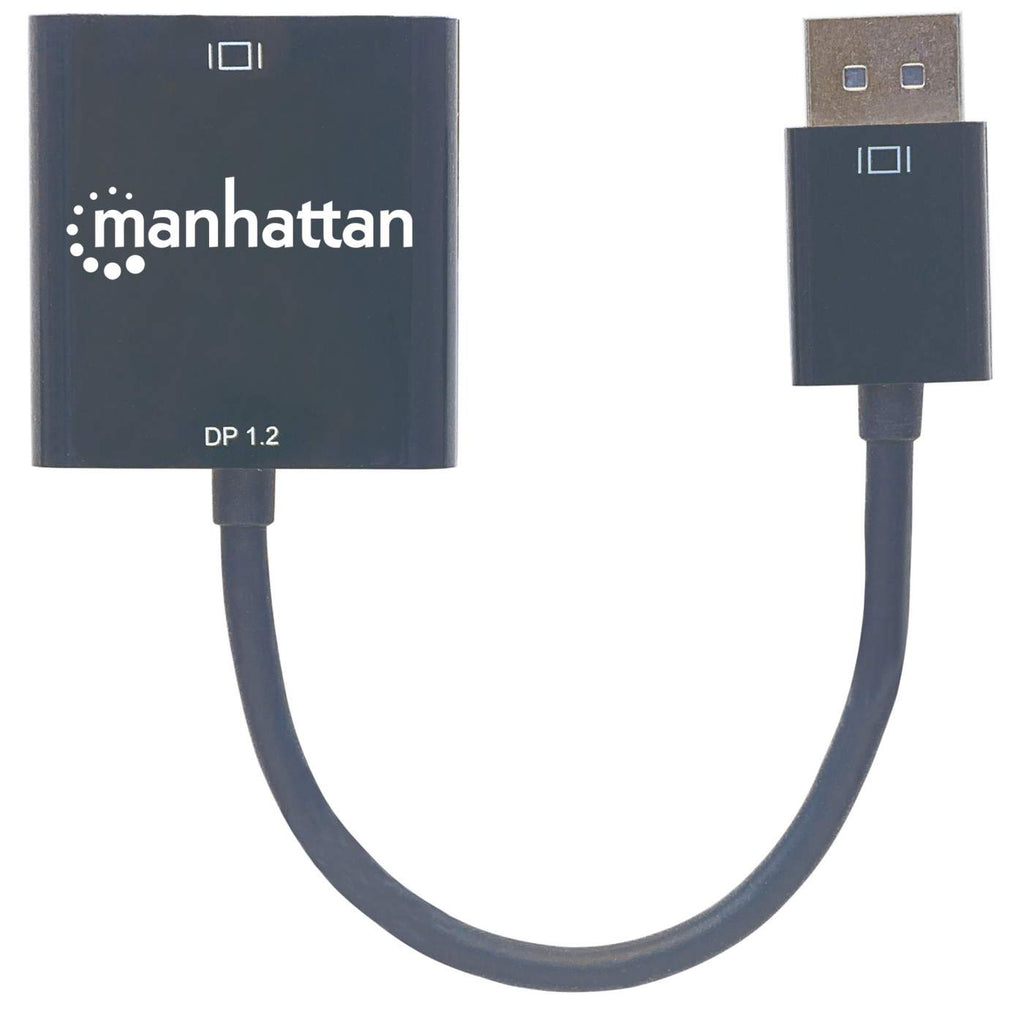

Easily connect a DisplayPort source to an DVI-D display.
The Manhattan DisplayPort Adapter helps establish a fast, simple and convenient link between newer DisplayPort-equipped sources and existing DVI-D displays. The Manhattan DisplayPort Adapter is easy and quick to install. No complicated configuration or setup is required, which helps fully realise the investment, value and service life of DVI-D displays. Its all-in-one design is a compact, integrated solution that eliminates unnecessary cables, tangles and clutter to keep installations and workspaces neat and orderly.
Features
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Connector contacts plating
Gold
Cable length
0.23 m
Connector 1
DisplayPort
Connector 2
DVI-D
Connector 1 gender
Male
Connector 2 gender
Female
DisplayPort version
1.2a
Dual Link DVI
Y
Maximum resolution
1920 x 1080 pixels
Data transfer rate
10.8 Gbit/s
Product colour
Black
Converter type
Active video converter
Connector gender
Male/Female
Certification
HDCP
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-10 - 80 °C
Weight & dimensions
Weight
40 g
Width
42 mm
Depth
230 mm
Height
15 mm
Packaging data
Quantity per pack
1 pc(s)
Package type
Polybag
Information
| Part Number: | 152228 |
