INTELLINET/MANHATTAN 10G/5G USB-C / USB-A Hub 4+3 7-Port with Power Delivery

INTELLINET/MANHATTAN 10G/5G USB-C / USB-A Hub 4+3 7-Port with Power Delivery

£22.57 (incl. VAT)

Qty:

Add to basket

Part Number:	181167
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

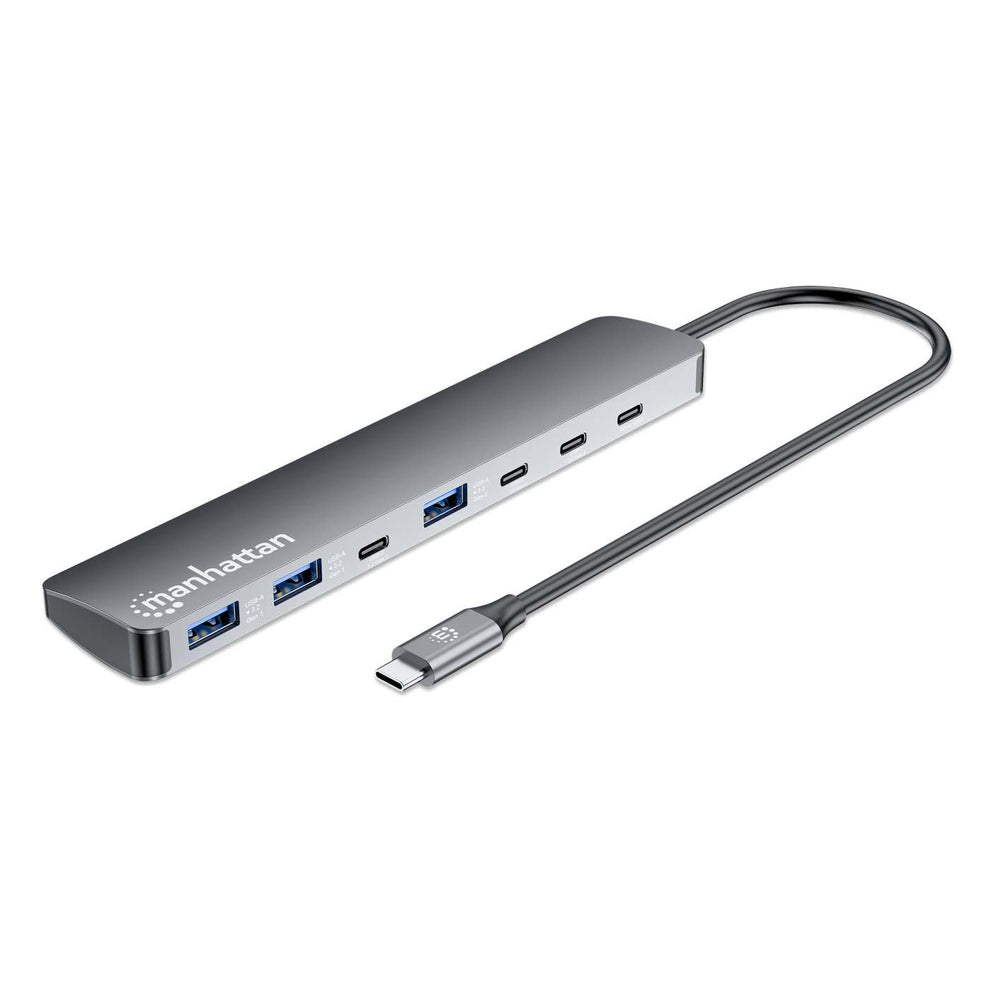

7-Port 10G PD Hub with 3 USB Type-C and 3 USB Type-A Data Ports to Add Ultra-Fast USB Connectivity and 100 W Charging to Your Laptop
Maximize your connectivity with the Manhattan 7-Port 10G USB-C / USB-A Hub, designed to boost your productivity with super-fast data transfers, versatile connections, and powerful charging capabilities - all in one sleek, portable design.

Versatile Port Extension

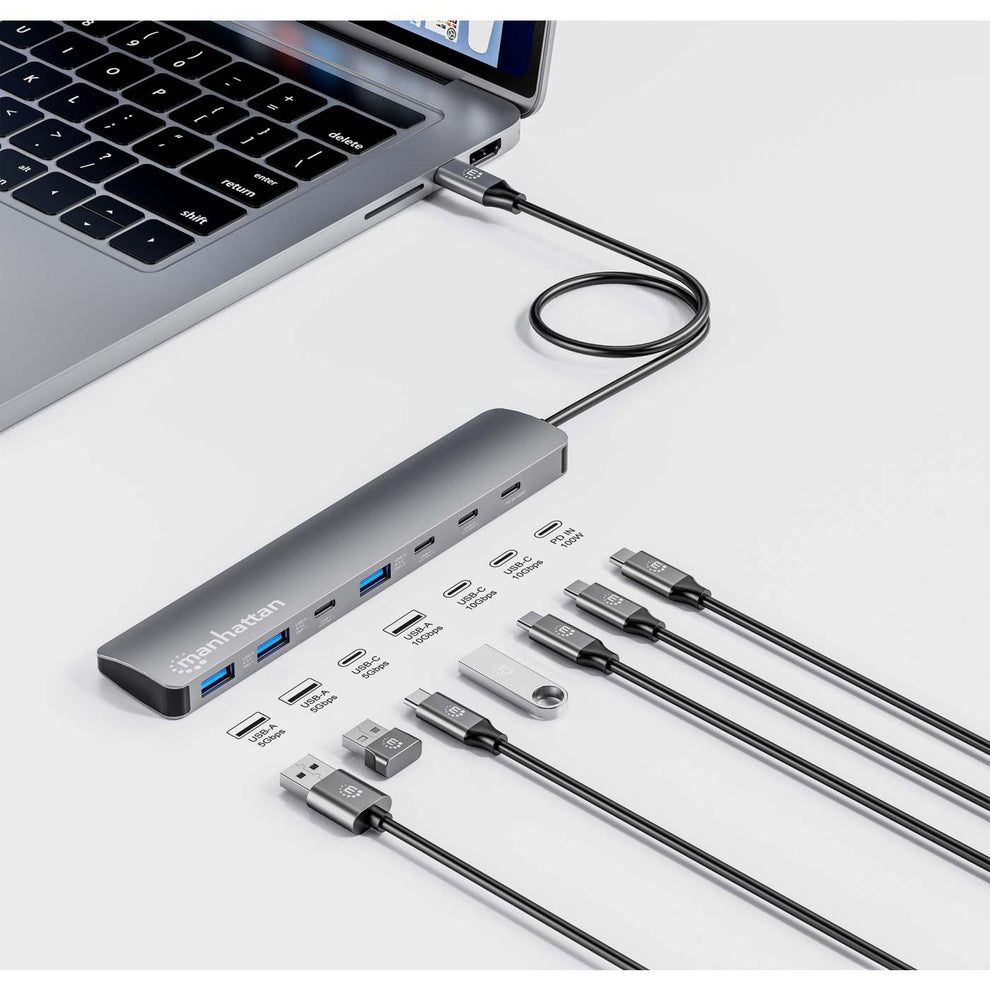

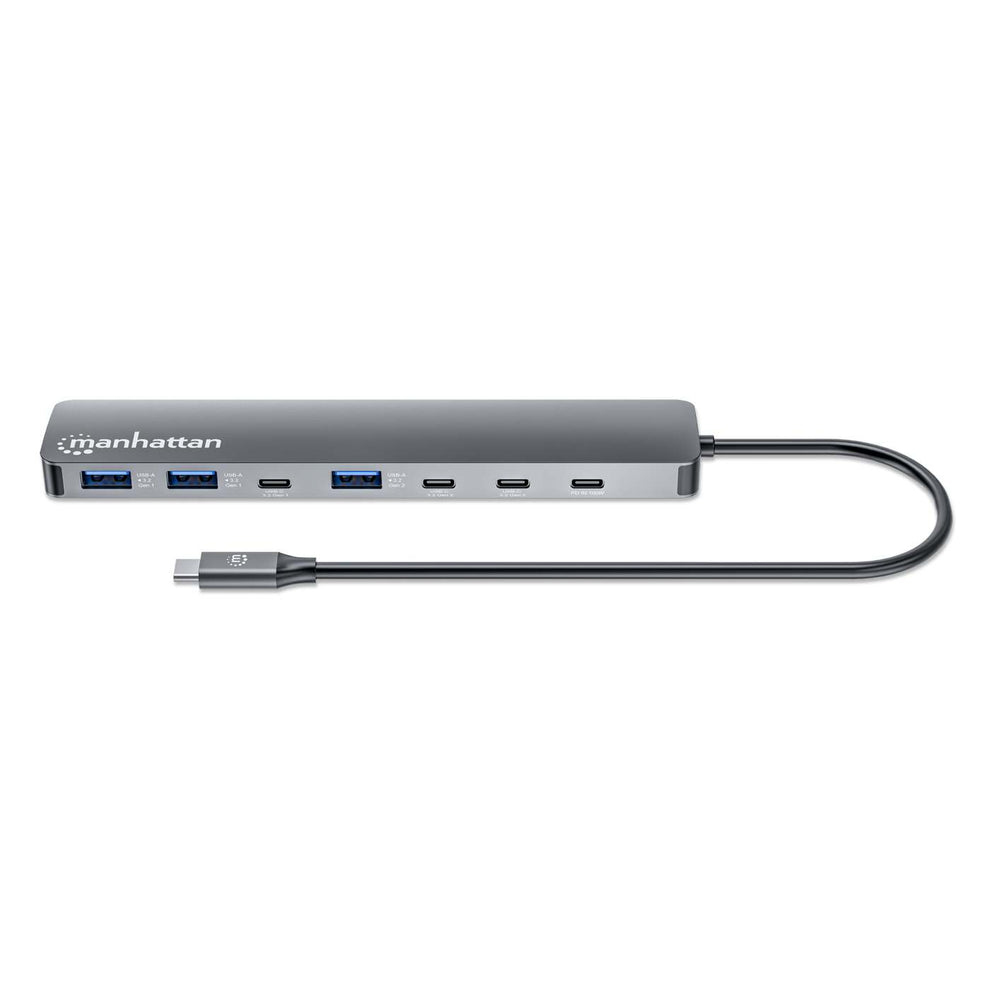

Equipped with three USB-C ports and three USB-A ports, this hub gives you the flexibility to connect a wide range of devices. Plug in your external SSDs, card readers, and Ethernet adapters via USB-C, while still connecting your essential peripherals like mice, keyboards, and flash drives through the USB-A ports.

Blazing-Fast 10G Performance

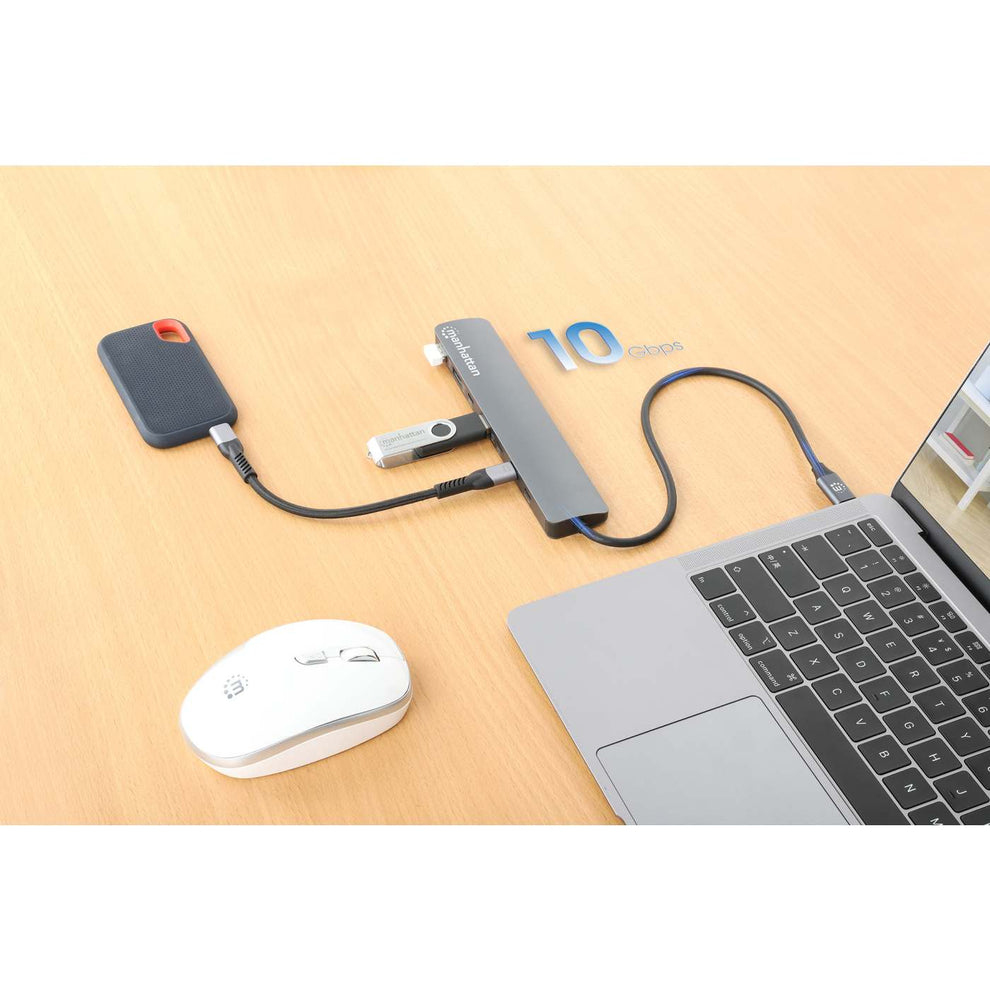

One USB-A and two USB-C ports support USB 3.2 Gen 2 SuperSpeed+ technology, delivering transfer rates up to 10 Gbps - perfect for moving large files, backing up data, or connecting high-performance peripherals without delays. One USB-C and two USB-A ports support USB 3.2 Gen 1 SuperSpeed technology, delivering transfer rates up to 5 Gbps.

Power Your Laptop While You Work
Stay powered up with USB Power Delivery (PD) support. Simply connect your PD charger (available from Manhattan) to deliver up to 100 W of charging power, keeping your laptop, MacBook®, or Surface® device ready for action.

Plug-and-Play Simplicity
Forget about complicated setups - this hub offers plug-and-play installation with no drivers required. It’s compatible with Windows®, macOS®, Linux®, and Chrome OS™, ensuring seamless integration with your devices.

Designed for Convenience

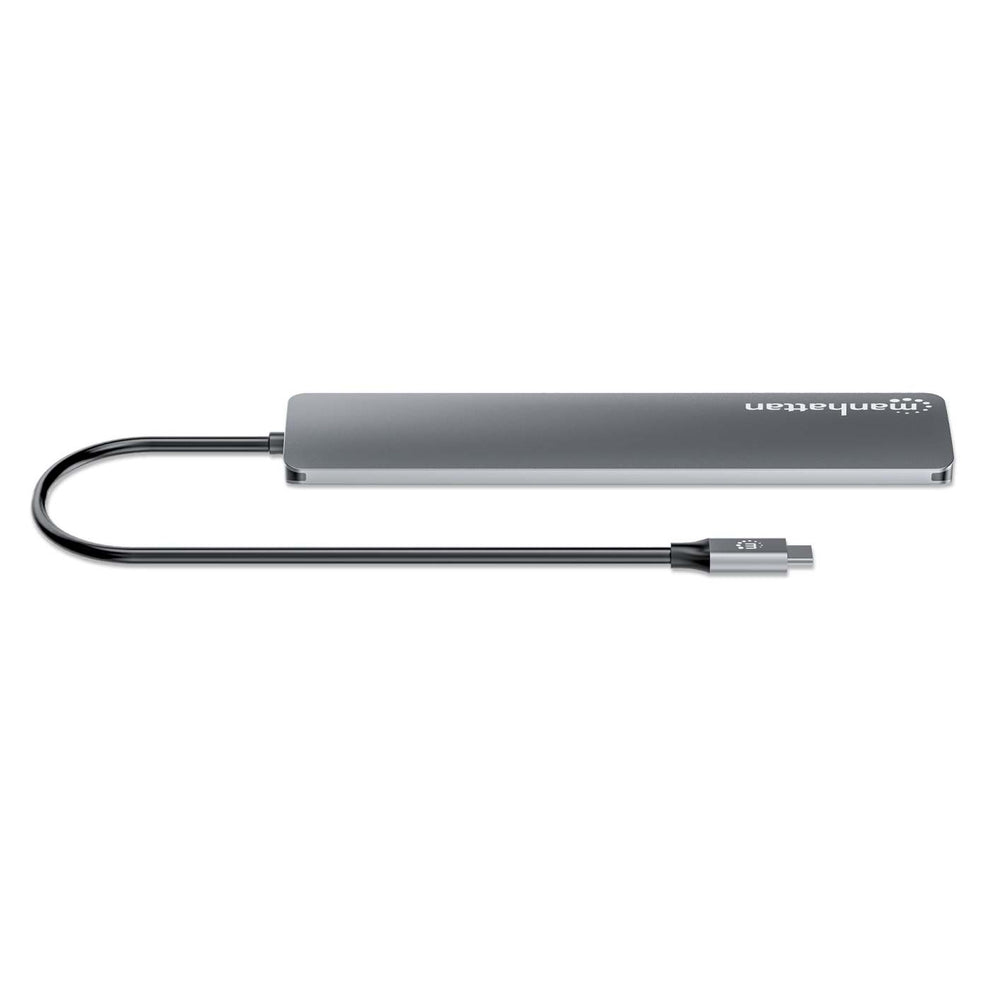

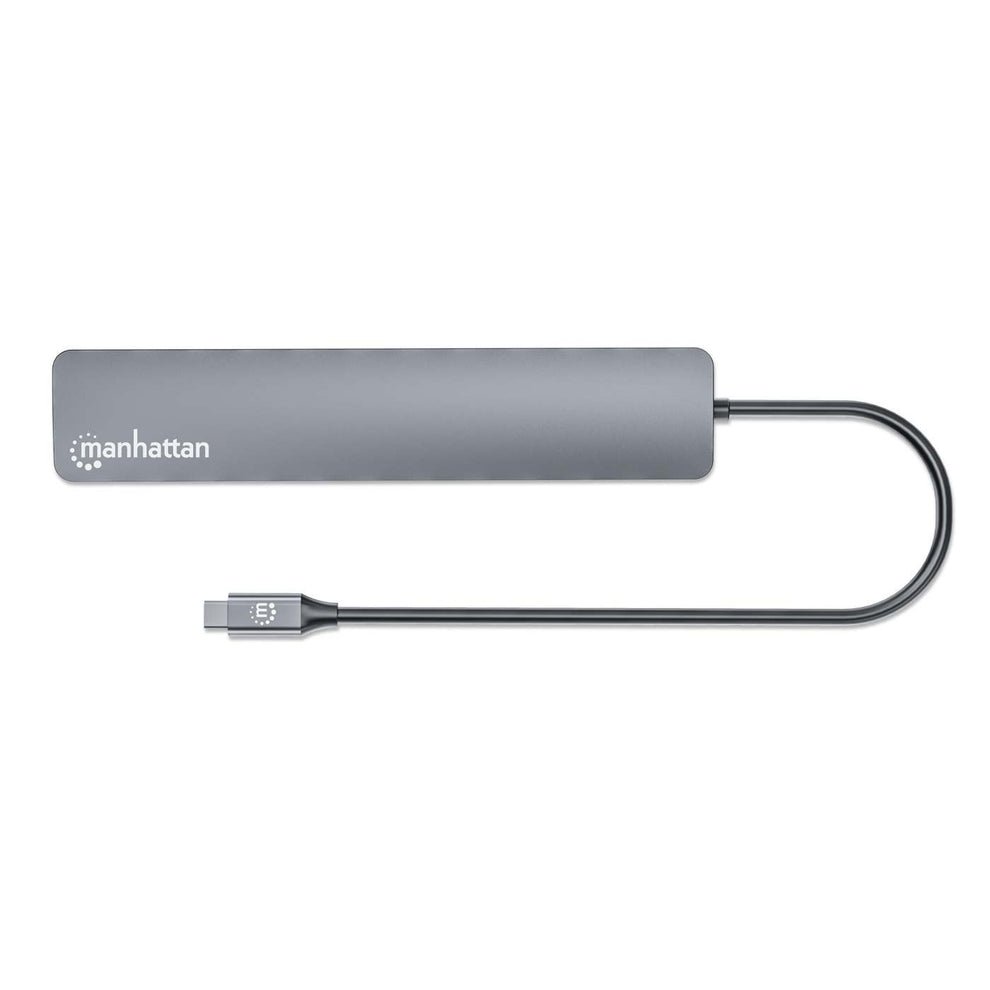

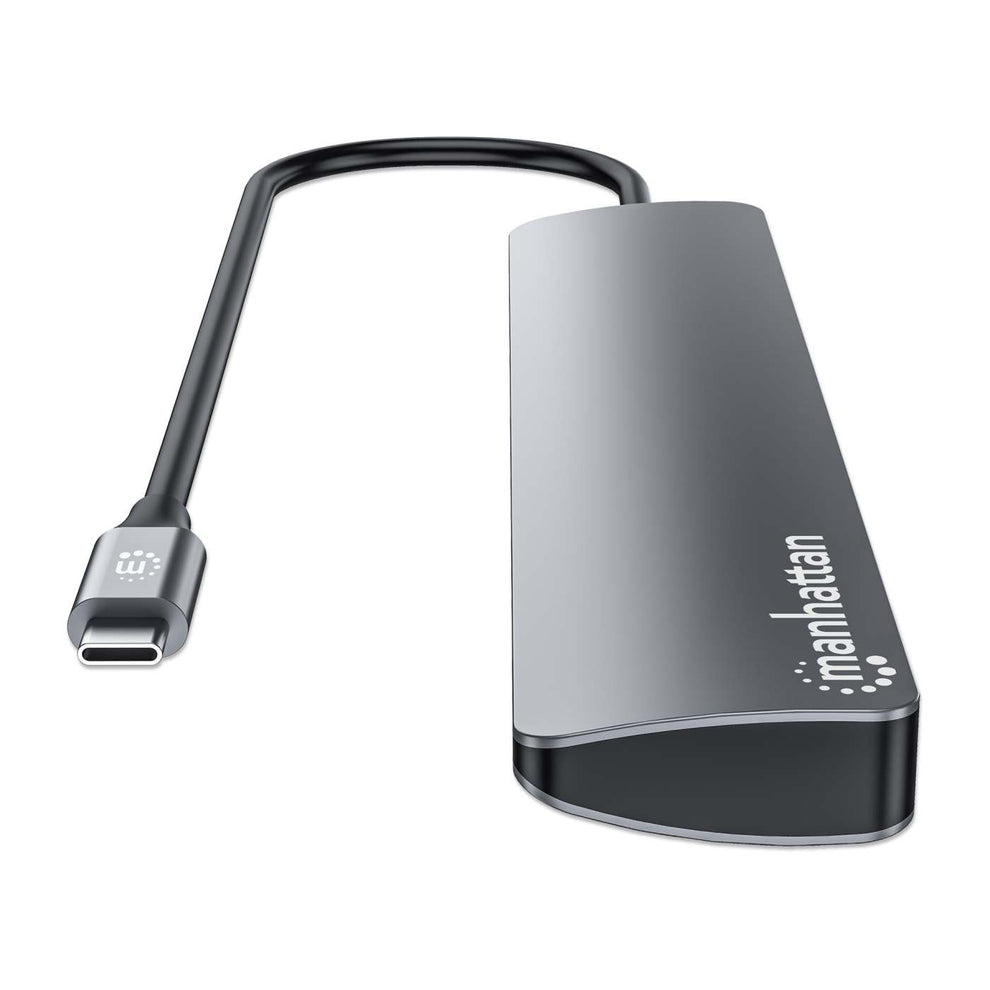

The hub’s sturdy 30 cm (1 ft.) built-in cable provides optimal reach for desktop setups, while its sleek aluminum housing offers durability and style. The compact and lightweight design easily fits into your laptop bag, making it perfect for travel or hybrid work environments.

Built for Performance and Protection
With Hot Swapping support and bus-powered functionality, this hub adapts to your workflow. For additional flexibility, the optional USB-C charging port supports PD functionality when an external charger is connected.

Ports & interfaces

Connectivity technology Wired

Host interface USB 3.2 Gen 2 (3.1 Gen 2) Type-C

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 2

Number of USB ports with PowerShare support 1

USB Power Delivery (USB PD) Yes

USB Power Delivery up to 100 W

Microphone in No

Network

Ethernet LAN No

Performance

Colour name Space Grey

Card reader integrated No

Product colour Grey

Plug and Play Yes

Housing material Aluminium

Audio

Built-in speaker(s) No

Cooling

Built-in fan No

Power

Power source type USB

Power connector USB Type-C

Output voltage 5 / 9 / 12 / 15 / 19 / 20 V

Output current 5 A

USB cable length 0.3 m

Software

Windows operating systems supported Yes

Mac operating systems supported Yes

Linux operating systems supported Yes

Other operating systems supported ChromeOS, Linux

Operational conditions

Operating temperature (T-T) 0 - 50 °C

Storage temperature (T-T) -20 - 60 °C

Operating relative humidity (H-H) 0 - 85%

Weight & dimensions

Width 34 mm

Depth 169 mm

Height 13 mm

Weight 74 g

Packaging data

Quantity per pack 1 pc(s)

Package width 34 mm

Package depth 169 mm

Package height 13 mm

Package weight 100 g

Technical details

Compliance certificates CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA

Information

Part Number:

181167
