Product Details
Introduction

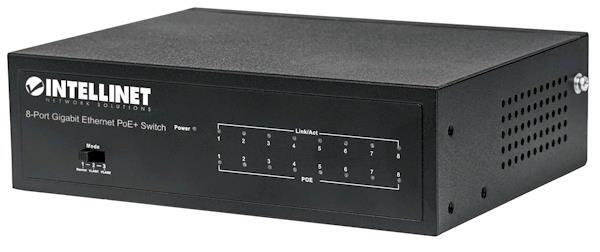

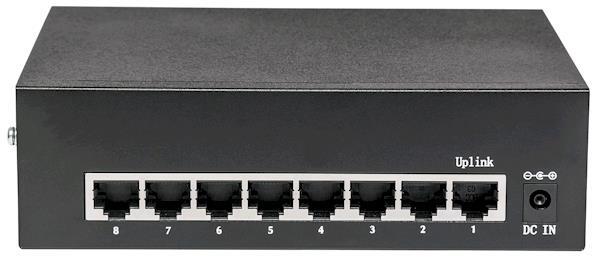

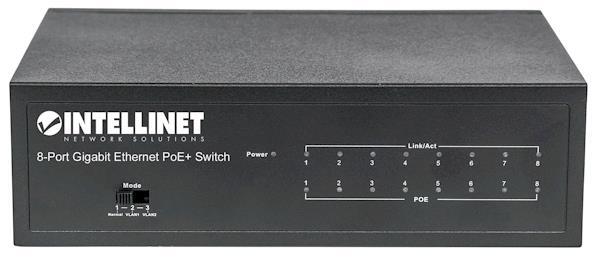

The Intellinet Network Solutions 8-Port Gigabit PoE+ Switch is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with eight Gigabit Ethernet ports, this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 1000 Mbps.
General
Model
561204
Type
Fixed Port
Technical Features
Port Count
8
Management
Unmanaged
Routing/Switching
Layer 2
Uplink Speed/Media
10/100/1000 Copper
High Availability
None
Management Features
MAC address table: 4096 entries
Features
PoE
PoE+
PoE+
Ports/Interfaces
RJ-45
LEDs
PoE,Power,link,Activity
Form Factor
Mounting
Desktop
Power and Operating Requirements
Power Consumption
60 W
Input Voltage
100 - 240 V AC, 50 - 60 Hz
Dimensions and Weight
Width
155 mm (6.10 inches)
Height
46 mm (1.81 inches)
Depth
118 mm (4.65 inches)
Weight
0.93 kg (2.05 lb)
Information
| Part Number: | 561204-UK |
