Introduction

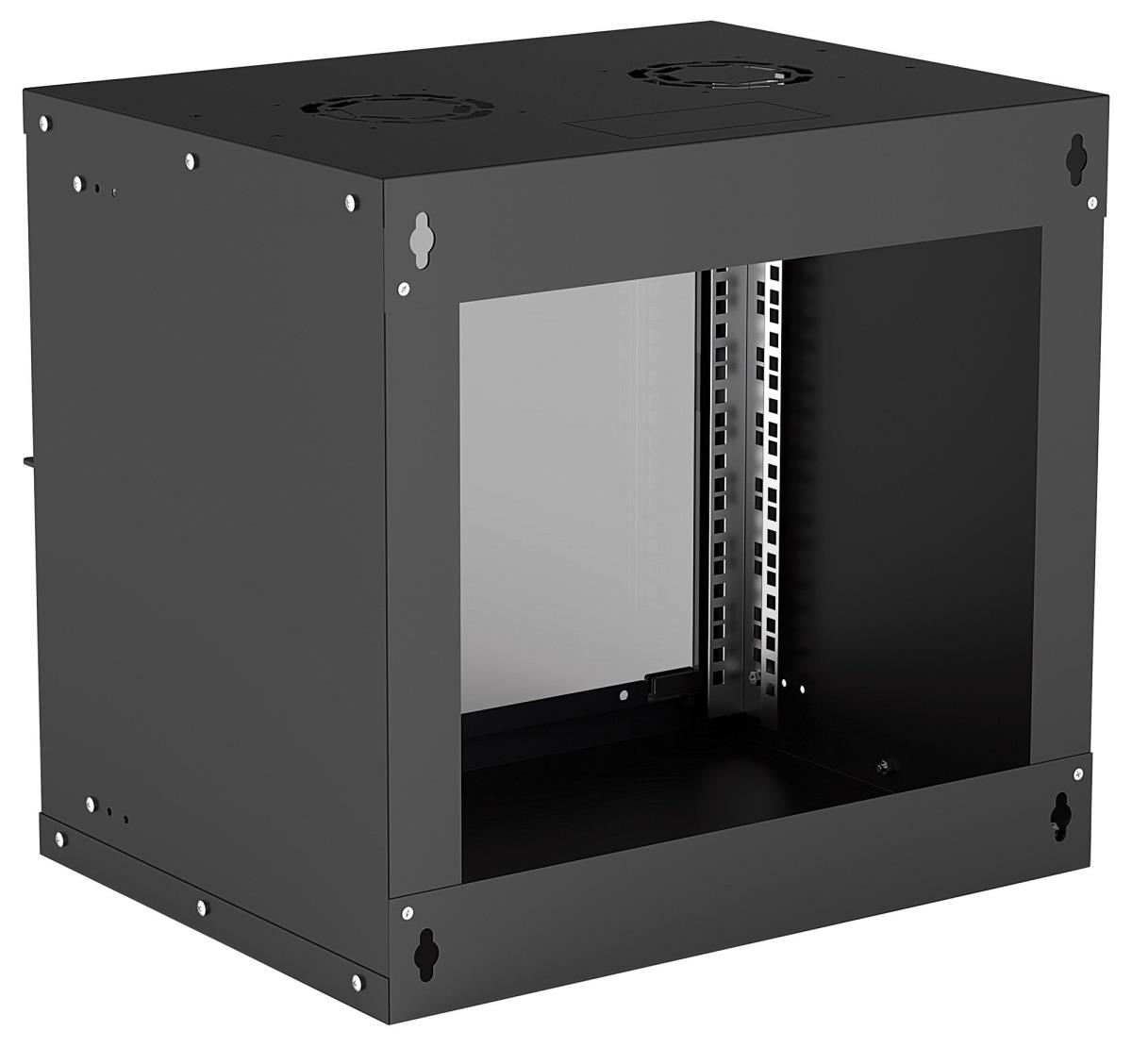

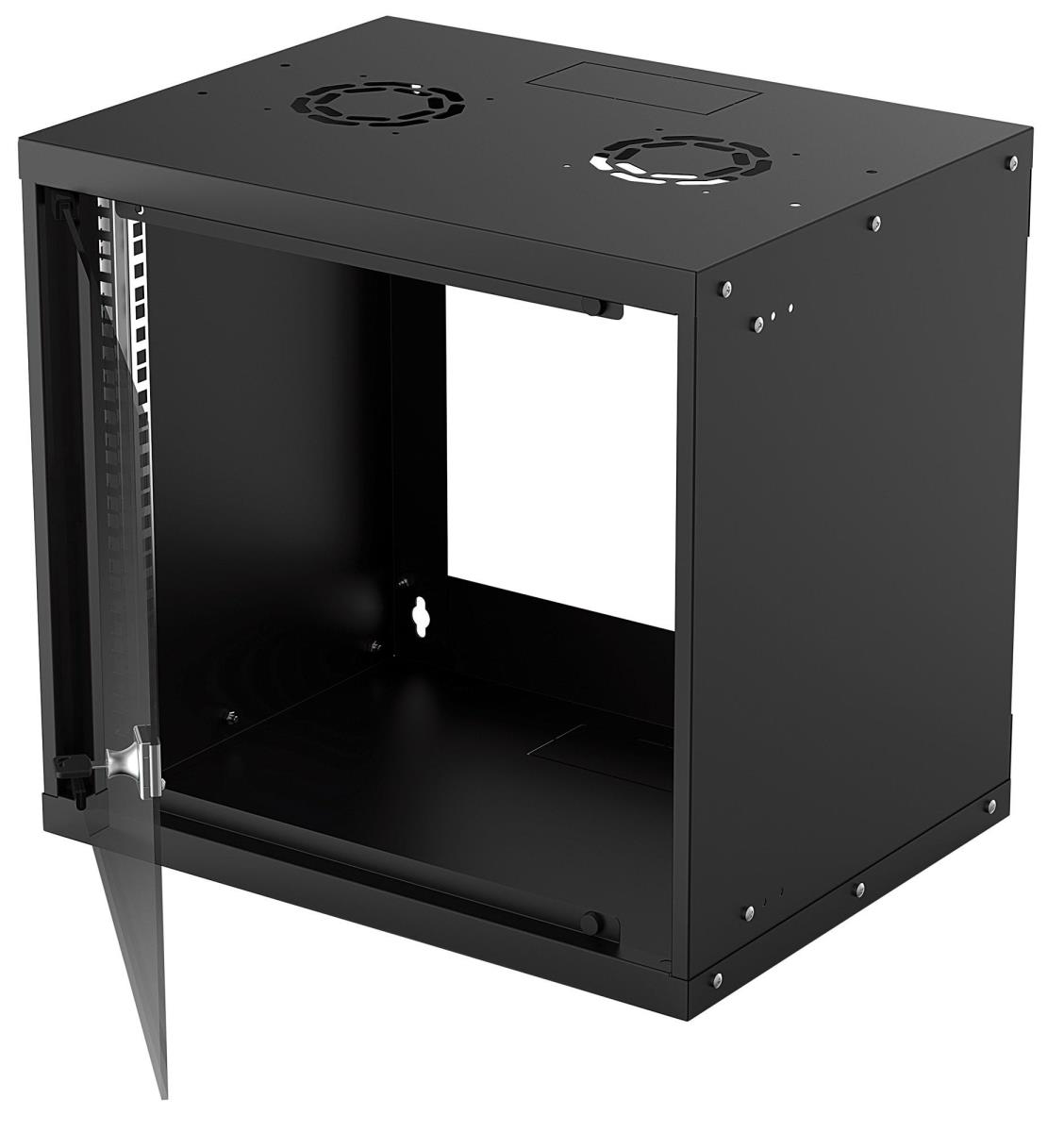

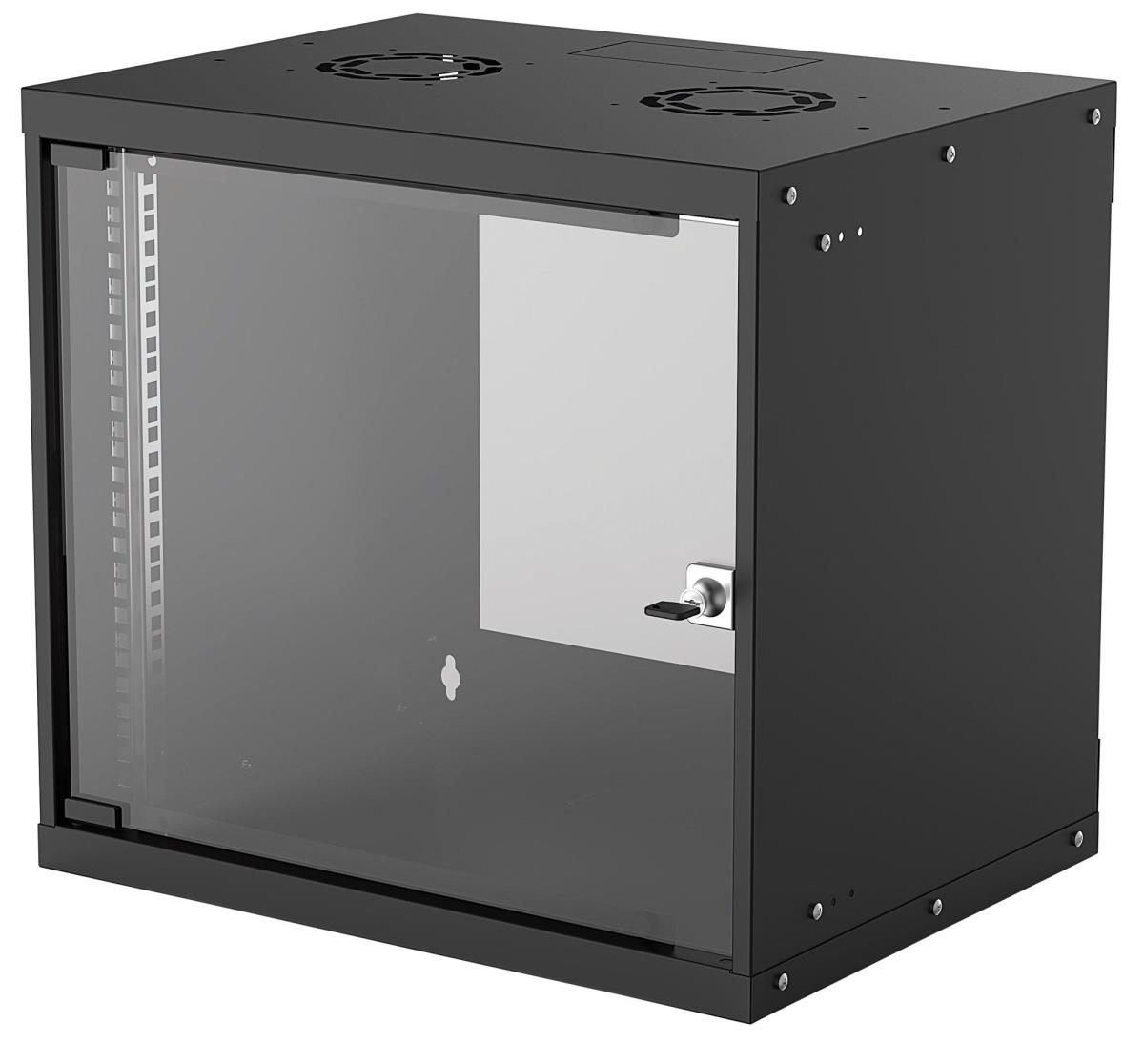

The Intellinet Network Solutions Basic Wallmount Cabinet provides a low-cost yet highly effective solution for protecting network equipment and securing its installation. An IP20 rating is achieved with cold-rolled, galvanized steel and a reversible, tempered-glass door that allows for easy access in limited-space environments.
Available in black or grey at 6U or 9U heights and common, device-friendly depths, the Intellinet Network Solutions Basic Wallmount Cabinet is sure to accommodate and protect network equipment while complementing the network space and its surrounding environment.
Technical details
Harmonized System (HS) code
85381000
Features
Rack capacity
9U
Type
Wall mounted rack
Maximum weight capacity
50 kg
Product colour
Black
Material
Galvanized steel
Frame type
Closed
Front door construction
Glass
International Protection (IP) code
IP20
Certification
ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7
Weight & dimensions
Size (imperial)
48.3 cm (19")
Width
540 mm
Depth
400 mm
Height
487 mm
Weight
10.7 kg
Packaging data
Manual
Y
Information
| Part Number: | 714174 |
