Product Details
Introduction

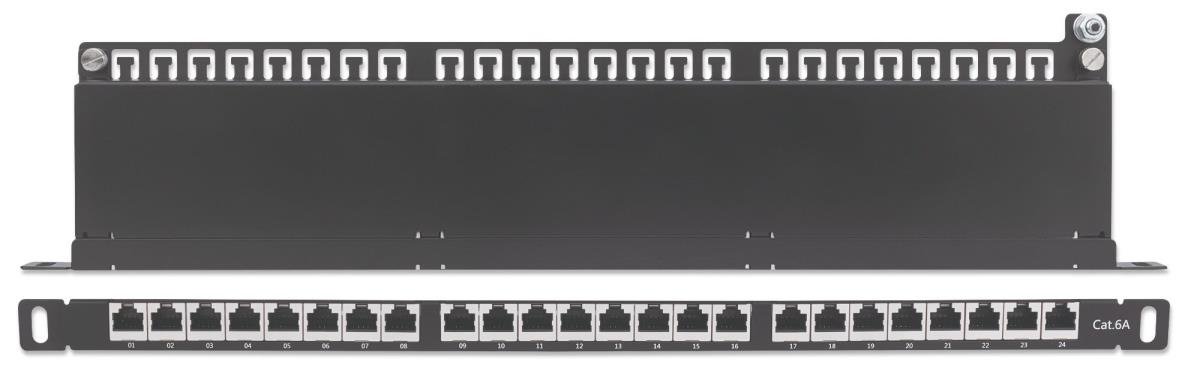

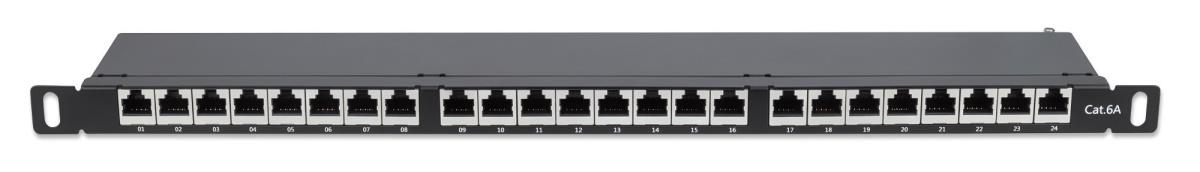

Cat6a Shielded Patch Panel for proper network connections
The Intellinet Network Solutions Cat6a Shielded Patch Panel helps IT staff create the right Cat6a-compliant network for their organization. Whether wiring connection points for all compatible equipment or adding more ports to the network with the latest Ethernet cabling standard available, the Cat6a Shielded Patch Panel helps the network grow and evolve. The panel is designed for fully shielded twisted-pair Cat6a wires, and compatible Krone punch-down tools will help get ports wired quickly. The Intellinet Network Solutions Cat6a Shielded Patch Panel adheres to current industry standards and is 19"" rack compliant.
Technical details
Compliance certificates
CE, RoHS, UL
Harmonized System (HS) code
85371098
Sustainability certificates
RoHS
Network
Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Cabling technology
10/100/1000Base-T(X)
Maximum data transfer rate
1000 Mbit/s
Ports quantity
24
Connector contacts plating
Gold
Cable types supported
Cat6a
AWG wire size
23/24/25/26
Design
Product colour
Black, Grey
Mounting
Rack mounting
Rack capacity
0.5U
Certification
CE
FCC
Operational conditions
Operating temperature (T-T)
10 - 60 °C
Operating relative humidity (H-H)
-40 - 70%
Storage temperature (T-T)
10 - 90 °C
Weight & dimensions
Width
482 mm
Height
22 mm
Depth
107 mm
Weight
1.14 kg
Information
| Part Number: | 720922 |
