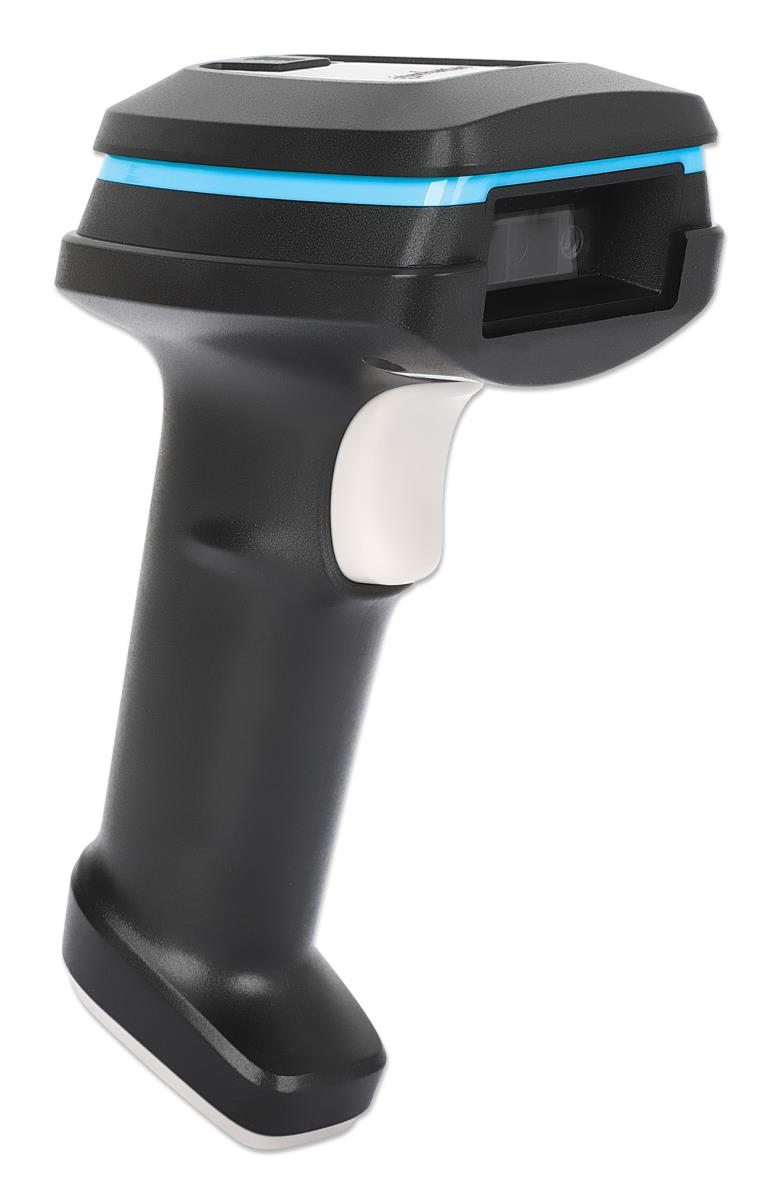

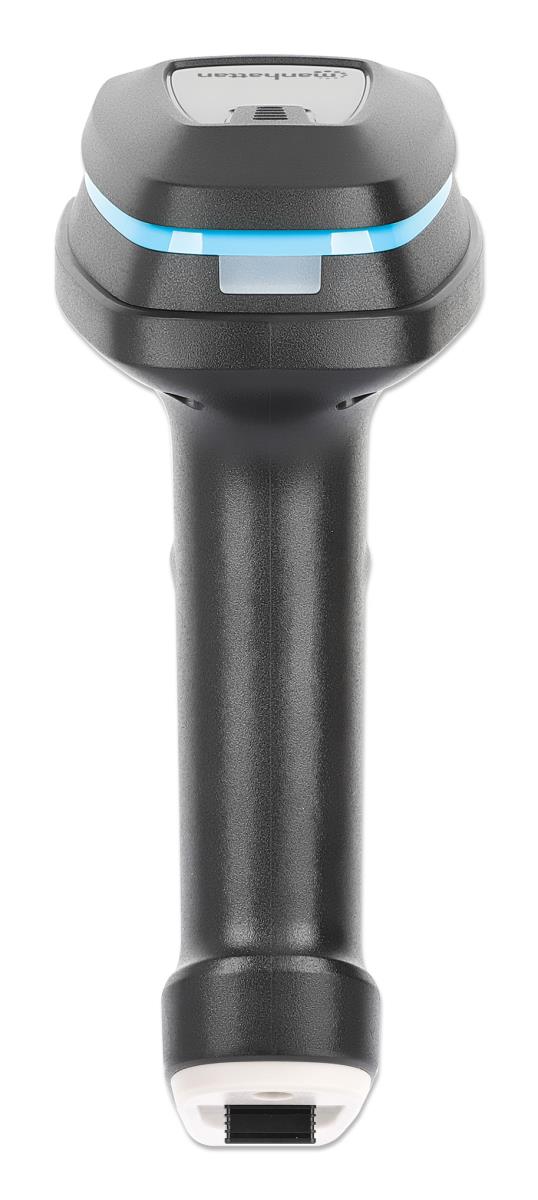

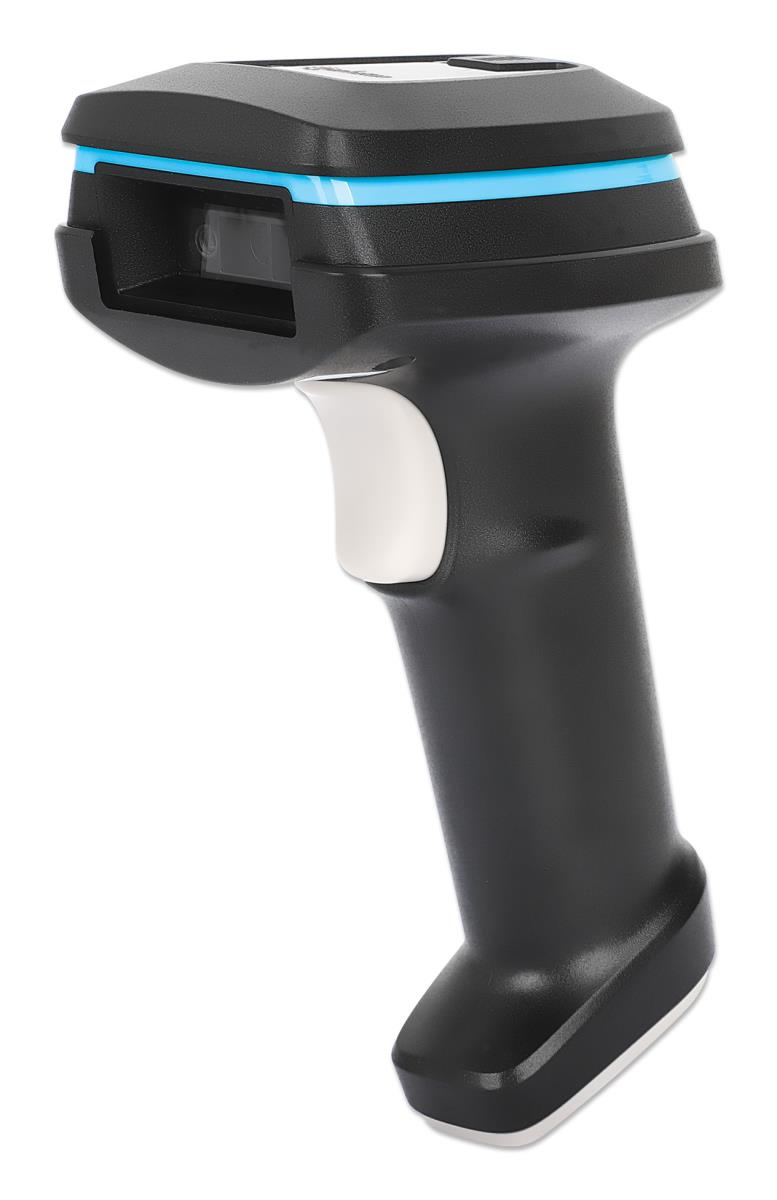

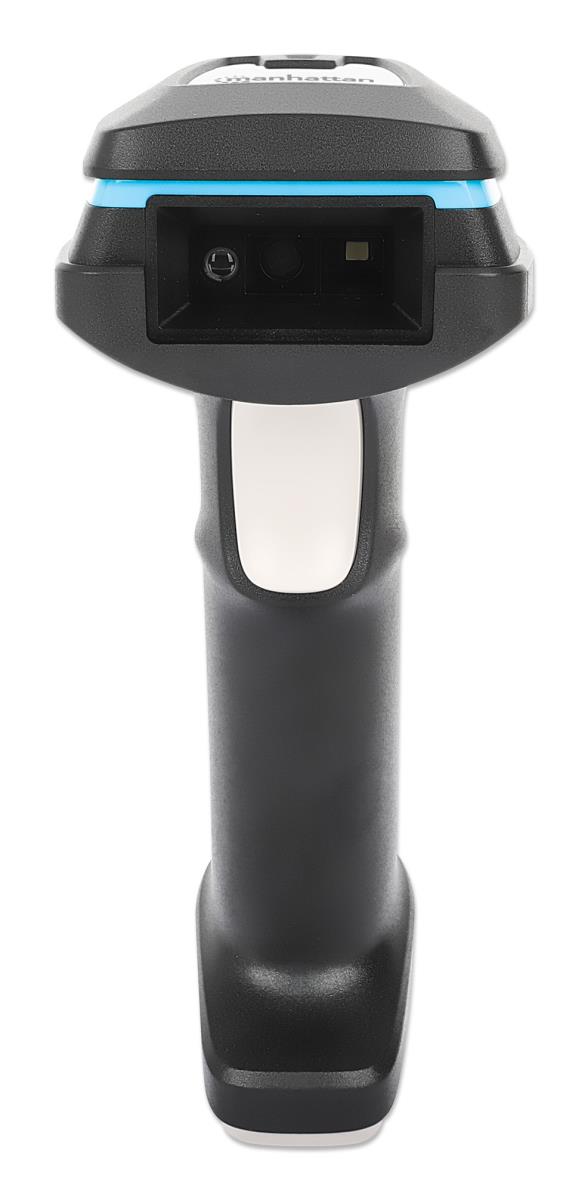

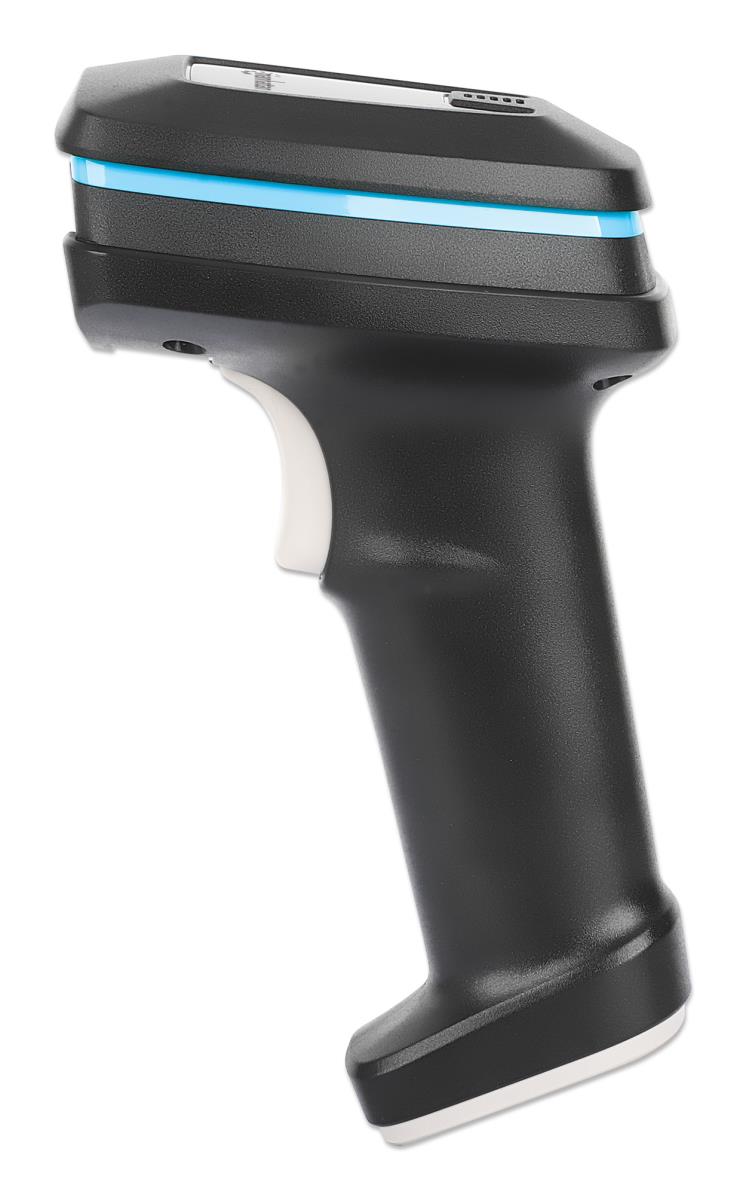

INTELLINET/MANHATTAN Wireless 2D Long Range LED Barcode Scanner

INTELLINET/MANHATTAN Wireless 2D Long Range LED Barcode Scanner

£149.95 (incl. VAT)

Qty:

Add to basket

Part Number:	154185
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

Rugged Cordless 1D / 2D USB Barcode Scanner that helps you improve Productivity in Retail, Hospitality, Warehousing, and Harsh Environments
The Manhattan Wireless 2D Long Range LED Barcode Scanner is your durable solution for streamlined data entry and enhanced efficiency to help improve routine transactions and automate paper-based processes. Capture barcodes from mobile devices, 1D and 2D Paper barcodes on items for sale, coupons, loyalty cards and more. This scanner is built for such different industries as retail/point-of-sale, healthcare, hospitality, warehousing or logistics.

Wireless Connectivity with Computers and Mobile Devices

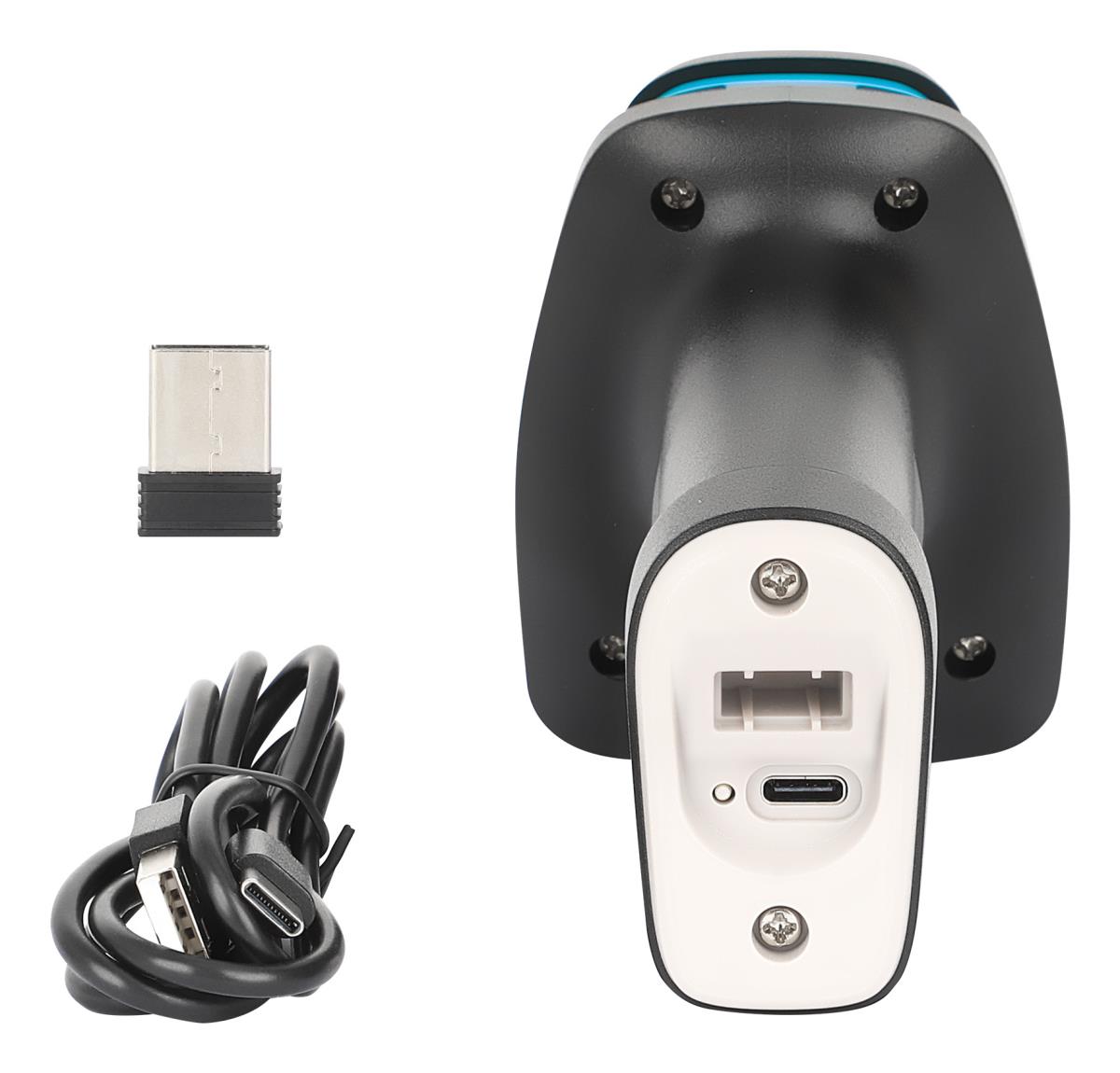

For classic, simple USB plug-and-play installation, just connect the nano receiver to a USB-A port on your PC, MacBook, or similar device. Alternatively, pair the scanner directly via Wireless 4.2 with all devices, including your iPad® and Android tablet. The transmission range from your host device to the scanner is up to 100 m (328 ft.) with the included 2.4 GHz RF dongle or up to 50 m (164 ft.) with Wireless 4.2.

Quick and Accurate Reads Every Time
With its wide scan field and scan depth of up to 450 mm (17.7 in.) , it ensures quick and accurate reads every time. Significantly reduce errors and delays for seamless operations in your daily business.

Versatile Compatibility for Many Symbologies
Equipped with advanced technology, it detects a wide range of popular 1D and 2D symbologies, including UPC, EAN, QR Code, Data Matrix, PDF417, and many more. Whether it's barcodes or intricate QR codes, it handles it all with precision and speed.

Rugged Design for Harsh Environments
Featuring an IP52-rated housing, our scanner is built to withstand harsh environments with protection against dust and water ingress.

Reliable Performance in Any Lighting Condition
Experience maximum reliability even in the most challenging lighting conditions. With an exceptional ambient light tolerance of 100,000 lux, this scanner delivers reliable readings even in direct sunlight, ensuring uninterrupted workflow.

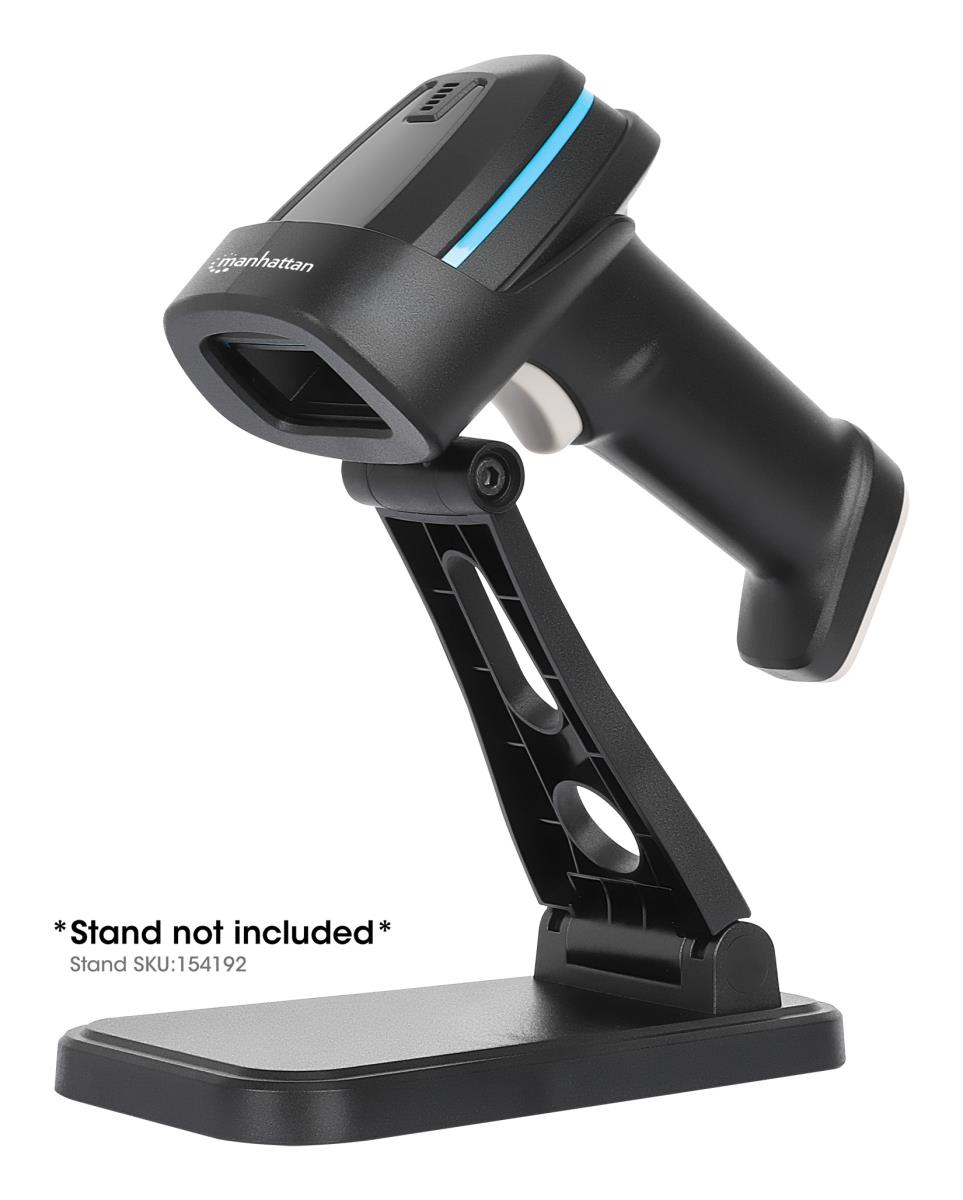

Enhanced Convenience with our Barcode Scanner Stand
For added convenience, pair our scanner with the Manhattan Barcode Scanner Stand #154192 for hands-free operation, ideal for busy retail environments and automated processes.

Scanning

Type Handheld bar code reader

Scanner type 1D/2D

Sensor type LED

Linear (1D) barcodes supported China Post, Codabar, Code 11, Code 128, Code 39, Code 39 (ASCII), Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1 Databar Limited, GS1-128 (UCC/EAN-128), ISSN, Industrial 2 of 5, Interleaved 2 of 5, MSI, Matrix 2 of 5, Telepen, UPC-A, UPC-E, JAN-13, JAN-8

2D (matrix & stacked) barcodes supported Aztec Code, Data Matrix, Dot Code A, Grid Matrix Code, MaxiCode, MicroPDF417, PDF417, QR Code

Optical sensor resolution (W x H) 1280 x 800 pixels

1D resolution (min) 0.076 mm

2D resolution (min) 0.18 mm

Working distance 45 cm

Horizontal field of view 45°

Vertical field of view 36°

Read rate (max) 60 reads/s

Light levels (direct sunlight) 0 - 100000 lx

Ports & interfaces

Connectivity technology Wireless

Standard interfaces RF Wireless

Wireless range 80 m

Cable length 1 m

Performance

Housing material Acrylonitrile butadiene styrene (ABS)

International Protection (IP) code IP52

Protection features Drop resistant

Print contrast 20%

Product colour Black

Mean time between failures (MTBF) 50000 h

Power

Power source type Battery

Charging port type USB Type-C

Battery capacity 2000 mAh

Battery voltage 3.7 V

Charging time 5 h

Power consumption 280 mA

Weight & dimensions

Width 67 mm

Depth 87 mm

Height 172 mm

Weight 200 g

Packaging data

Cables included USB Type-A to USB Type-C

Receiver included Yes

Receiver type Nano receiver

Package width 175 mm

Package depth 80 mm

Package height 108 mm

Package weight 320 g

Operational conditions

Operating temperature (T-T) -10 - 50 °C

Storage temperature (T-T) -20 - 70 °C

Operating relative humidity (H-H) 20 - 95%

Drop resistance 1.2 m

Technical details

Warranty period 3 year(s)

Compliance certificates CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA

Logistics data

Products per master (outer) case 40 pc(s)

Master (outer) case gross weight 12.8 kg

Master (outer) case length 565 mm

Master (outer) case width 360 mm

Master (outer) case height 400 mm
