INTELLINET/MANHATTAN Monitor Mount - Wall - 1 Monitor - Tilt - 43 to 90in

£40.42

Part Number: 461863
Delivery: 1 - 2 days

Product Details

Introduction

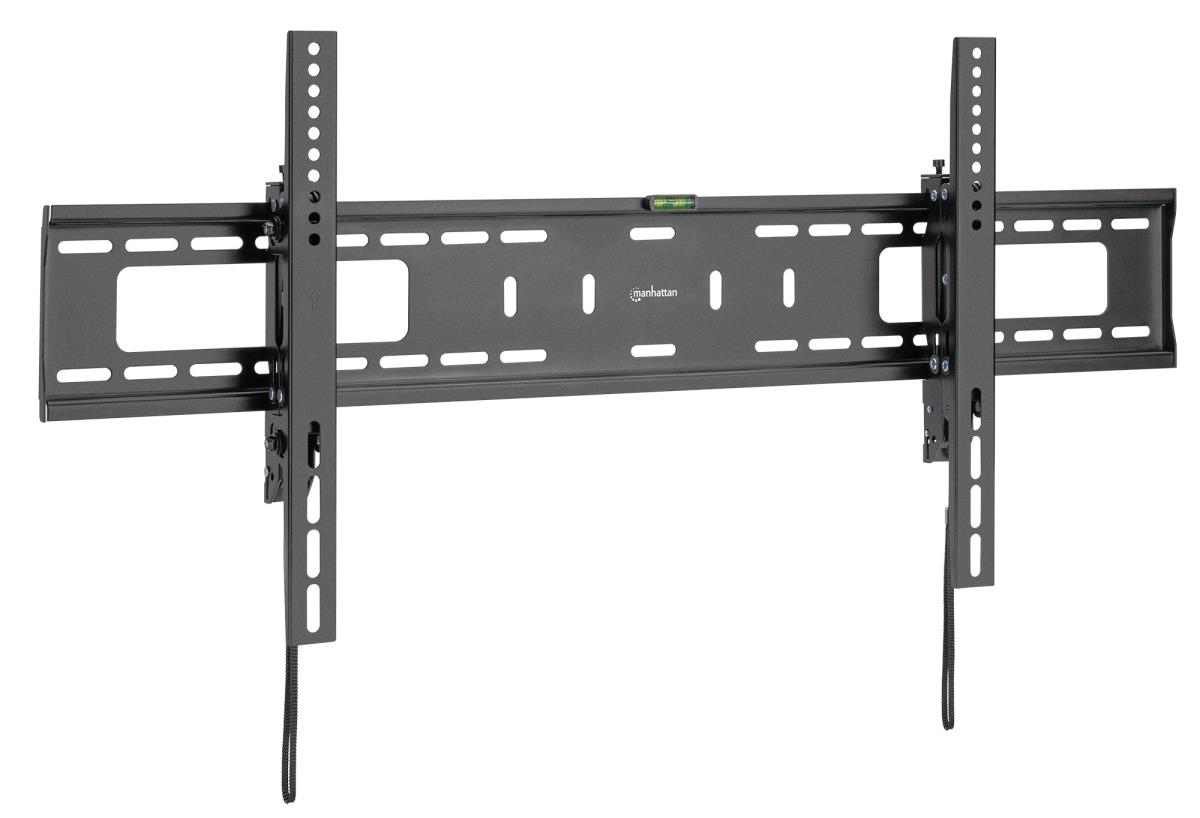

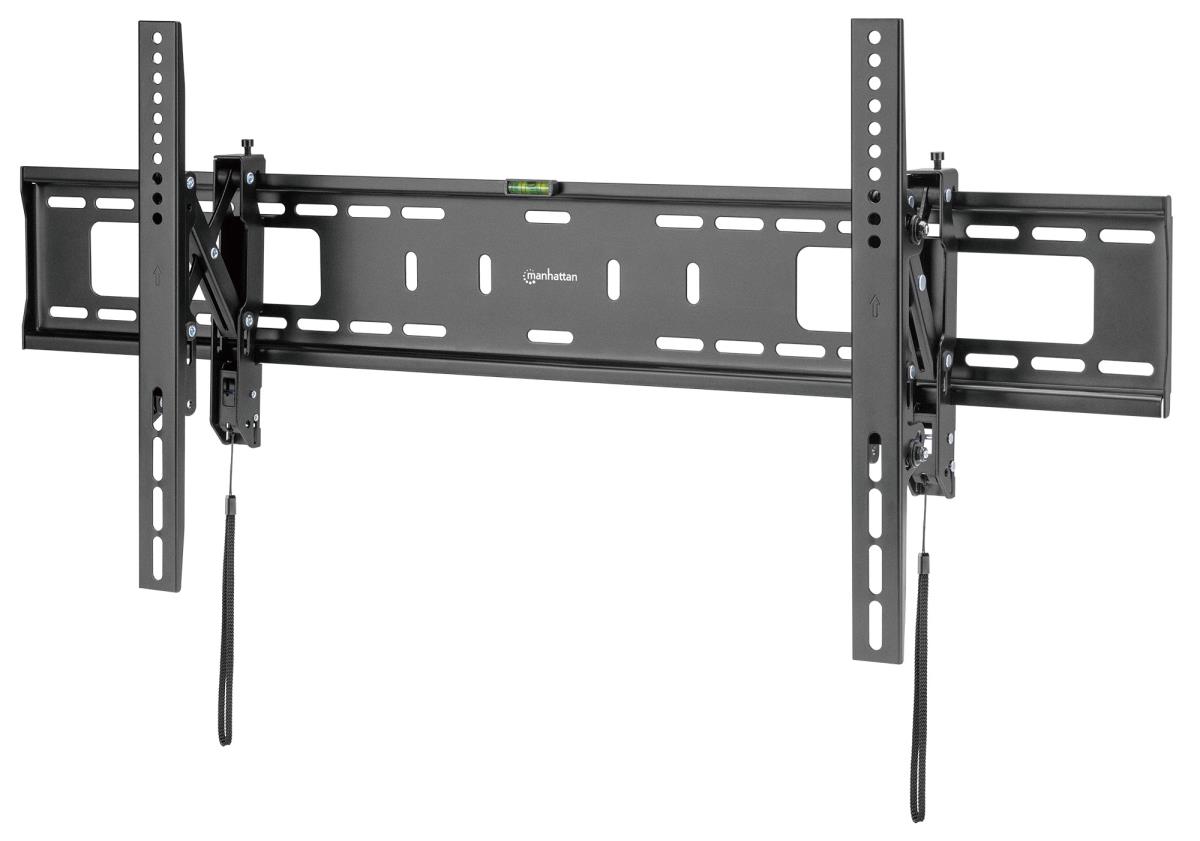

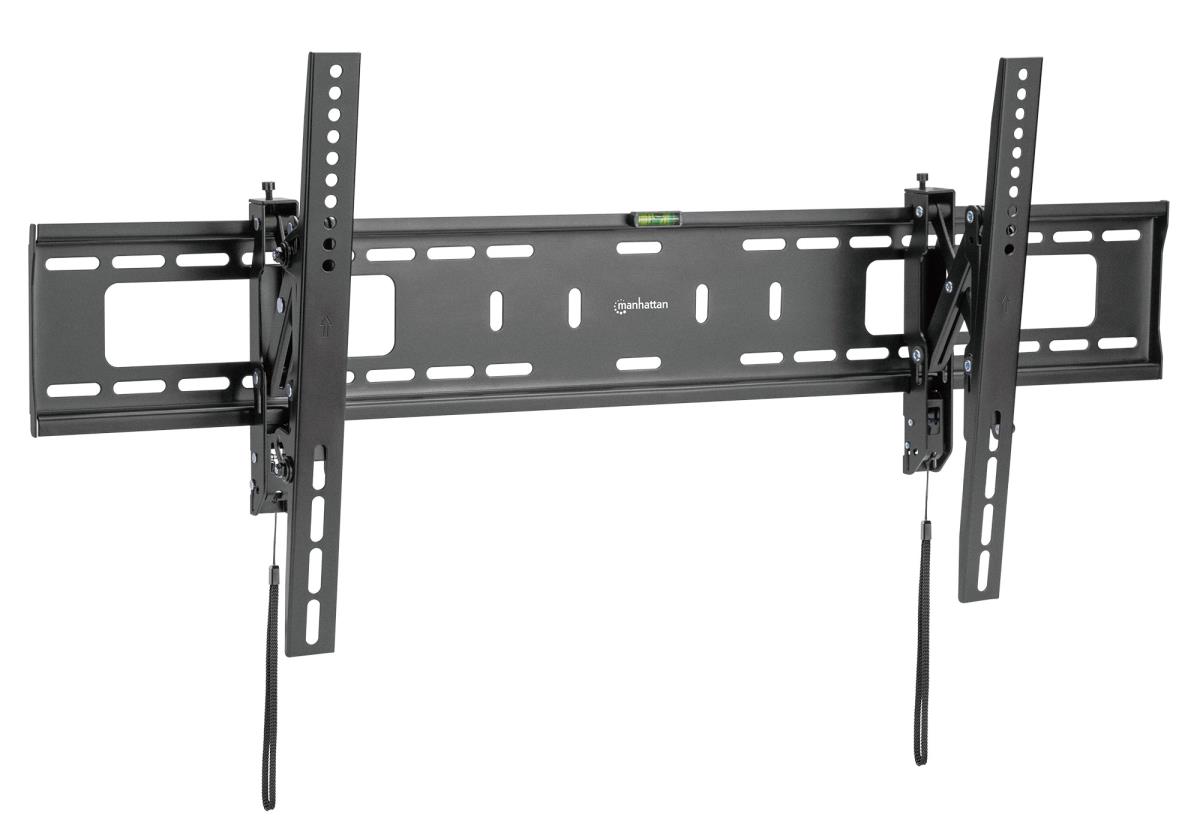

Adjustable, Secure TV Wall Bracket that Extends for Easy Cabling

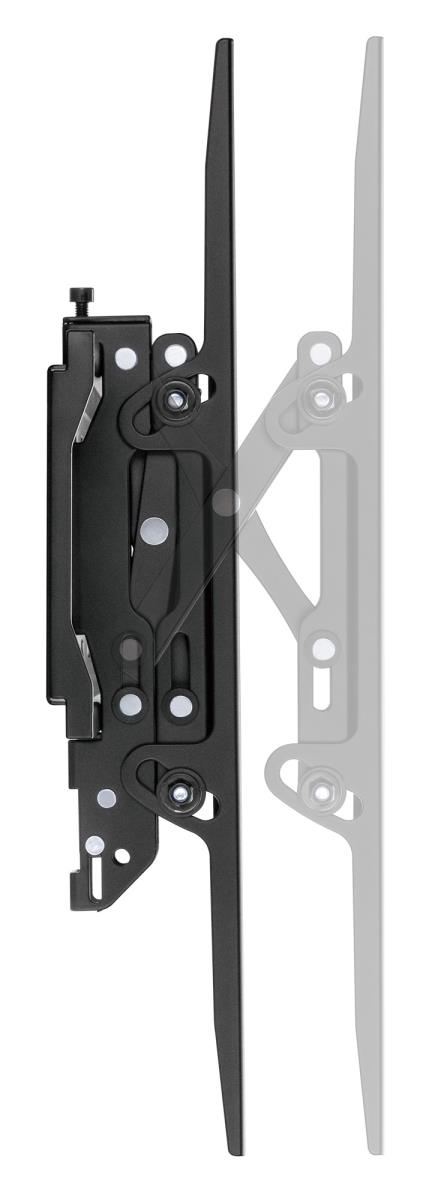

This TV Wall Mount from Manhattan is your convenient solution to safely hold your flat or curved 43" to 90" display up to 75 kg (165 lbs.). Mount your screen just 75 mm (3 in.) from the wall for a sleek, modern look. Need easier access to your cables? Its innovative design allows an optional extension of an additional 60 mm (2.4 in.), making it easier than ever to manage your cabling without hassle.

Optimal Viewing Angles

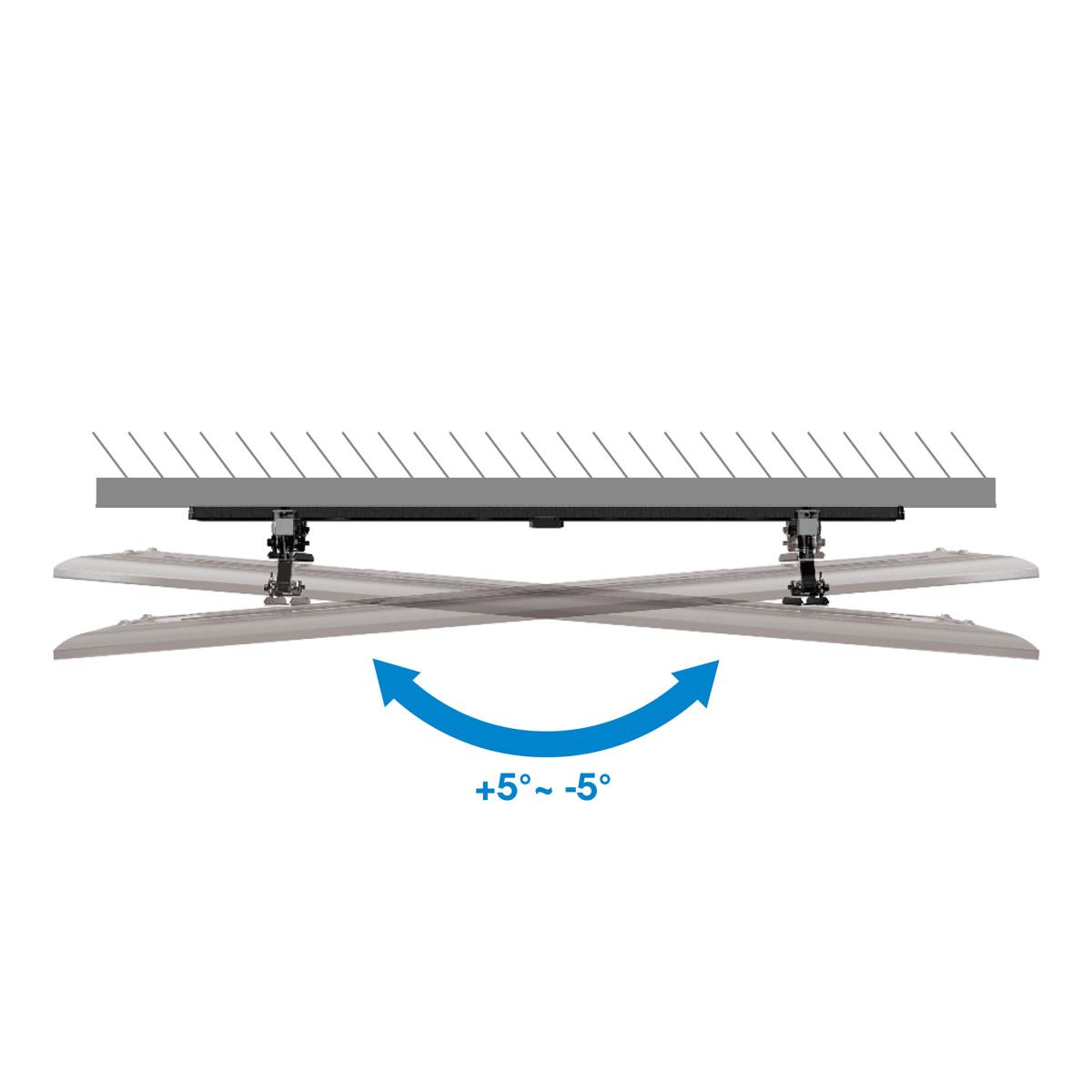

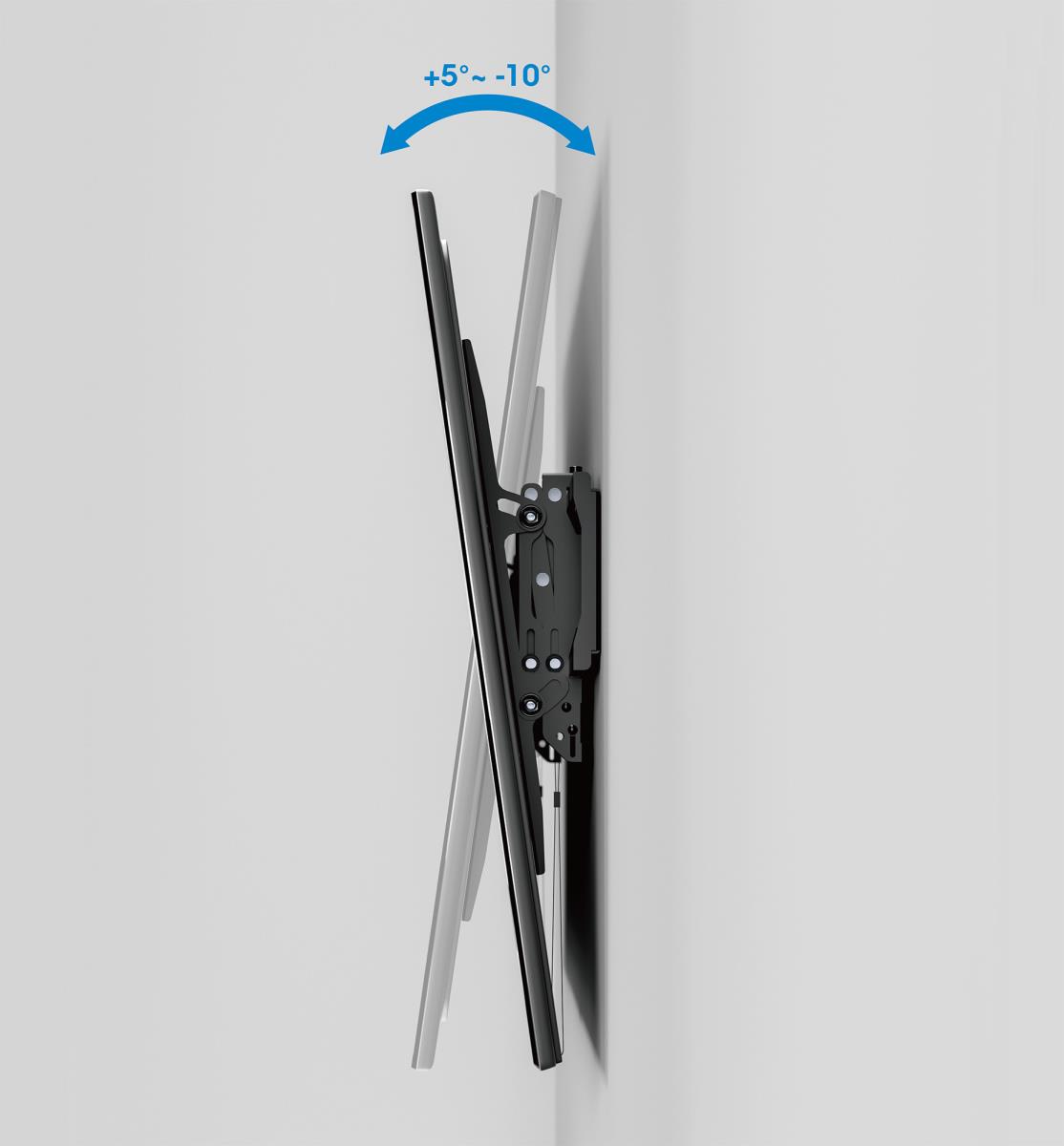

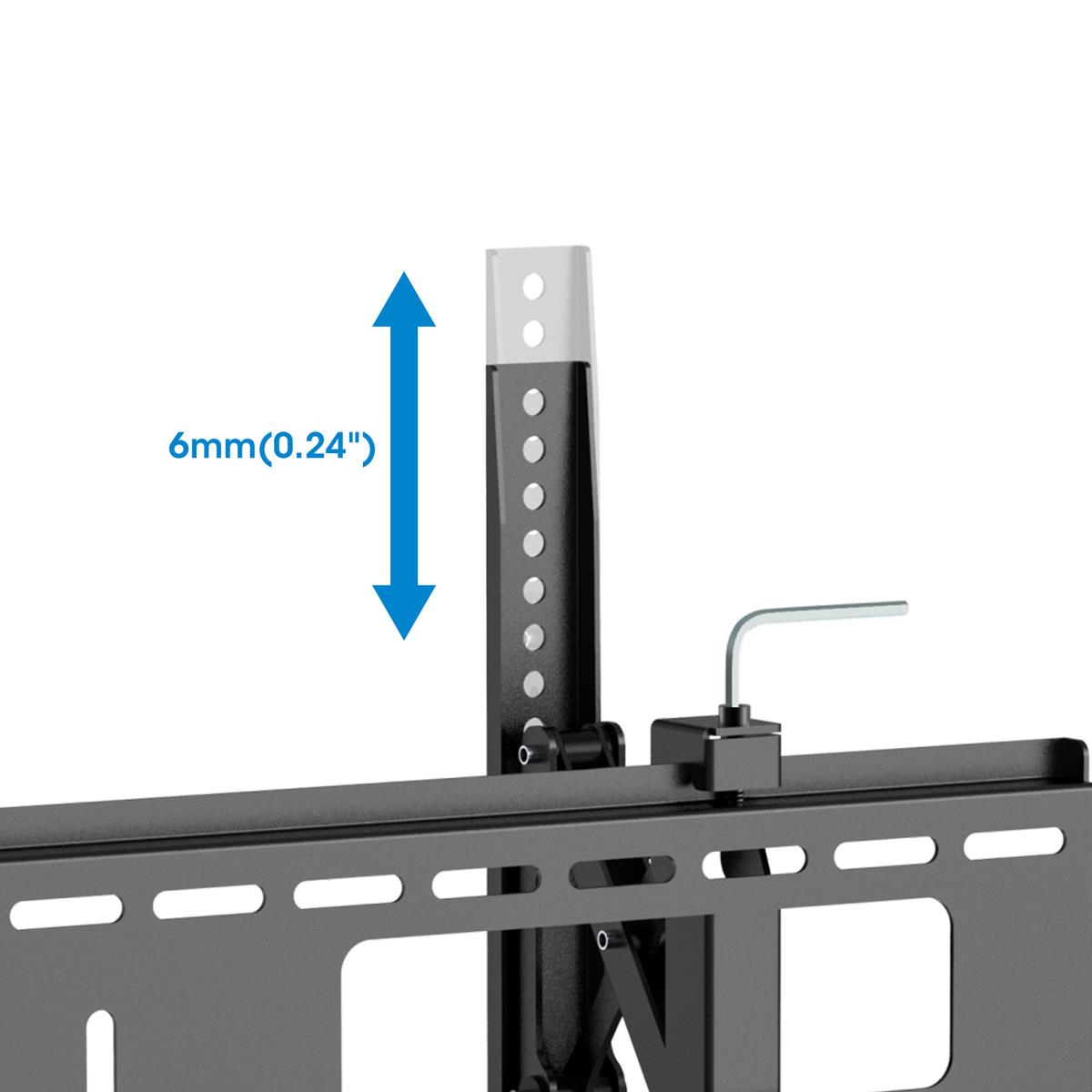

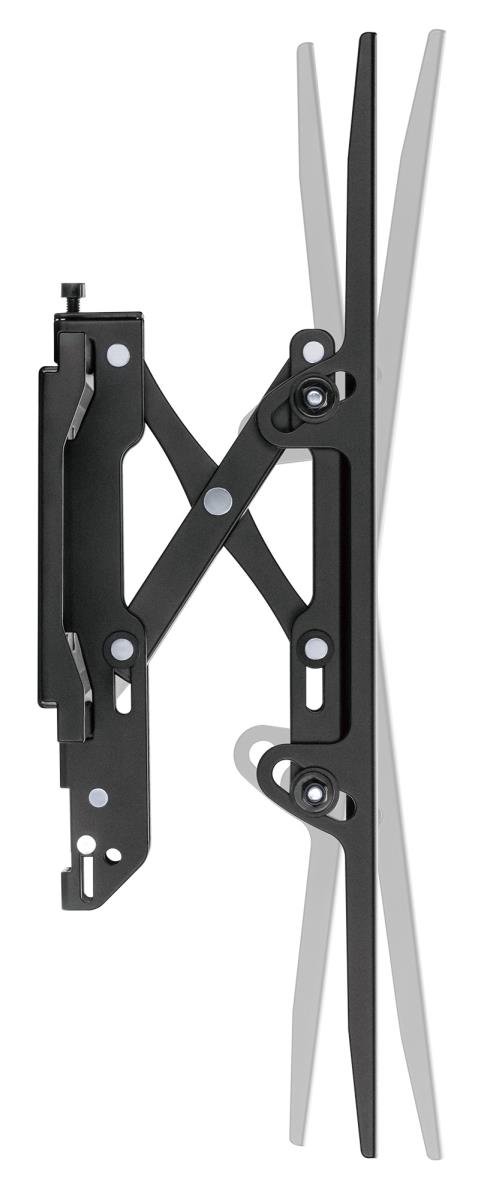

Achieve the perfect view with a versatile +5 to -10° tool-free tilt, +/-5° swivel, and +/-6 mm post-installation leveling adjustment.

Robust and Reliable Construction
Constructed with heavy-duty, 2 mm thick reinforced steel and a durable powder coating, this mount provides strength and reliability.

Precision Installation Made Simple

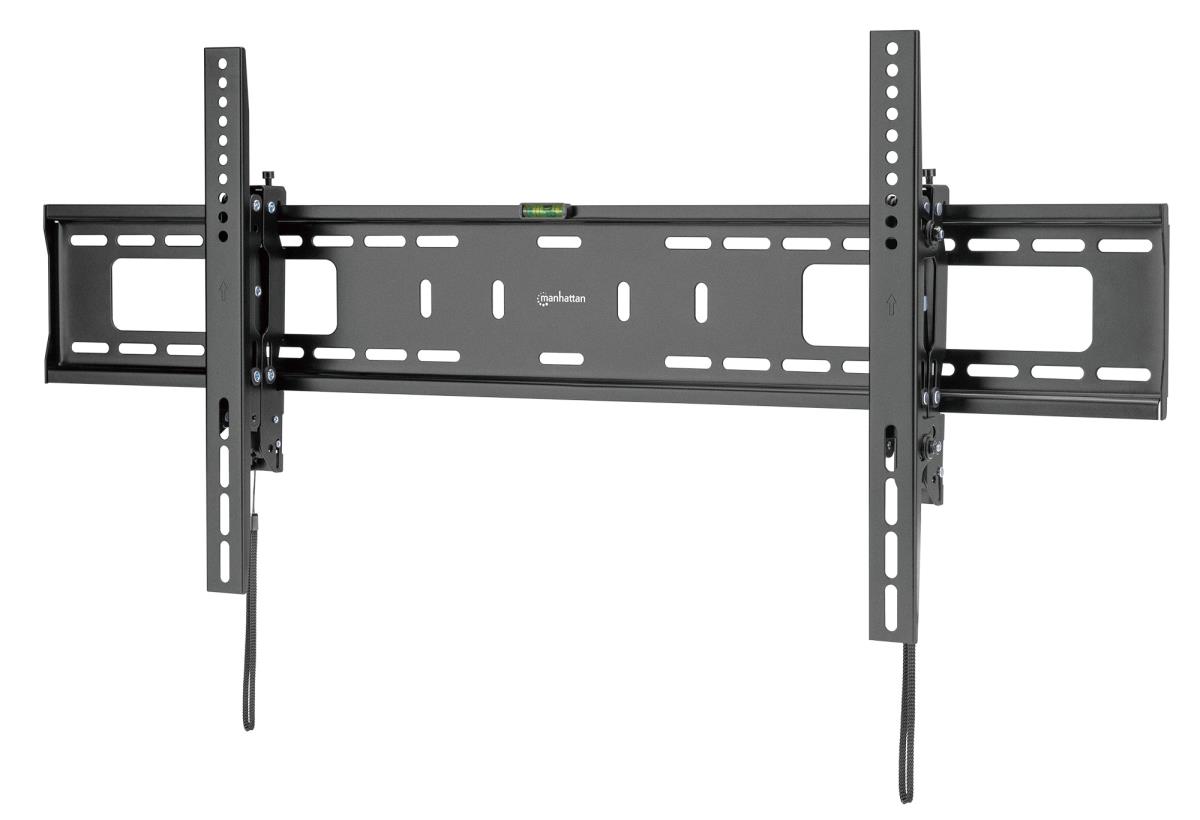

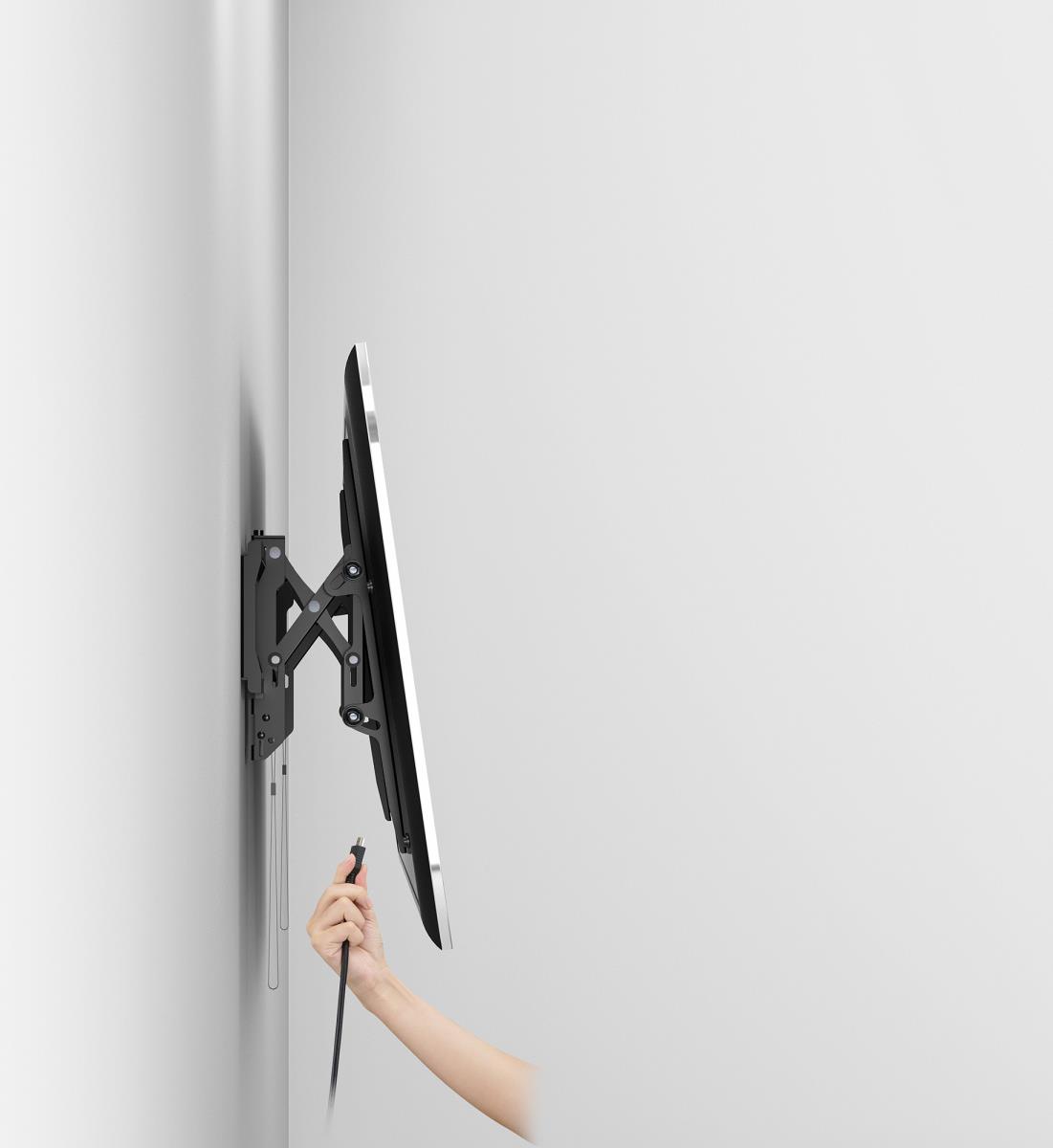

Included is an attachable bubble level for perfect alignment during installation. The snap-in spring locks with release cords make mounting or removing your TV a breeze, adding an extra layer of safety and ease.

Enhanced Security

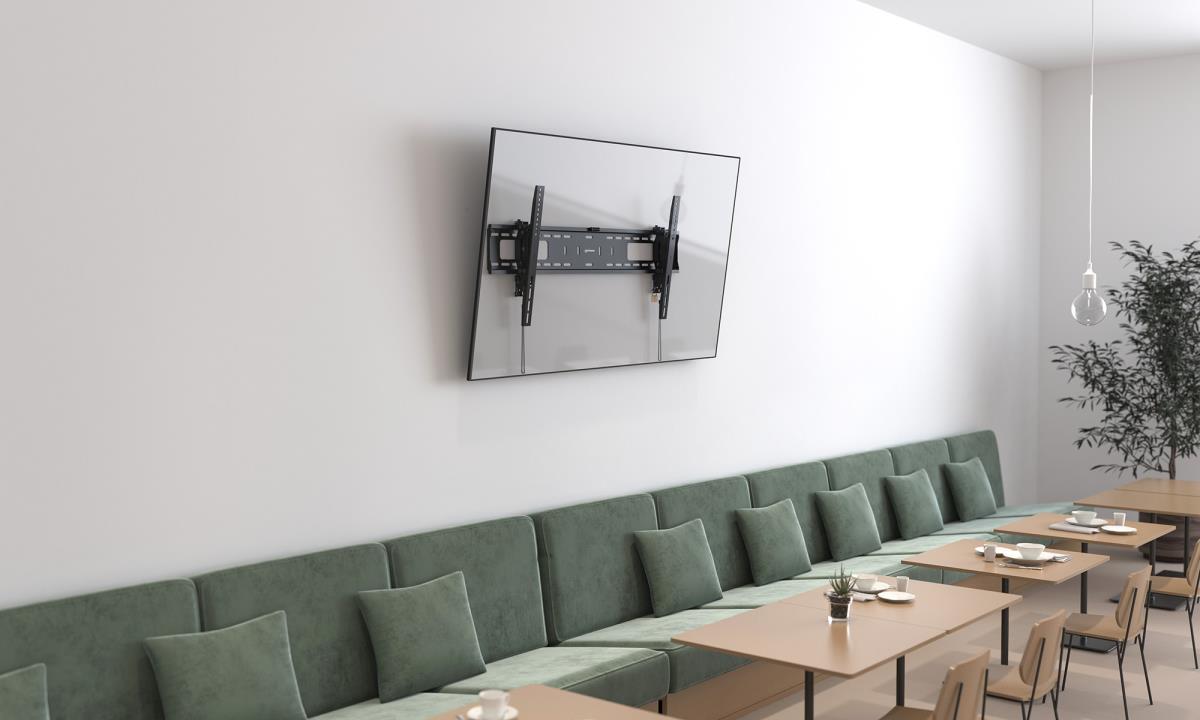

Ideal for public or commercial spaces, the anti-theft locking option (padlock required, not included) provides an extra measure of security, perfect for digital signage or any setting where additional protection is desired, like office, hospitality or classroom.

Mounting

Maximum weight capacity 75 kg
Minimum screen size 109.2 cm (43")
Number of displays supported 1
Maximum screen size 2.29 m (90")
Minimum VESA mount 200 x 200 mm
Maximum VESA mount 800 x 400 mm
Panel mounting interface 200 x 200,200 x 300,200 x 400,300 x 200,300 x 400,400 x 200,400 x 400,400 x 300,600 x 200,600 x 300,600 x 400,800 x 400
Mounting type Wall

Ergonomics

Tilt adjustment Yes
Tilt angle range -10 - 5°
Swivelling Yes
Swivel angle range -5 - 5°
Distance to the wall (max) 13.6 cm
Distance to the wall (min) 7.5 cm

Design

Product colour Black
Housing material Steel
Anti-theft function Yes

Packaging content

Manual Yes
Mounting kit Yes

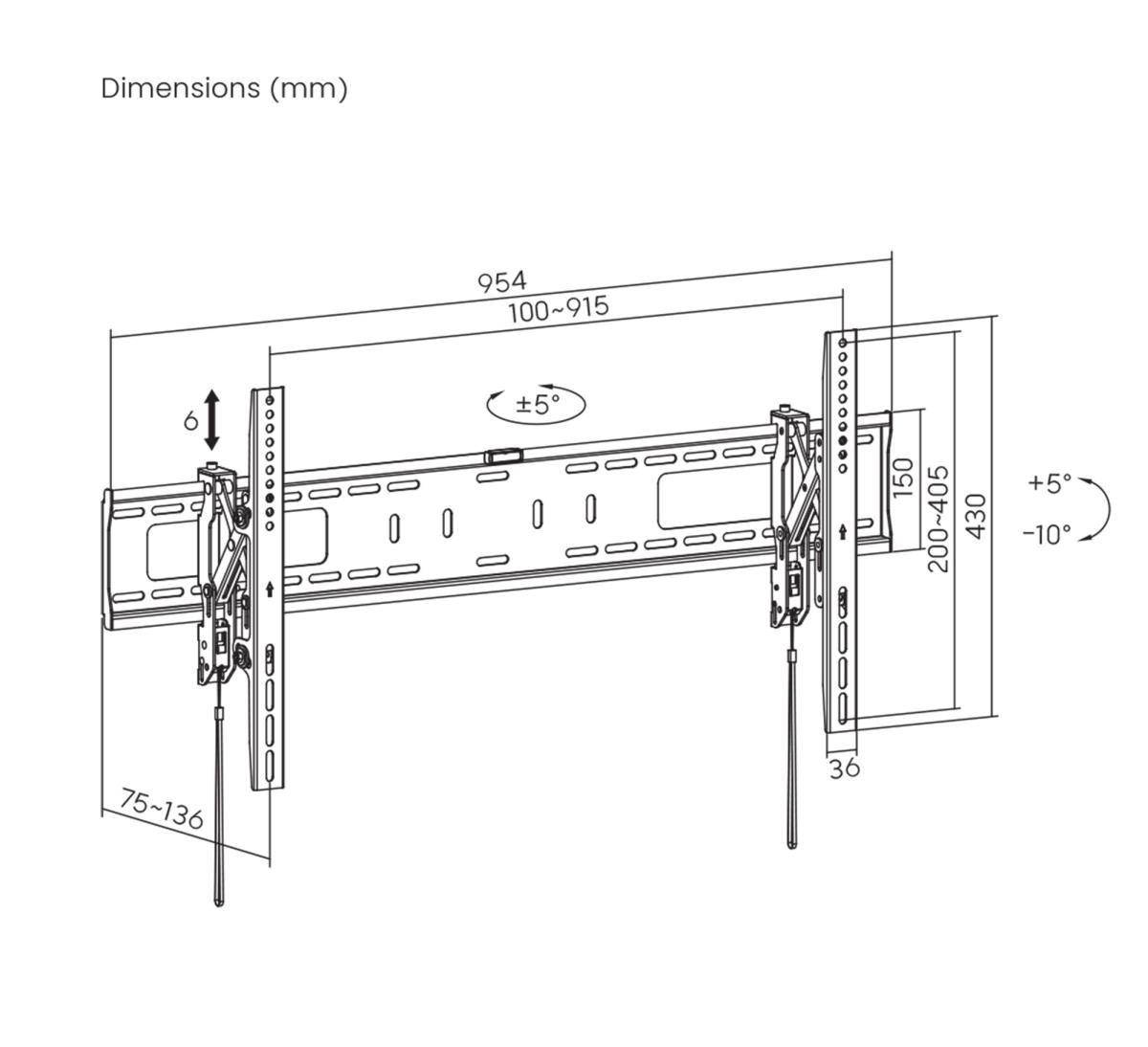

Weight & dimensions

Width 954 mm
Depth (max) 13.6 cm
Height 430 mm
Weight 4.21 kg

Packaging data

Package width 165 mm
Package depth 980 mm
Package height 57 mm
Package weight 4.65 kg

Logistics data

Master (outer) case width 340 mm
Master (outer) case length 995 mm
Master (outer) case height 135 mm
Master (outer) case gross weight 19.5 kg
Products per master (outer) case 4 pc(s)
