INTELLINET/MANHATTAN Monitor Mount - Wall - 1 Monitor - Full Motion - 60 to 120in

INTELLINET/MANHATTAN Monitor Mount - Wall - 1 Monitor - Full Motion - 60 to 120in

£115.03 (incl. VAT)

Qty:

Add to basket

Part Number:	462358
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

Ultra Heavy-Duty XXL Articulating TV Wall Bracket – fully adjustable mounting bracket that puts big-screen TVs in the right perspective and avoids annoying glare

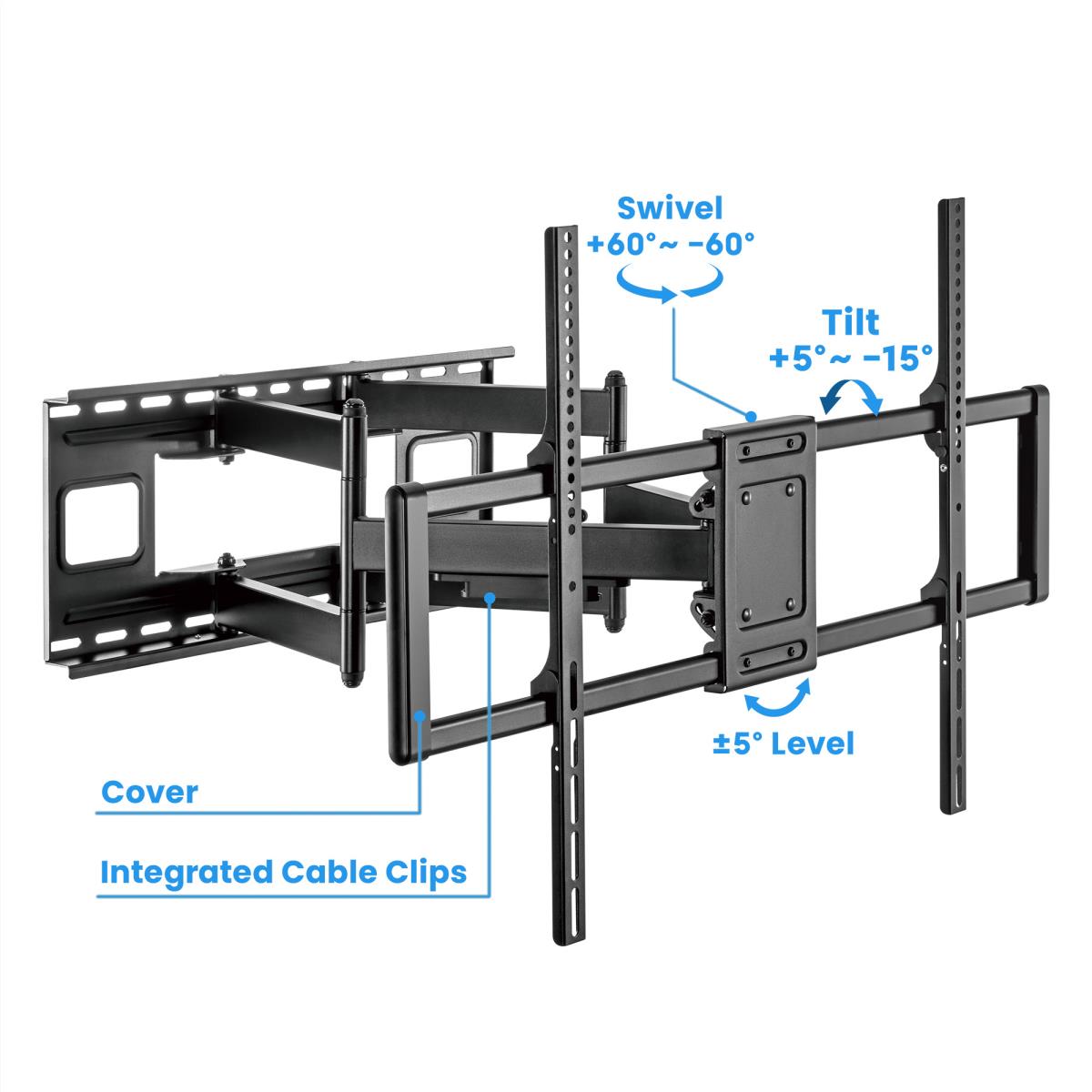

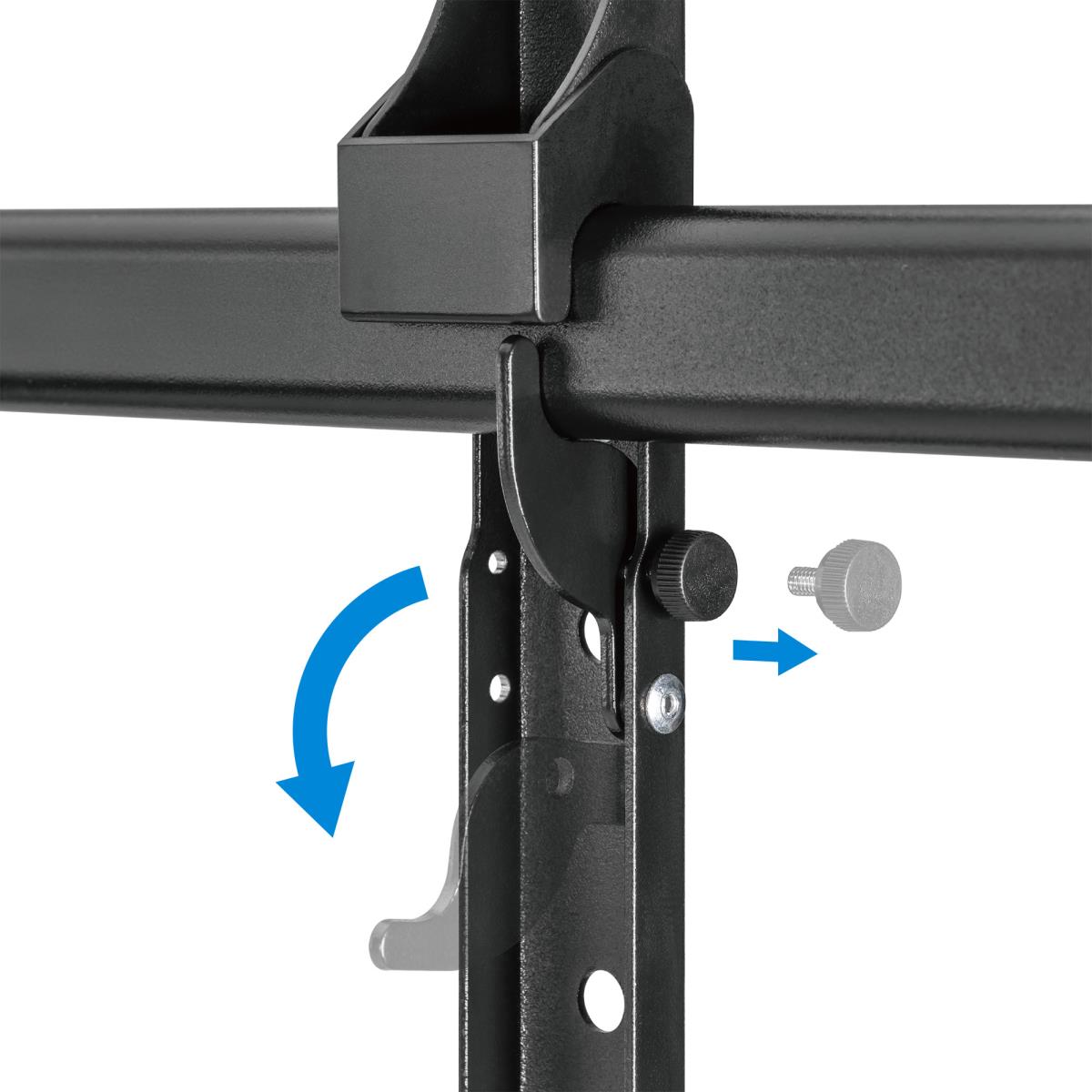

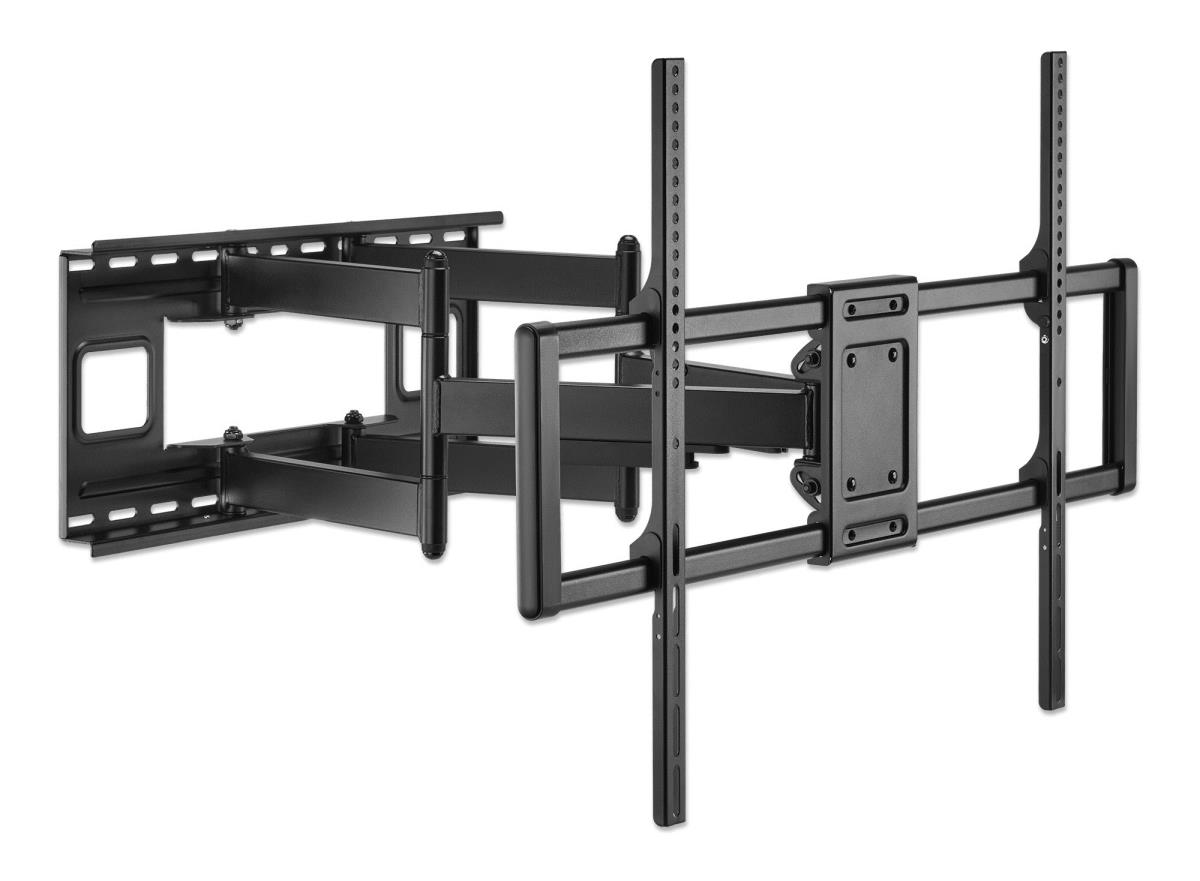

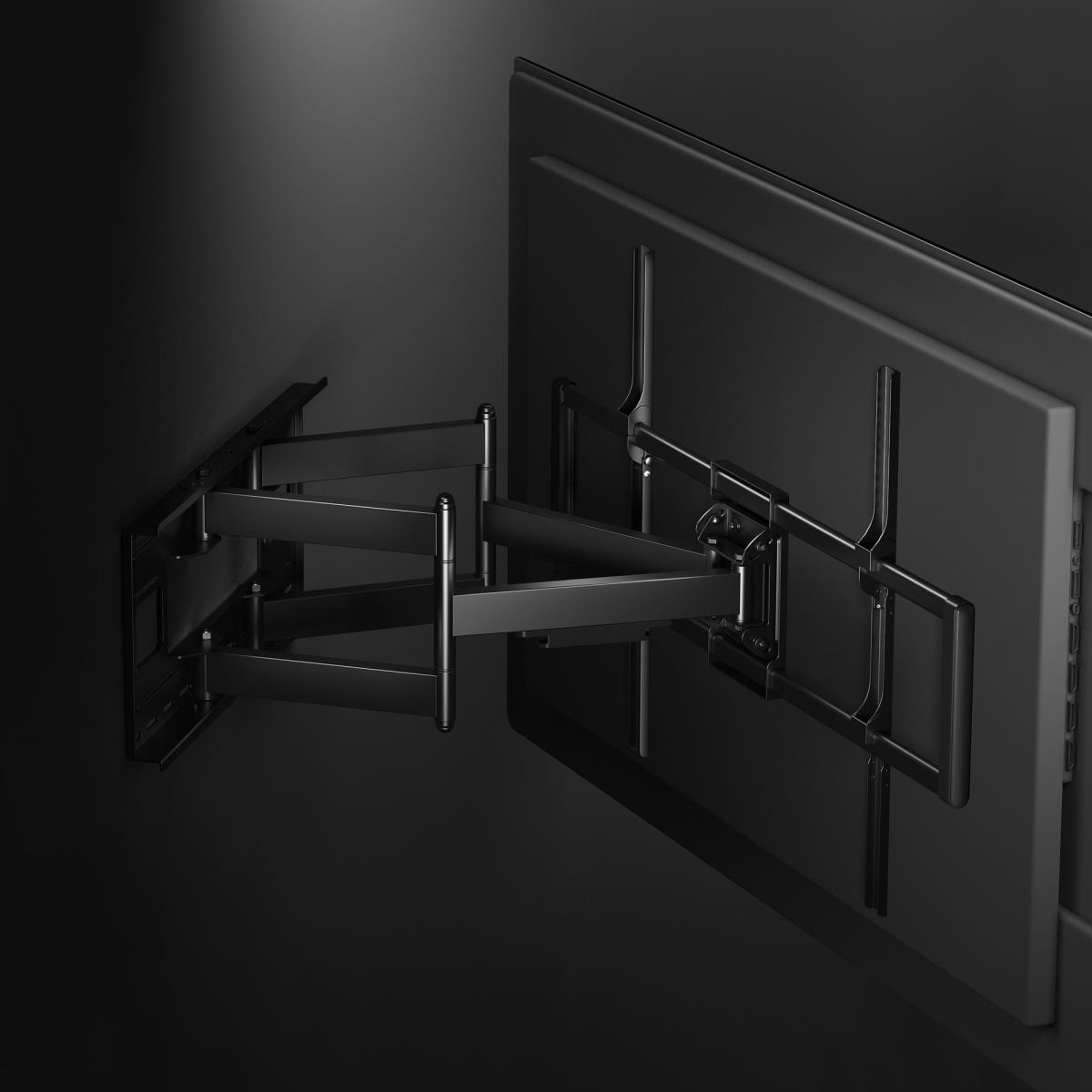

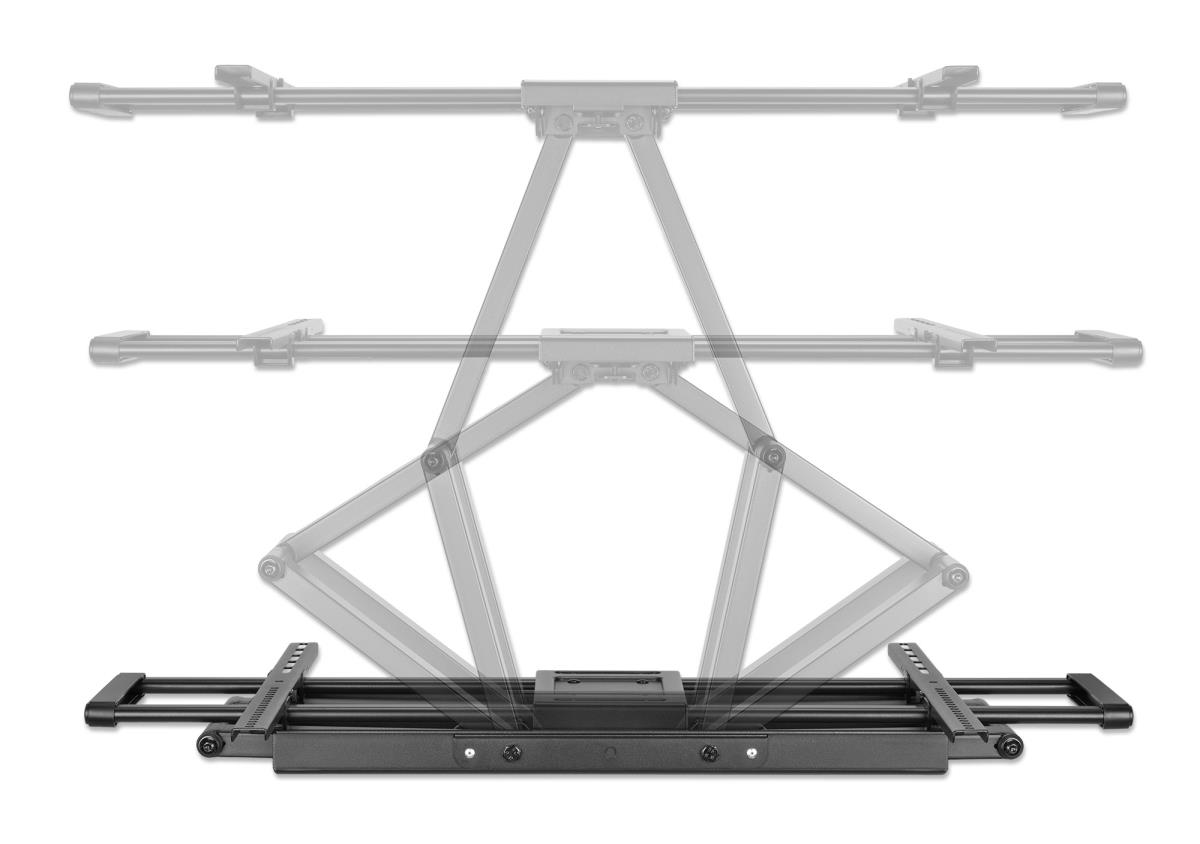

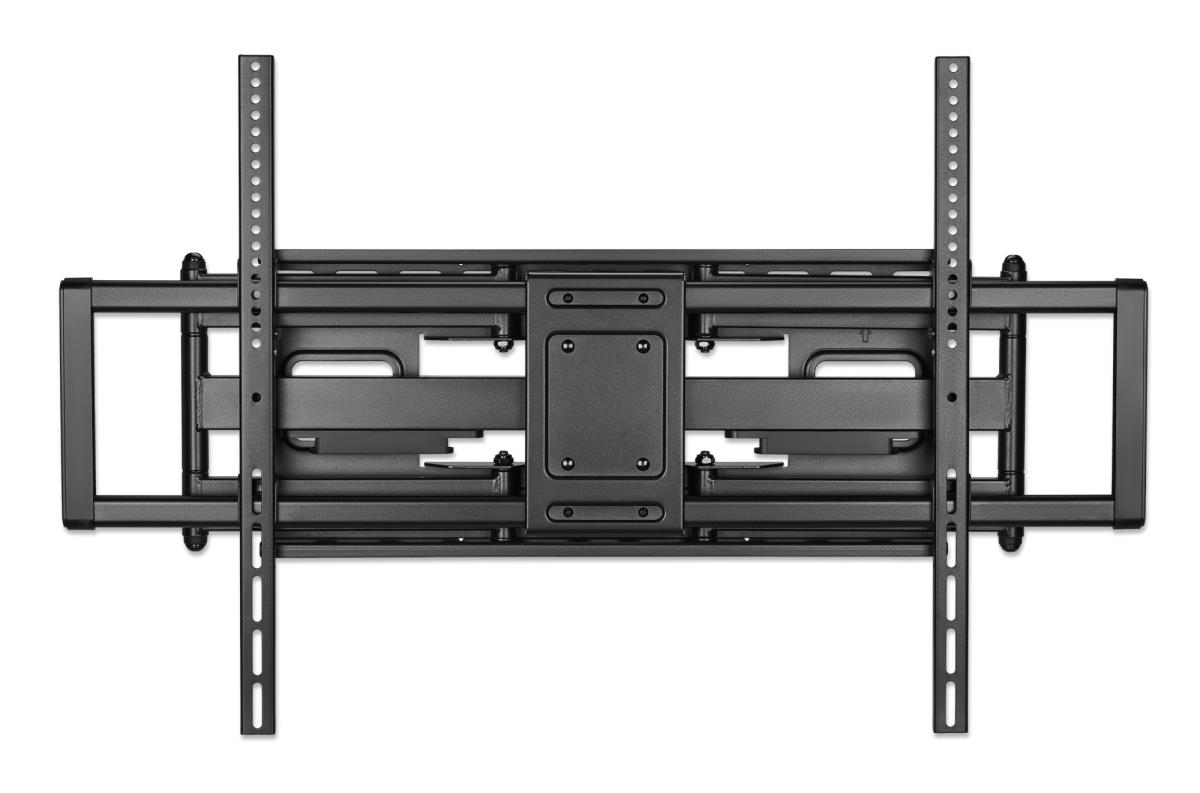

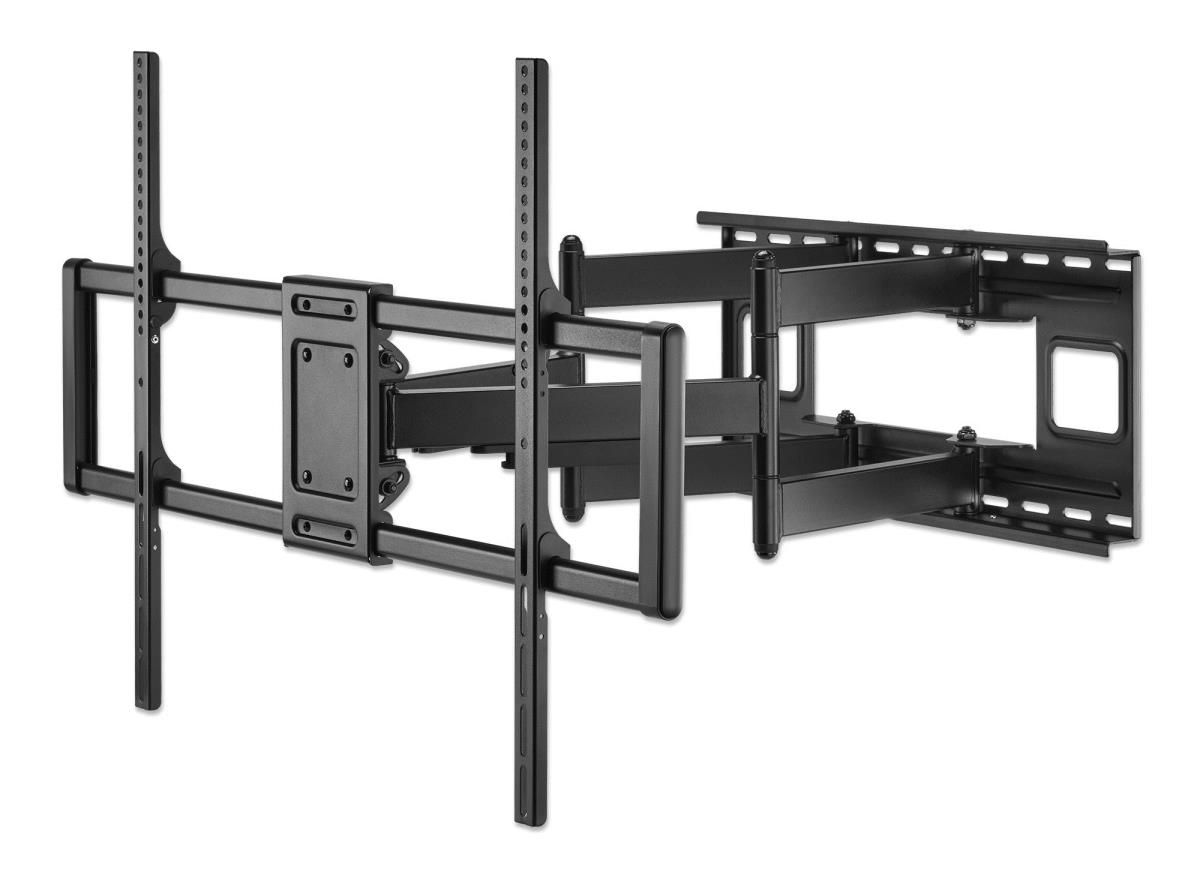

This super-strong full-motion TV Wall Mount Bracket from Manhattan safely holds your TV on two articulating arms and offers +5 to -15° tilt and +/-60° swivel adjustment for optimized views. Constructed of thick reinforced powder-coated steel up to 3 mm, this sturdy TV bracket fits flat and curved LCD, OLED or plasma TVs up to 120"" and weighing up to 120 kg (264 lbs.) with VESA compliance up to 900x600. You're all set for a confident above-the-floor installation with an included bubble level and +/-5° post-leveling adjustment that helps get the mount perfectly horizontal on the wall. Intuitive quick-release latches let you easily and securely put the TV in place. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.

Mounting

Minimum screen size 152.4 cm (60")

Maximum weight capacity 120 kg

Maximum screen size 3.05 m (120")

Minimum VESA mount 200 x 200 mm

Maximum VESA mount 900 x 600 mm

Panel mounting interface 200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 400,800 x 400,800 x 600,900 x 600

Number of displays supported 1

Mounting type Wall

Ergonomics

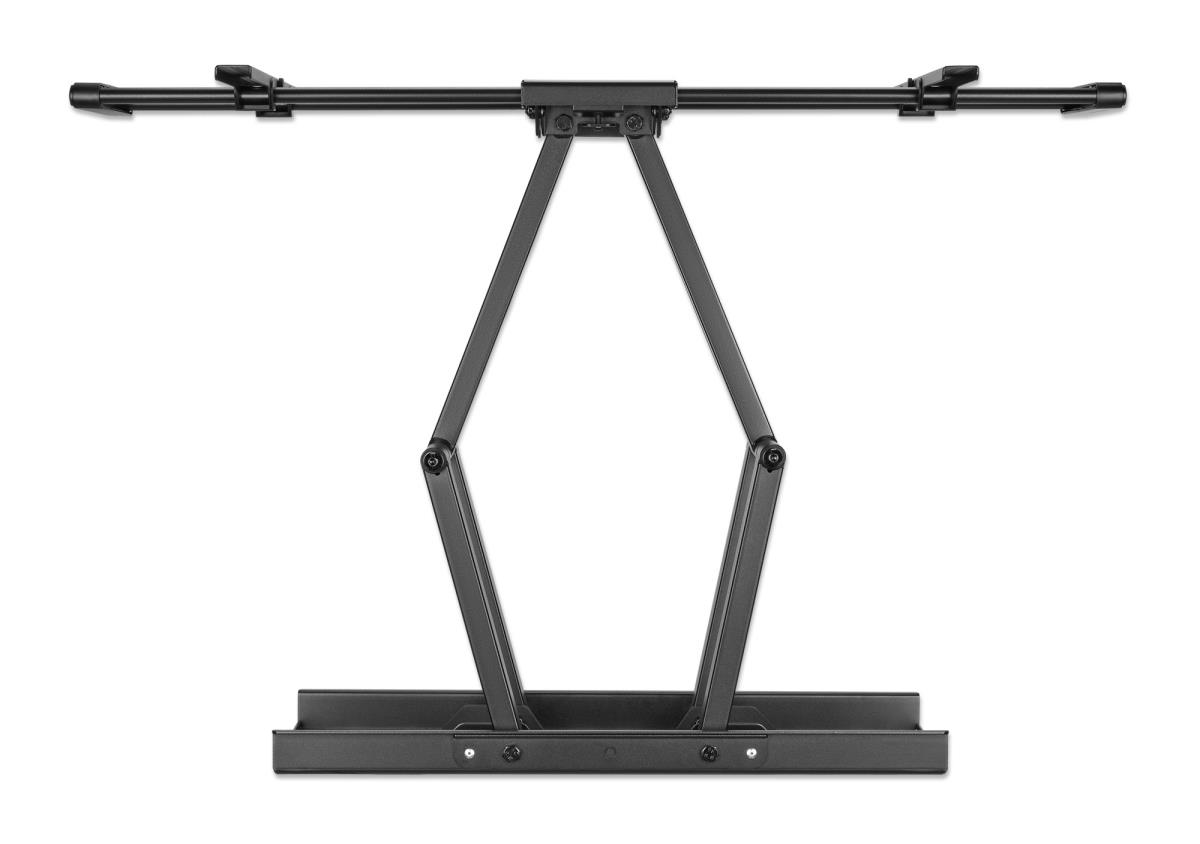

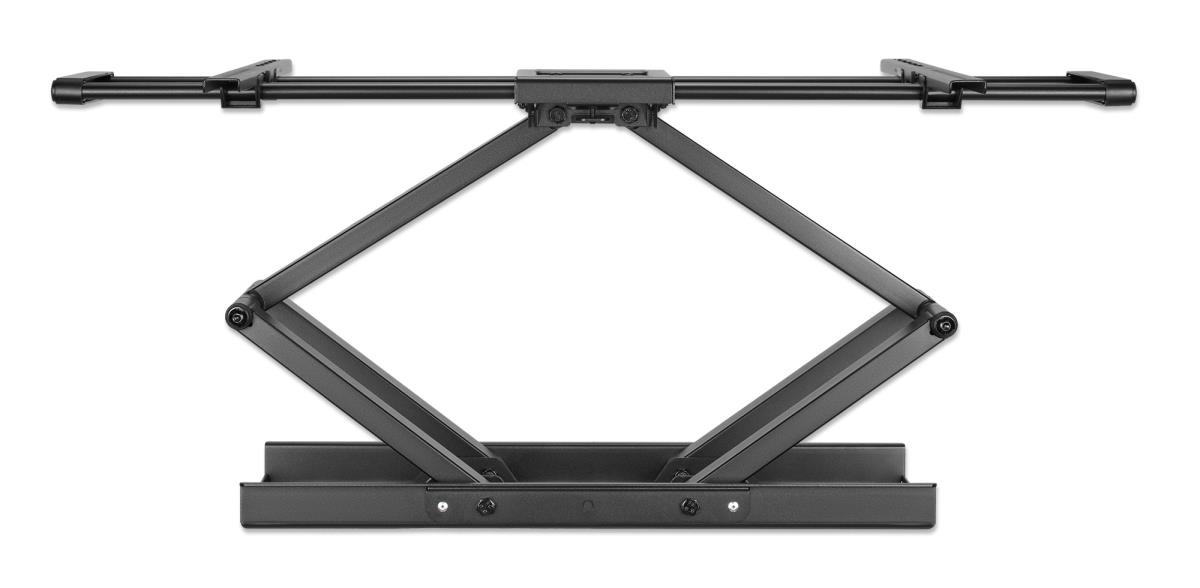

Adjustable depth Yes

Tilt adjustment Yes

Tilt angle range -15 - 5°

Swivelling Yes

Swivel angle range -60 - 60°

Cable management Yes

Built-in spirit level Yes

Distance to the wall (max) 70.3 cm

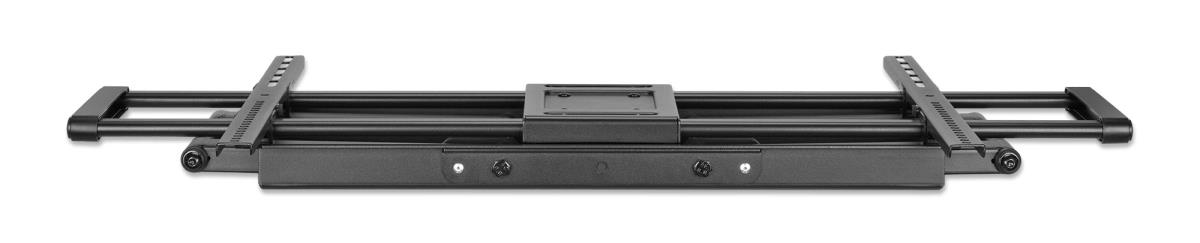

Distance to the wall (min) 7.5 cm

Design

Product colour Black

Housing material Steel

Technical details

Quantity per pack 1 pc(s)

Packaging content

Manual Yes

Mounting kit Yes

Packaging content Heavy-Duty Large-Screen Full-Motion TV Wall Mount Attachable bubble level Installation hardware with instructions

Weight & dimensions

Width 1010 mm

Depth (max) 70.3 cm

Height 630 mm

Weight 16.1 kg

Packaging data

Package width 1055 mm

Package depth 355 mm

Package height 95 mm

Package weight 16.9 kg

Package type Box

Logistics data

Master (outer) case width 340 mm

Master (outer) case length 1050 mm

Master (outer) case height 78 mm

Master (outer) case gross weight 18 kg

Products per master (outer) case 1 pc(s)
