Introduction
Articulating TV Wall Bracket – fully adjustable mounting bracket to fit almost any space

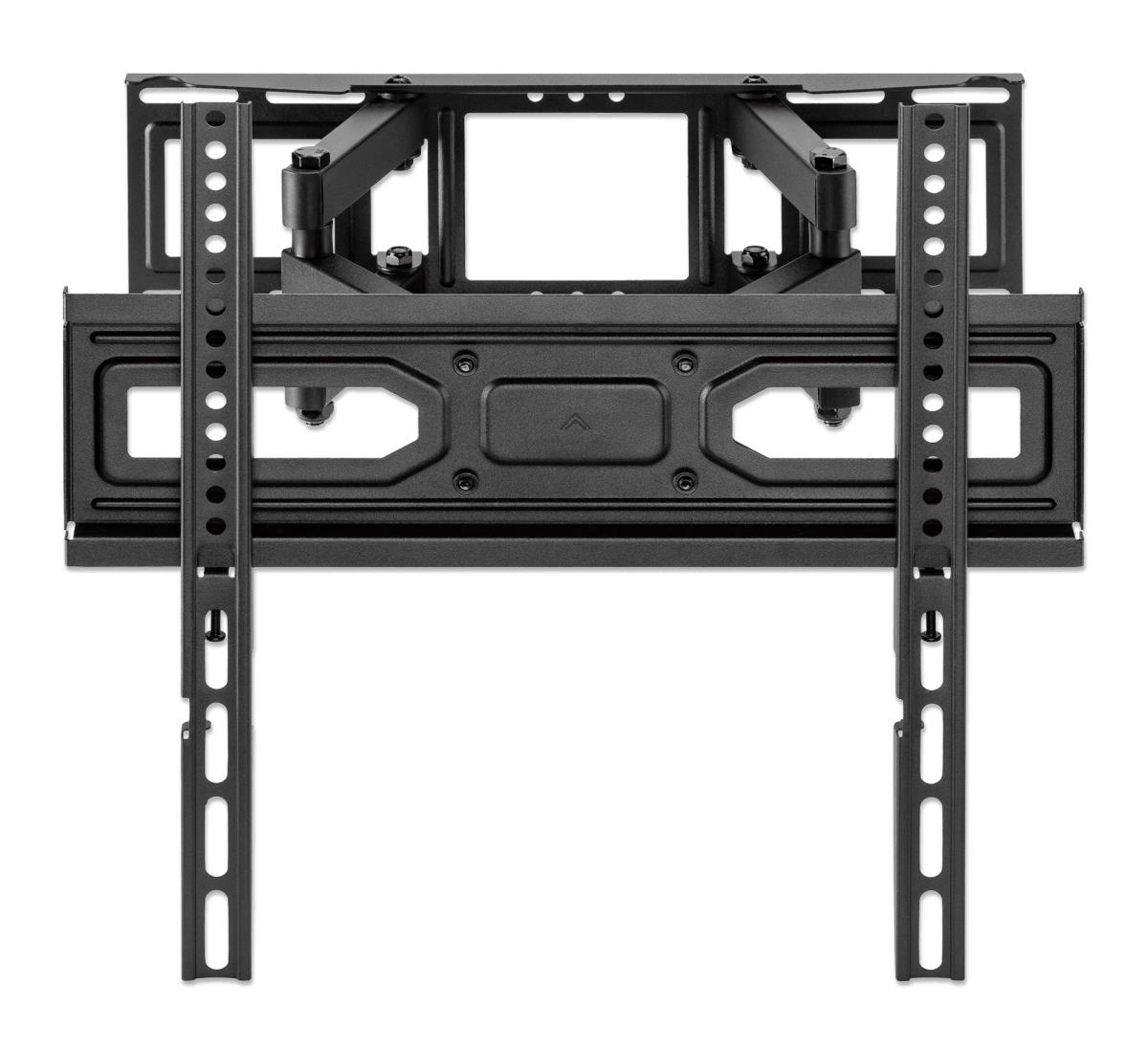

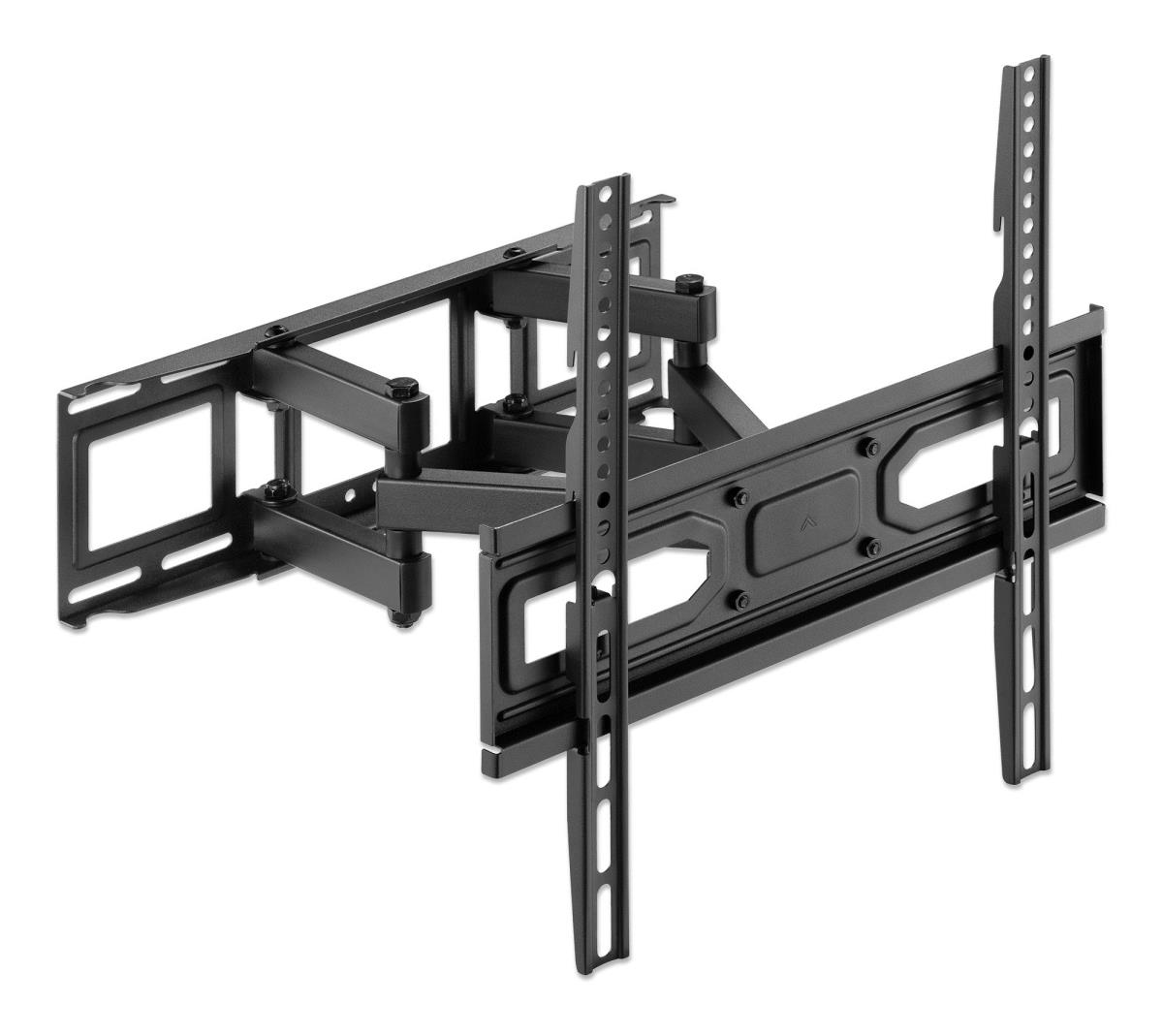

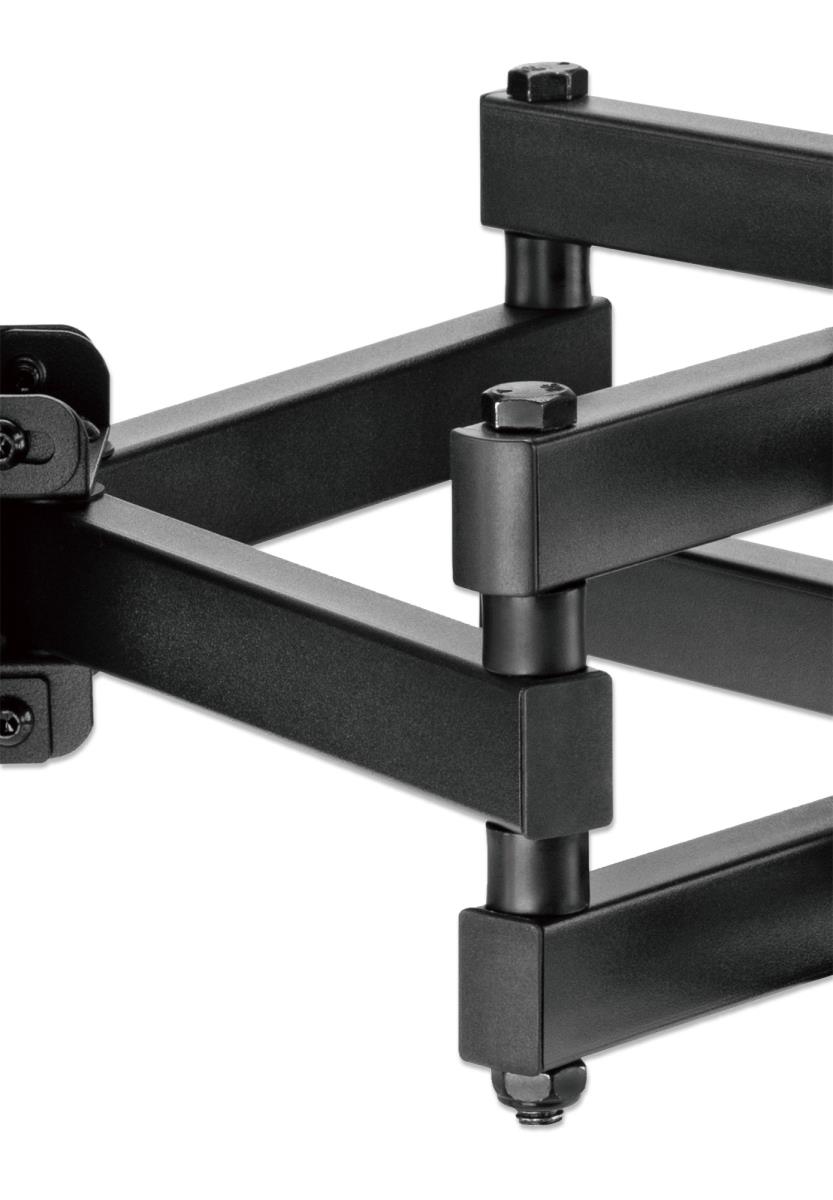

This strong, full-motion TV Wall Mount Bracket from Manhattan safely holds your TV on two articulating arms and provides optimized views with +3 to -15° tilt and +/-60° swivel adjustment. It fits flat and curved LCD, OLED or plasma TVs up to 70" and weighing up to 40 kg (88 lbs.) with VESA compliance up to 400x400. You're all set for a confident above-the-floor installation with an included bubble level and +/-3° post-leveling adjustment that helps get the mount perfectly horizontal on the wall. This mount is ideal for residential, office, hospitality, classrooms, conference rooms, digital signage and other commercial applications. Wherever you install it, the universal Manhattan Full-Motion TV Wall Mount puts the best TV viewing experience front and center.
Mounting
Minimum screen size
81.3 cm (32")
Maximum weight capacity
40 kg
Maximum screen size
177.8 cm (70")
Minimum VESA mount
100 x 100 mm
Maximum VESA mount
400 x 400 mm
Panel mounting interface
100 x 100,100 x 150,100 x 200,150 x 100,150 x 150,200 x 100,200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300
Number of displays supported
1
Mounting type
Wall
Ergonomics
Adjustable depth
Yes
Tilt adjustment
Yes
Tilt angle range
-15 - 3°
Swivelling
Yes
Swivel angle range
-60 - 60°

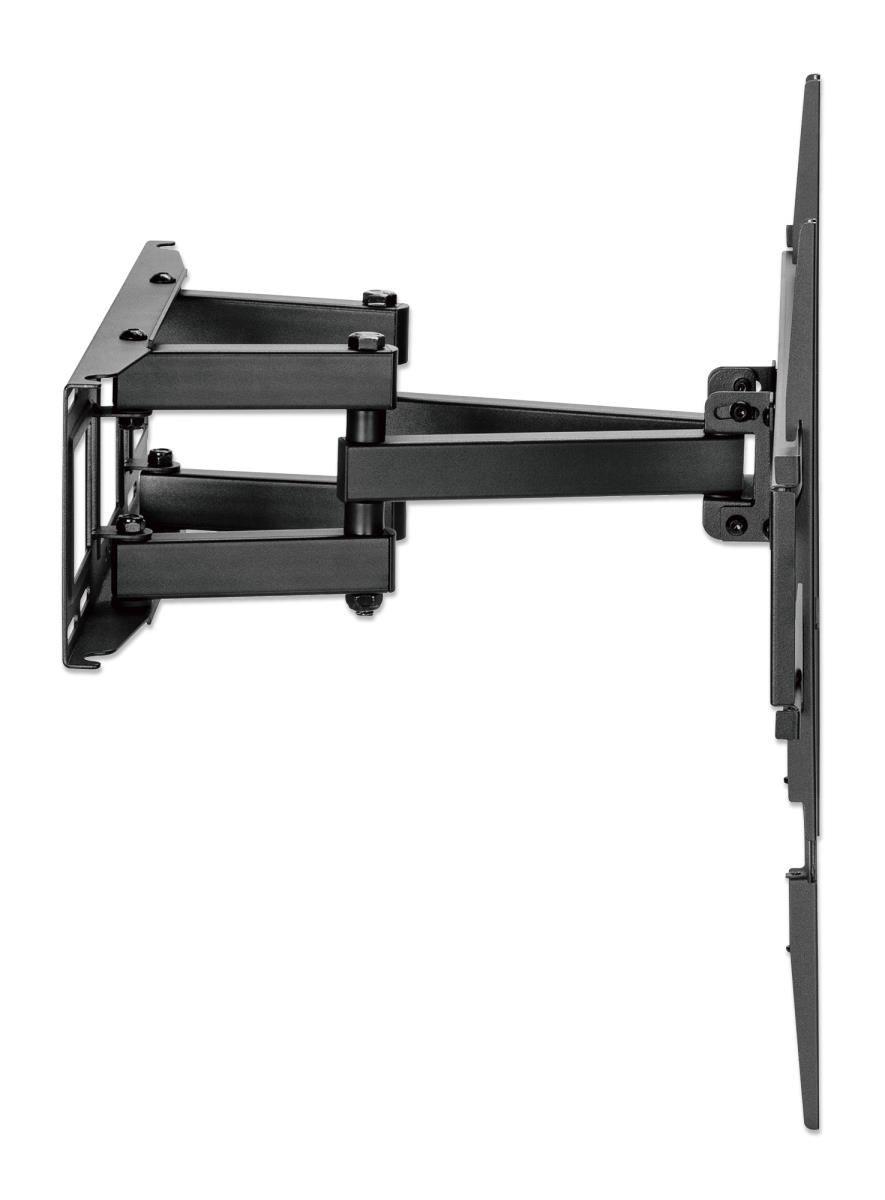

Distance to the wall (max)
35.5 cm

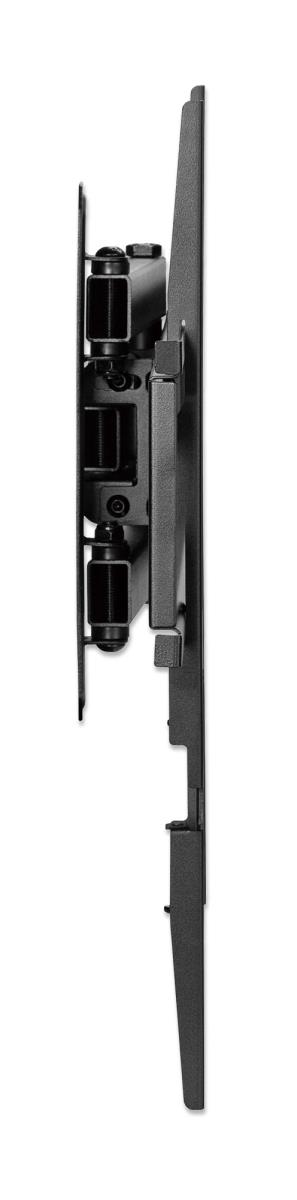

Distance to the wall (min)
6.7 cm
Suitable for curved screen
Yes
Design
Product colour
Black
Housing material
Steel
Technical details
Orientation
Landscape
Post-installation leveling roll
Yes
Warranty period
10 year(s)
Packaging content
Manual
Yes
Packaging content
Full-Motion TV Wall Mount with Post-Leveling Adjustment
Attachable bubble level
Installation hardware with instructions
Mounting kit
Yes
Weight & dimensions
Width
440 mm
Depth (max)
35.5 cm
Height
420 mm
Weight
3.33 kg
Packaging data
Package weight
3.56 kg
Package type
Box
Package width
445 mm
Package depth
62 mm
Package height
155 mm
Logistics data
Master (outer) case gross weight
22 kg
Products per master (outer) case
6 pc(s)
Master (outer) case width
460 mm
Master (outer) case length
330 mm
Master (outer) case height
205 mm
