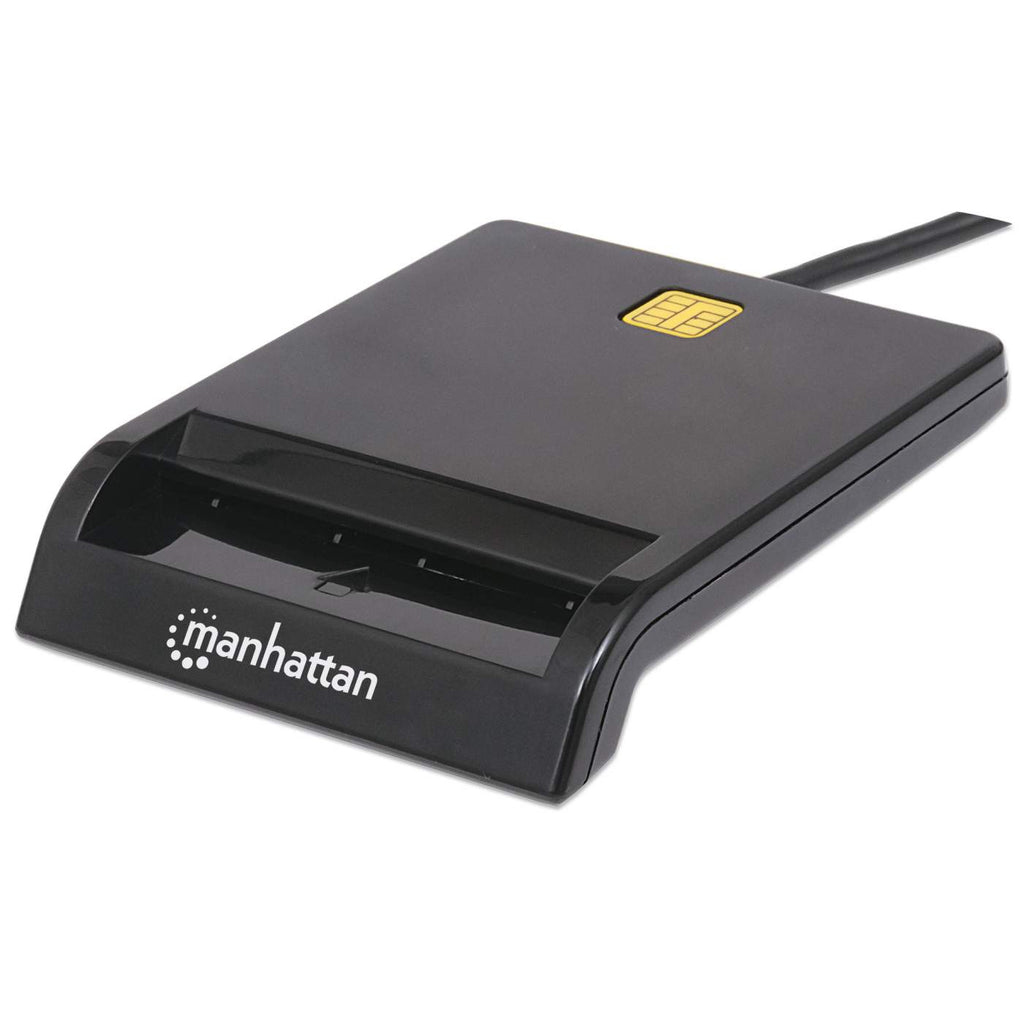

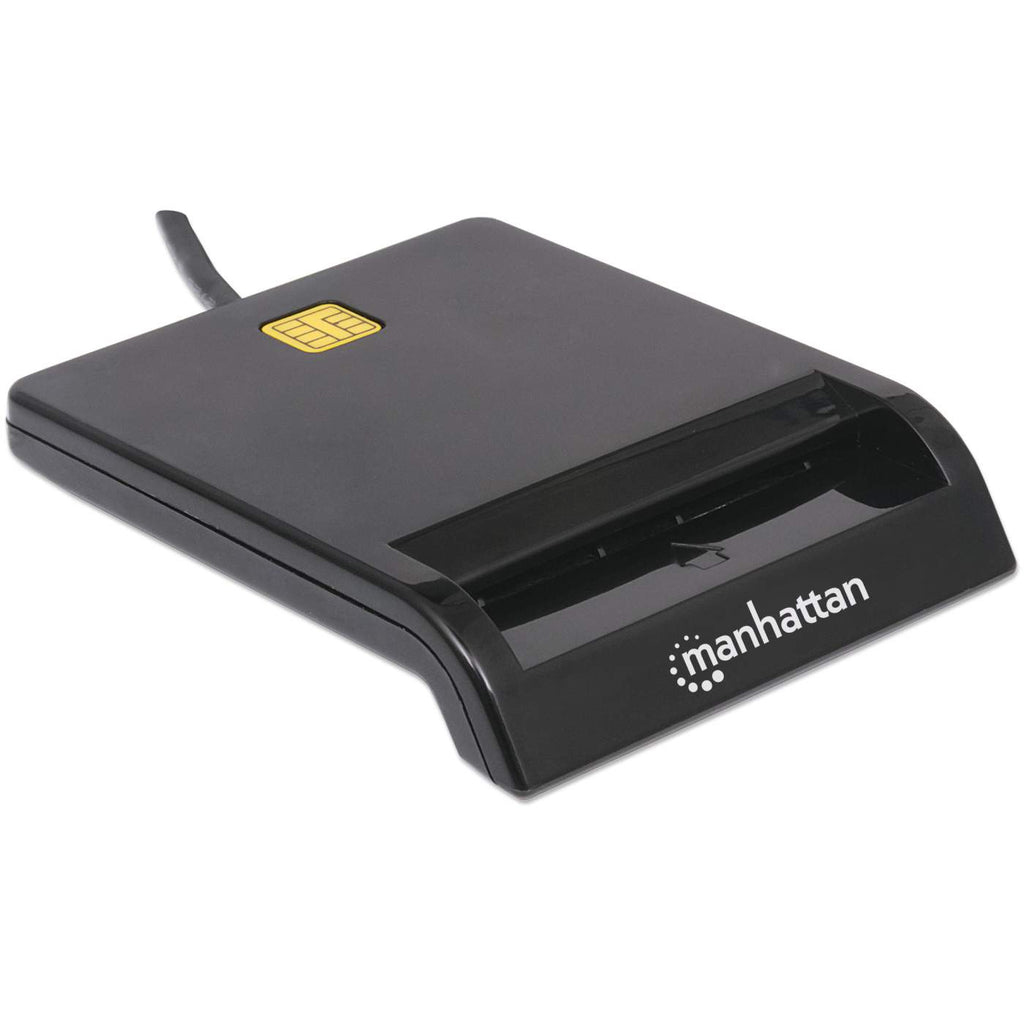

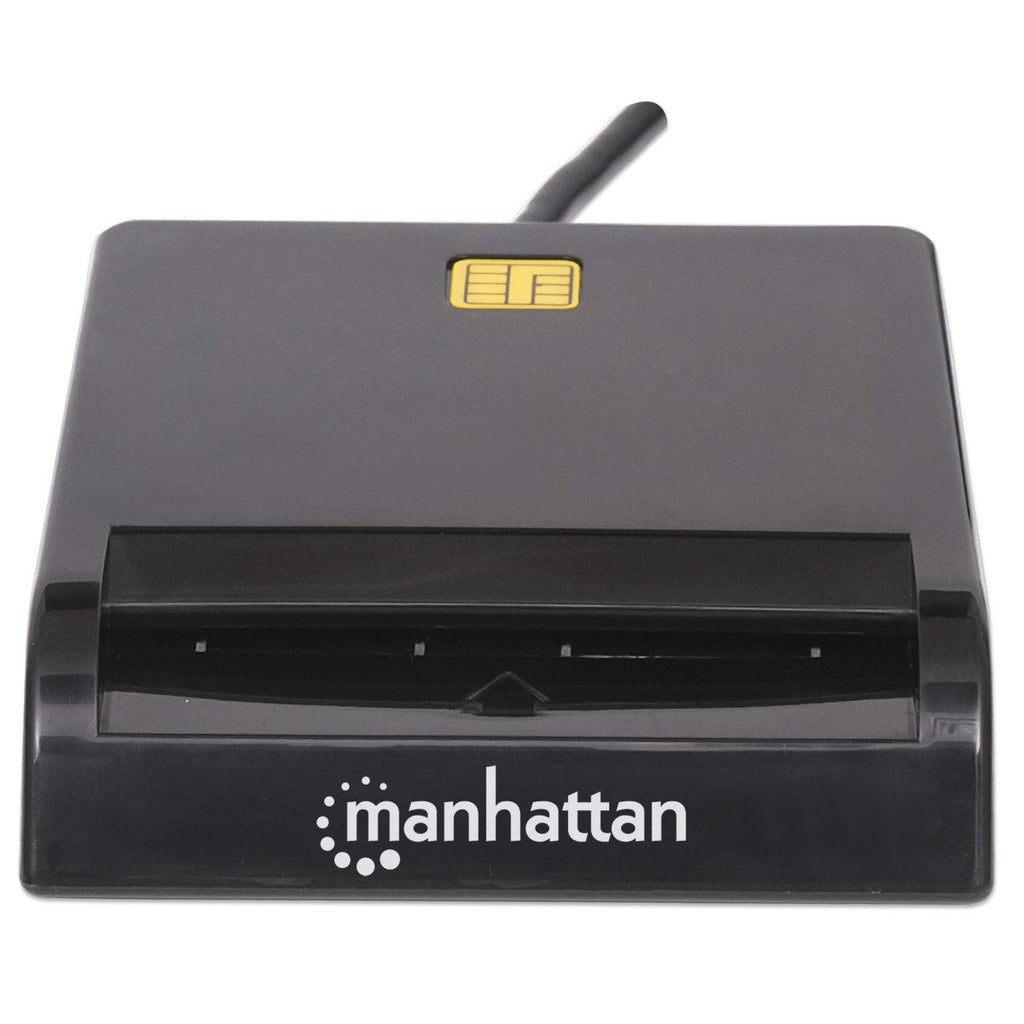

INTELLINET/MANHATTAN USB Smart Card Reader

£11.60

Part Number: 102049
Delivery: 1 - 2 days

Product Details

Introduction

Improve secured data and access protection.
Smart card technology finds popular applications in security and access control, financial transactions, medical records, loyalty programs, toll and vending collection, enterprise or single-user network sign-on and more that require secure information exchanges. Contact smart cards have a contact, or chip area with several contact pads that, when inserted into a Manhattan Smart Card Reader, can authenticate the user and safely transfer information between the card and the host computer. Smart cards are utilized extensively in Europe and Asia, and the use of smart cards is growing in North and South America. They replace less secure and less reliable barcode ID and magnetic stripe cards to provide flexible and standard transactions and strong, tamper-resistant authentication with minimal human intervention.

Quick and Easy Installation

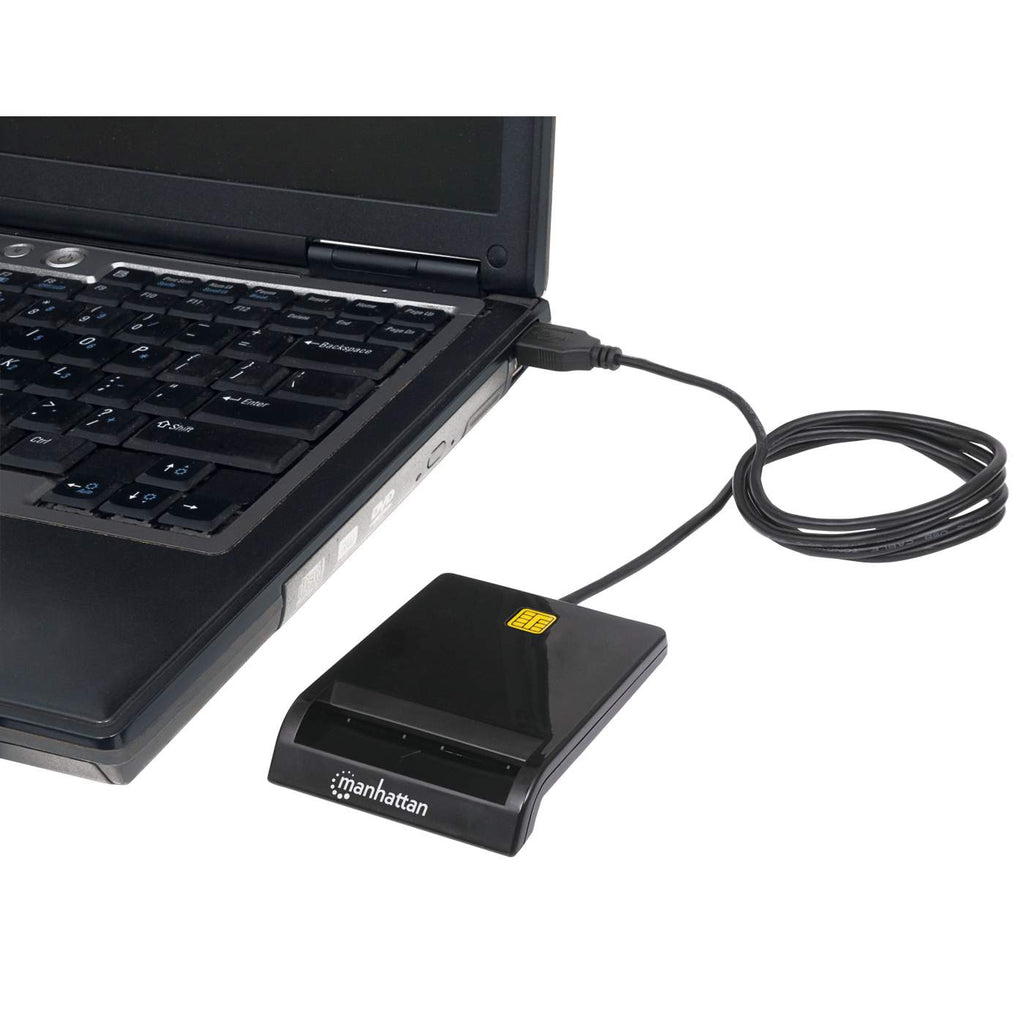

Ideal for desktop and notebook computers without built-in readers, the Manhattan Smart Card Reader is easily installed using any USB port and the included software and driver CD. Plug and play with Windows and Mac compatibility, it requires no external power supply or cables - just a simple USB connection.

Features

Plug and Play Y
Mean cycles between failures (MCBF) 200000
Product type Universal smart card reader
Application area Banking & payments, Healthcare

Design

Placement supported Indoor
Product colour Black
Housing material Acrylonitrile butadiene styrene (ABS)
LED indicators Activity, Power
Cable length 1.05 m

Ports & interfaces

Interface USB 2.0
Compliance industry standards 2-line, 3-line, SLE4418, 4428, 4432, 4442, AT88SC1608, 45D041, I2C

Power

Power source USB
USB powered Y
Operating voltage 5 V

Operational conditions

Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -35 - 70 °C

System requirements

Windows operating systems supported Windows 10, Windows 7, Windows 8.1, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supported Y
Mac compatibility Y
Mac operating systems supported Y

Weight & dimensions

Width 65 mm
Height 15 mm
Depth 85 mm
Weight 60 g

Sustainability

Sustainability certificates RoHS
Certification FCC, CE, RoHS2, CCID, EMV

Packaging data

Quick installation guide Y

Technical details

Compliance certificates CE, RoHS, Federal Communications Commission (FCC)

Information

Part Number: 102049
