Product Details
Introduction

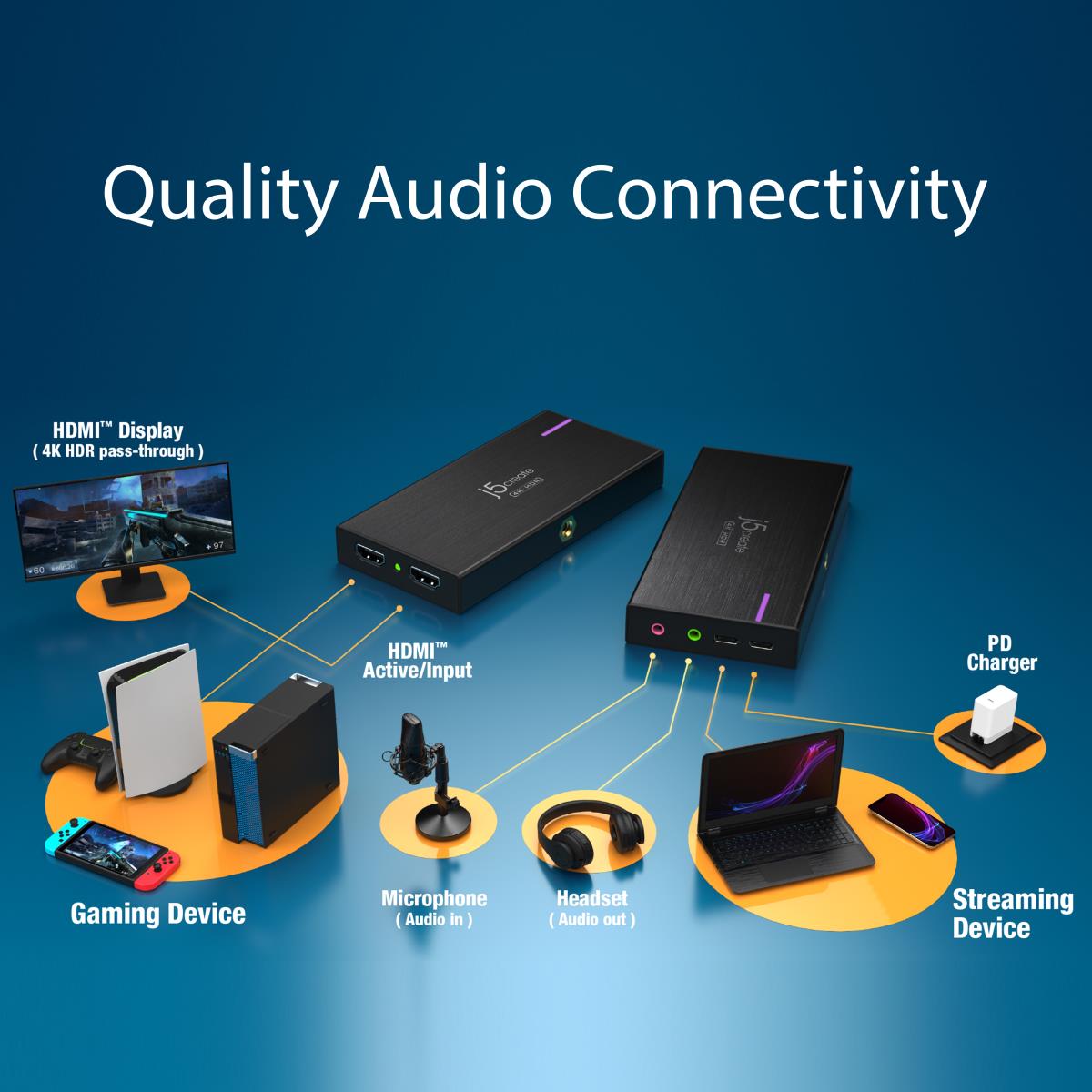

The JVA14 4K Game Capture Station is a capture device designed to stream and record your gameplay. It supports 4K @ 30 FPS video capture with 4K @ 60 FPS passthrough for consoles capable of 4K resolution. It has a 3.5 mm Audio In port and Mic In port allowing a headset to be connected for live commentary streaming on PlayStation™ 4 / 5, Xbox™ Series X / S, Xbox™ One X / S. It is fully compatible with OBS™ and other video streaming software, making it perfect for live streaming. The JVA14 is plug-and-play and compatible with macOS® and Windows® laptops and desktops.
Performance
Product colour
Black
Internal
No
Host interface
USB 3.2 Gen 1 (3.1 Gen 1)
Video capture resolution (max)
3840 x 2160 pixels
Memory card slot(s)
No
LED indicators
Power, USB
Plug and Play
Yes
Capturing from
Digital camera, Game console, PC
Housing material
Aluminium
High Dynamic Range (HDR) supported
Yes
Cable length
1 m
Country of origin
Taiwan
Compatible products
Available USB-C® or USB™ Type-A port (USB™ 3.2 / 3.0 is recommended)
Video
Analog signal format system
Not supported
Supported resolutions
Maximum Capture Refresh Rate:
4K30 FPS, 2K60 FPS, 1080p120 FPS
Maximum Passthrough Refresh Rate:
4K60 Hz HDR, 2K144 Hz HDR, 1080p240 Hz HDR
Maximum Capture Capability:
USB™ 3.0: 3840 x 2160@ 30
USB™ 2.0:1280 x720 @ 30
Supported video modes
1080p, 1440p, 2160p
Ports & interfaces
USB port
Yes
USB connector type
USB Type-C
USB version
3.2 Gen 1 (3.1 Gen 1)
USB ports quantity
1
HDMI ports quantity
2
HDMI in
1
Number of HDMI outputs
1
Headphone outputs
1
Power
Power supply type
USB
Software
Windows operating systems supported
Yes
Mac compatibility
Yes
Mac operating systems supported
Yes
Other operating systems supported
Android
System requirements
Minimum processor
CPU: Intel®Core™ i7 6700HQ& above. GPU: NVIDA®GTX960M & above
Minimum RAM
8000 MB
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 65 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 85%
Technical details
Warranty period
2 year(s)
Weight & dimensions
Width
134.6 mm
Depth
18.4 mm
Height
63.7 mm
Weight
142.5 g
Packaging content
Cables included
HDMI, USB Type-C to USB Type-A, USB Type-C to USB Type-C
Quick installation guide
Yes
Quantity
1
Packaging data
Package weight
371.5 g
Package height
70 mm
Package width
155 mm
Package depth
75 mm
Package type
Box
Information
| Part Number: | JVA14-N |
