Product Details
Introduction
Eliminate the need and expense for cables by wirelessly sending what’s on your laptop, tablet, or mobile phone to your HDTV with this HDMI™ Extender. It transmits audio and video signal from a USB-C® equipped device to an HDMI™ enabled TV, projector, or monitor, creating a dedicated AV connection without an existing network. Enjoy a large screen experience by simply connecting the USB-C® transmitter to your compatible device and then connect the HDMI™ receiver to your TV.
Features
Type
AV transmitter & receiver
Maximum resolution
1920 x 1080 pixels
Cable types supported
HDMI
Maximum transfer distance
15 m
Maximum refresh rate
60 Hz
Audio output channels
2.1 channels
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Bandwidth
40 MHz
Security algorithms
WPA2
Antenna type
Internal antenna
HDCP
Yes
Material
ABS
Firmware upgradeable
Yes
Plug and Play
Yes
Networking standards
IEEE 802.11ac
HDCP version
1.4
Product colour
Orange, White
Integrated antenna
Yes
Frequency range
2.4 - 5 GHz
Windows operating systems supported
Yes
Mac operating systems supported
Yes
HDMI version
1.3
HDCP
Yes
USB connector type
USB Type-C
Product colour
Orange, White
Current
1 A
Plug and Play
Yes
Ports & interfaces
Connectivity technology
Wireless
Wi-Fi
Yes
HDMI version
1.3
USB connector type
USB Type-C
Video out
HDMI
Power
Power source type
USB
Operating voltage
5 V
Power consumption (typical)
1.7 W
USB powered
Yes
Current
1 A
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
0 - 85%
Storage relative humidity (H-H)
0 - 85%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
0 - 85%
Storage relative humidity (H-H)
0 - 85%
Weight & dimensions
Width
65 mm
Depth
17 mm
Height
65 mm
Weight
77 g
Receiver dimensions (WxDxH)
24 x 57 x 10.5 mm
Receiver weight
31.5 g
Transmitter dimensions (WxDxH)
65 x 65 x 17 mm
Transmitter weight
54 g
Width
65 mm
Depth
17 mm
Height
65 mm
Weight
77 g
Package width
193 mm
Package depth
125 mm
Package height
22.5 mm
Package weight
182 g
Packaging data
Quantity per pack
1 pc(s)
Package width
193 mm
Package depth
125 mm
Package height
22.5 mm
Package weight
182 g
Package type
Box
Packaging content
Cables included
USB Type-A
Quick start guide
Yes
IR receiver included
Yes
Packaging content

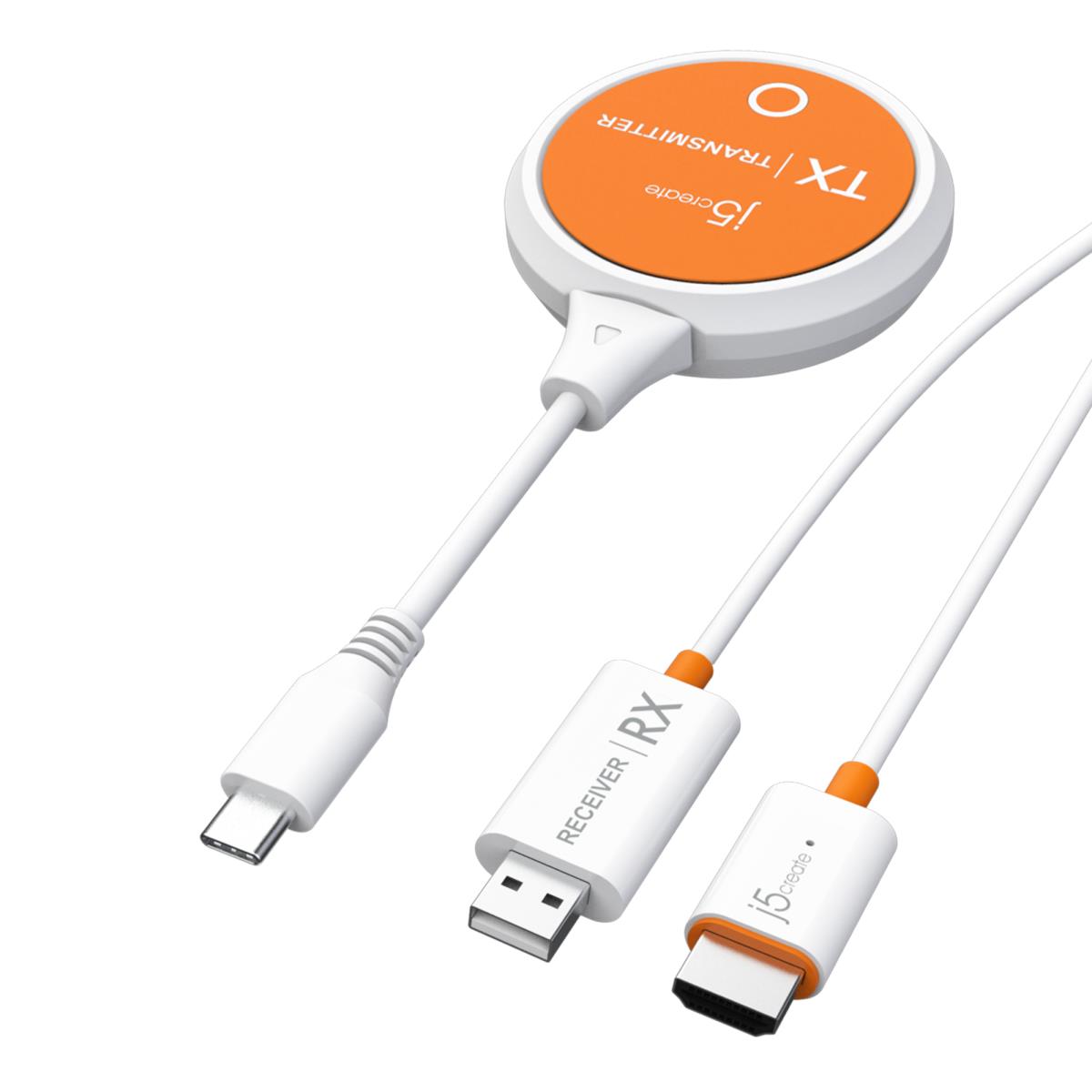

1 x JVAW62 ScreenCast USB-C® Wireless Display HDMI™ Extender (1 x Transmitter & 1 x Receiver), 1 x USB™ Type-A extension cable (23.6”), 1 x Quick Installation Guide (QIG)
Cables included
USB Type-A
Quick start guide
Yes
Technical details
Warranty period
2 year(s)
Master (outer) case GTIN (EAN/UPC)
24712795086144
Warranty period
2 year(s)
Logistics data
Minimum order quantity
18 pc(s)
Export Control Classification Number (ECCN)
EAR99
Master (outer) case width
226 mm
Master (outer) case length
445 mm
Master (outer) case height
190 mm
Master (outer) case gross weight
4.12 kg
Products per master (outer) case
18 pc(s)
Master (outer) case GTIN (EAN/UPC)
24712795086144
Country of origin
China
Products per master (outer) case
18 pc(s)
Master (outer) case gross weight
4.12 kg
Master (outer) case length
445 mm
Master (outer) case width
226 mm
Master (outer) case height
190 mm
Quantity per pack
1 pc(s)
Export Control Classification Number (ECCN)
EAR99
Software
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Information
| Part Number: | JVAW62-N |
