Introduction

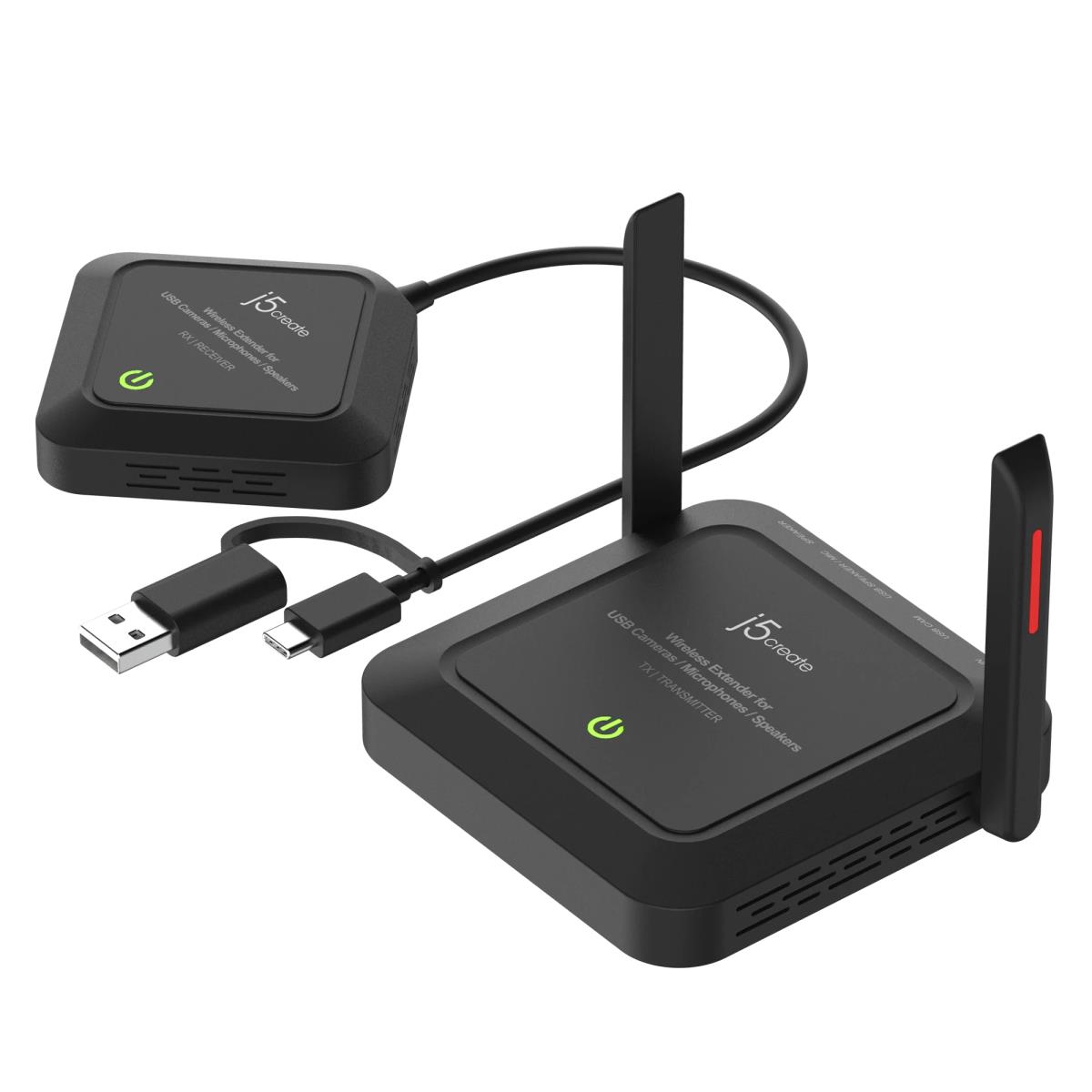

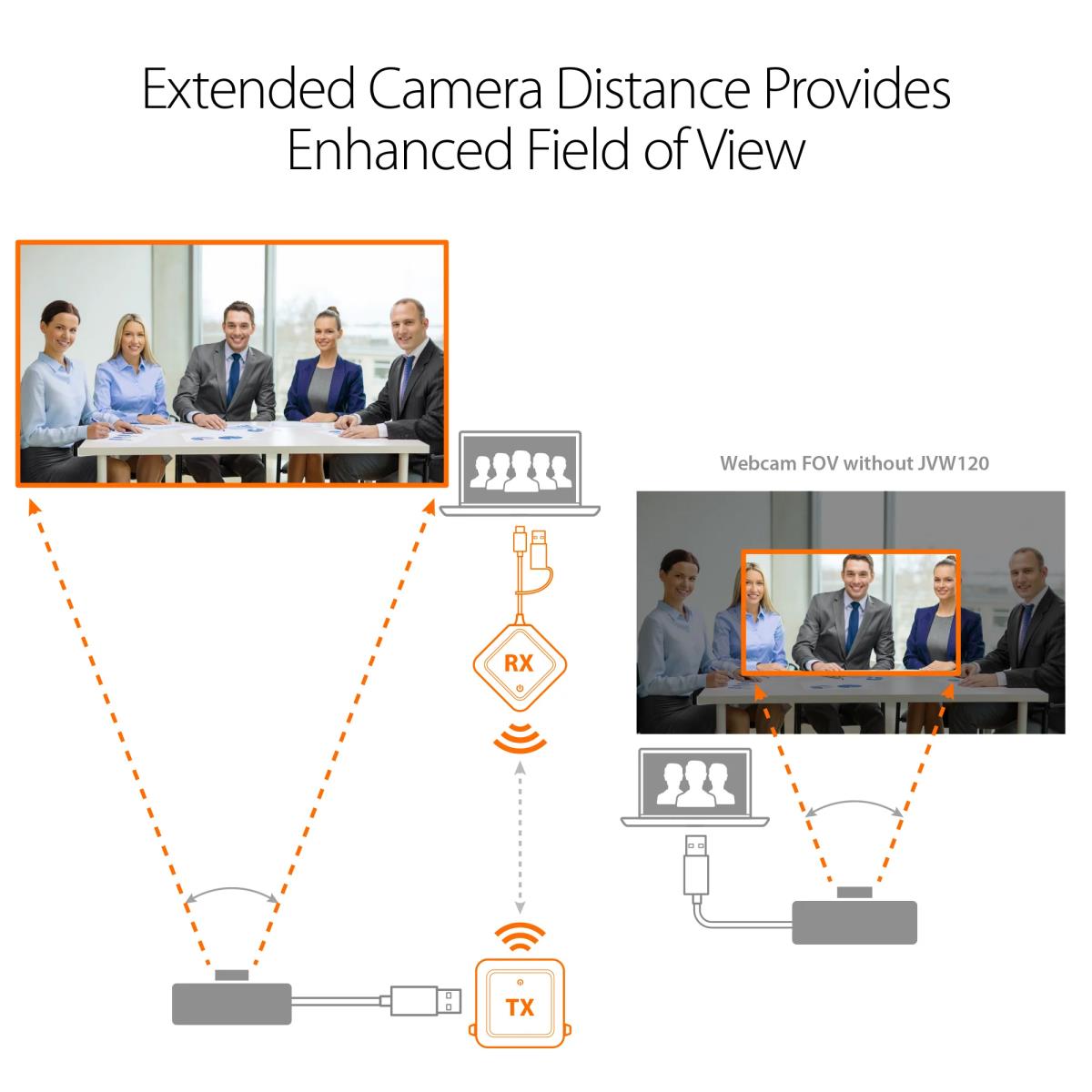

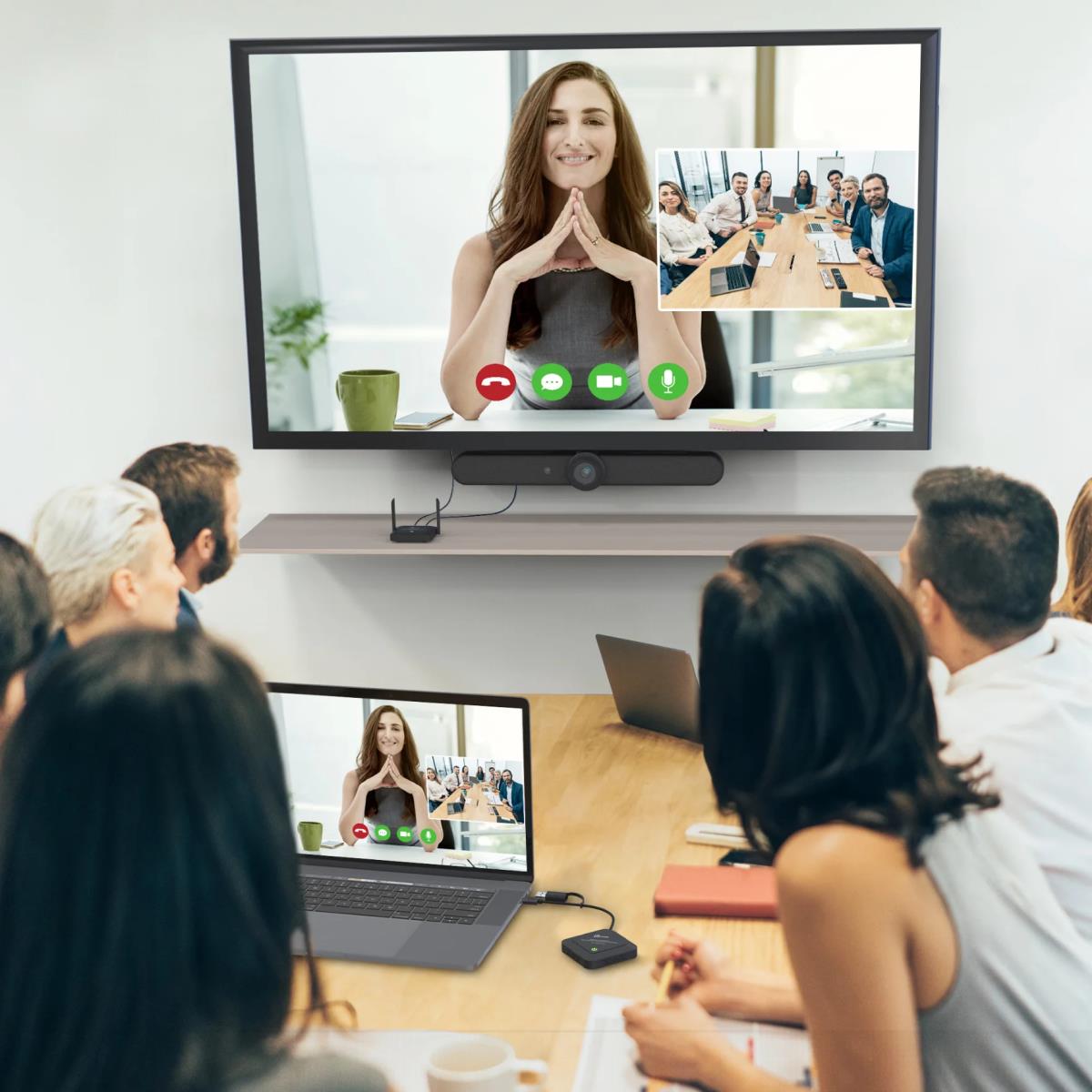

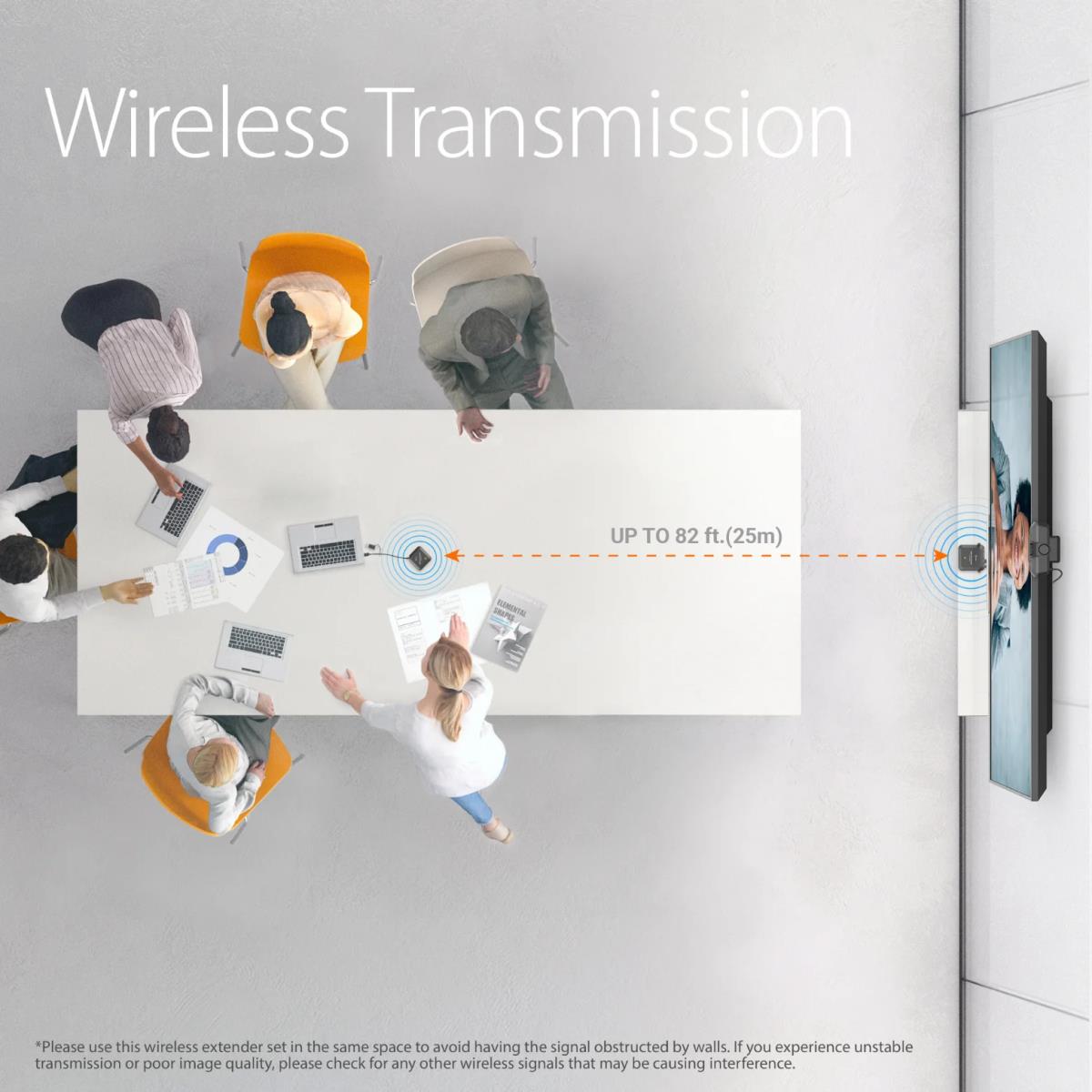

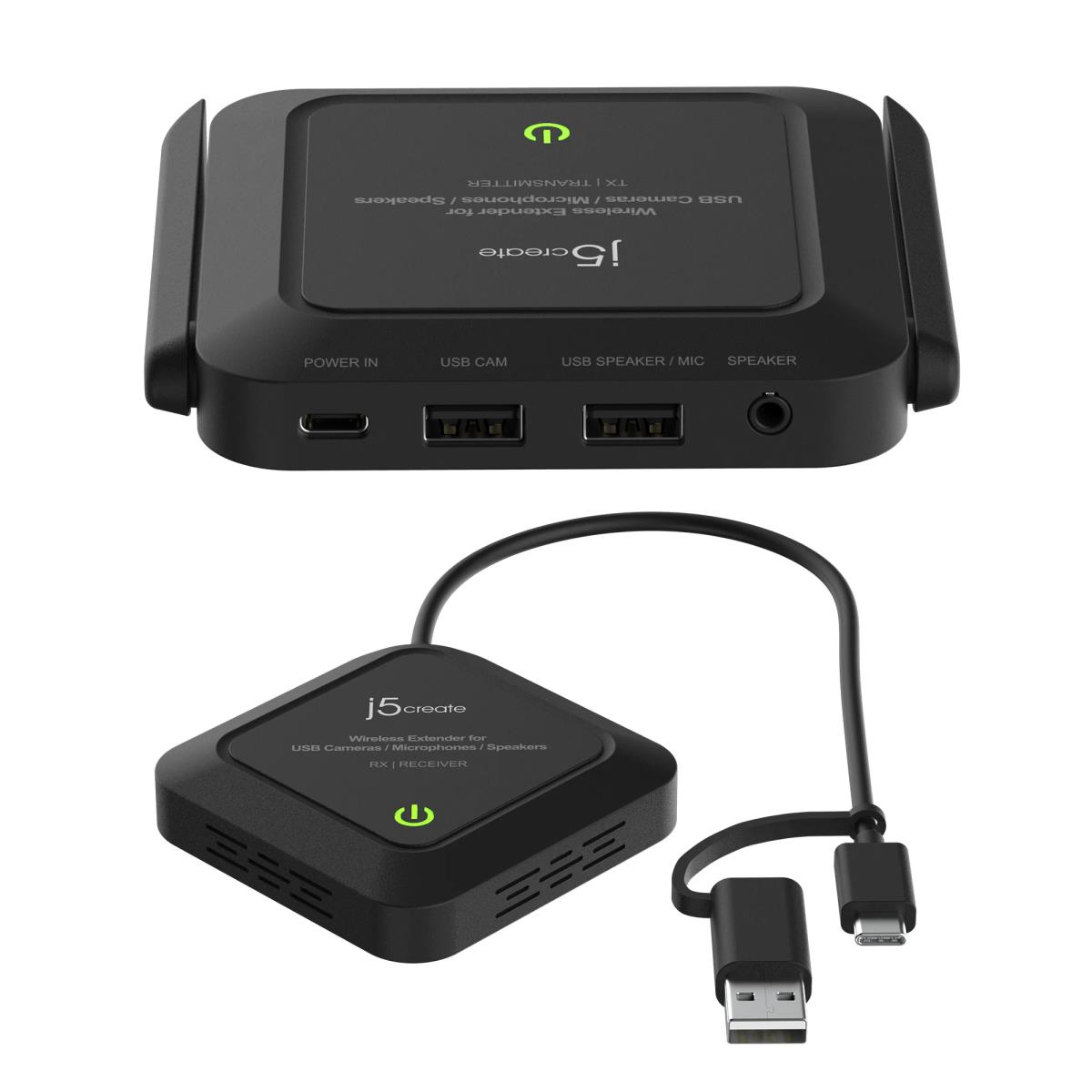

The j5create Wireless Extender for USB™ Cameras turns your wired USB™ camera into a wireless one. With a wireless transmission range of up to 82 ft. (25 m) users can extend the range of their wired USB™ camera without having to deal with tangled cables regardless of the room layout. In addition to transmitting both video and audio wirelessly this compact and lightweight camera extender works with Windows®, macOS®, and Chrome OS™ devices, making it a great addition to any meeting room, streaming setup, and other similar environments.
Features
Plug and Play
Yes
Compatible products
Display may vary depending on environment. Solid and nonporous materials such as steel, concrete, brick and glass (varies depending on coating and thickness) may cause shorter viewing distance or loss of signal.
Priority of Audio-Output on the ports of TX would be “3.5mm Speaker? USB™ Speaker/microphone ? USB™ camera with speaker/microphone”
TX and RX devices will connect and pair each other automatically. If devices are properly be paired and USB™ camera has been connect with TX, then camera will be activated automatically
Compatibility

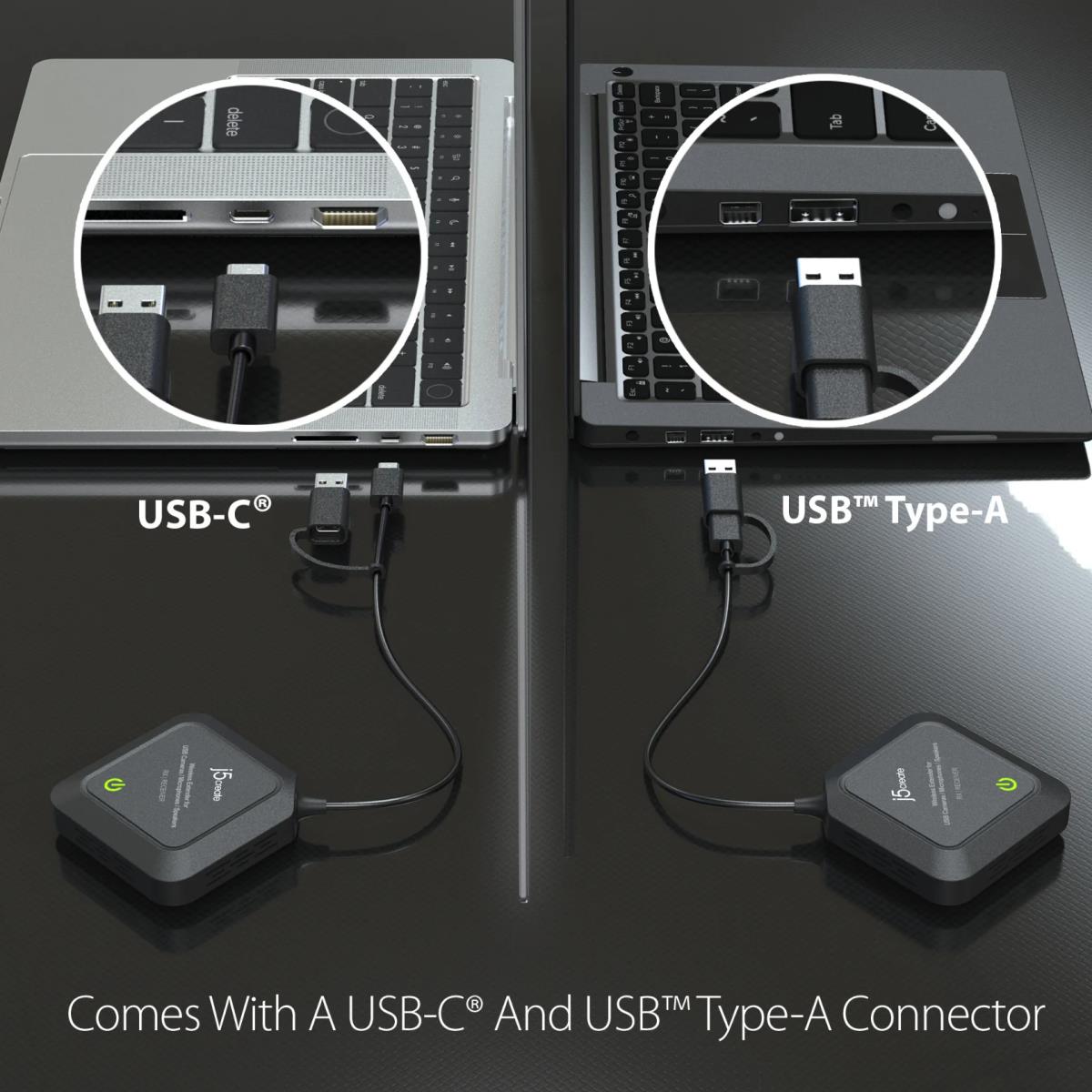

Available USB-C® or USB™ Type-A port
Windows® 11 / 10
macOS® 10.10 or later
Chrome OS™
Ports & interfaces
Connectivity technology
Wired & Wireless
USB ports quantity
3
USB connector type
USB Type-A, USB Type-C
Audio included

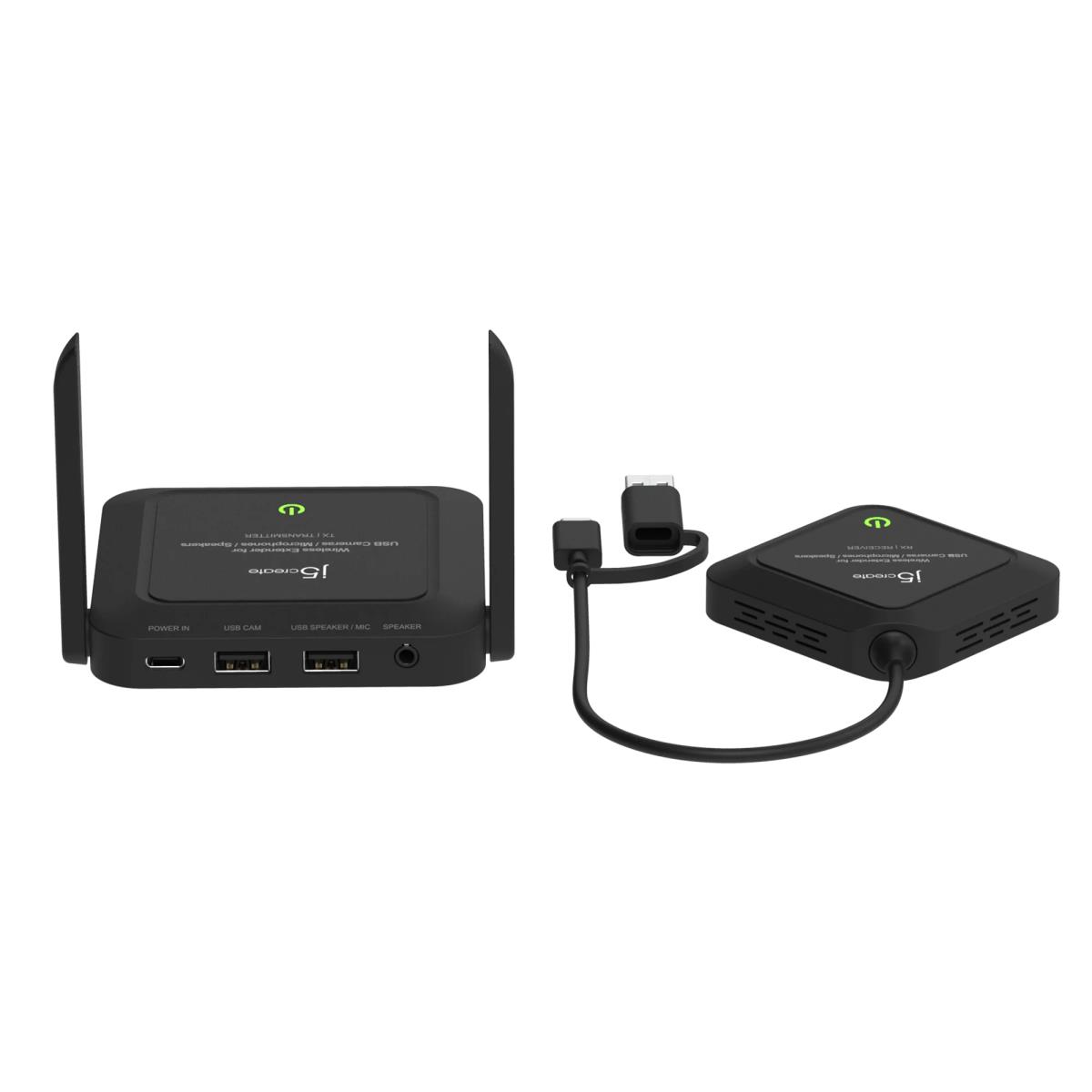

TX¦Transmitter: 1 - USB-C® Power In 1 - USB™ Type-A Female (Camera) 1 - USB™ Type-A female (Speaker/Microphone) 1 - 3.5 mm Speaker Out
Power
Power source type
DC, USB
Power note
TX Transmitter: 1 - DC 5V/3A Power Adapter RX¦Receiver: 1 - Bus Power through USB-C®
Operational conditions
Operating relative humidity (H-H)
0 - 85%
Storage relative humidity (H-H)
0 - 85%
Weight & dimensions
Receiver dimensions (WxDxH)
67 x 67 x 21 mm
Receiver weight
55.5 g
Transmitter dimensions (WxDxH)
95 x 95 x 23 mm
Transmitter weight
112 g
Packaging data
Quantity per pack
1 pc(s)
Package width
193 mm
Package depth
124 mm
Package height
50 mm
Package weight
416 g
Package type
Box
Packaging content
Packaging content

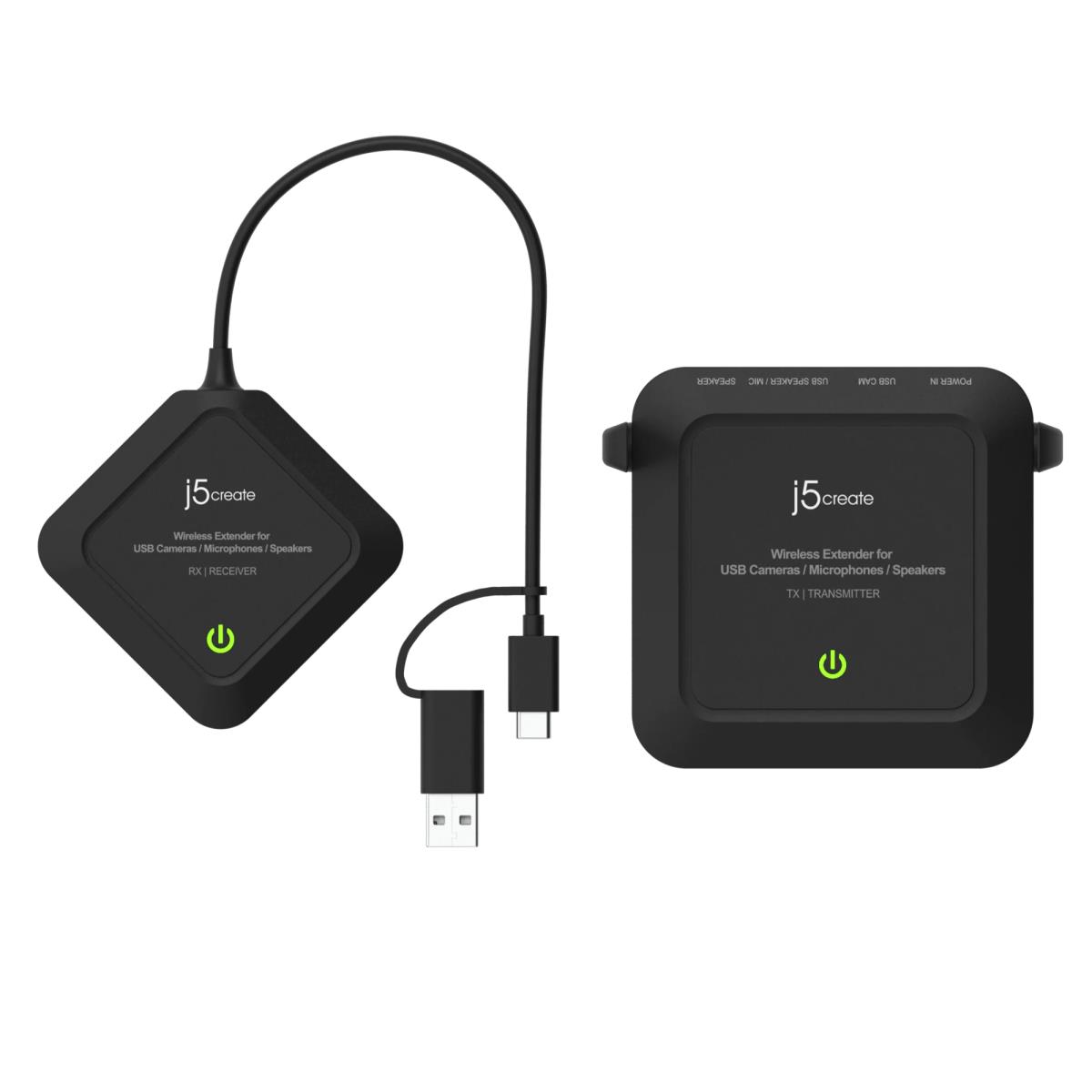

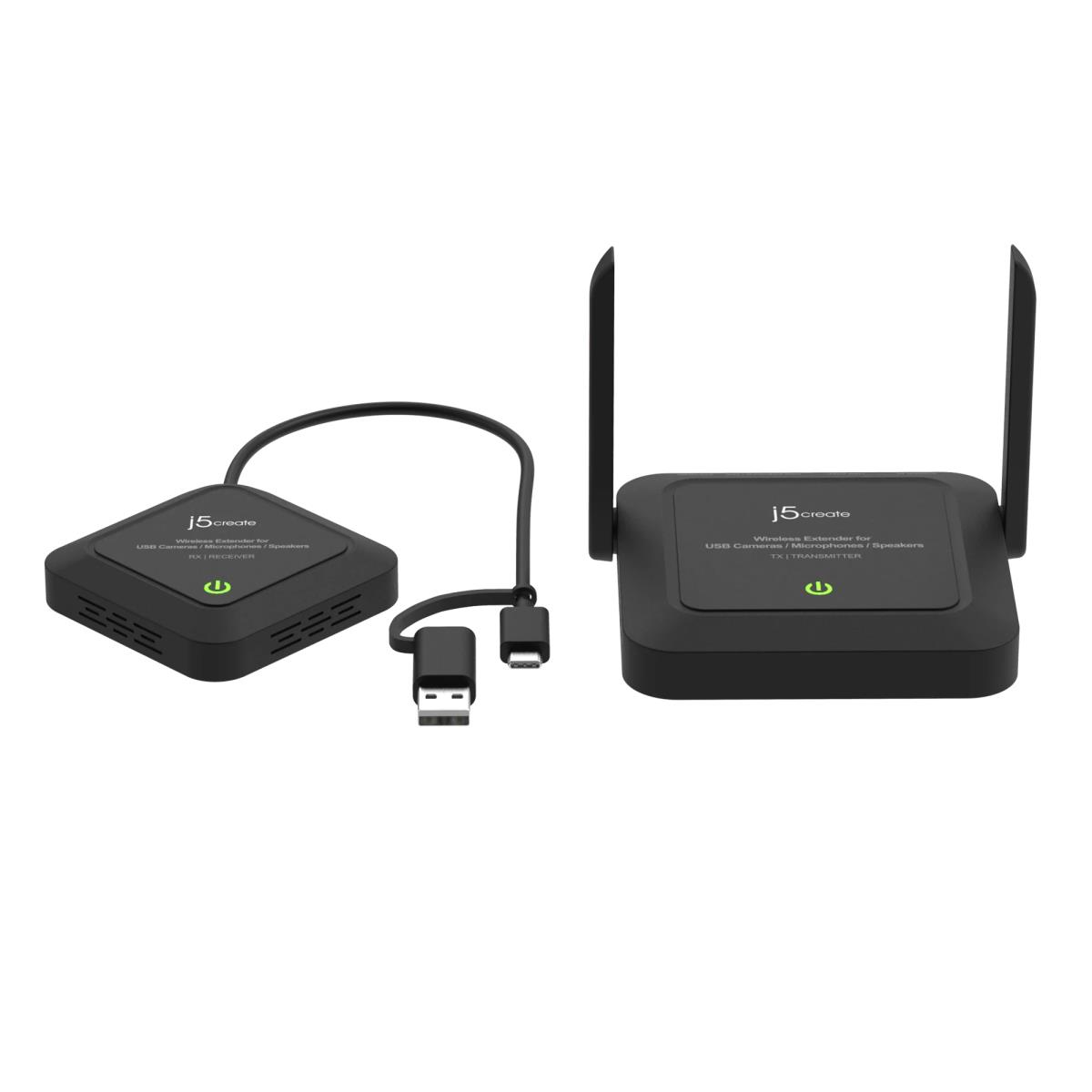

1 - JVW120 Wireless Extender for USB™ Cameras / Microphones / Speakers set (1 x Transmitter & 1 x
Receiver)
1 - DC 5V/3A Power Adapter
1 - Hook and loop fastener
1 - Quick Installation Guide (QIG)
Information
| Part Number: | JVW120-N |
