Product Details
Introduction

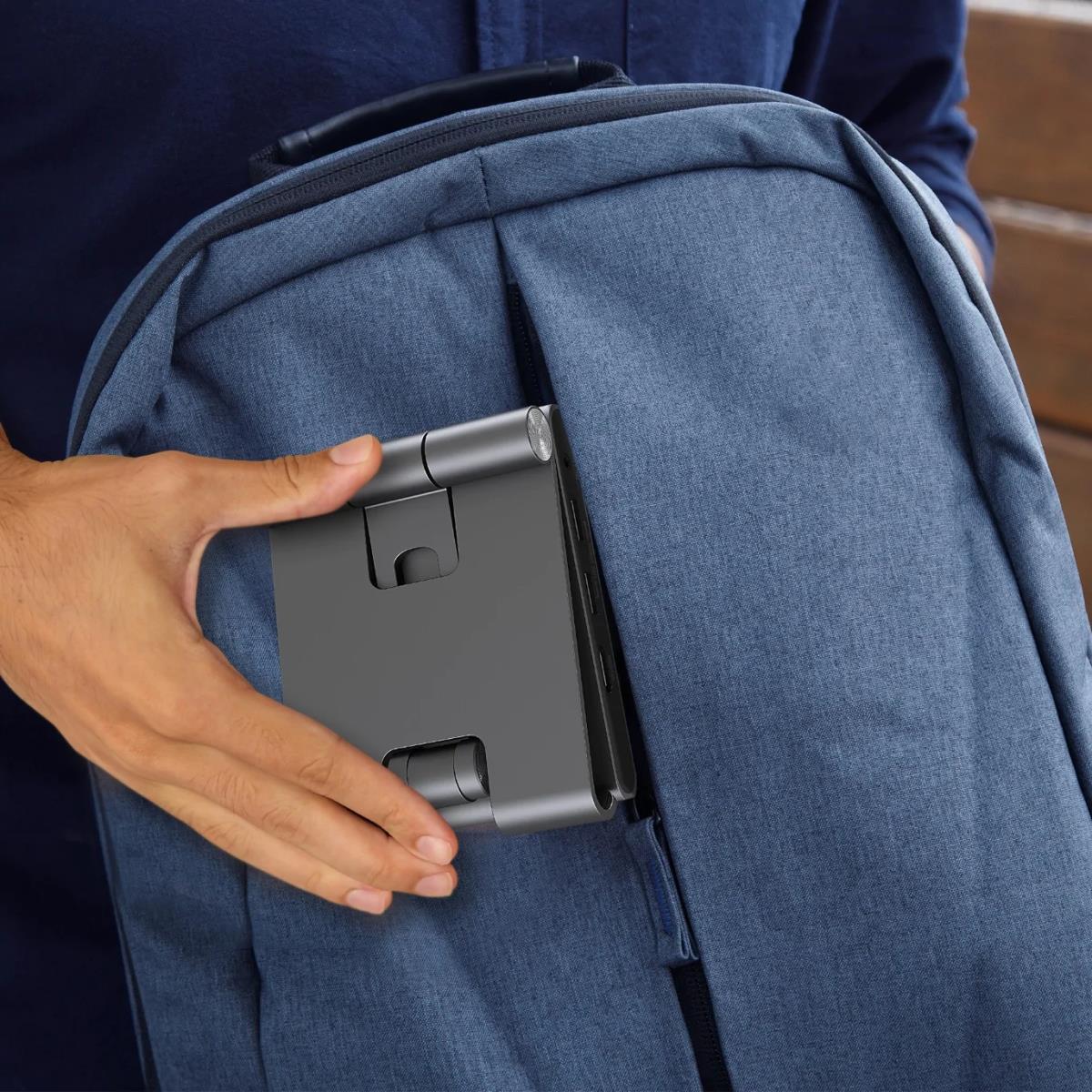

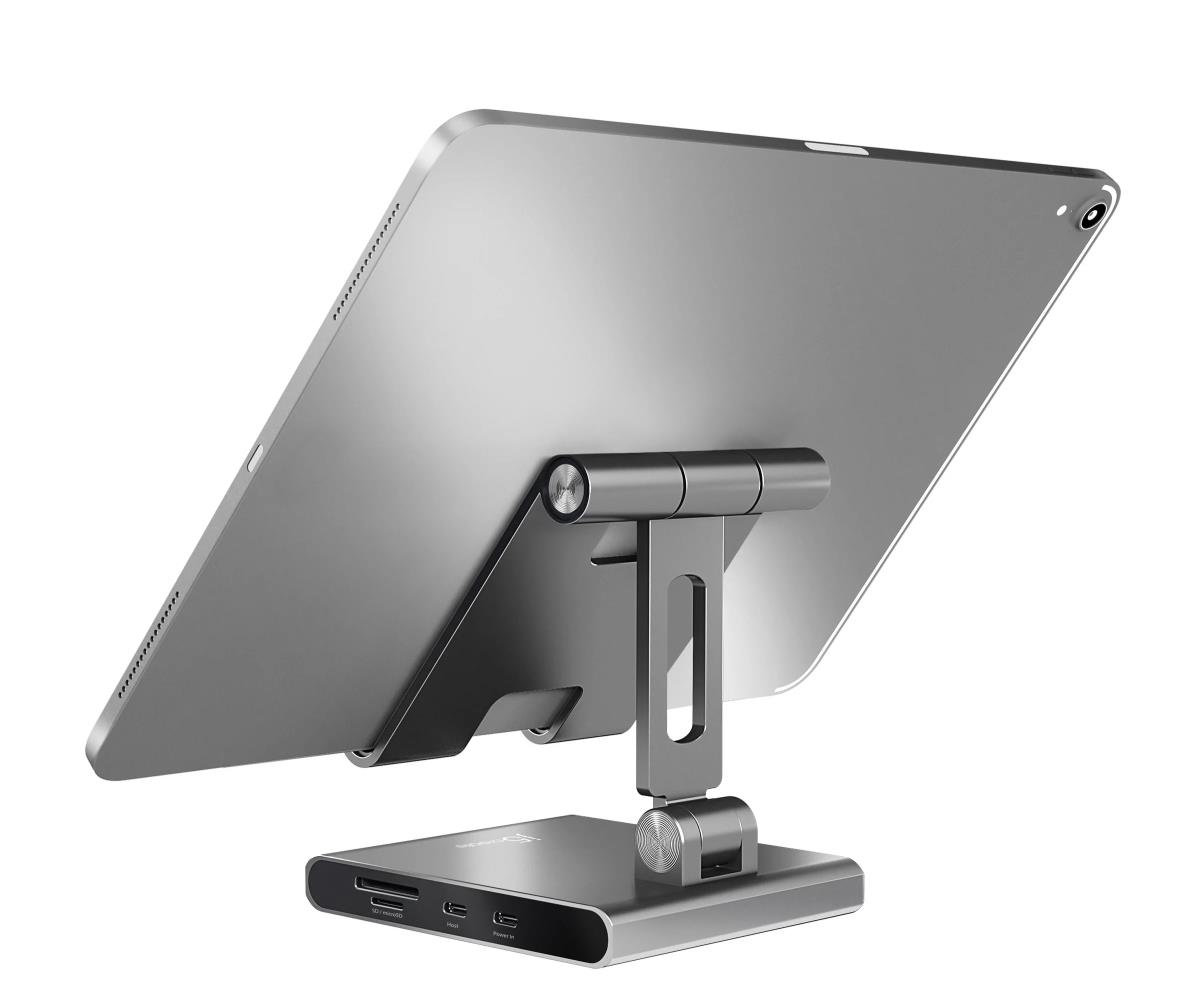

JTS224 is made of durable aluminum and is designed to support iPad Pro® and iPad Air®. It is foldable for easy transportation and storage. The viewing angle can be adjusted to your liking and improves your viewing experience.

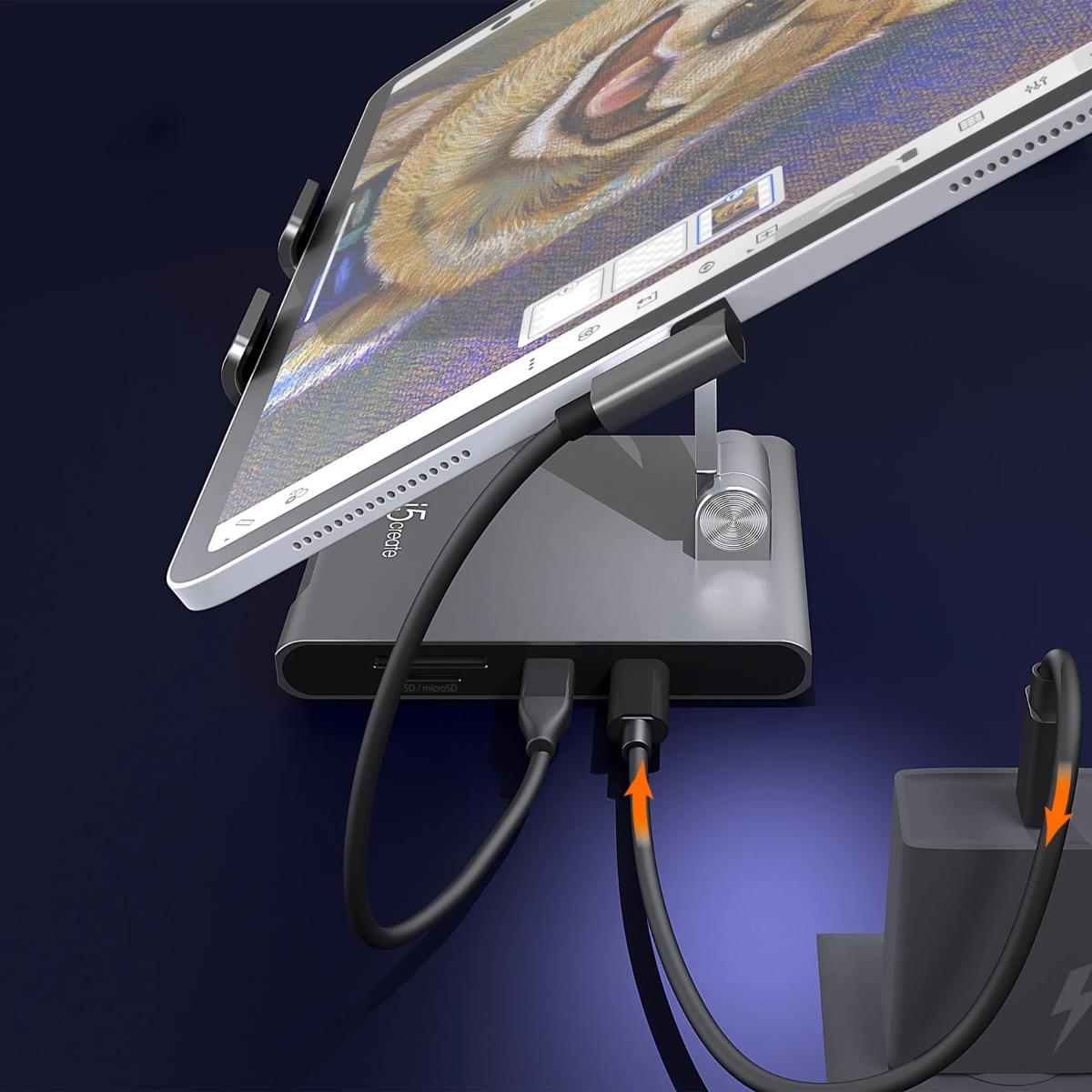

The integrated USB-C® docking station includes an HDMI™ 2.0 port, two USB™ Type-A 5Gbps ports, SD™ / microSD™ 3.0 card reader, audio/mic combo jack and PD 100W pass-through charging, giving you the connections you need for increased productivity.
Design
Product type
Tablet stand
Product colour
Grey
Maximum tablet screen size compatibility
32.8 cm (12.9")
Maximum weight capacity
1.5 kg
Compatible products
Compatible with iPad Pro® & iPad Air® & iPad mini® with USB-C® port
Supports Extended Mode on iPadOS® 16
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI ports quantity
1
I/O ports
1 - USB-C® PD 100W charging port

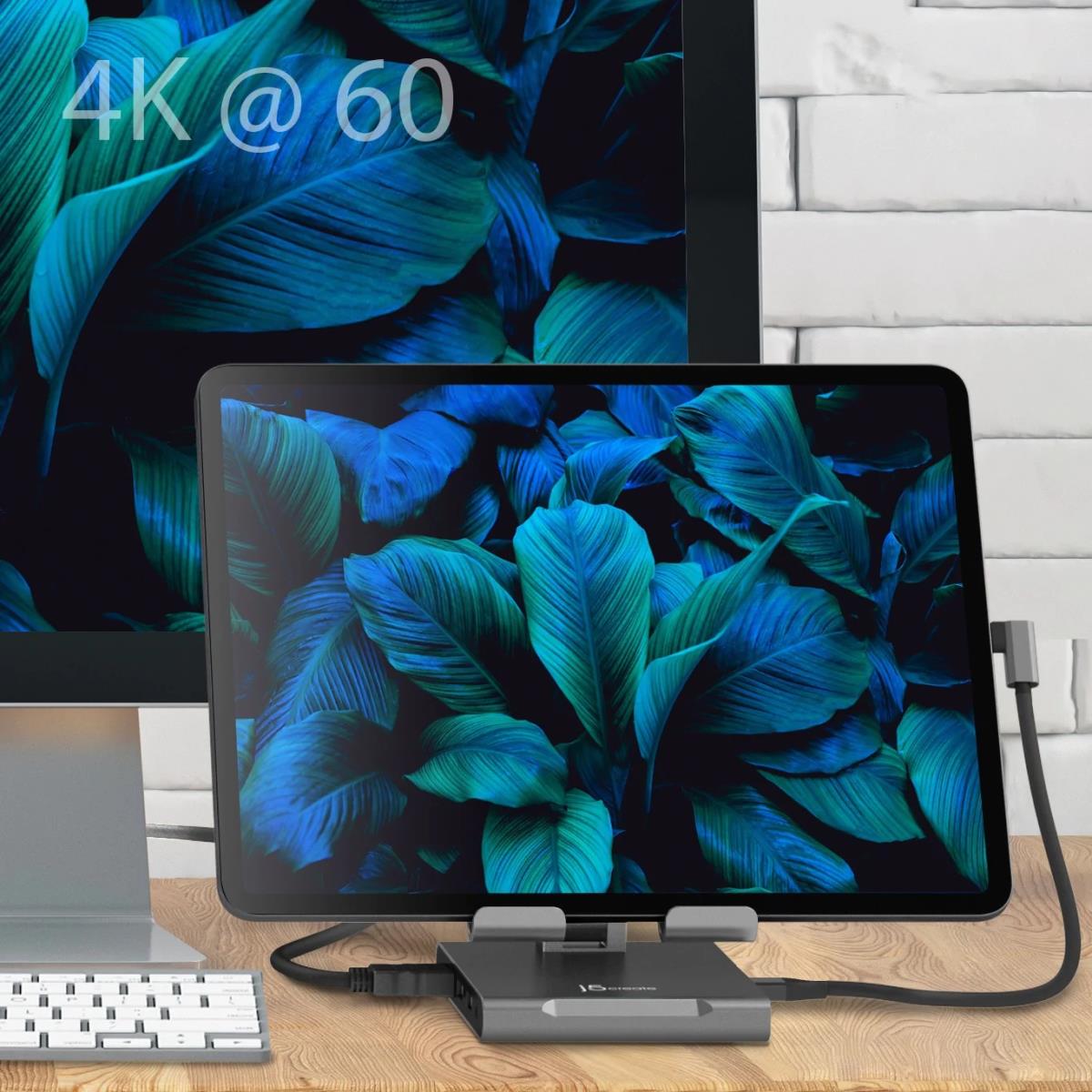

1 - HDMI™ 2.0 (4K60)
2 - USB™ Type-A 5Gbps
1 - SD™/microSD™ 3.0 card reader
1 - 3.5 mm audio/mic combo jack
Power
Input voltage
20 V
USB powered
Yes
Weight & dimensions
Width
100 mm
Depth
36 mm
Height
125 mm
Weight
377 g
Packaging data
Package width
145 mm
Package depth
140 mm
Package height
56 mm
Package weight
498 g
Package type
Box
Operational conditions
Operating temperature (T-T)
0 - 30 °C
Operating relative humidity (H-H)
0 - 85%
Storage temperature (T-T)
-10 - 65 °C
Storage relative humidity (H-H)
0 - 85%
Technical details
Mounting type
Desk
Country of origin
Taiwan
Warranty period
2 year(s)
Logistics data
Master (outer) case width
186 mm
Master (outer) case length
249 mm
Master (outer) case height
174 mm
Master (outer) case gross weight
2.3 kg
Products per master (outer) case
4 pc(s)
Other features
Number of displays supported
1
Information
| Part Number: | JTS224-N |
