Product Details
Introduction

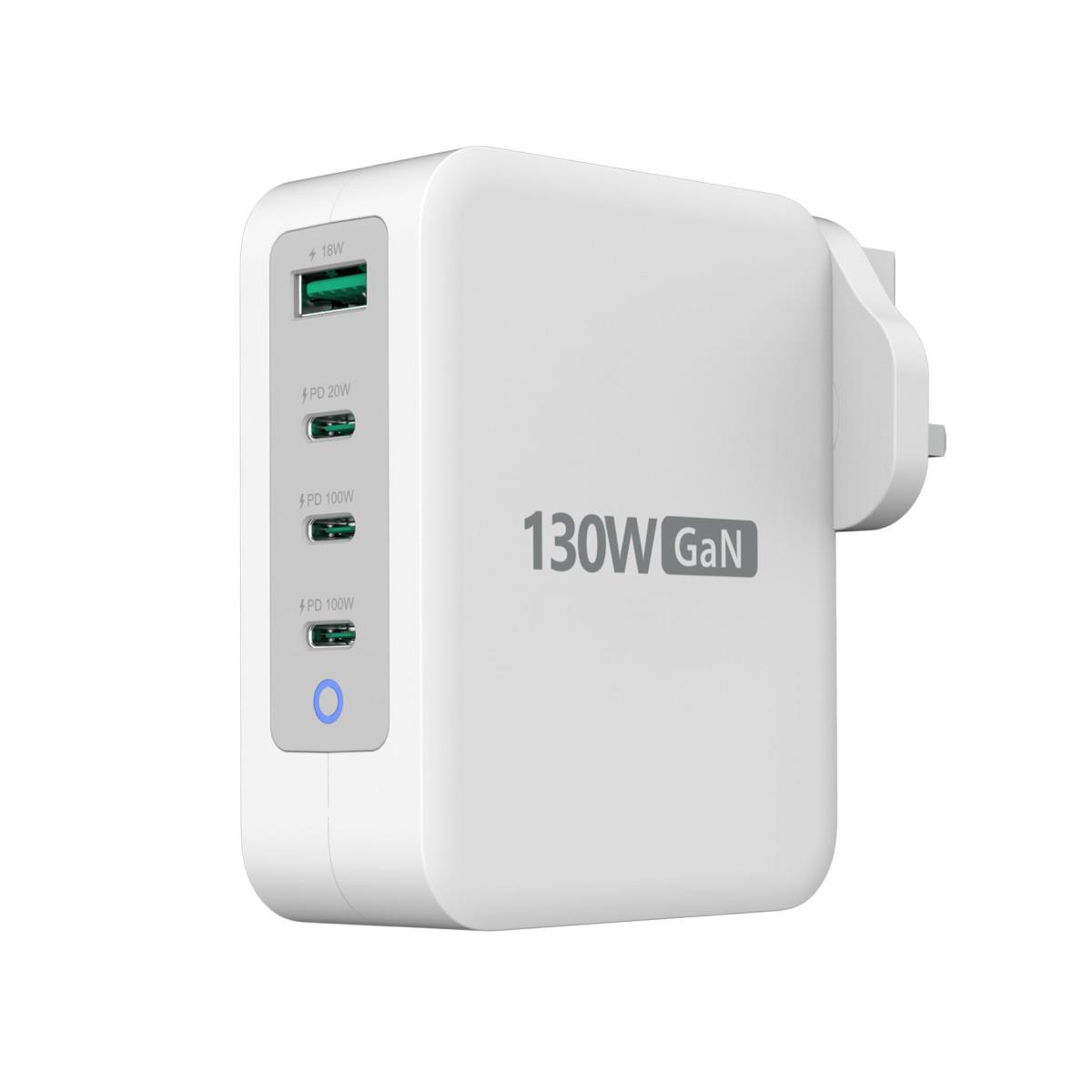

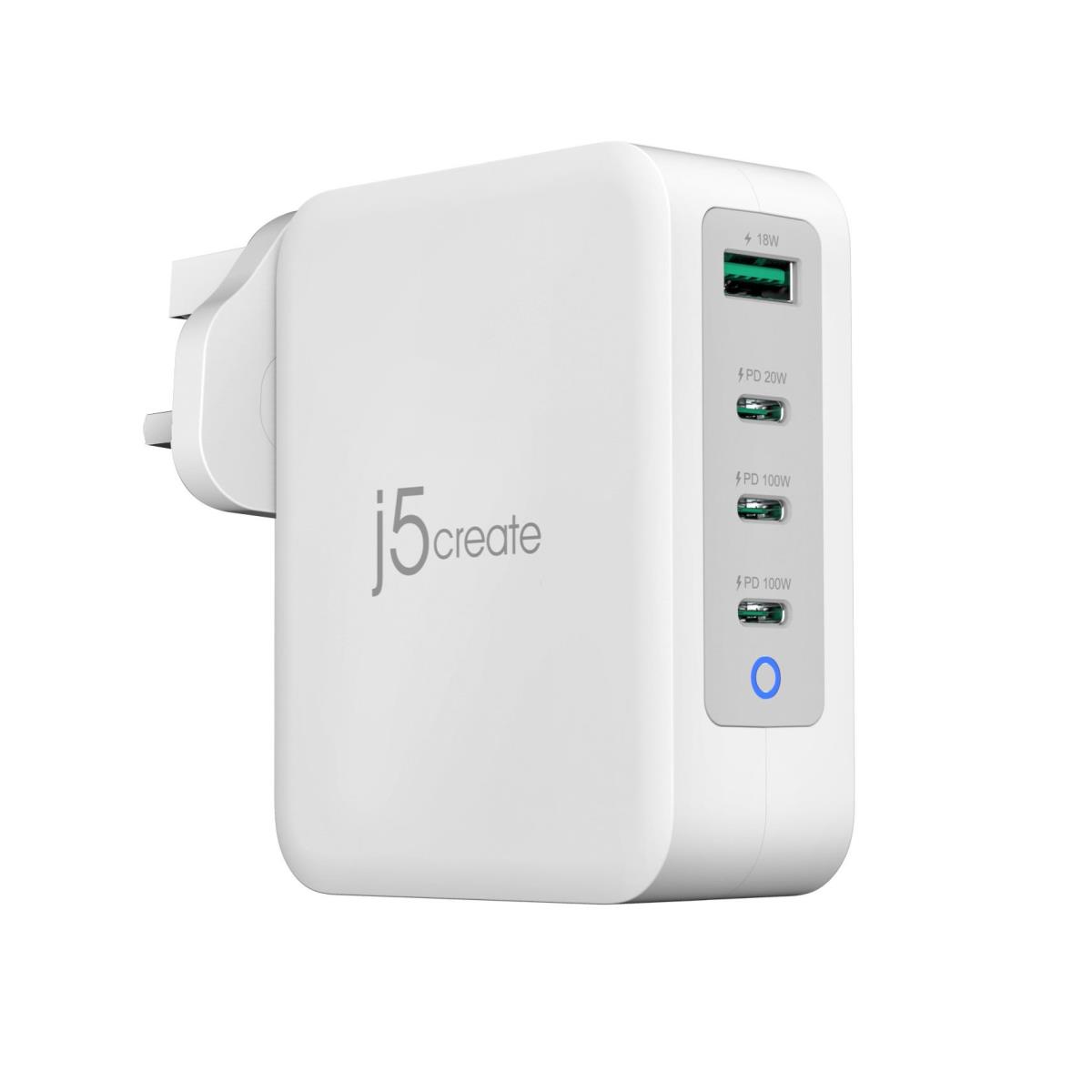

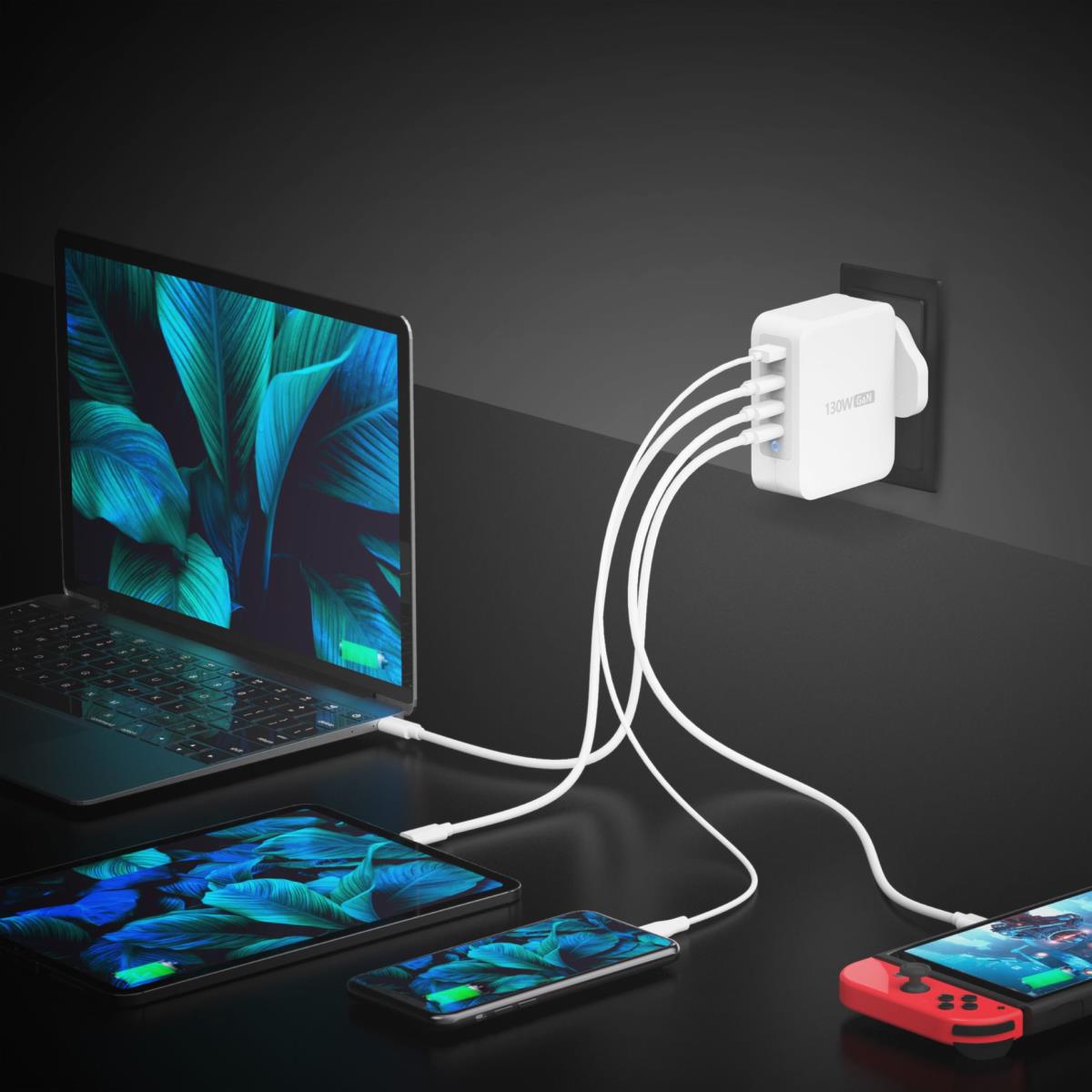

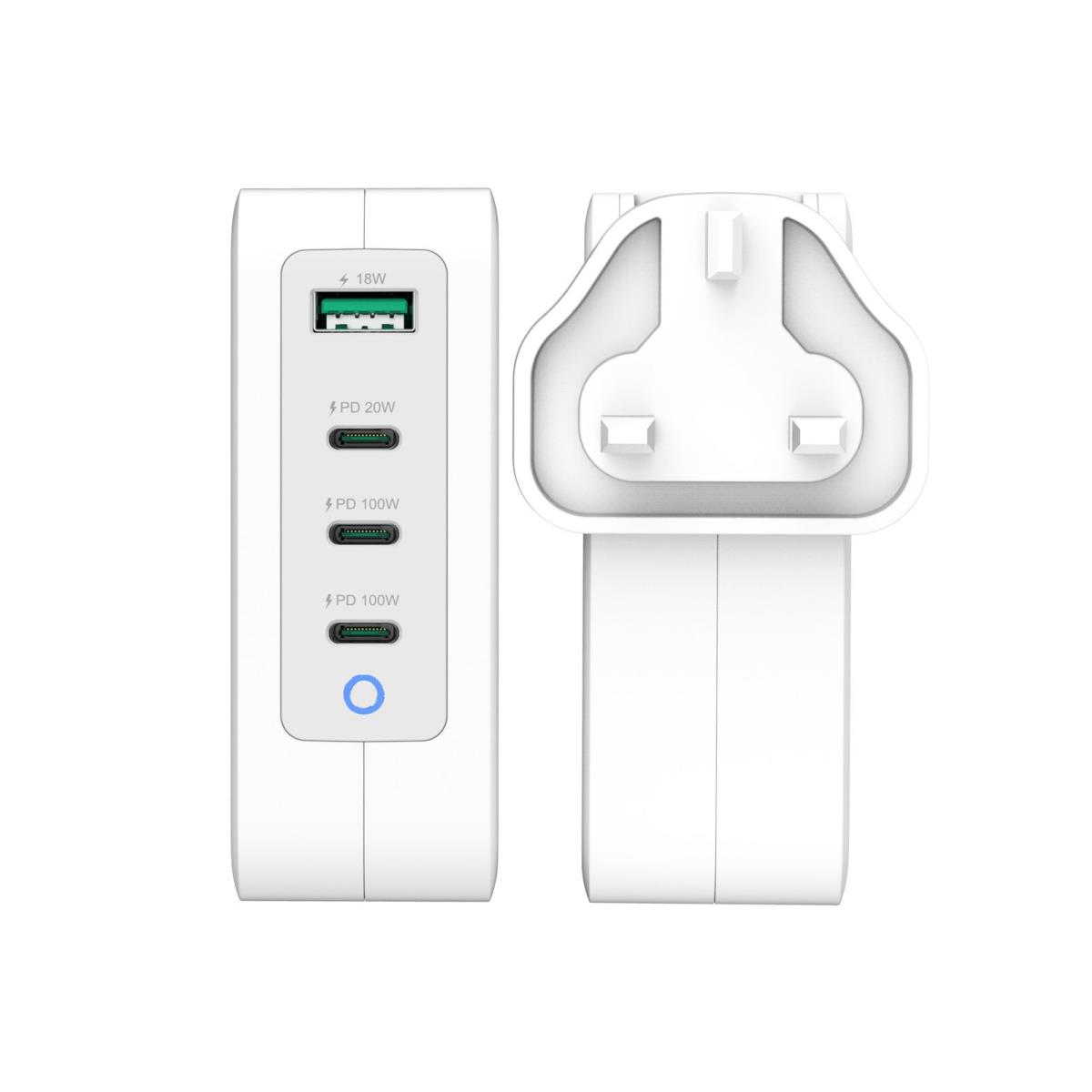

Charge three USB-C® devices and a USB™ Type-A device simultaneously with the 130W 4-Port PD USB-C® Super Charger. The charger uses GaN technology allowing the charger to provide a lot of power in a compact size. The USB-C® ports are equipped with Power Delivery 3.0/2.0 technology allowing you to charge your phones, tablets, or laptops at the fastest speeds possible. The charger also comes with surge, overcharging, overcurrent, and overheating protection for keeping your devices safe. Its superior charging capabilities, wide compatibility, and small design make it great for replacing the original charger that comes with a variety of mobile devices.
Performance
Charger compatibility
Mobile computer, Mobile phone, Portable gaming console, Smartwatch, Tablet
Power source type
USB
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB Type-C ports quantity
3
Fast charging
Yes
Fast charging technology
Quick Charge 4
Charger type
Indoor
Number of outputs
4 outputs
USB Power Delivery
Yes
USB Power Delivery revision
3.0
USB Power Delivery up to
130 W
Power protection features
Over current, Overcharge, Overheating
Compatibility
Smartphones:
iPhone® 13, 13 mini, 13 pro, 13 pro max, 12 mini, 12, 12 Pro, 12 Pro Max, 11, 11 Pro, 11 Pro Max, XS Max, XR, XS, X, 8, 8 Plus
Samsung® Galaxy™ Note10, Note10+, Note9, Note8, S22 Ultra, S22+, S22, S21 FE, S21 Ultra, S21, S20 FE, S20 Ultra, S20, S10, S10+, S10 Lite, S10 5G, S10e, S9+, S9, S8, S8+
Pixel™ 4, 4a, 4XL, 5, 5a, 6, 6a, 6 Pro
Sony® Xperia® XZ3
LG™ G8 ThinQ™, LG™ 7
Tablets:
iPad Air® 10.5'", iPad Pro® 11''/12.9"
Samsung® Galaxy™ Tab S8 Ultra, S8+, S8, S7 FE, S7+, S7, S6 Lite, S6, S5e, S4
Google Pixel™ tablets
Consoles:
Nintendo Switch™
Nintendo Switch™ Lite
Stream Deck™
*Not compatible with the Nintendo Switch™ dock.
Laptops:
MacBook Air® 13'', MacBook® 12'', MacBook Pro® 13'', MacBook Pro® 15", MacBook Pro® 16", M1 MacBook® computers
Microsoft® Surface™ computers with power delivery
Dell™ XPS™ 13, XPS™ 15, Inspiron™ 13, Inspiron™ 7000, Dell™ Vostro™ 5471
HP® Elite X2, EliteBook X360, Spectre® 13, Spectre® 15, Spectre® 360, Spectre® folio 13-ak0000tu, Chromebook™ computers
Lenovo™ ThinkPad® X1, Yoga™
*Note: Compatibility is not limited to just the device listed
Country of origin
Taiwan
Design
Product colour
Grey, White
Housing material
Plastic
Gallium nitride (GaN) transistors
Yes
Power
Maximum power
130 W
Port 1 output power
18 W
Port 2 output power
20 W
Port 3 output power
100 W
Weight & dimensions
Width
69 mm
Depth
32 mm
Height
87 mm
Weight
295 g
Packaging data
Quantity per pack
1 pc(s)
Package type
Box
Package width
155 mm
Package depth
95 mm
Package height
40 mm
Package weight
374 g
Operational conditions
Operating temperature (T-T)
0 - 30 °C
Logistics data
Export Control Classification Number (ECCN)
EAR99
Master (outer) case width
207 mm
Master (outer) case length
224 mm
Master (outer) case height
906 mm
Master (outer) case gross weight
4.2 kg
Products per master (outer) case
10 pc(s)
Shipping (inner) case width
10.4 cm
Shipping (inner) case length
21.6 cm
Shipping (inner) case height
18.5 cm
Shipping (inner) case gross weight
2 kg
Products per shipping (inner) case
5 pc(s)
Other features
Technical features
The first and the second USB-C® port provide up to 100W of power when used independently.
The first and the second USB-C® port provide up to 65W of power when both ports are used. ?Dynamic Power Control of full load in 30mins : PD90W(PD45W+PD45W)?
The third USB-C® port provides up to 20W of power when used independently.
The USB™ Type-A port provides up to 18W of power when used independently.
The third USB-C® and USB™ Type-A port provide up to 20W (5V/2A+5V/2A) of power when used both ports.
Packaging content
1 - 130W GaN USB-C® 4-Port Charger
1 - Quick Installation Guide (QIG)
Information
| Part Number: | JUP43130F-FN |
