Product Details
Introduction

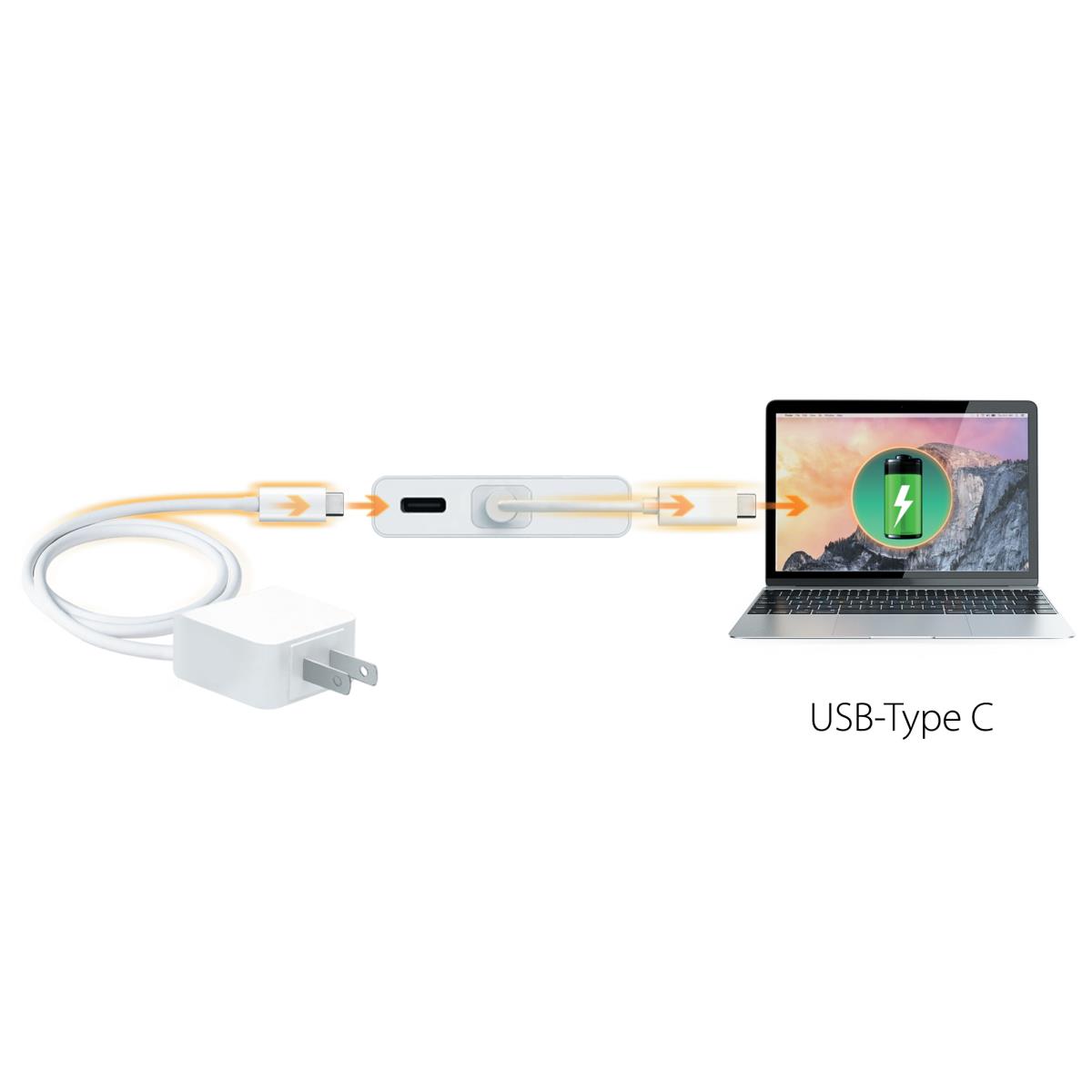

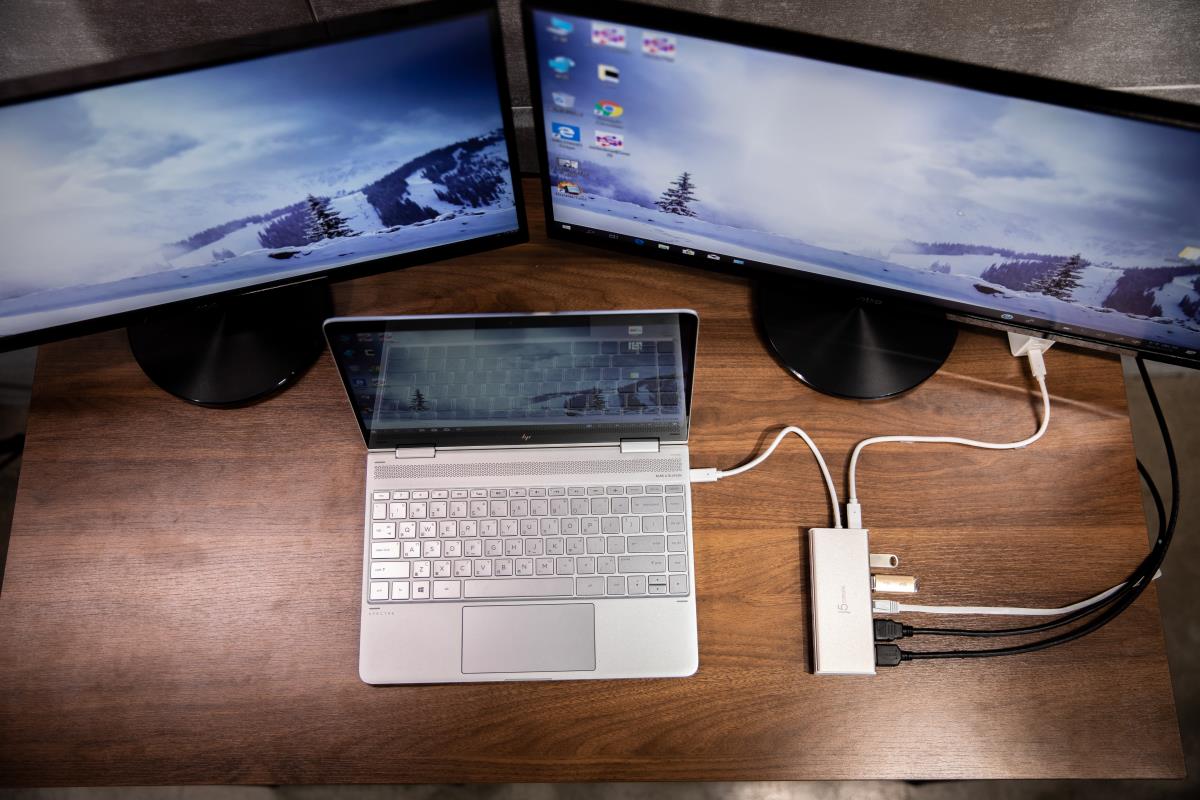

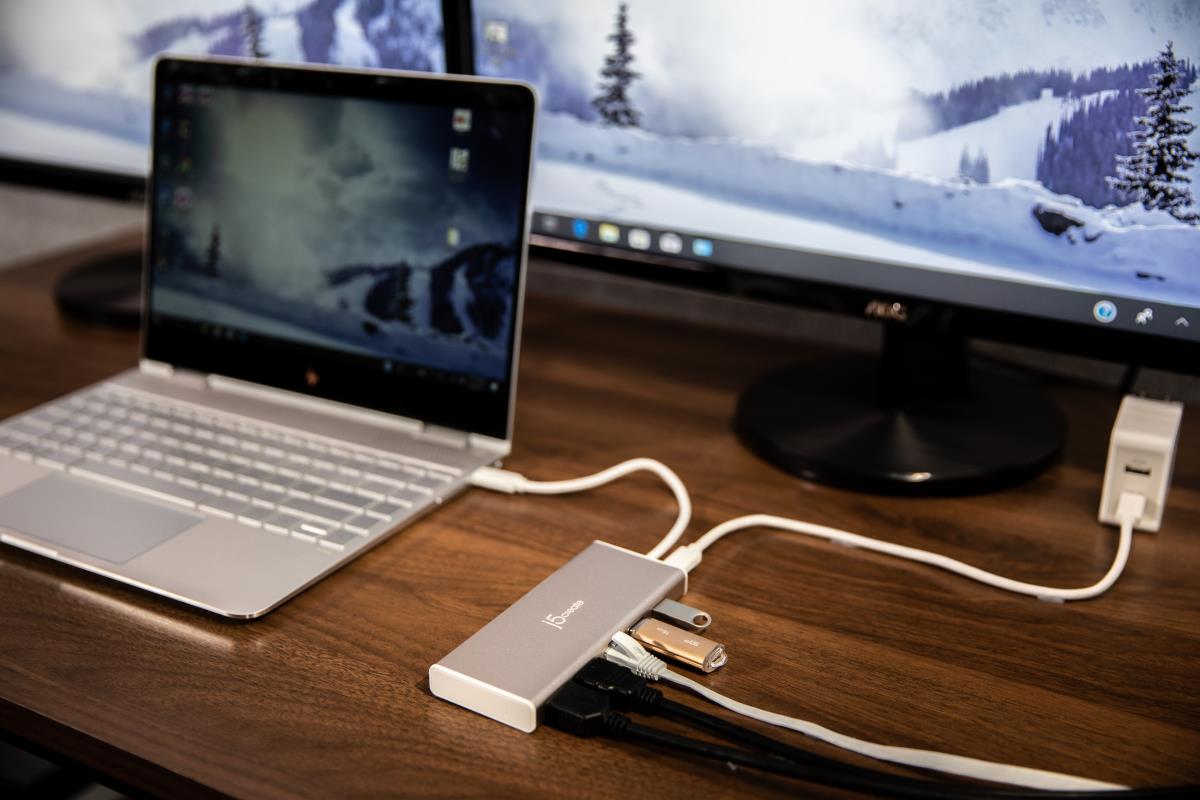

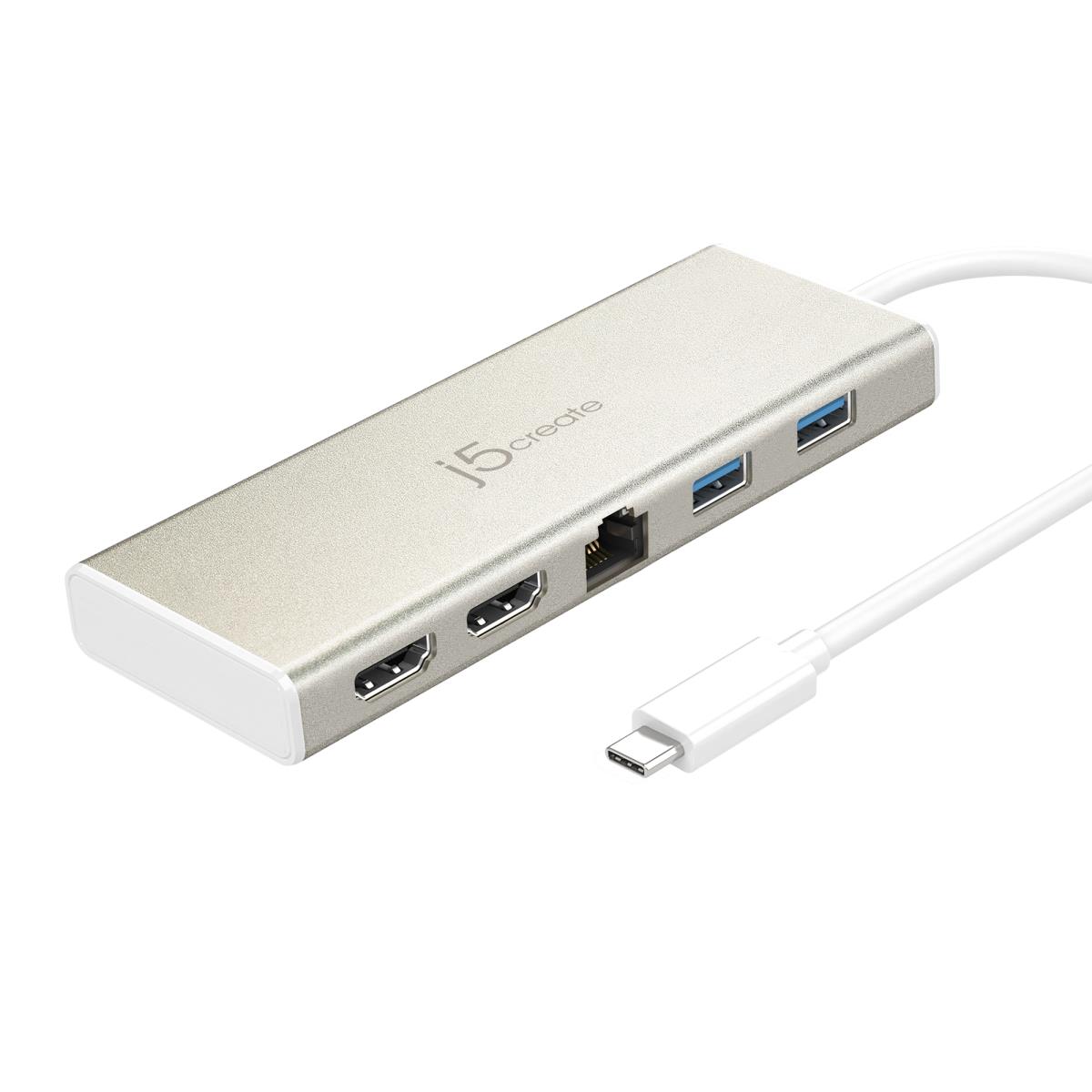

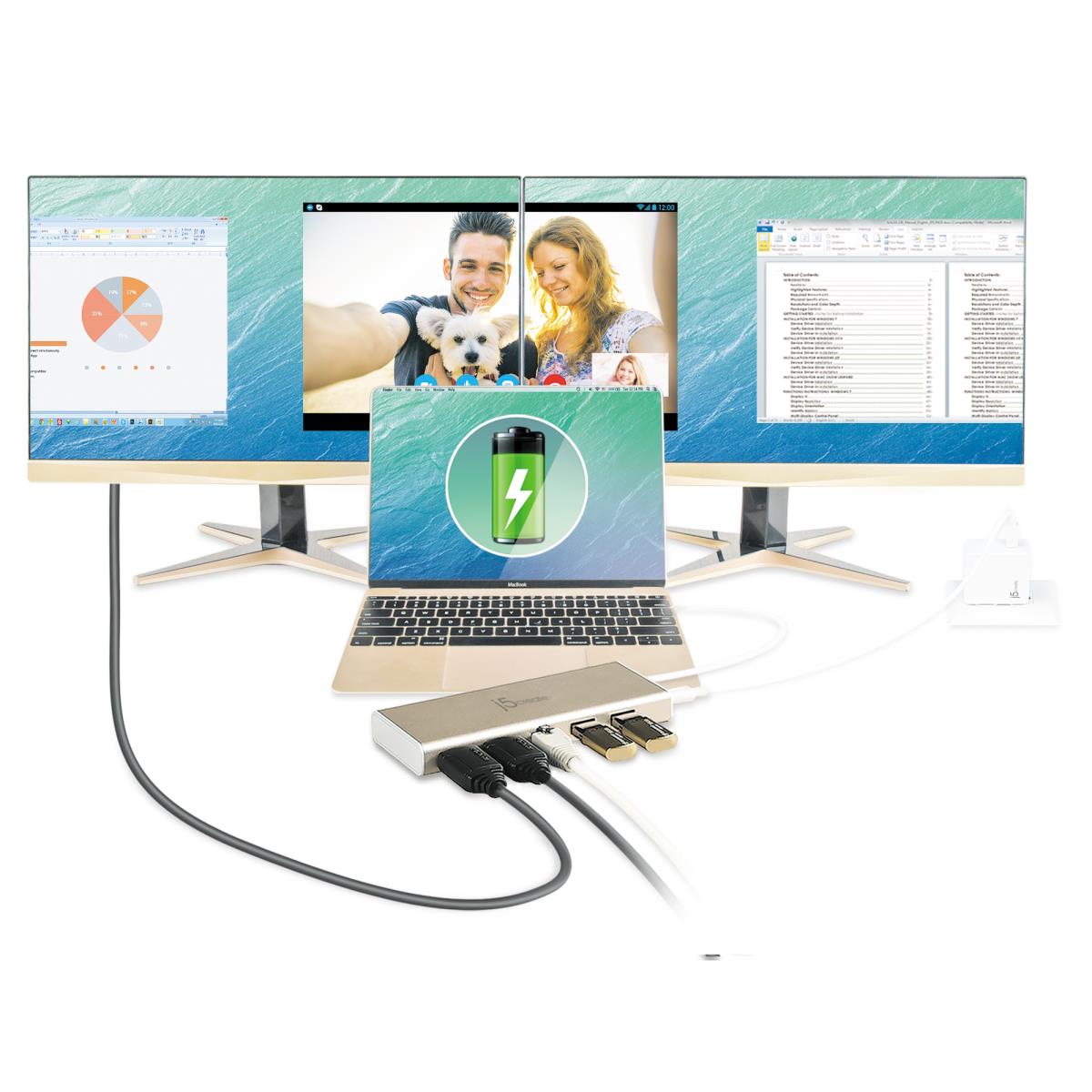

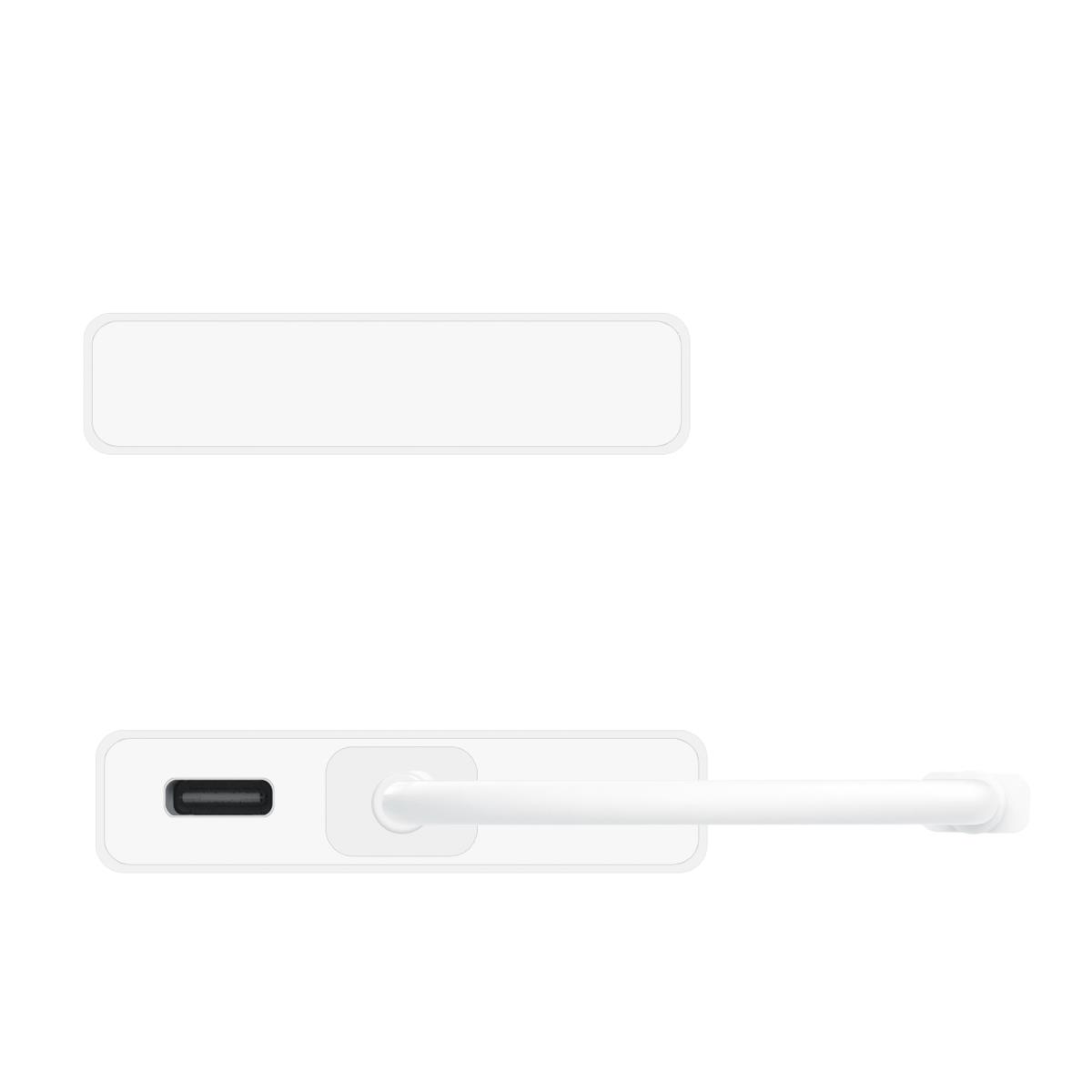

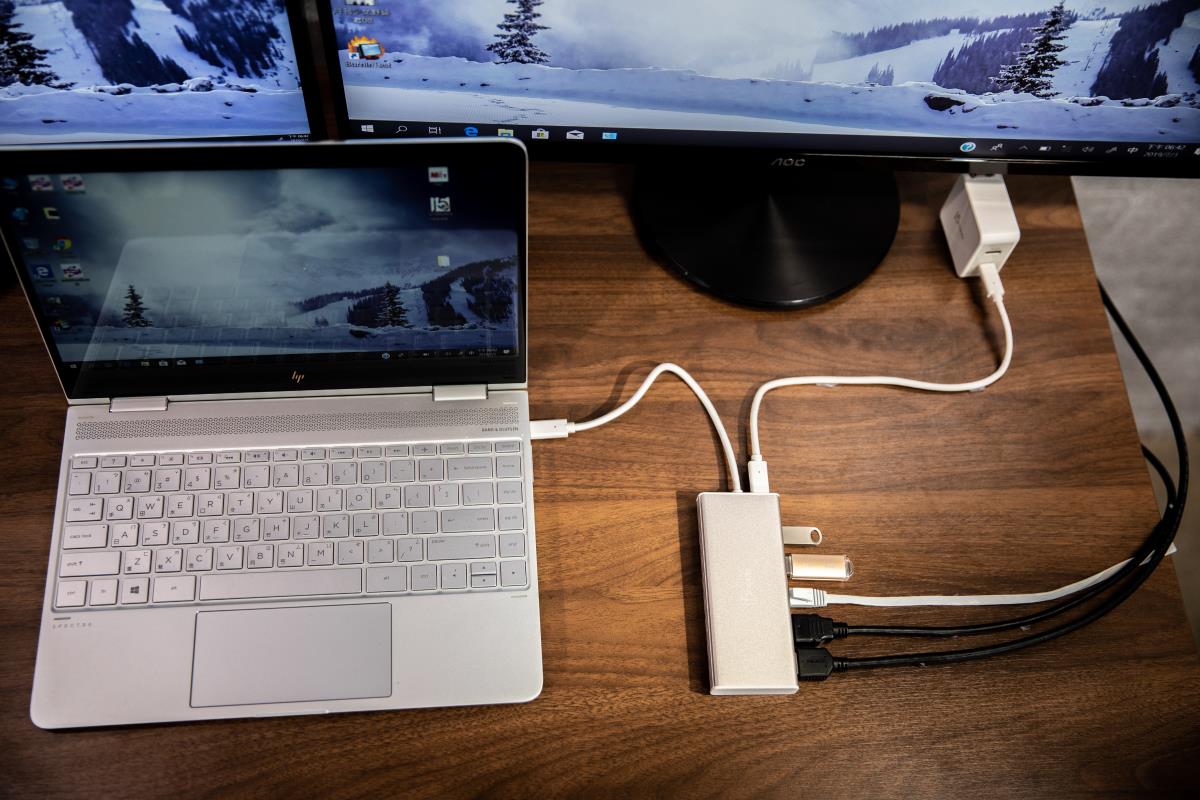

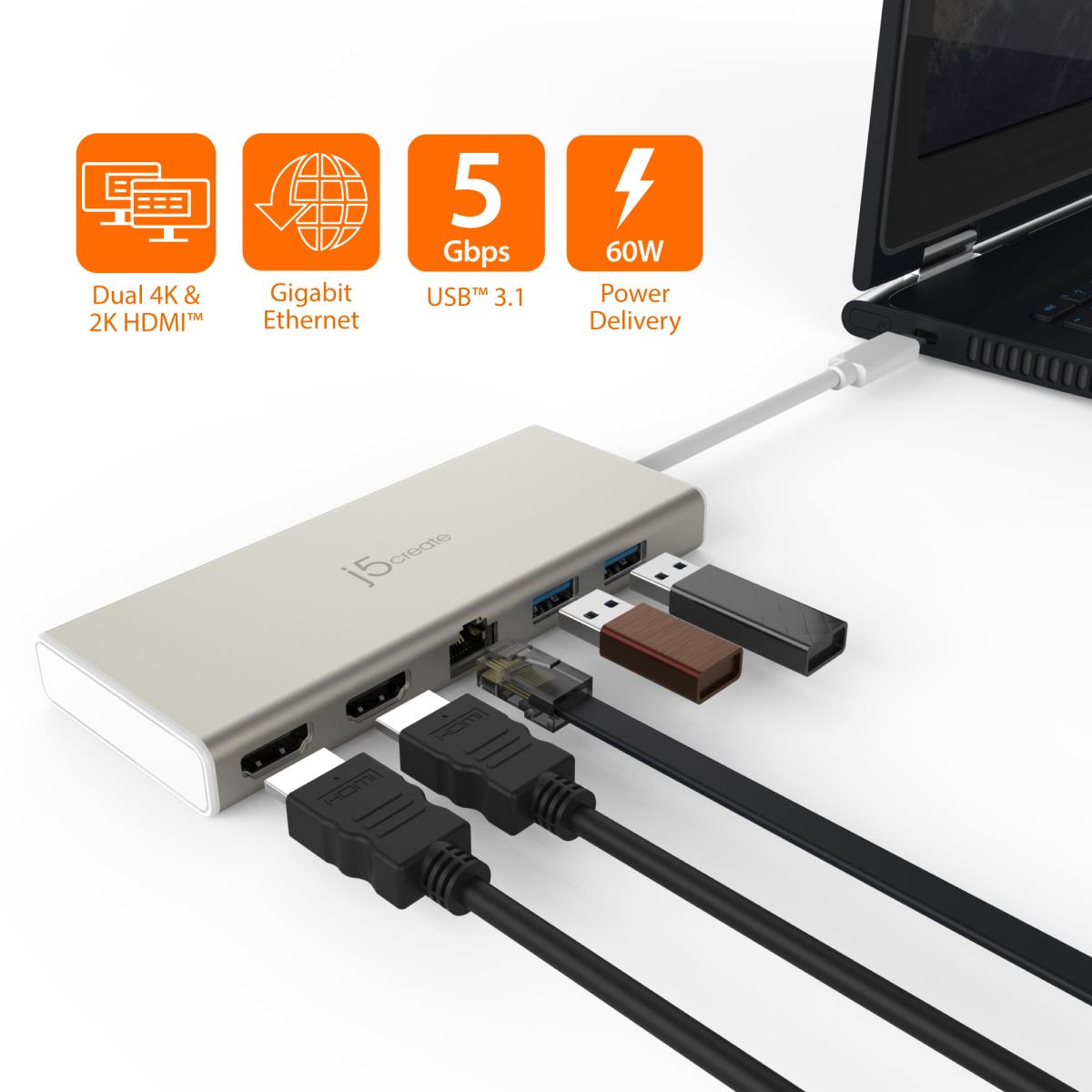

The USB-C® Dual HDMI™ Mini Dock provides extra connectivity for your USB-C® computer, featuring data transfer, power delivery and video displays. Easily add two additional USB™ computer peripherals, two HDMI™ monitors, and a Gigabit Ethernet connection through your USB-C® port. When connected to a power source, the USB-C® input charging port allows you to continue charging your laptop or smartphone. Its compact and lightweight design, making it great for use on the go.

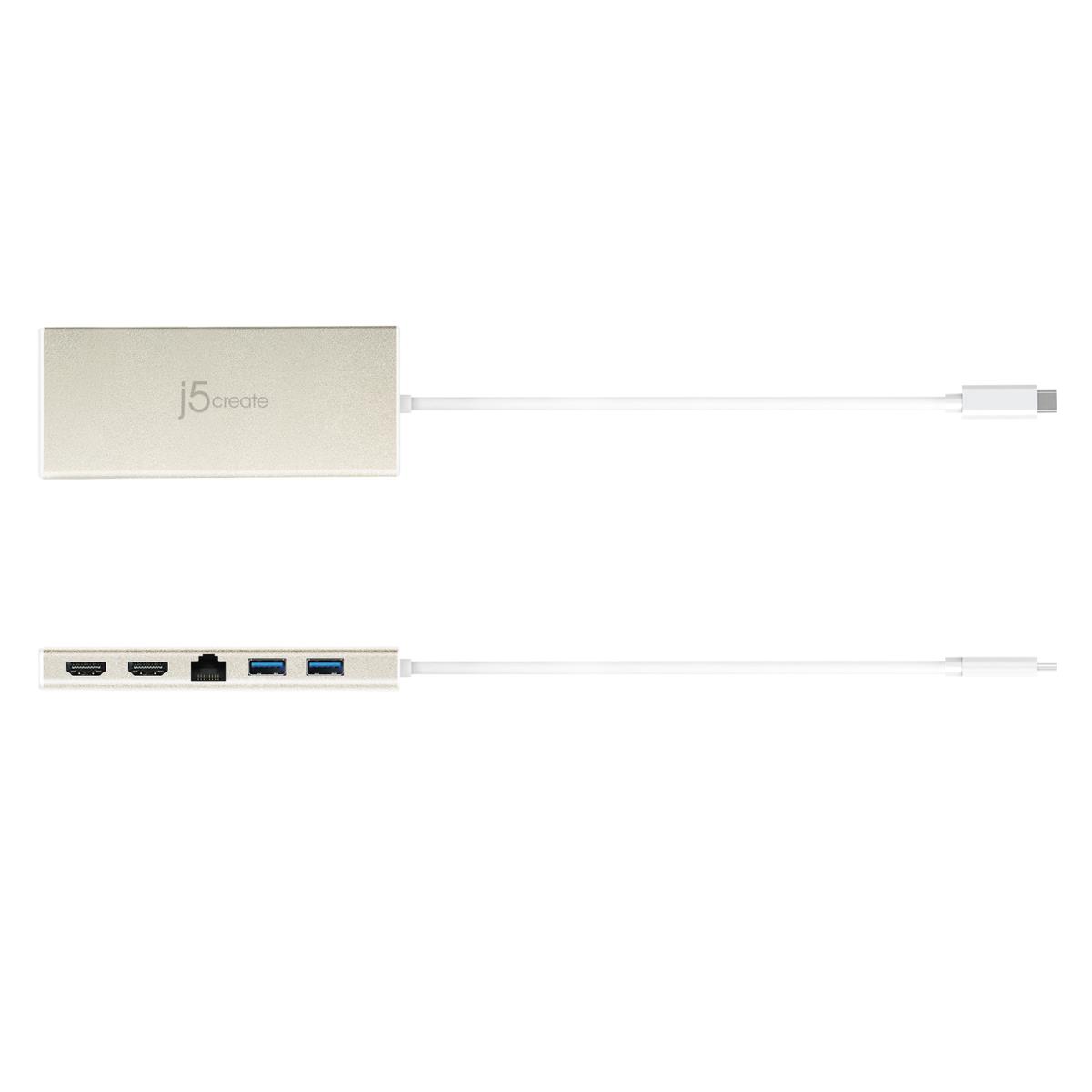

Ports & interfaces
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB Power Delivery
Yes
USB Power Delivery up to
60 W
HDMI ports quantity
2
USB Type-C DisplayPort Alternate Mode
No
Network
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Performance
HD type
4K Ultra HD
Number of displays supported
2
Maximum refresh rate
30 Hz
Product colour
Beige, White
Hub interfaces
HDMI, PS/2, USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Plug and Play
No
Housing material
Aluminium
Country of origin
Taiwan
Power
Input current
3 A
Power supply
2.25 W
Output voltage
20 V
Output current
0.45 A
Software
Windows operating systems supported
Windows 10, Windows 11, Yes
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, MacOS
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 65 °C
Operating relative humidity (H-H)
0 - 85%
Storage relative humidity (H-H)
0 - 85%
Weight & dimensions
Width
130 mm
Depth
15 mm
Height
54 mm
Weight
115.5 g
Packaging data
Quantity per pack
1 pc(s)
Package width
193 mm
Package depth
125 mm
Package height
22.5 mm
Package weight
194.5 g
Packaging content
Quick start guide
Yes
Manual
Yes
Packaging content
1 x JCD381 USB-C® Dual HDMI™ Mini Dock, 1 x Quick Installation Guide
Technical details
Warranty period
2 year(s)
Other features
Cable length
0.2 m
Maximum operating temperature
40 °C
Information
| Part Number: | JCD381-N |
