Introduction
All-in-one video conferencing solution with optional expansion audio

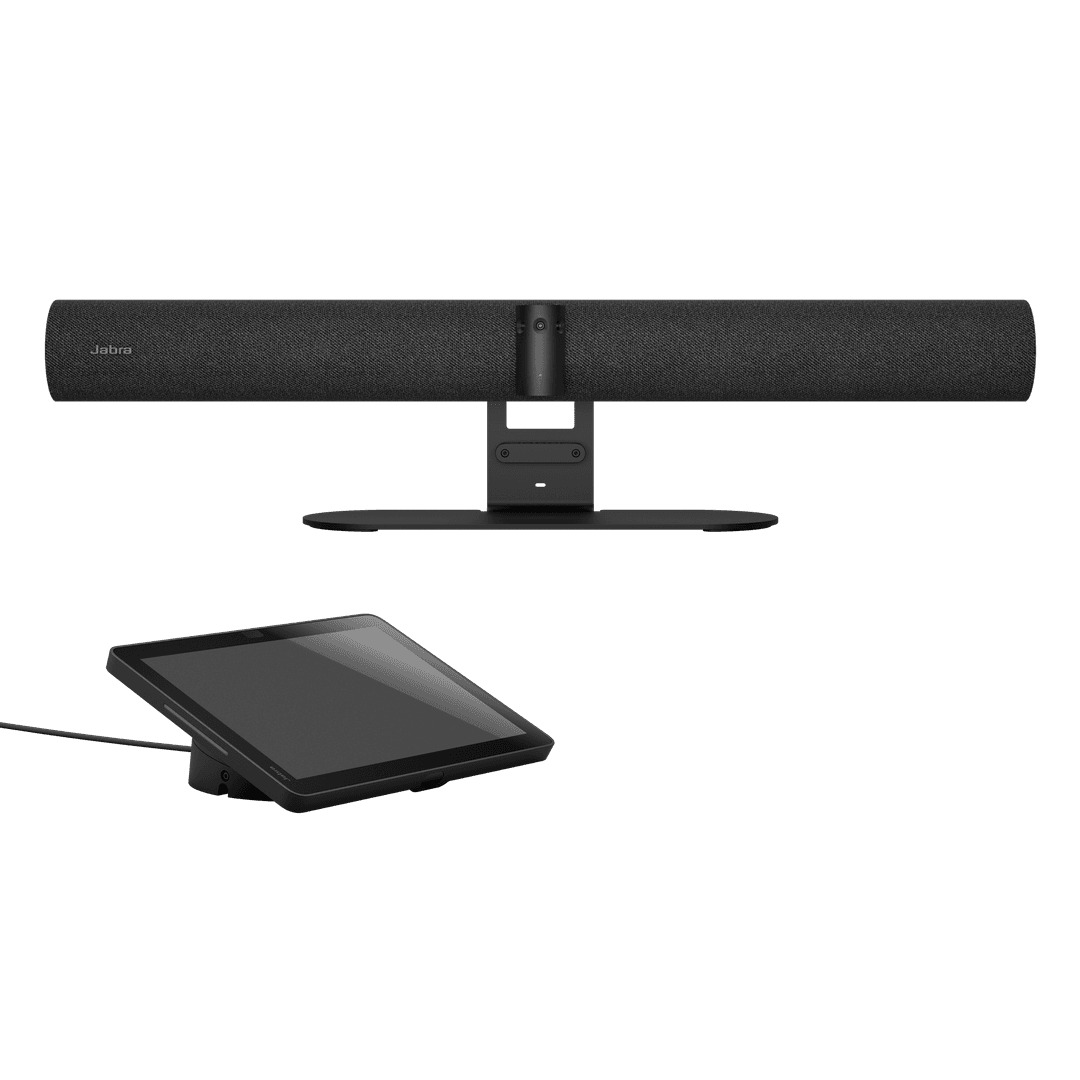

Why you'll love Jabra PanaCast 55 VBS
Maximize your meeting space
A 180° field of view and 4K panoramic video ensure everyone is seen, even close to the screen or against the wall.
Outstanding audio quality
An array of 8 beamforming, noise-cancelling microphones and 4 powerful speakers delivers clear, room-filling sound.
Audio flexes with your needs
Add the PanaCast SpeakerMic to extend audio to the back of the room, with seamless sound mixing and flexible mounting options.
Natural, AI-powered meeting experiences
Dynamic Composition, Virtual Director, Intelligent Zoom, and Intelligent Meeting Space keep participants in frame and focused.
Quick, scalable installation
From box to meeting in minutes with in-box provisioning, multiple mounting options, and support for permanent BYOD mode.
Secure and easy to manage
Built on MDEP for secure, future-ready performance, and designed to work seamlessly with Microsoft Teams and Zoom.
Performance
Proximity sensor
Yes
Temperature sensor
Yes
Humidity sensor
Yes
AirPlay
Yes
Number of cameras
3
Bluetooth
Yes
Bluetooth version
5.1
Product colour
Black
Product type
Group video conferencing system
Wall mountable
Yes
PTZ control
Yes
Audio
Tweeter
Yes
Number of tweeter drivers
2
Tweeter diameter
2 cm
Woofer
Yes
Number of woofer drivers
2
Woofer diameter
5 cm
Built-in speaker(s)
Yes
Number of speakers
4
Frequency range
80 - 20000 Hz
Audio beamforming
Yes
Noise reduction
Yes
Echo cancellation
Yes
RMS rated power
20 W
Network
Auto MDIX IEEE
Yes
DHCP client
Yes
Static IP
Yes
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Networking standards
IEEE 802.3af
Supported network protocols
IPv4, IPv6
Web-based management
Yes
Camera
Camera resolution
3840 x 1080 pixels
Digital zoom
6x
Horizontal field of view
180°
Vertical field of view
54°
Camera privacy shutter
Yes
Video
HD type
4K Ultra HD
Maximum video resolution
3840 x 2160 pixels
Ports & interfaces
HDMI ports quantity
2
USB connector type
USB Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
2
Ethernet LAN (RJ-45) ports
1
Power over Ethernet (PoE) ports quantity
1
AUX out
Yes
Features
People counting
Yes
Cable management
Yes
Telepresence
No
Cable lock slot
Yes
Display
Built-in display
Yes
Display diagonal
25.6 cm (10.1")
Display resolution
1920 x 1200 pixels
Touchscreen
Yes
Microphone
Microphone sensitivity
-37 dB
Microphone frequency
100 - 16000 Hz
Number of microphones
8
Operational conditions
Operating temperature (T-T)
5 - 35 °C
Operating relative humidity (H-H)
15 - 80%
Storage temperature (T-T)
-20 - 60 °C
Maximum operating altitude
4876.8 m
Power
AC input voltage
100 - 240 V
DC output voltage
12 V
DC output current
5 A
Weight & dimensions
Monitor dimensions (WxDxH)
248 x 156 x 85 mm
Monitor weight
958 g
Width
730 mm
Depth
146 mm
Height
77 mm
Weight
2.26 kg
Packaging data
Package width
1065 mm
Package depth
210 mm
Package height
175 mm
Package weight
5.76 kg
Packaging content
Cables included
HDMI, AC
Wall mounting kit
Yes
AC adapter included
Yes
