Product Details
Processor
Processor manufacturer
Intel
Processor family
Intel® Core™ i7
Processor model
i7-14700T
Processor cores
20
Processor boost frequency
5 GHz
Processor frequency
1.3 GHz
Memory
Internal memory
16 GB
Maximum internal memory
64 GB
Internal memory type
DDR5-SDRAM
Memory layout (slots x size)
1 x 16 GB
Memory slots
2x SO-DIMM
Memory clock speed
5600 MHz
Storage
Total storage capacity
512 GB
Storage media
SSD
Optical drive type
No
Total SSDs capacity
512 GB
Number of SSDs installed
1
SSD capacity
512 GB
SSD interface
PCI Express 4.0
NVMe
Yes
SSD form factor
M.2
Card reader integrated
No
Graphics
Discrete graphics card
No
On-board graphics card
Yes
Discrete graphics card model
Not available
On-board GPU manufacturer
Intel
On-board graphics card family
Intel® UHD Graphics
On-board graphics card model
Intel UHD Graphics 770
Network
Ethernet LAN
Yes
Ethernet LAN data rates
100,1000 Mbit/s
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
Wi-Fi 6E (802.11ax)
WLAN controller manufacturer
Intel
WLAN controller model
Intel Wi-Fi 6E AX211
Antenna type
2x2
Bluetooth
Yes
Bluetooth version
5.3

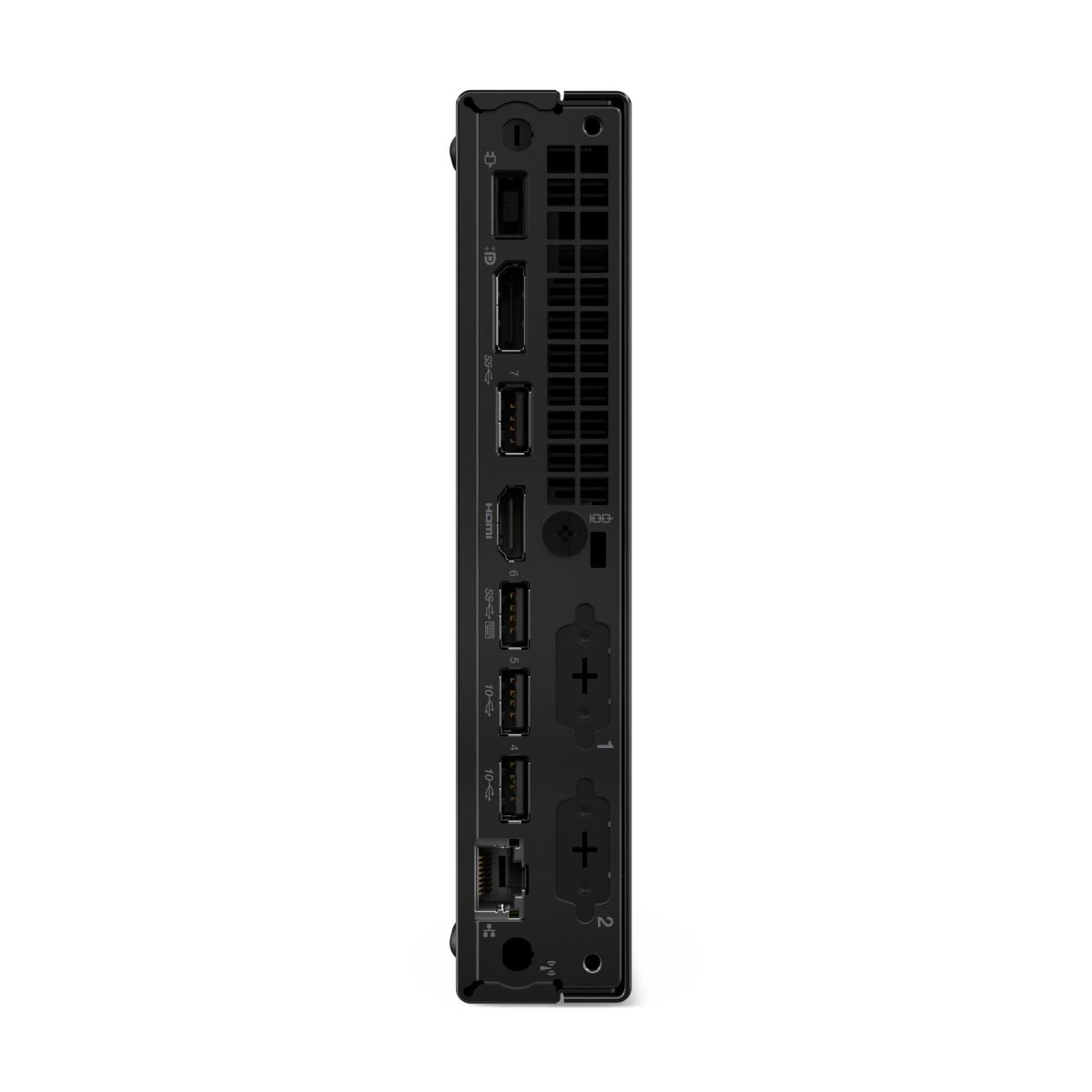

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
USB 3.2 Gen 2x2 Type-C ports quantity
1
HDMI ports quantity
1
HDMI version
2.1
DisplayPorts quantity
2
Ethernet LAN (RJ-45) ports
1
Combo headphone/mic port
Yes
Design
Chassis type
Mini PC
Volume
1 L
Cable lock slot
Yes
Cable lock slot type
Kensington
Product colour
Black
Performance
Motherboard chipset
Intel Q670
Audio chip
Realtek ALC233
Audio system
High Definition Audio
Number of speakers
1
Trusted Platform Module (TPM)
Yes
Product type
Mini PC
Software
Operating system language
English
Operating system installed
Windows 11 Pro
Power
Power supply
135 W
Certificates
Certification
TCO,RoHS
Weight & dimensions
Width
179 mm
Depth
182.9 mm
Height
36.5 mm
Weight
1.25 kg
Packaging content
Mouse included
Yes
Mouse connectivity
Wired
Keyboard included
Yes
Keyboard connectivity
Wired
Information
| Part Number: | 12TT000KUK |
