Product Details
Introduction

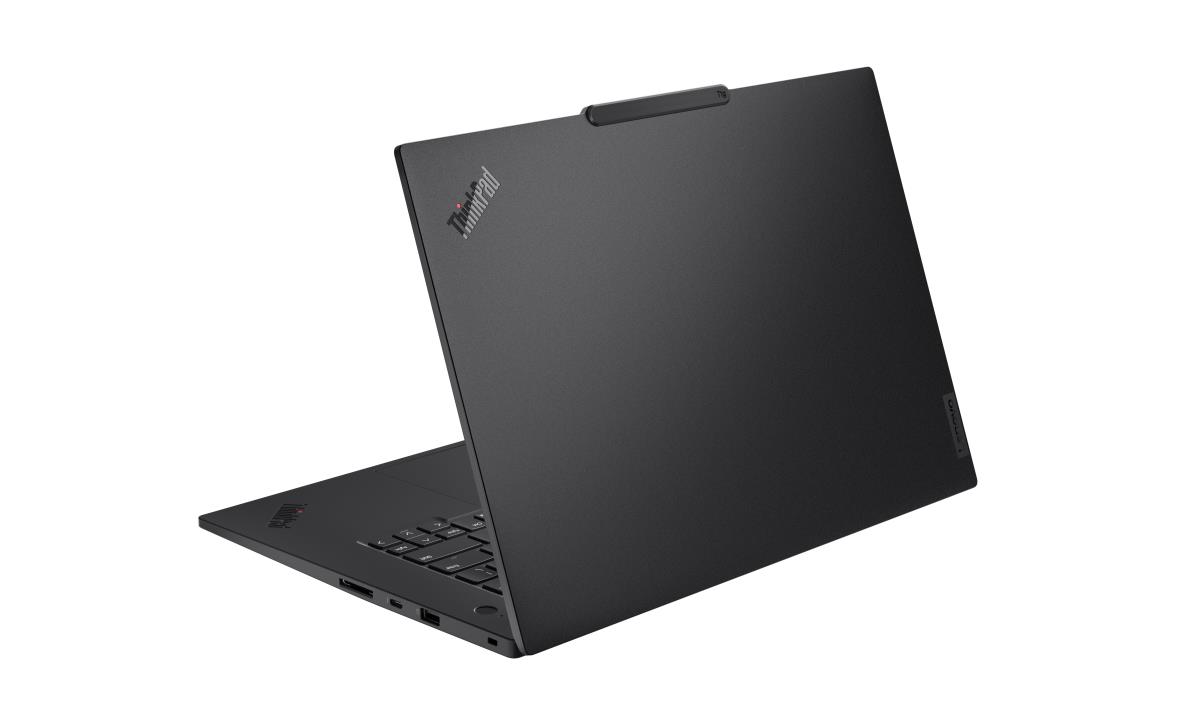

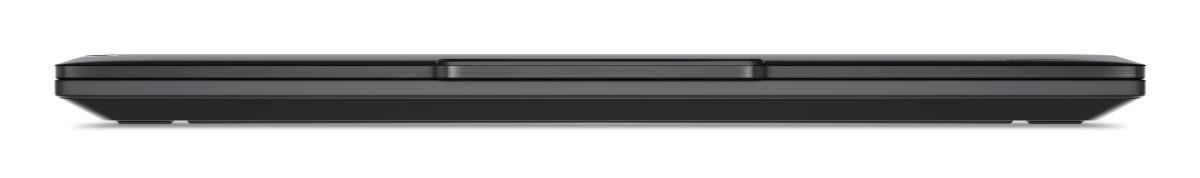

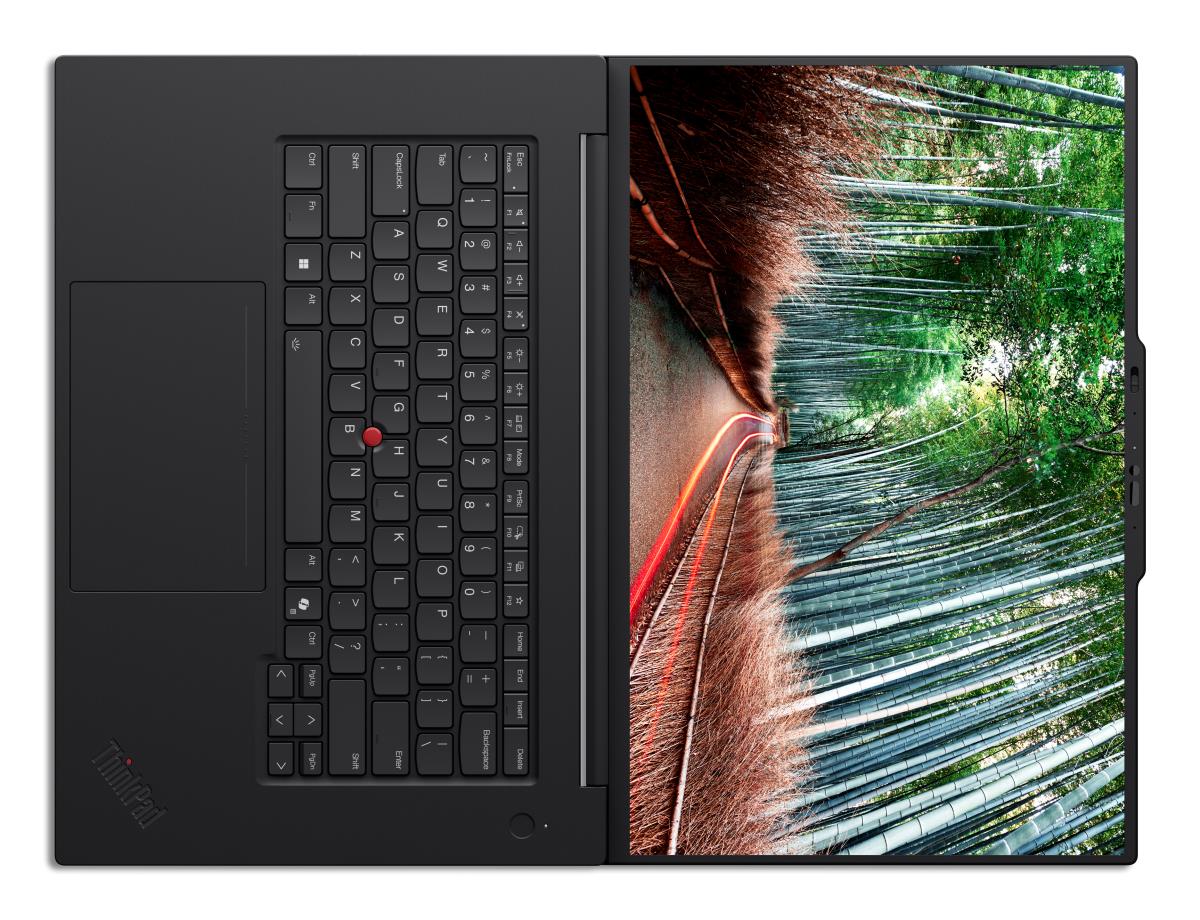

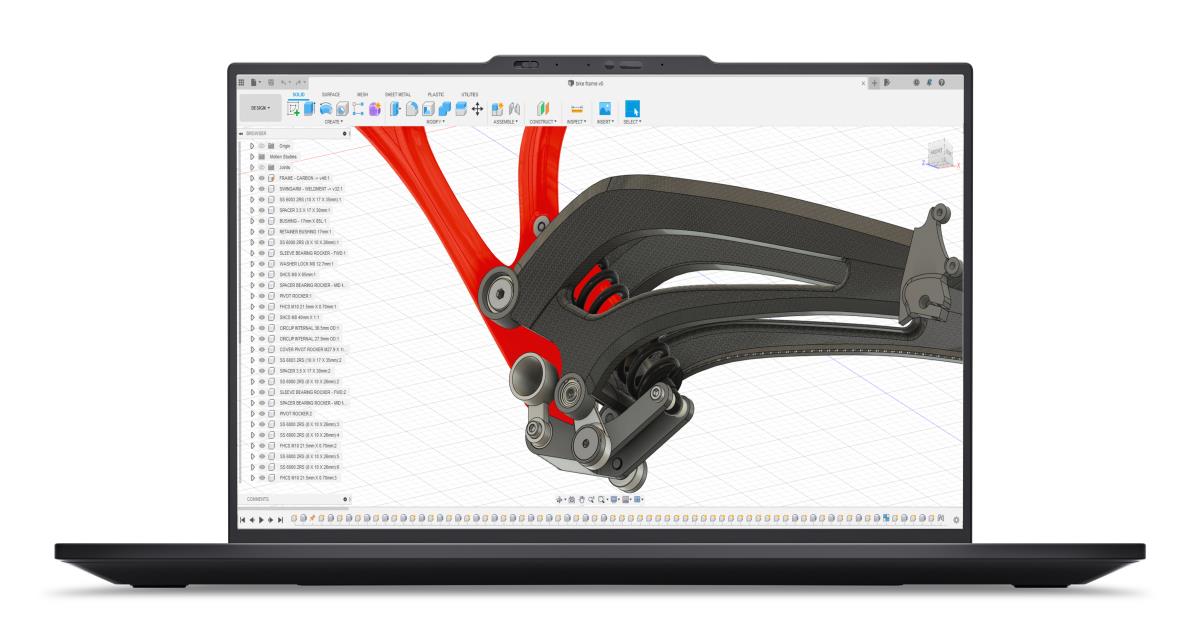

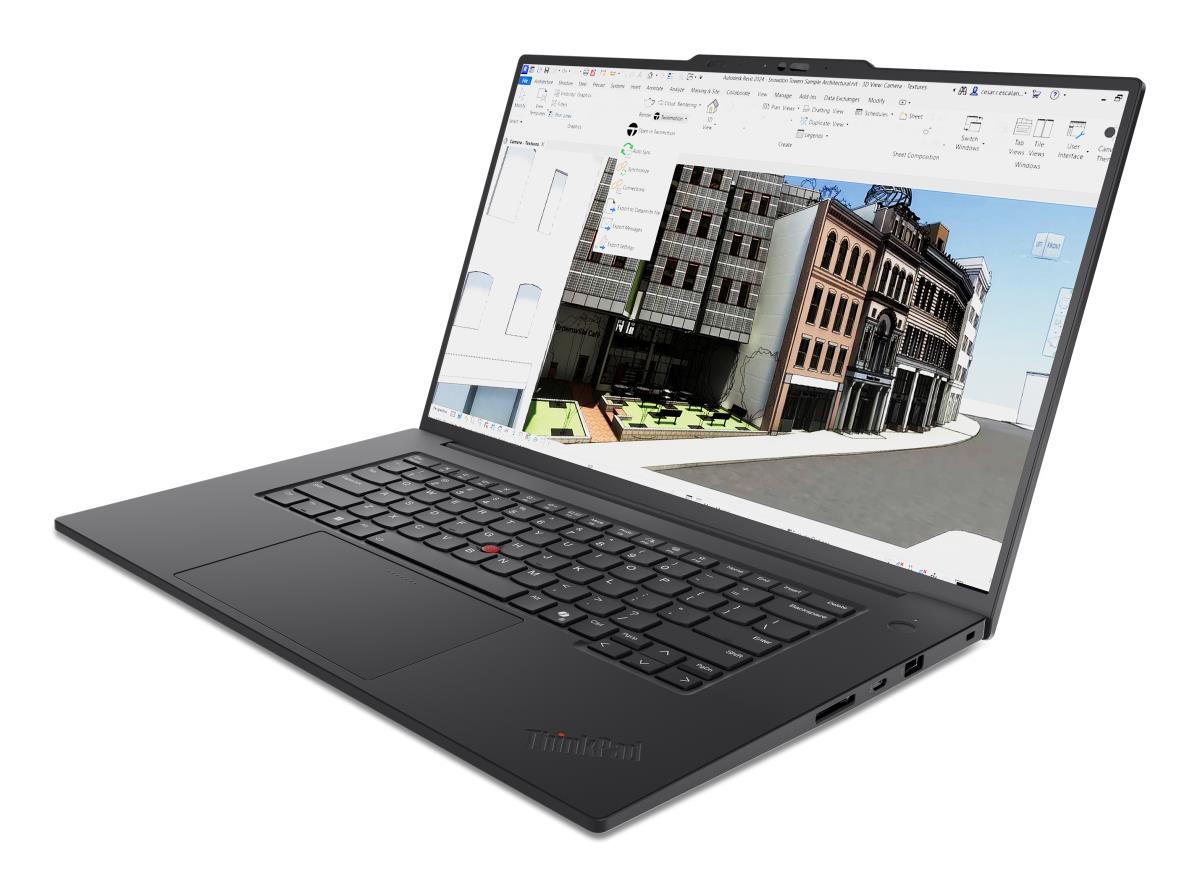

A reliable, AI-ready laptop built for creatives and power users handling demanding tasks.- 16" high-performance laptop with AI efficiency & Intel® Core™ Ultra (Series 2) processors
- Super-fast computing & visual rendering via NVIDIA® GeForce RTX® graphics
- Enterprise-grade performance, security & manageability with Intel vPro® option
Design
Product type
Laptop
Product colour
Black
Form factor
Clamshell
Housing material
Aluminium
Display back cover material
Aluminium
Stylus pen support
No
Display
Display diagonal
40.6 cm (16")
Display resolution
1920 x 1200 pixels
Touchscreen
No
HD type
WUXGA
Panel type
IPS
LED backlight
Yes
Native aspect ratio
16:10
Anti-glare screen
Yes
Display brightness
500 cd/m˛
RGB colour space
sRGB
Colour gamut
100%
Low Blue Light technology
Yes
Maximum refresh rate
60 Hz
Eyesafe technology
Yes
Processor
Processor generation
Intel Core Ultra (Series 2)
Processor boost frequency
5.3 GHz
Performance cores
6
Efficient cores
8
Low Power Efficient-cores
2
Performance-core Max Turbo Frequency
5.3 GHz
Efficient-core Max Turbo Frequency
4.5 GHz
Low Power Efficient-core Max Turbo Frequency
2.5 GHz
Performance-core base frequency
2.2 GHz
Efficient-core base frequency
1.7 GHz
Low Power Efficient-core Base Frequency
700 MHz
Processor socket
BGA 2049
Processor base power
28 W
Maximum turbo power
115 W
Processor manufacturer
Intel
Processor family
Intel Core Ultra 7
Processor model
265H
Processor cores
16
Processor threads
16
Processor cache
24 MB
Processor cache type
Smart Cache
Neural processor unit (NPU)
Sparsity support
Yes
Windows Studio effects support
Yes
AI software frameworks supported by NPU
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to
97 TOPs
GPU performance up to
75 TOPs
Neural processor unit (NPU)
Intel AI Boost
NPU performance up to
13 TOPs
Graphics
Graphics card family
Intel
On-board graphics card
Yes
On-board GPU manufacturer
Intel
On-board graphics card family
Intel Arc Graphics
On-board graphics card model
Intel Arc 140T
Graphics card
Arc Graphics 140T
Discrete GPU manufacturer
NVIDIA
Discrete graphics card model
NVIDIA® GeForce RTX™ 5070 Laptop GPU
Discrete graphics card memory
8 GB
Discrete graphics memory type
GDDR7
Discrete graphics card
Yes
Memory
Internal memory
32 GB
Internal memory type
LPDDR5x-SDRAM
Memory clock speed
7467 MHz
Memory form factor
LPCAMM2
Maximum internal memory
64 GB
Memory channels
Dual-channel
Storage
Total storage capacity
1 TB
Storage media
SSD
Total SSDs capacity
1 TB
Number of SSDs installed
1
SSD capacity
1 TB
SSD interface
PCI Express 5.0
NVMe
Yes
SSD form factor
M.2
M.2 SSD size
2280 (22 x 80 mm)
Self-Encrypting Drive (SED)
Yes
Optical drive type
No
Card reader integrated
Yes
Compatible memory cards
SD
Audio
Audio chip
Cirrus Logic CS42L43
Audio system
Dolby Atmos
Number of built-in speakers
2
Speaker power
2 W
Built-in microphone
Yes
Number of microphones
2
Camera
Front camera
Yes
Front camera resolution (numeric)
5 MP
Infrared (IR) camera
Yes
Privacy camera
Yes
Privacy type
Privacy shutter
Network
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
Wi-Fi 7 (802.11be)
Mobile network connection
No
Antenna type
2x2
WLAN controller model
Intel Wi-Fi 7 BE201
WLAN controller manufacturer
Intel
Ethernet LAN
No
Bluetooth
Yes
Bluetooth version
5.4
Near Field Communication (NFC)
No
WWAN
Not installed

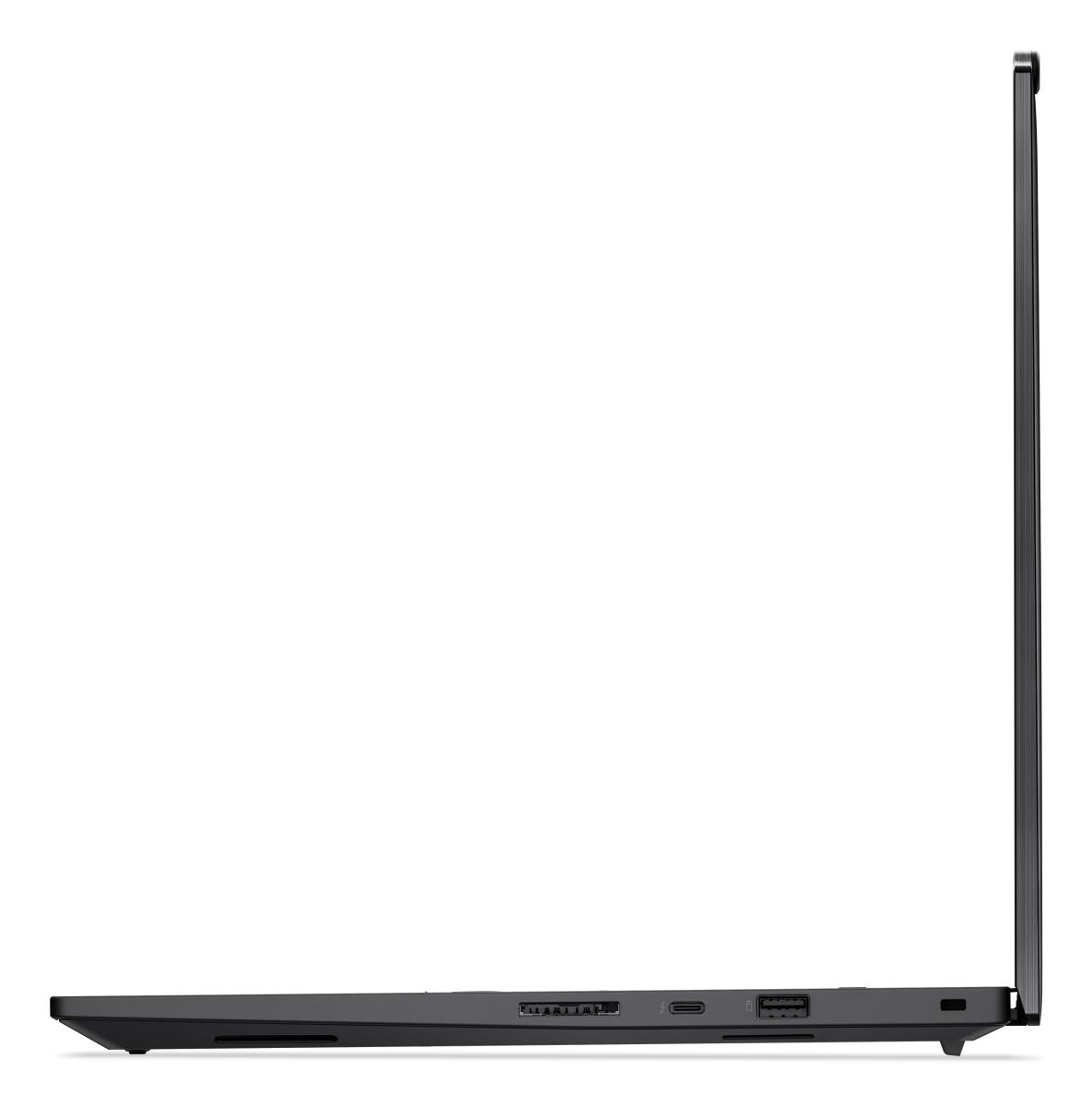

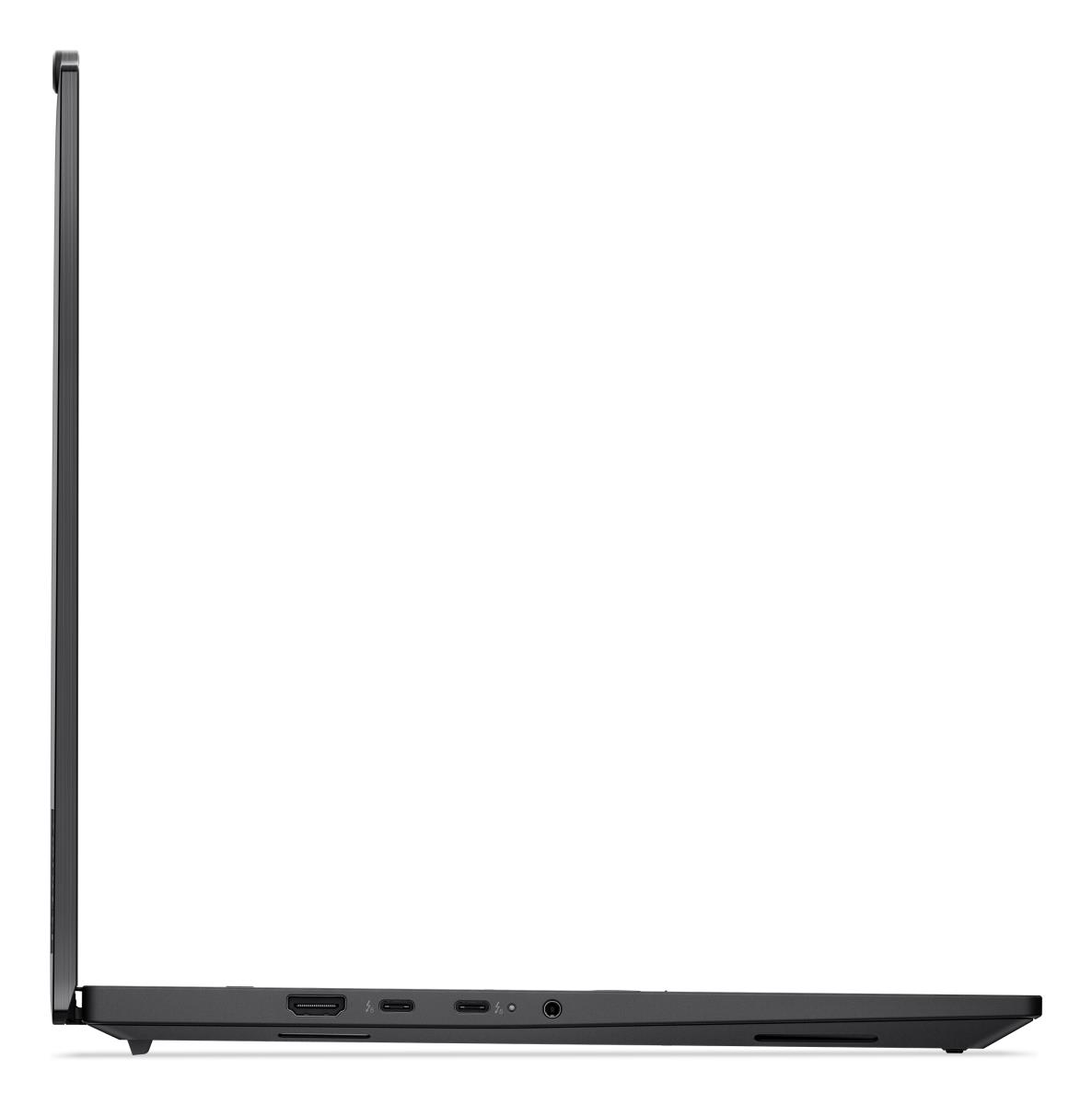

Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
HDMI ports quantity
1
HDMI version
2.1
Thunderbolt 4 ports quantity
1
Thunderbolt 5 ports quantity
2
Intel® Thunderbolt 4
Yes
Intel® Thunderbolt 5
Yes
Combo headphone/mic port
Yes
USB Type-C DisplayPort Alternate Mode
Yes
USB Sleep-and-Charge
Yes
Performance
Motherboard chipset
Intel SoC
Keyboard
Pointing device
ThinkPad UltraNav
Numeric keypad
No
Keyboard backlit
Yes
Keyboard language
UK English
Software
Operating system language
US English, ENG-UK
Operating system installed
Windows 11 Pro
Bundled software
Intel Connectivity Performance Suite + Lenovo AI Now
Processor special features
Intel® Smart Cache
Yes
Battery
Battery capacity
90 Wh
Power
AC adapter power
140 W
USB Type-C charging port
Yes
USB Type-C required charging power (min)
140 W
USB Type-C required charging power (max)
140 W
USB Power Delivery (USB PD)
Yes
Security
Cable lock slot
Yes
Cable lock slot type
Kensington, Nano
Fingerprint reader
Yes
Smart card reader
No
Windows Hello
Yes
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0
Certificates
Certification
ENERGY STAR,TCO,TCO10,EPEAT Gold,RoHS
Weight & dimensions
Width
354.3 mm
Depth
241 mm
Height (front)
9.9 mm
Height (rear)
1.58 cm
Weight
1.84 kg
Packaging content
AC adapter included
Yes
Stylus pen
No
Information
| Part Number: | 21TD0024UK |
