Introduction
PERFORMANCE THAT KEEPS UP
Premium, AI-Ready Mobile Workstation

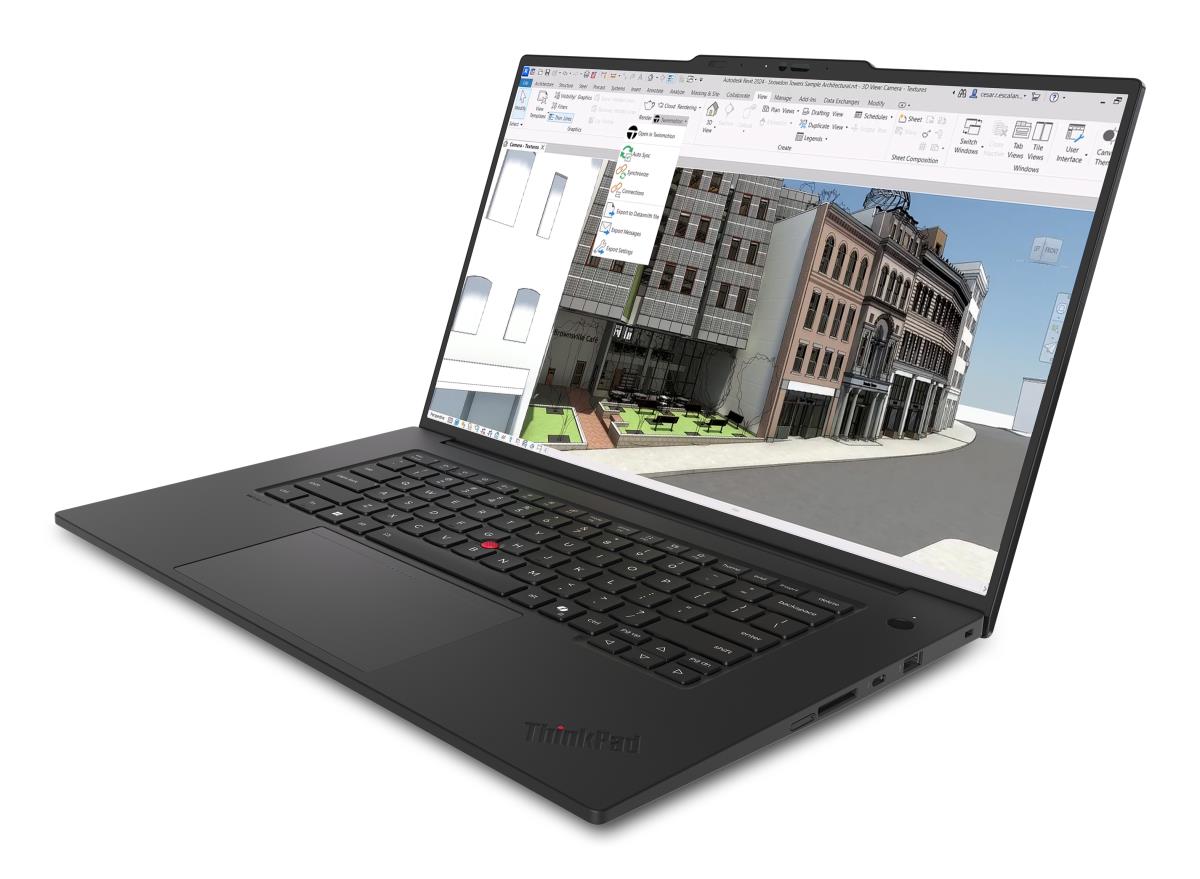

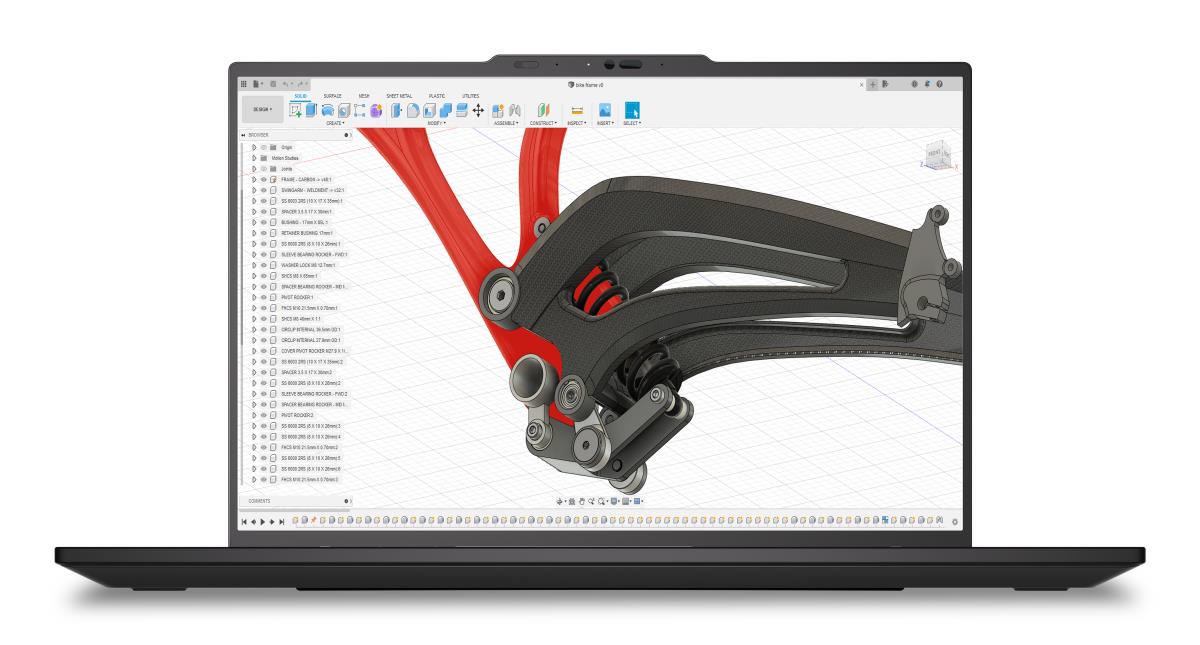

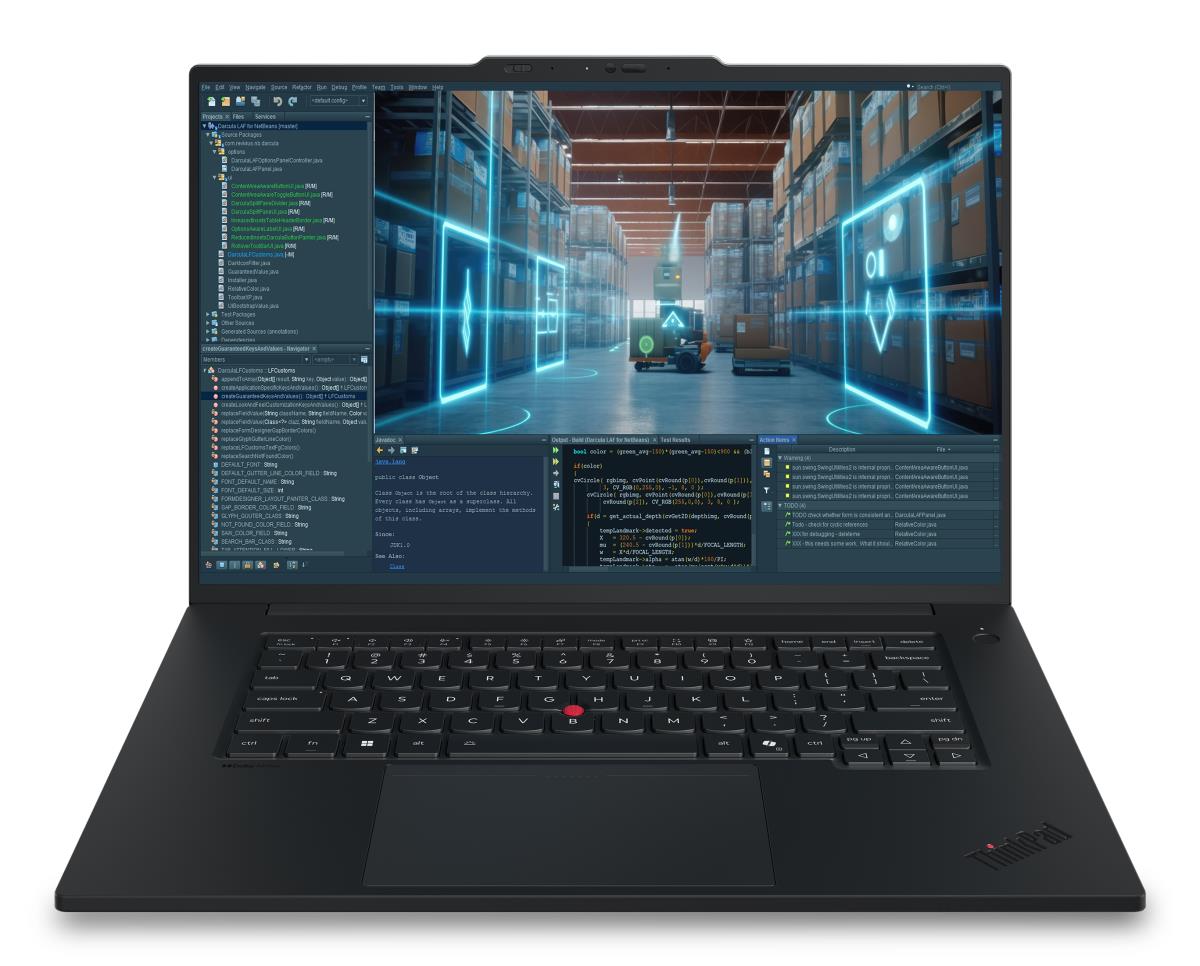

When your work demands true workstation capability, the Lenovo ThinkPad P1 Gen 9 (16” Intel) mobile workstation delivers. Intel® Core™ Ultra Series 3 processors , with graphics options including NVIDIA RTX PRO™ discrete graphics or Intel® Arc™ Pro integrated graphics, handle demanding applications with ease, while Copilot+ brings built-in AI assistance to help streamline everyday tasks.
INTELLIGENCE, BUILT IN
On-Device AI Acceleration
Experience a smarter way to work with a dedicated neural processing unit (NPU) and Copilot+. By running AI directly on the device, you get instant support. It learns your habits and speeds up daily tasks, from polishing emails to creating visuals. Since everything stays local, your workflow remains fast, private, and totally uninterrupted.
SMART PROTECTION AT EVERY LEVEL
Enterprise-Grade Security With ThinkShield
Built-in ThinkShield protection keeps your data protected at the hardware level with a discrete Trusted Platform Module 2.0 chip and biometric login. Human presence detection locks your device when you step away, while Intel® delivers AI-enhanced threat detection and defense. Plus, a webcam privacy shutter keeps your privacy intact.
BUILT TO EVOLVE WITH YOU
Simplified Serviceability & Easy Upgrades
Skip the repair shop and handle the maintenance yourself. The ThinkPad P1 Gen 9 features accessible SSD, memory, battery, and key modules for easy DIY swaps. Whether you are scaling up for a heavy project or extending the system’s lifespan, you can adapt your performance and keep your device running at its peak as your workload evolves.
ENGINEERED FOR DURABILITY
Reliability you can Count on
This mobile workstation is engineered to withstand MIL-STD-810H testing. Meeting or exceeding 12 standards, 26 procedures, and 200+ quality checks ensure our systems run in harsh temps, pressure, vibration, dust, and more, without interrupting performance. Reliable build quality helps reduce downtime and unexpected repairs.
CREDIBILITY & COLLABORATION
Sustainability
Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.
Design
Product type
Mobile workstation
Product colour
Black
Form factor
Clamshell

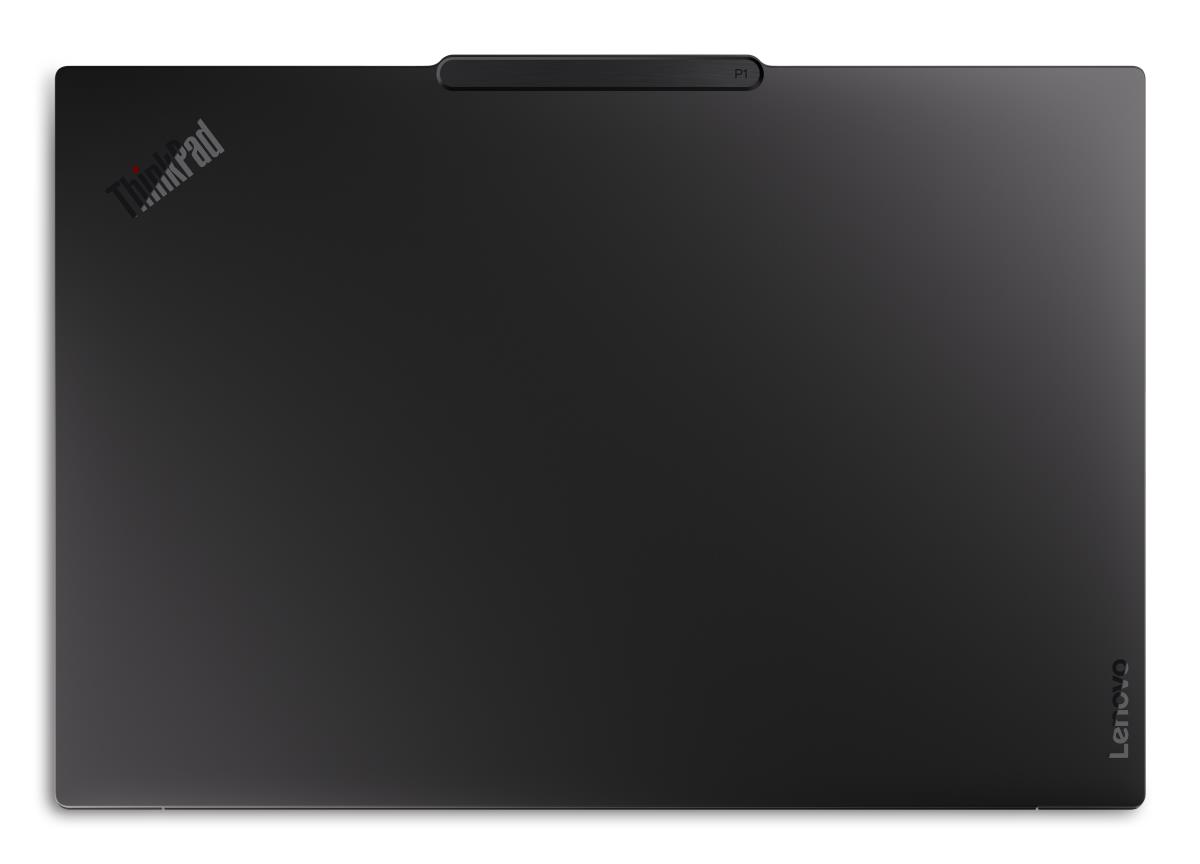

Housing material
Aluminium
Display back cover material
Aluminium
Display
Display diagonal
40.6 cm (16")
Display resolution
1920 x 1200 pixels
Touchscreen
No
HD type
WUXGA
Panel type
IPS
LED backlight
Yes
Native aspect ratio
16:10
Anti-glare screen
Yes
Display brightness
500 cd/m˛
RGB colour space
sRGB
Colour gamut
100%
Maximum refresh rate
60 Hz
Processor
Processor manufacturer
Intel
Processor family
Intel Core Ultra 9
Processor generation
Intel® Core™ Ultra (Series 3)
Processor model
386H
Processor cores
16
Processor threads
16
Processor boost frequency
4.9 GHz
Performance cores
4
Efficient cores
8
Low Power Efficient-cores
4
Performance-core Max Turbo Frequency
4.9 GHz
Efficient-core Max Turbo Frequency
3.7 GHz
Low Power Efficient-core Max Turbo Frequency
3.5 GHz
Performance-core base frequency
2.1 GHz
Efficient-core base frequency
1.6 GHz
Low Power Efficient-core Base Frequency
1600 MHz
Processor cache
18 MB
Processor cache type
Smart Cache
Processor base power
25 W
Maximum turbo power
80 W
Memory
Internal memory
64 GB
Internal memory type
LPDDR5x-SDRAM
Memory clock speed
8533 MHz
Maximum internal memory
96 GB
Storage
Total storage capacity
1 TB
Storage media
SSD
Total SSDs capacity
1 TB
Number of SSDs installed
1
SSD capacity
1 TB
SSD interface
PCI Express 5.0
NVMe
Yes
SSD form factor
M.2
Optical drive type
No
Card reader integrated
Yes
Compatible memory cards
SD
Graphics
Discrete graphics card model
NVIDIA RTX PRO 2000 Blackwell
Discrete graphics card memory
8 GB
Discrete graphics memory type
GDDR7
On-board graphics card
Yes
On-board GPU manufacturer
Intel
Discrete graphics card
Yes
On-board graphics card family
Intel® Graphics
On-board graphics card model
Intel® Graphics
Audio
Audio chip
Cirrus Logic CS42L43
Built-in microphone
Yes
Number of microphones
2
Camera
Front camera
Yes
Front camera resolution (numeric)
5 MP
Infrared (IR) camera
Yes
Privacy camera
Yes
Privacy type
Privacy shutter
Network
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
Wi-Fi 7 (802.11be)
Mobile network connection
No
Antenna type
2x2
WLAN controller manufacturer
Intel
Ethernet LAN
No
Bluetooth
Yes
Bluetooth version
5.4
Near Field Communication (NFC)
No
WWAN
Upgradable

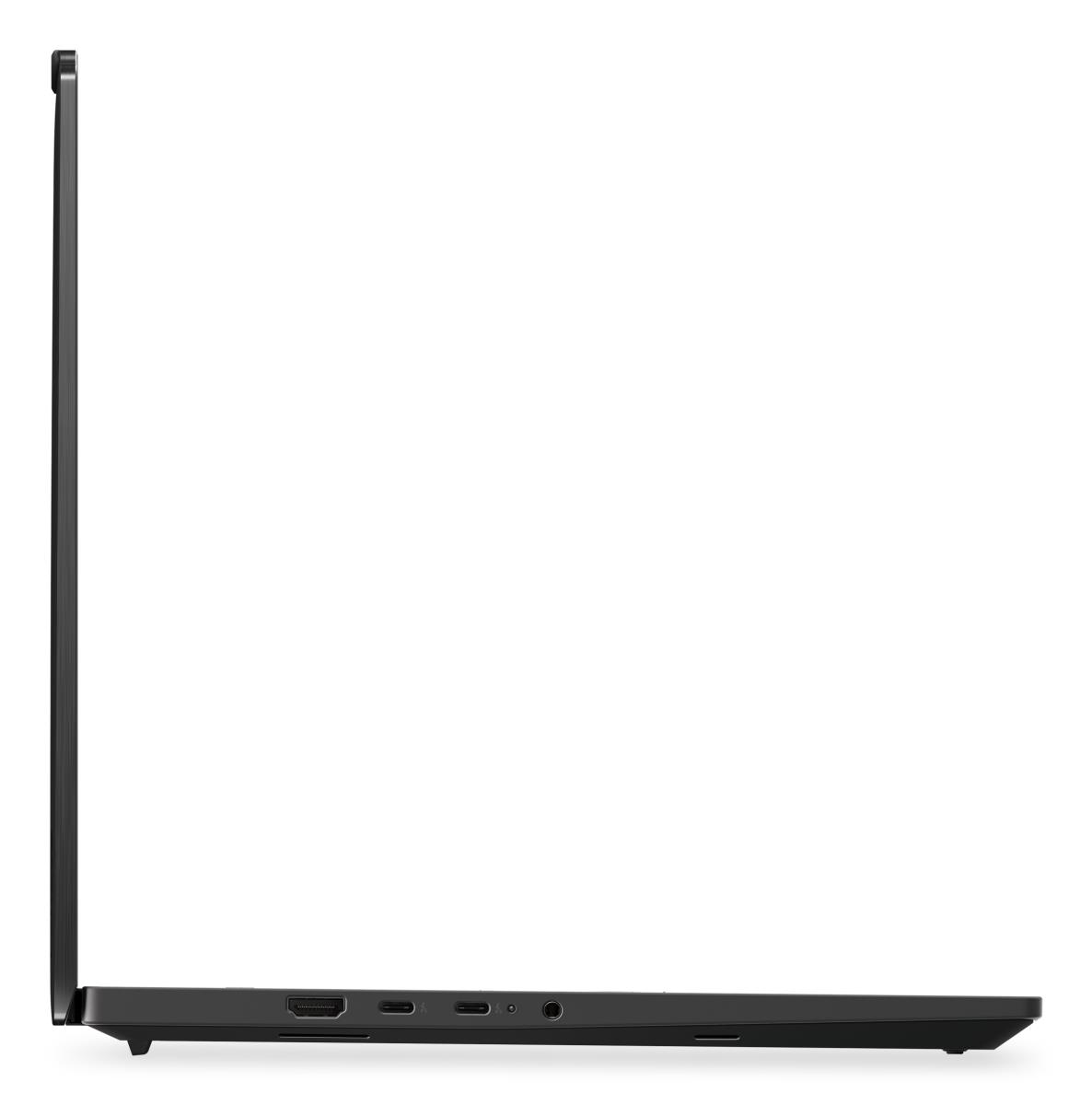

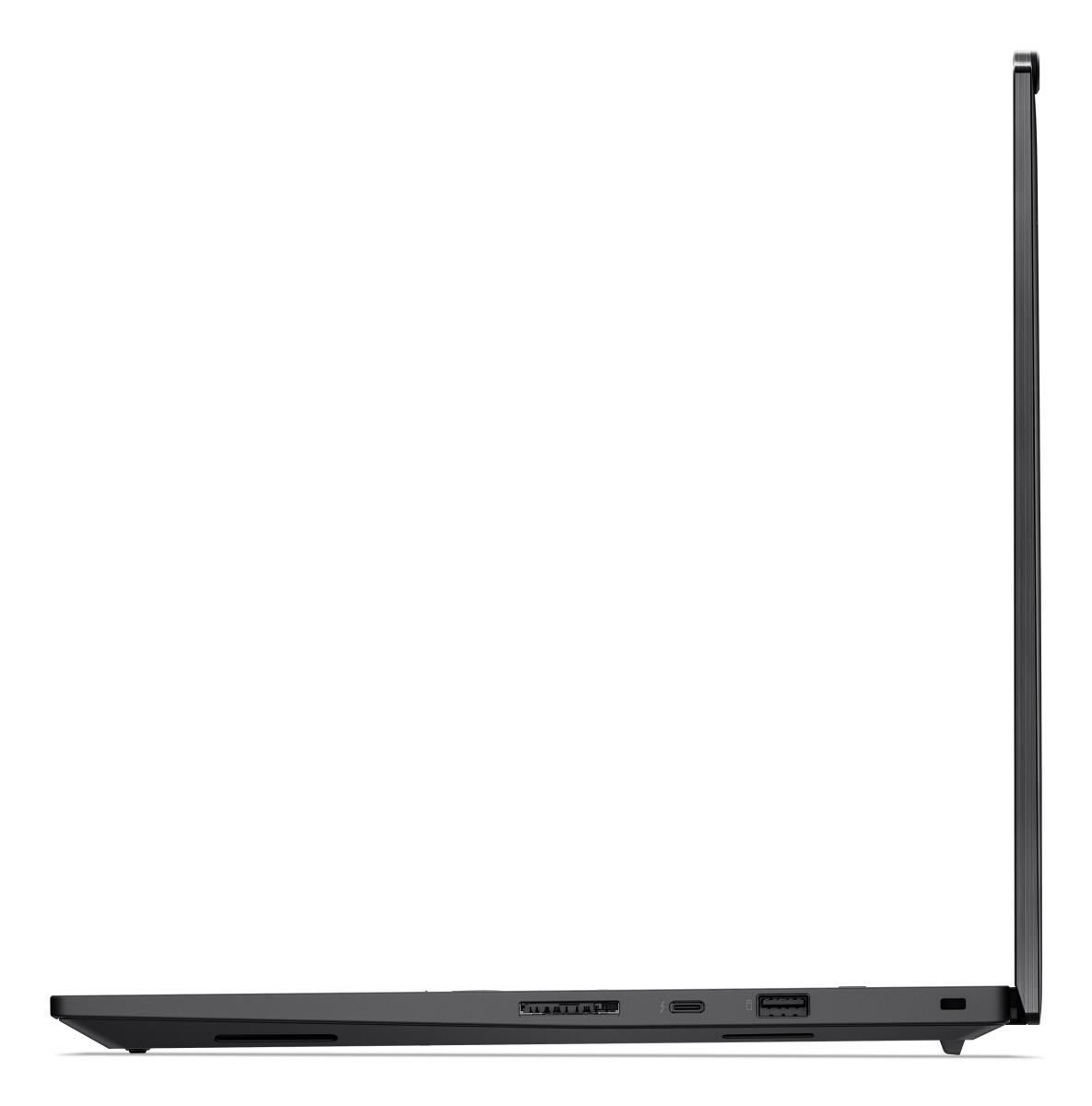

Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
HDMI ports quantity
1
HDMI version
2.1
Thunderbolt 4 ports quantity
1
Thunderbolt 5 ports quantity
2
Intel® Thunderbolt 4
Yes
Intel® Thunderbolt 5
Yes
Combo headphone/mic port
Yes
USB Type-C DisplayPort Alternate Mode
Yes
USB Sleep-and-Charge
Yes
Performance
Motherboard chipset
Intel SoC

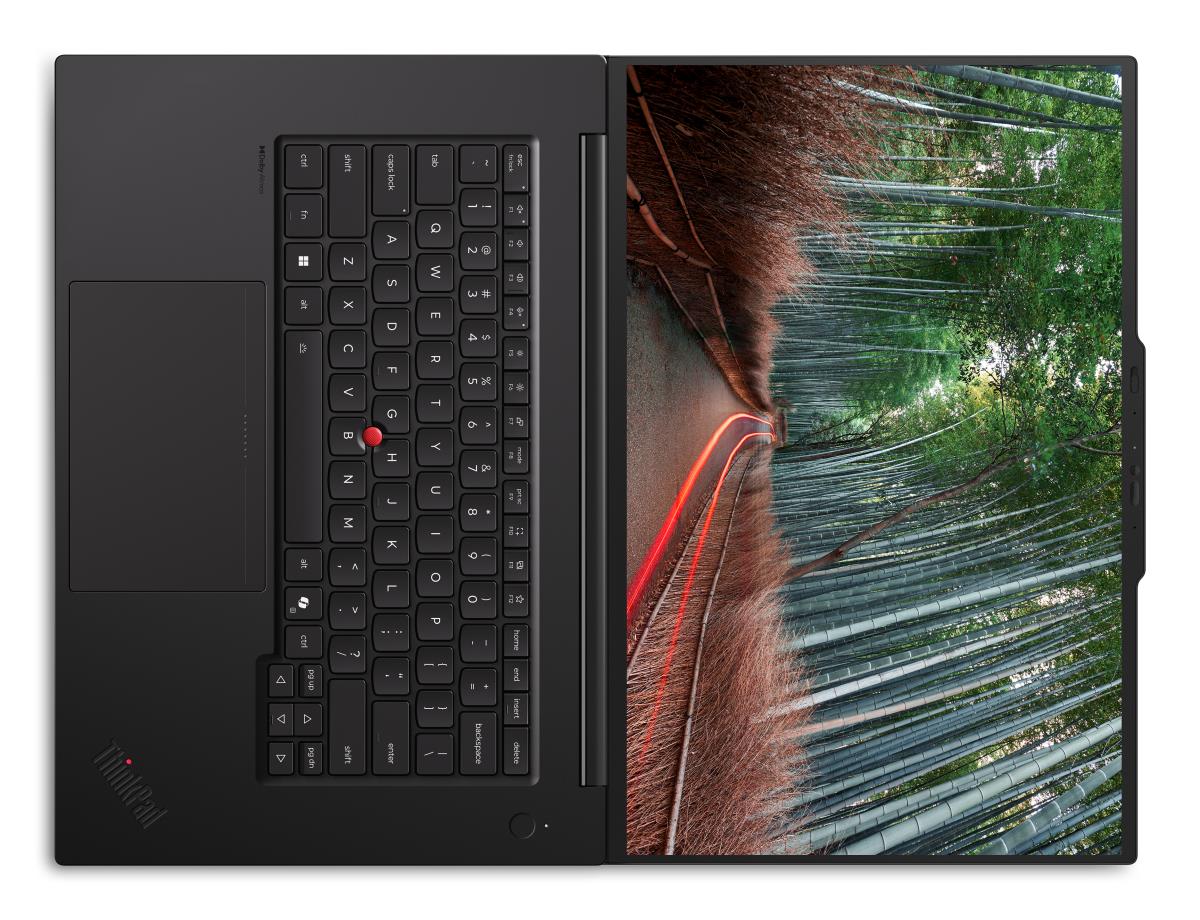

Keyboard
Pointing device
ThinkPad UltraNav
Numeric keypad
No
Keyboard backlit
Yes
Keyboard language
English
Software
Operating system installed
Windows 11 Pro
Bundled software
Lenovo AI Now + Intel Connectivity Performance Suite
Battery
Power
AC adapter power
140 W
USB Type-C charging port
Yes
USB Type-C required charging power (min)
140 W
USB Type-C required charging power (max)
140 W
USB Power Delivery (USB PD)
Yes
Security
Cable lock slot
Yes
Cable lock slot type
Kensington
Fingerprint reader
Yes
Smart card reader
No
Windows Hello
Yes
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0
Certificates
Certification
ENERGY STAR,TCO,RoHS
Weight & dimensions
Width
354.4 mm
Depth
241.2 mm
Height (front)
9.87 mm
Height (rear)
1.58 cm
Weight
1.77 kg
