Product Details
Introduction

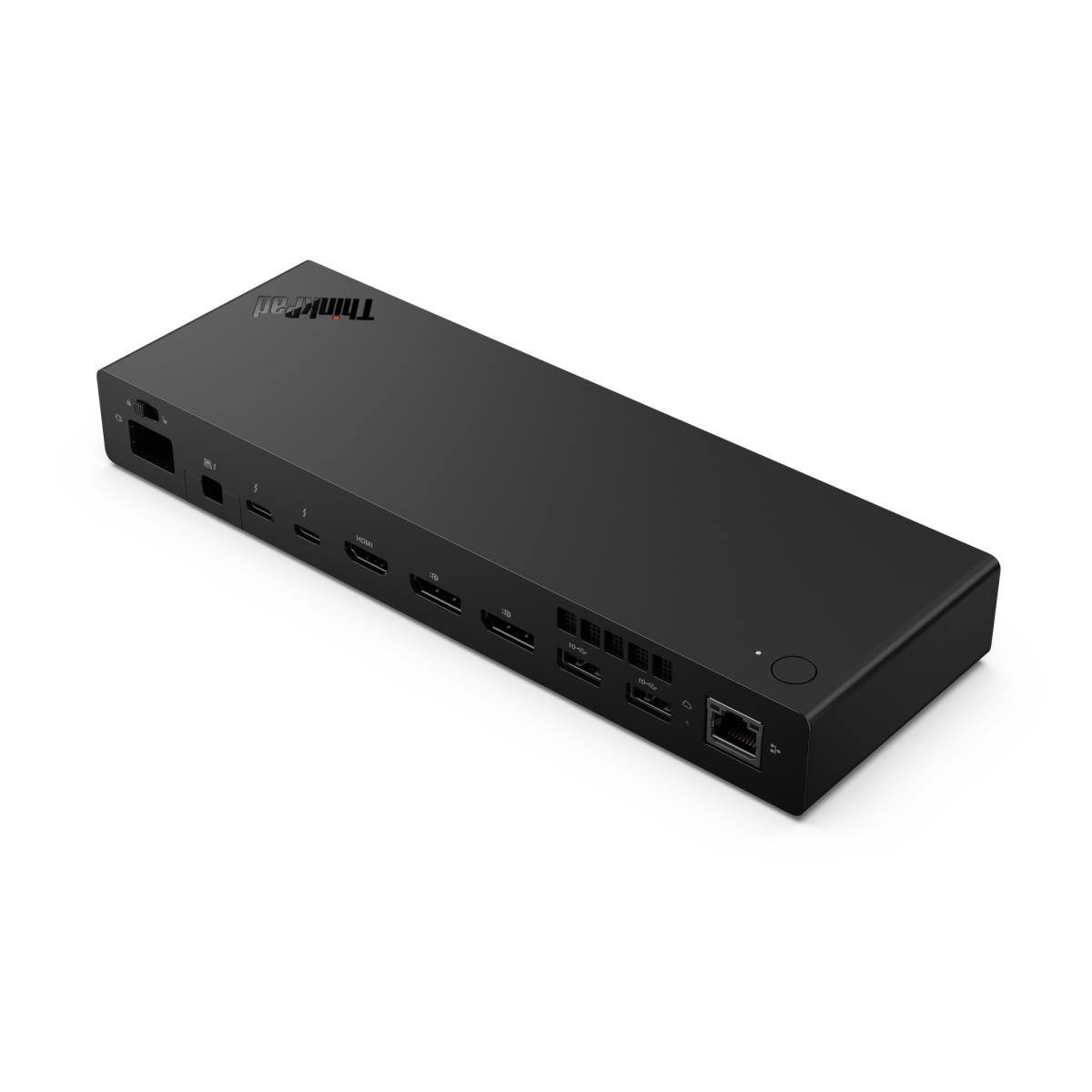

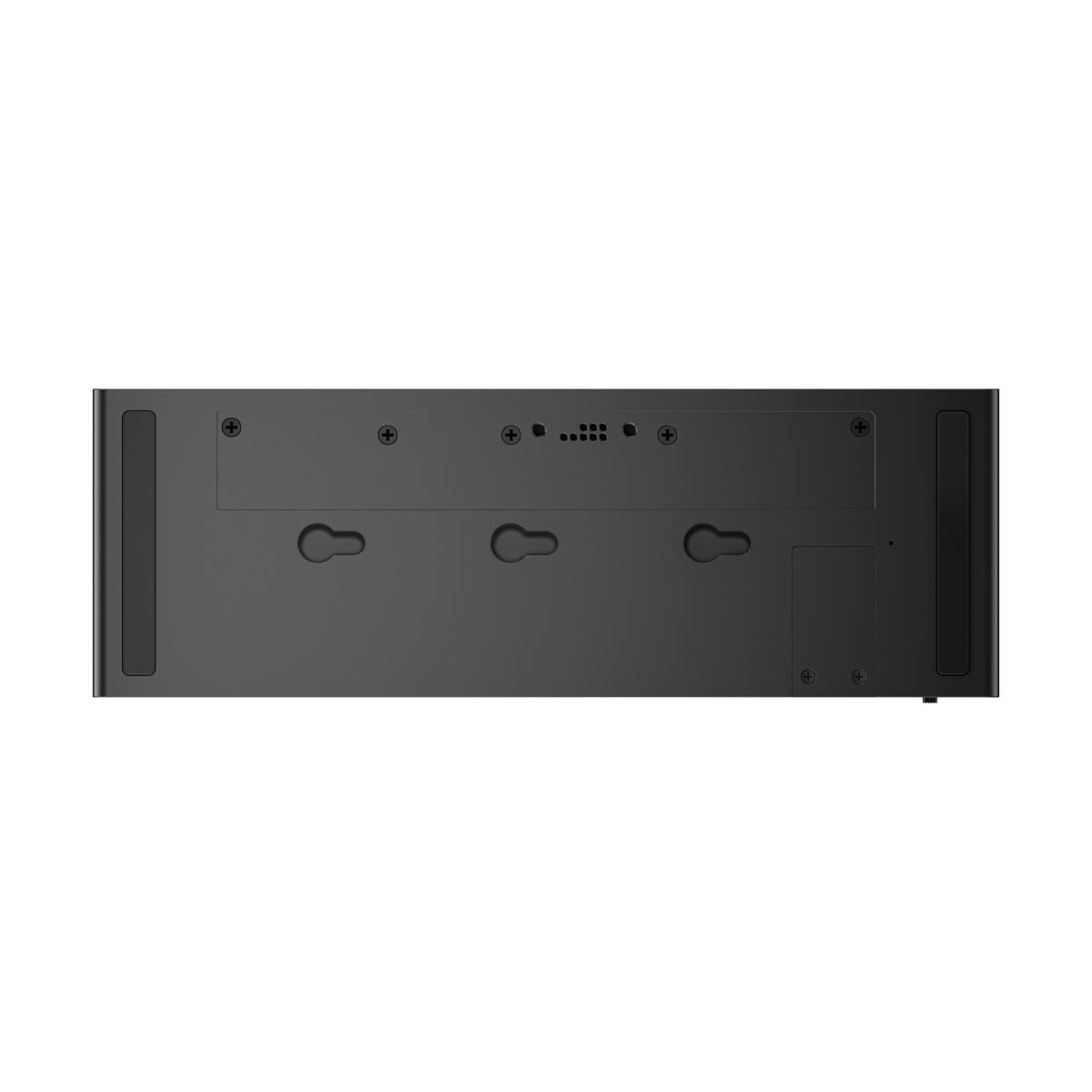

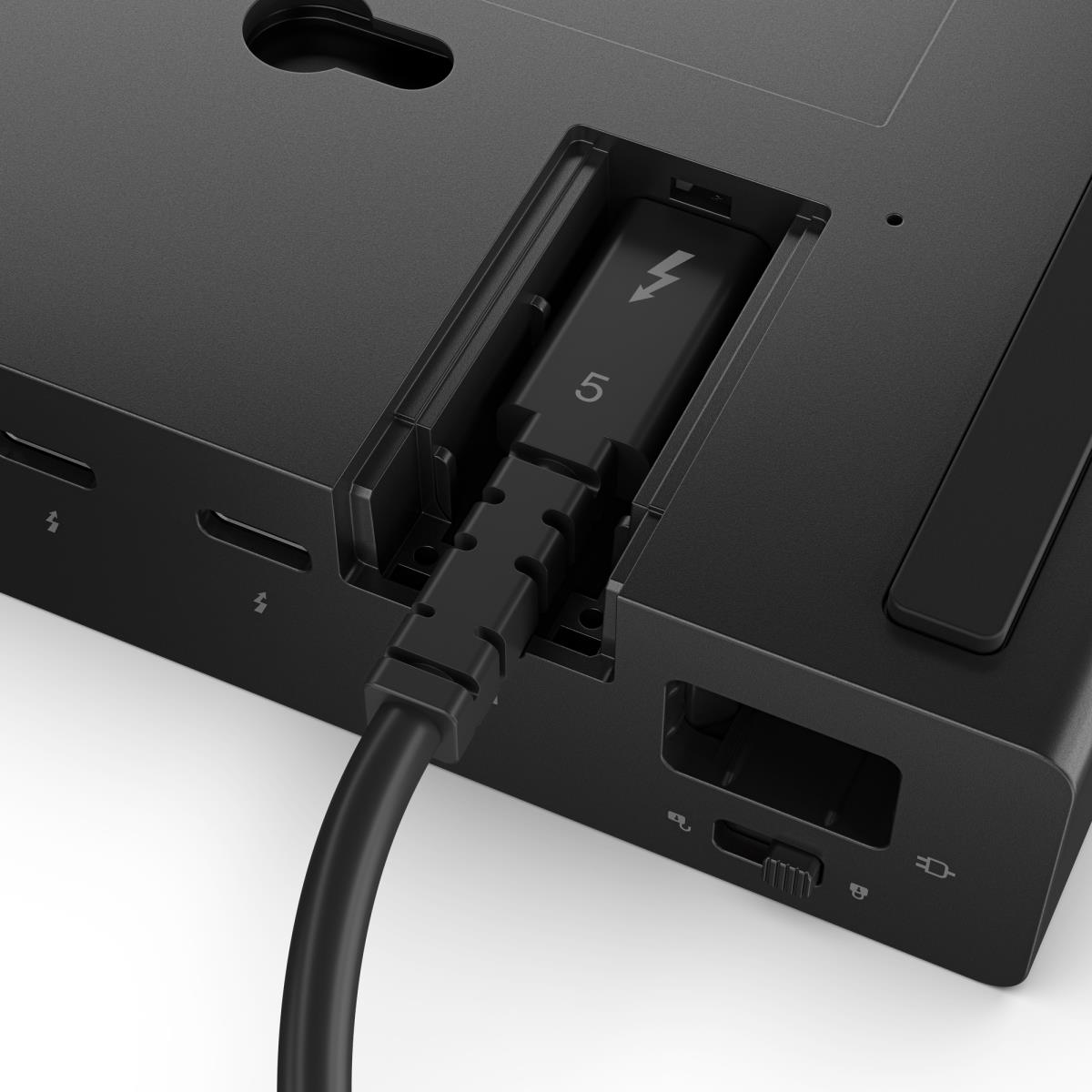

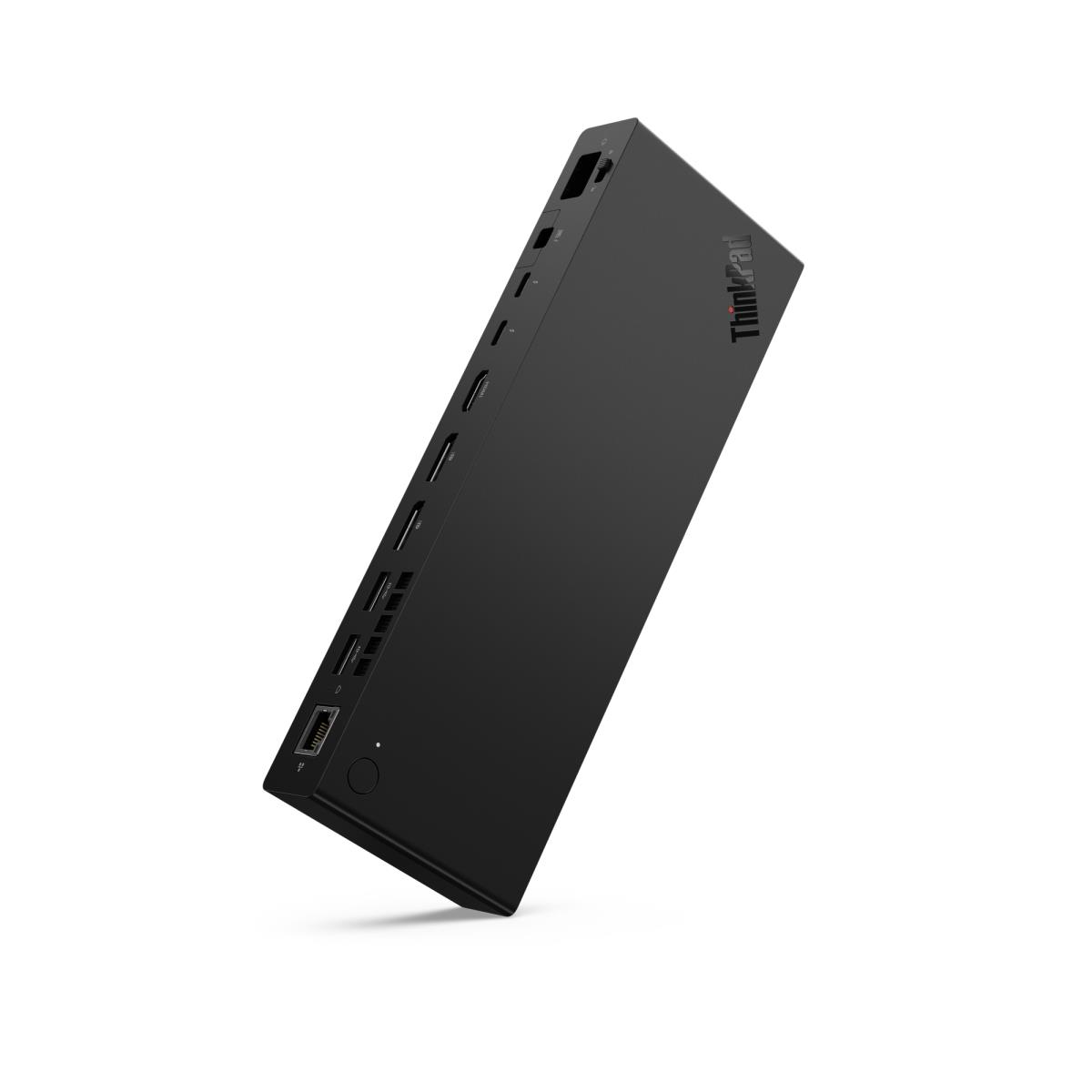

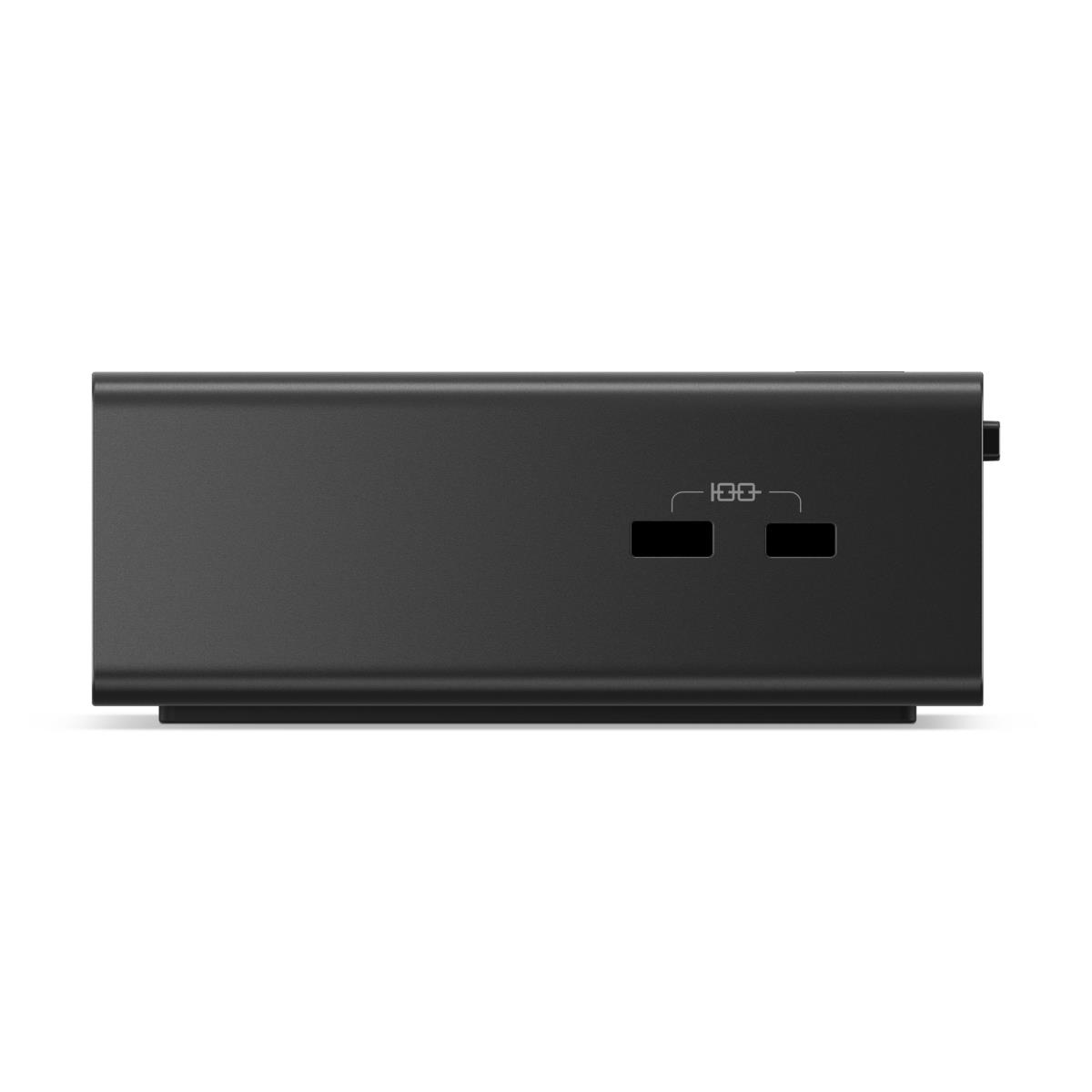

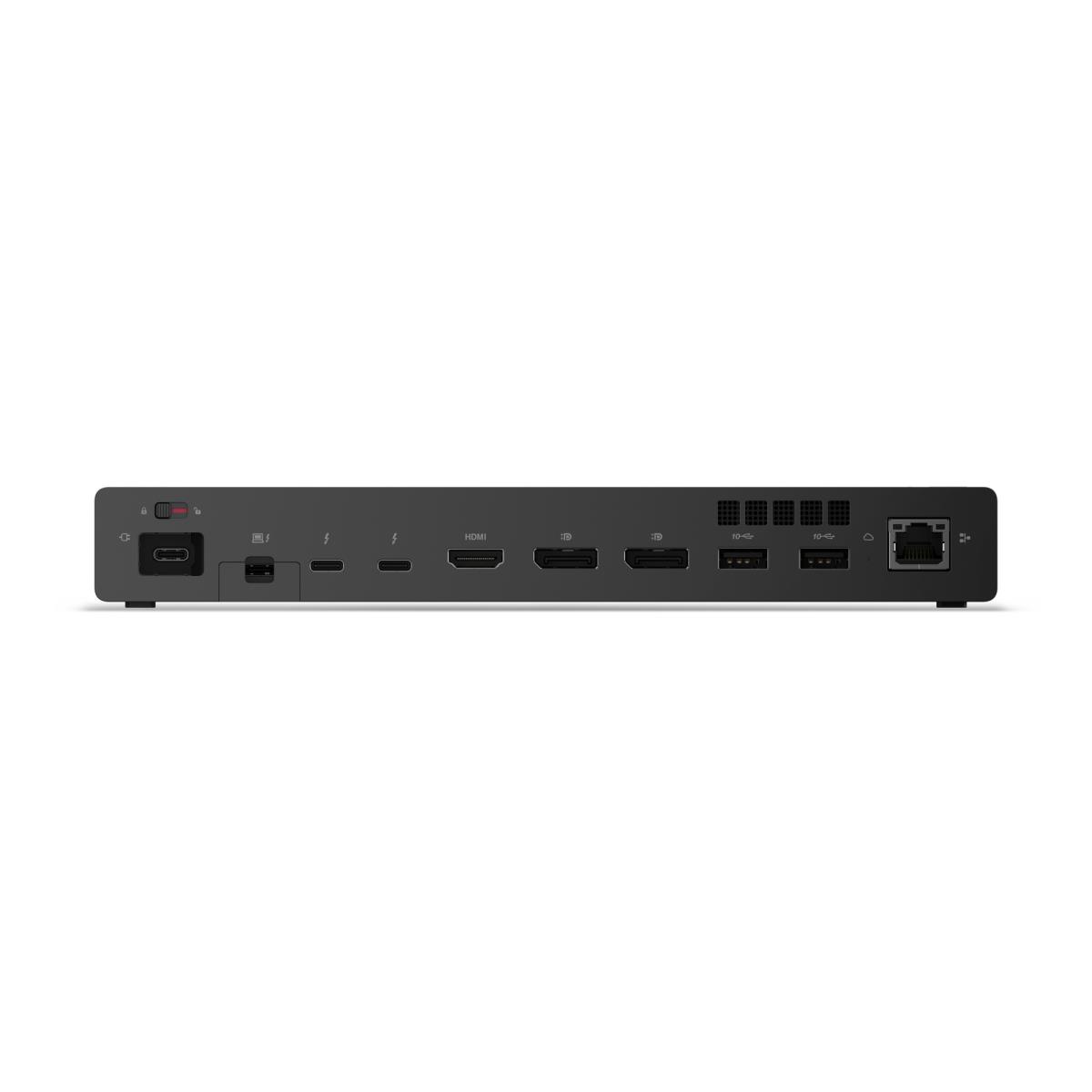

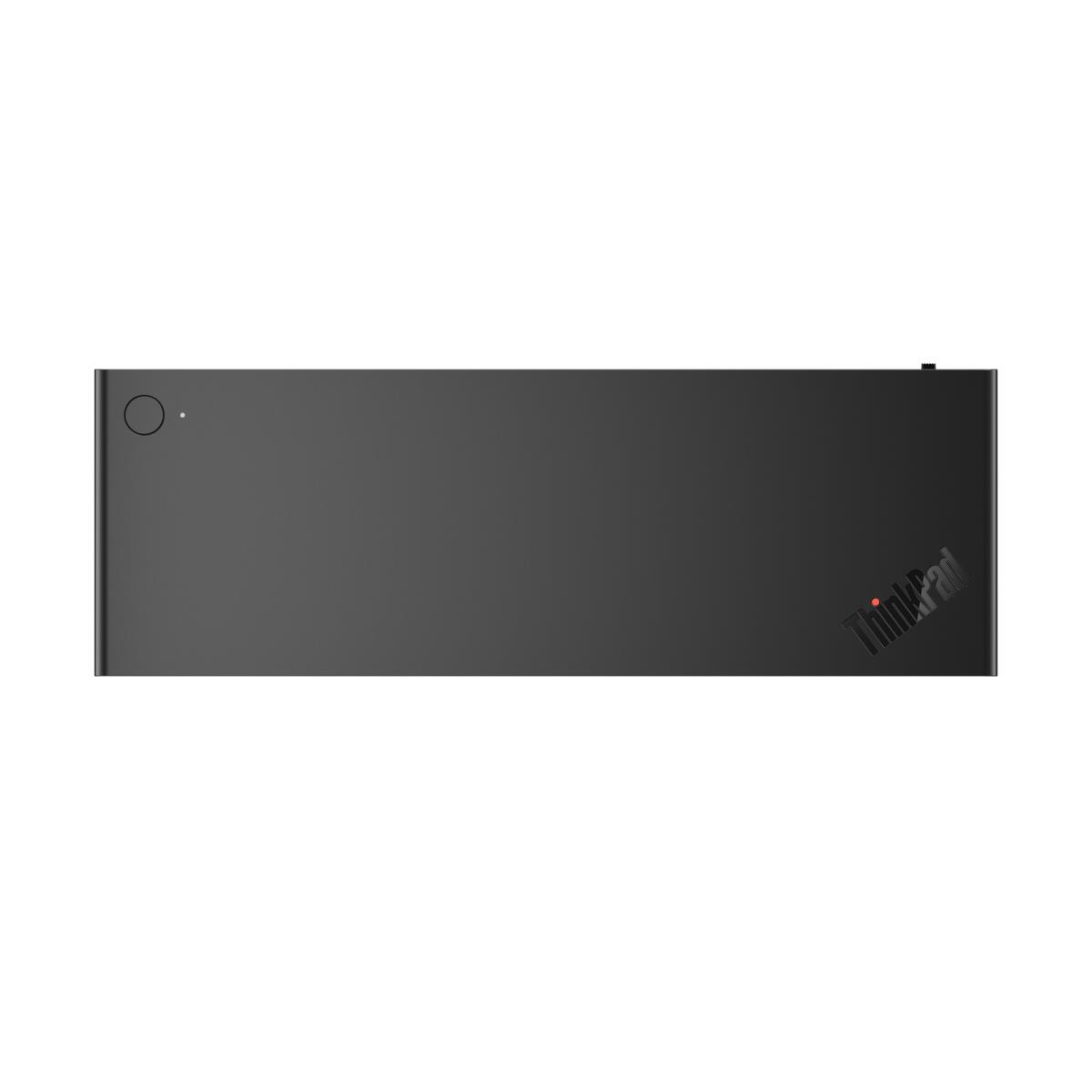

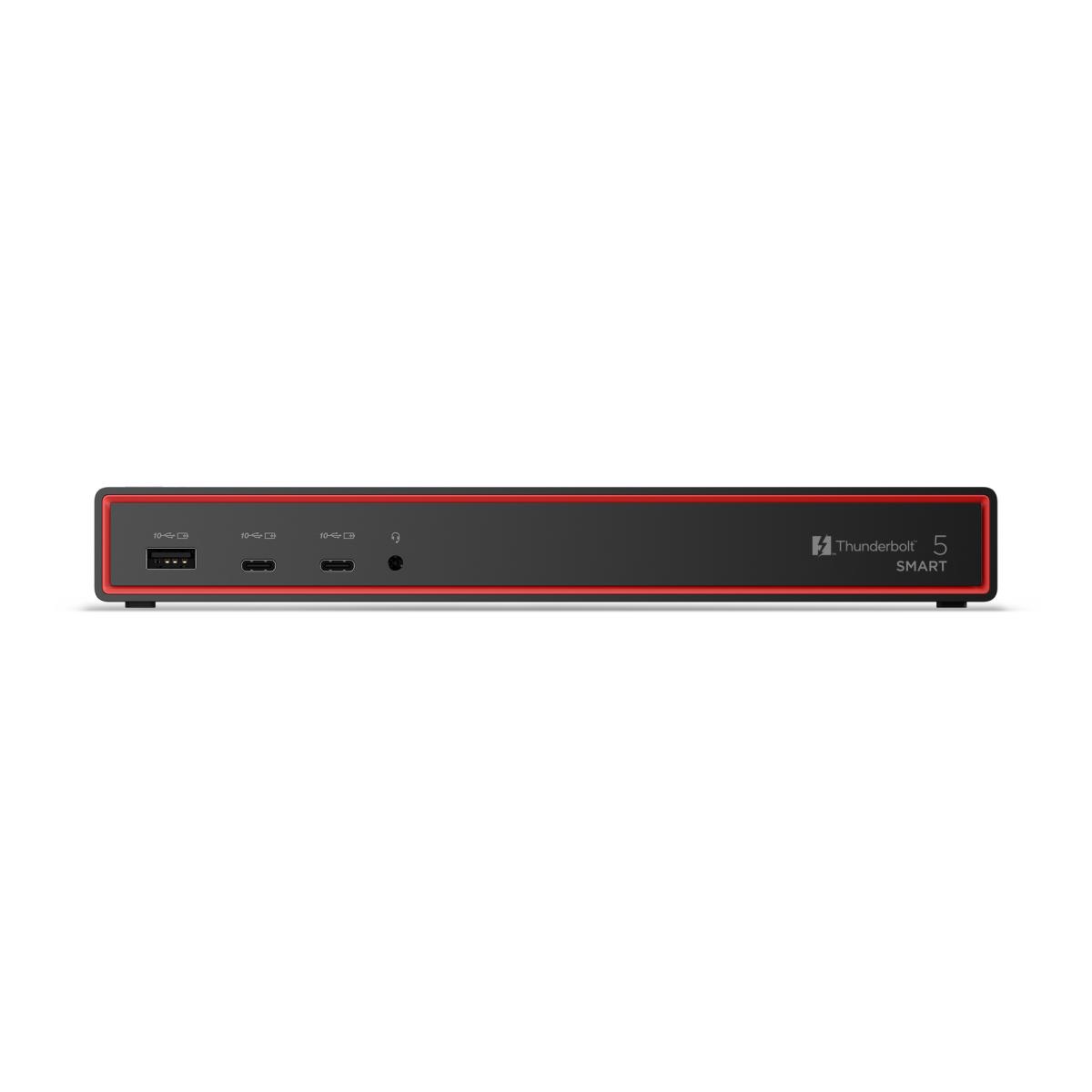

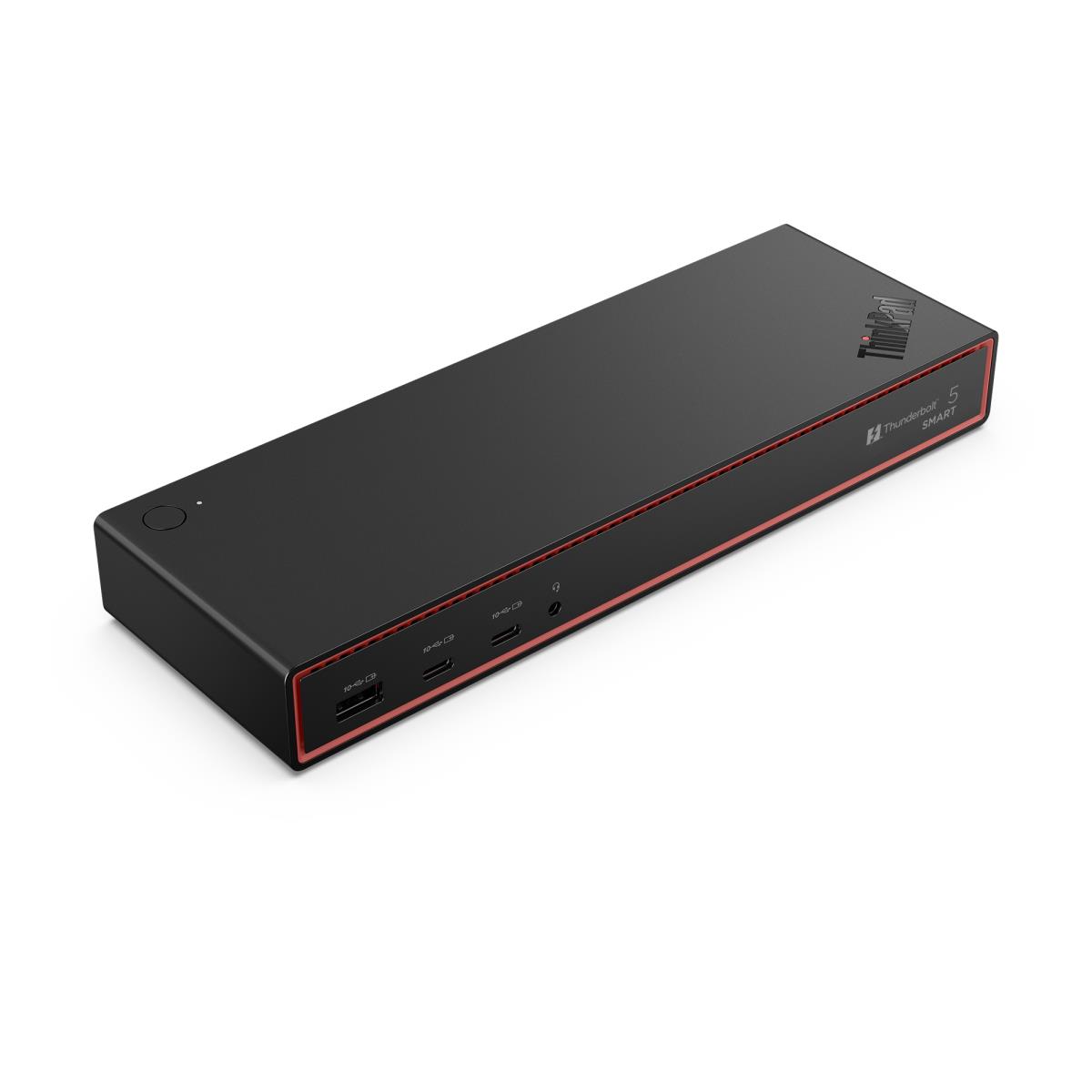

New Generation Docking Station Power House. The robust way to maximize productivity and the workspace, the brand new ThinkPad® Thunderbolt™ 5 Smart Dock 7500 is the flagship in our new series of docks offering a smarter way to work. Capable of driving up to three 8K 60Hz displays and up to 120Gbps data speeds, the dock ushers in the next generation of Intel® Thunderbolt™ 5 connectivity for commercial users and new generation cloud-based management console powered by AWS for IT managers.
Ports & interfaces
Connectivity technology
Wired
Host interface
Thunderbolt 5
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
USB Power Delivery (USB PD)
Yes
USB Power Delivery revision
3.1
USB Power Delivery up to
180 W
HDMI ports quantity
1
HDMI version
2.1
DisplayPorts quantity
2
DisplayPort version
2.1

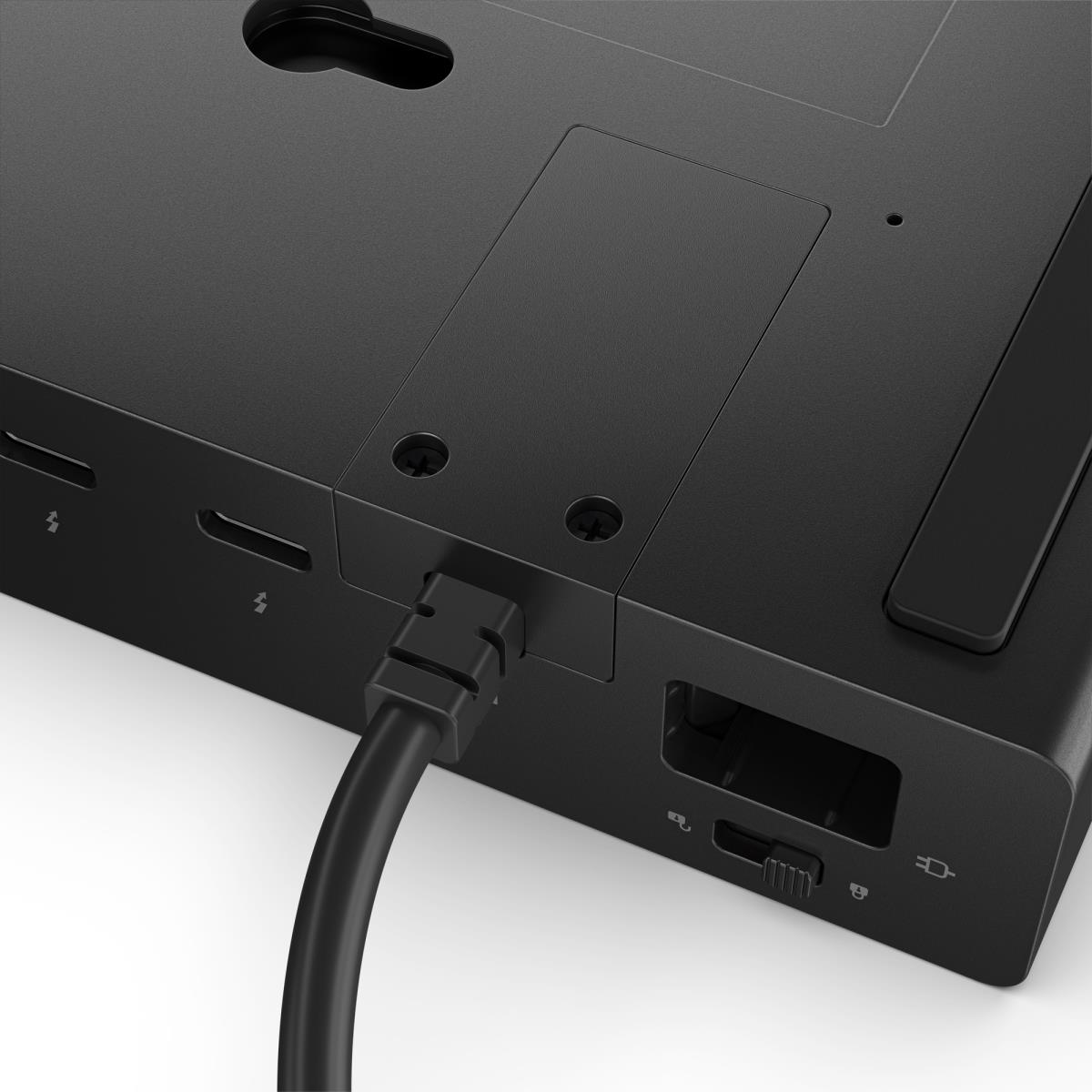

Thunderbolt 5 ports quantity
2
Combo headphone/mic port
Yes
DC-in jack
Yes
Network
Ethernet LAN
Yes

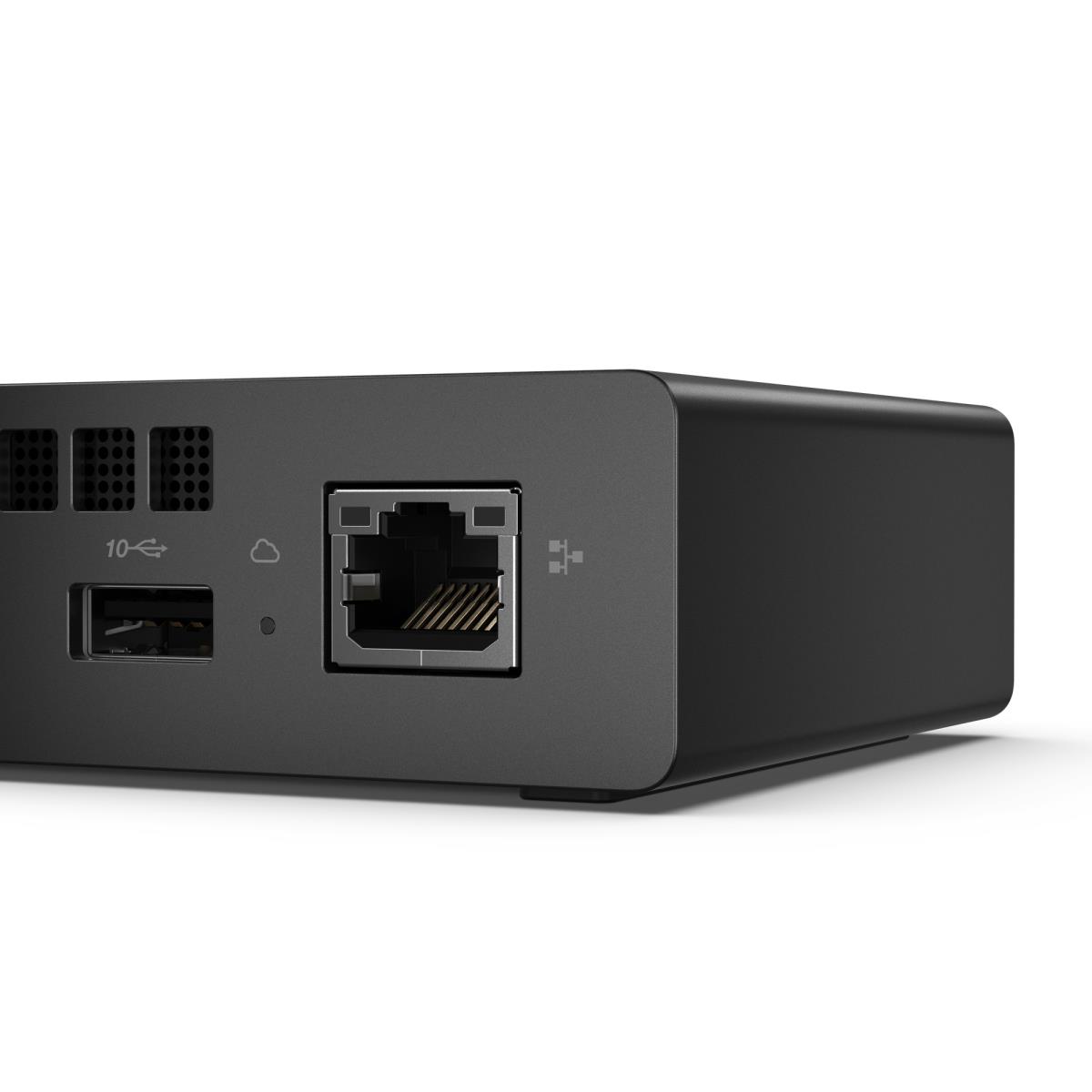

Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
2500 Mbit/s
Performance
Colour name
Eclipse Black
Card reader integrated
No
HD type
8K Ultra HD
Number of displays supported
4
Maximum refresh rate
60 Hz
Cable lock slot
Yes
Cable lock slot type
Kensington
Product colour
Black
Certification
FCC/ICES
CE
KCC
RCM
BSMI
NCC
VCCI
CB
cULus
EAC
TUV-Mark
Ukraine DoC
NOM
IFT
TELEC
UKCA
VNTA
WPC ETA
SRRC
SDPPI
IMDA
SIRIM
NBTC
SUBTEL
KVALITET/RATEL
MCIT
ANRT
UCC
INACOM
CITRA
TRA
NTC
PSRC
ARTCI
INCM
Thunderbolt Cert
EVO
Power
Power source type
AC
Power supply
265 W
Wireless charging
No
Software
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 95%
Weight & dimensions
Width
235 mm
Depth
80 mm
Height
30 mm
Weight
585 g
Packaging data
Quantity per pack
1 pc(s)
Package width
260 mm
Package depth
165 mm
Package height
74 mm
Package weight
1.73 kg
Packaging content
Warranty card
Yes
AC adapter included
Yes
Information
| Part Number: | 40BA0265EU |
