Product Details
Introduction
Designed to enhance everyday productivity, the Lenovo™ ThinkPad® USB4 Smart Dock 5500 is at the cutting edge of our new series of USB docks, offering a smarter way to work. With the brand new Lenovo Accessories Fleet Manager(LAFM) powered by AWS for IT manager, and the dock have 40Gbps bandwidth with USB4 upstream connectivity to your laptop, that allows you to extend your monitor setup with more pixels and higher refresh rates.

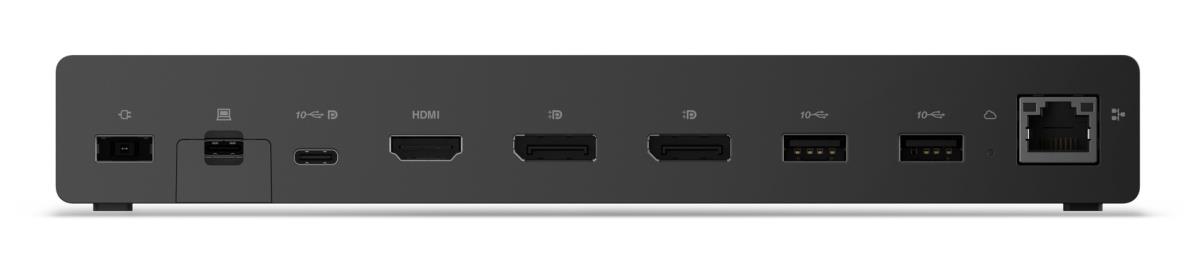

Ports & interfaces
Connectivity technology
Wired
Host interface
USB4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
USB4 ports quantity
1
USB Power Delivery (USB PD)
Yes
USB Power Delivery revision
3.1
USB Power Delivery up to
100 W
HDMI ports quantity
1
HDMI version
2.1
DisplayPorts quantity
2
DisplayPort version
1.4
Microphone in
No
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
1000 Mbit/s
Performance
Colour name
Eclipse Black
Card reader integrated
No
Maximum digital resolution
3840 x 2160 pixels
Number of displays supported
4
Maximum refresh rate
60 Hz
Cable lock slot
Yes
Cable lock slot type
Kensington
Product colour
Black
Certification
FCC/ICES
CE
KCC
RCM
BSMI
NCC
VCCI
CB
cULus
EAC
TUV- Mark
LoA
Ukraine DoC
NOM
IFT
TELEC
UKCA
FAC DoC
VNTA
WPC ETA
SRRC
SDPPI
IMDA
SIRIM
NBTC
SUBTEL
KVALITET/RATEL
MCIT
ANRT
UCC
INACOM
CITRA
TRA
NTC
PSRC
NCA
ARTCI
INCM
Power
Power source type
AC
Power supply
135 W
Software
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 95%
Weight & dimensions
Width
218 mm
Depth
80 mm
Height
31.5 mm
Weight
472 g
Packaging data
Package width
240 mm
Package depth
145 mm
Package height
77 mm
Package weight
1.09 kg
Packaging content
Warranty card
Yes
AC adapter included
Yes
Information
| Part Number: | 40BC0135UK |
