Product Details
Introduction

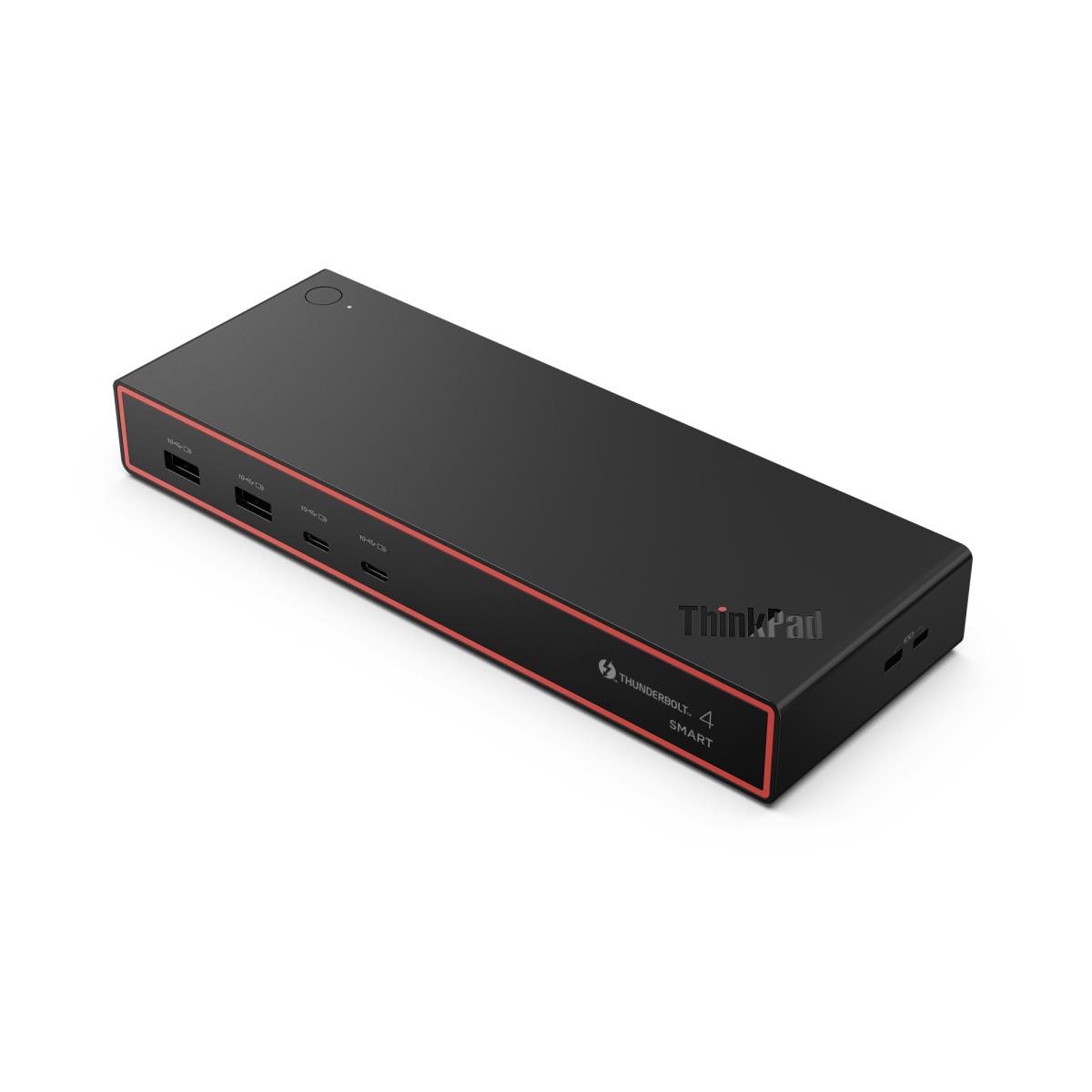

New Generation ThinkPad® Thunderbolt™ 4 Smart Dock; The ThinkPad® Thunderbolt™ 4 Smart Dock Gen 2 7500 is a refresh of its Thunderbolt™ 4 Smart Dock Predecessor, Best for business professionals, IT decision-makers, and creative professionals who need Premium PC experience with multiple displays setup, secure and reliable connections for intensive tasks. Capable of driving up to 8K 60Hz display and 40Gbps data speed, and new generation cloud-based management console powered by AWS for IT managers.

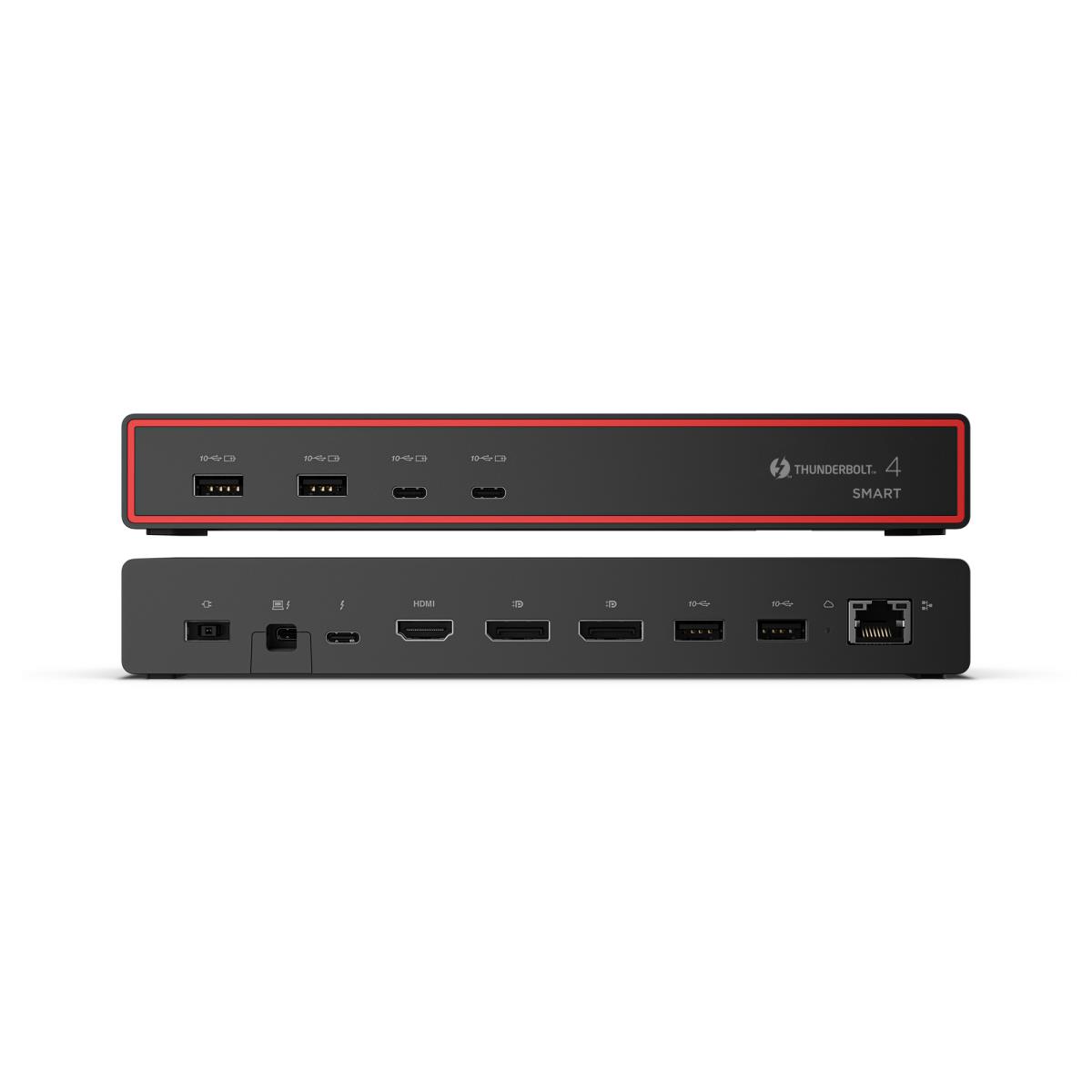

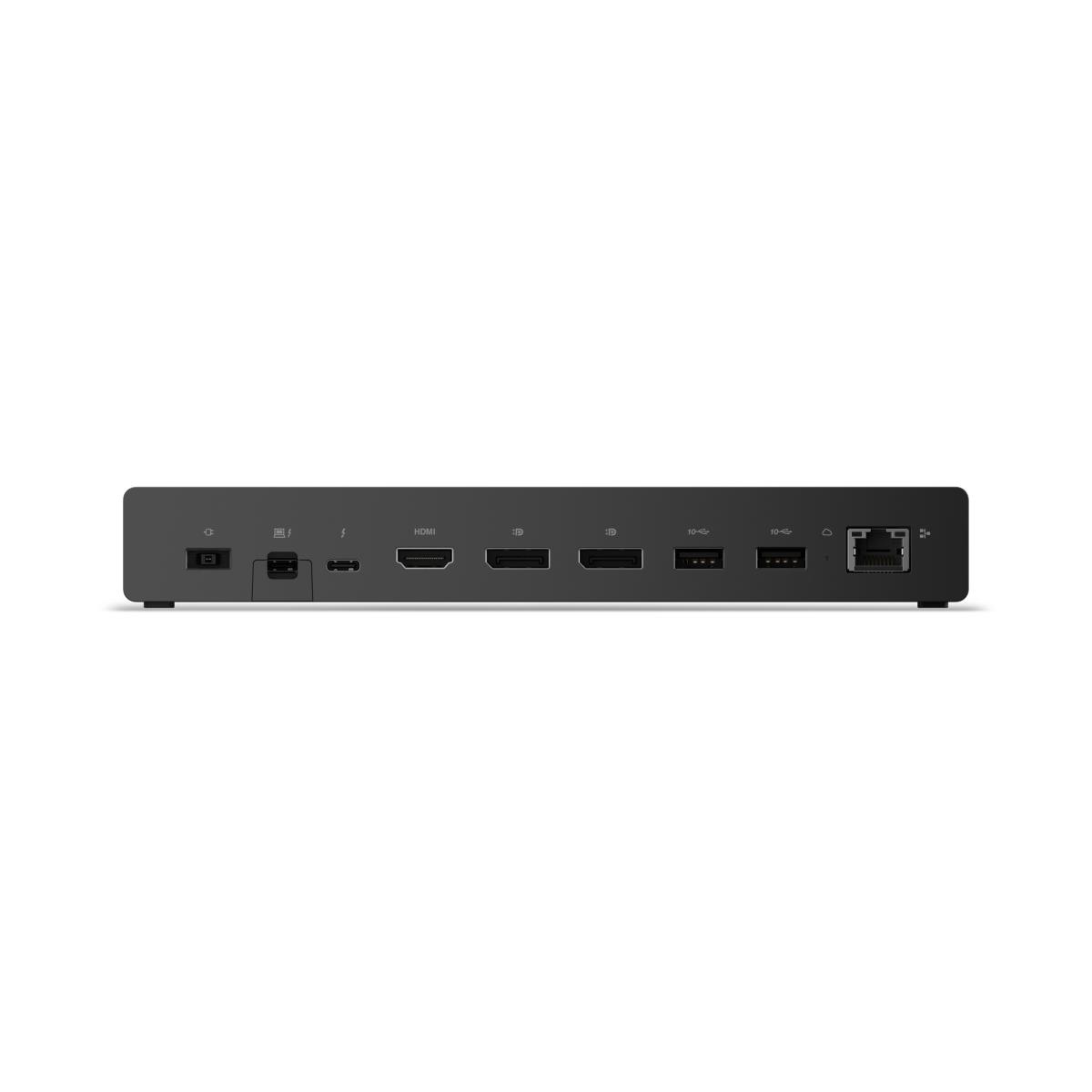

Ports & interfaces
Connectivity technology
Wired
Host interface
Thunderbolt 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
USB Power Delivery (USB PD)
Yes
USB Power Delivery revision
3.1
USB Power Delivery up to
100 W
HDMI ports quantity
1
HDMI version
2.1
DisplayPorts quantity
2
DisplayPort version
1.4
Thunderbolt ports quantity
2
Thunderbolt 4 ports quantity
2
Microphone in
No
USB Type-C DisplayPort Alternate Mode
Yes
DC-in jack
Yes
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
2500 Mbit/s
Performance
Colour name
Eclipse Black
Card reader integrated
No
Maximum digital resolution
7680 x 4320 pixels
Number of displays supported
4
Maximum refresh rate
60 Hz
Cable lock slot
Yes
Cable lock slot type
Kensington
Product colour
Black
On/off switch
Yes
LED indicators
Yes
Certification
FCC/ICES
CE
KCC
RCM
BSMI
NCC
VCCI
CB
cULus
EAC
TUV-Mark
LoA
Ukraine DoC
NOM
IFT
TELEC
UKCA
FAC DoC
VNTA
WPC ETA
SRRC
SDPPI
IMDA
SIRIM
NBTC
SUBTEL
KVALITET/RATEL
MCIT
ANRT
UCC
INACOM
CITRA
TRA
NTC
PSRC
NCA
ARTCI
INCM
Thunderbolt Cert.
EVO
Power
Power source type
AC
Power supply
135 W
Wireless charging
No
Software
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 95%
Weight & dimensions
Width
220 mm
Depth
80 mm
Height
30 mm
Weight
547.5 g
Packaging data
Package width
237.8 mm
Package depth
141 mm
Package height
75.8 mm
Package weight
1.26 kg
Information
| Part Number: | 40BE0135EU |
