Introduction

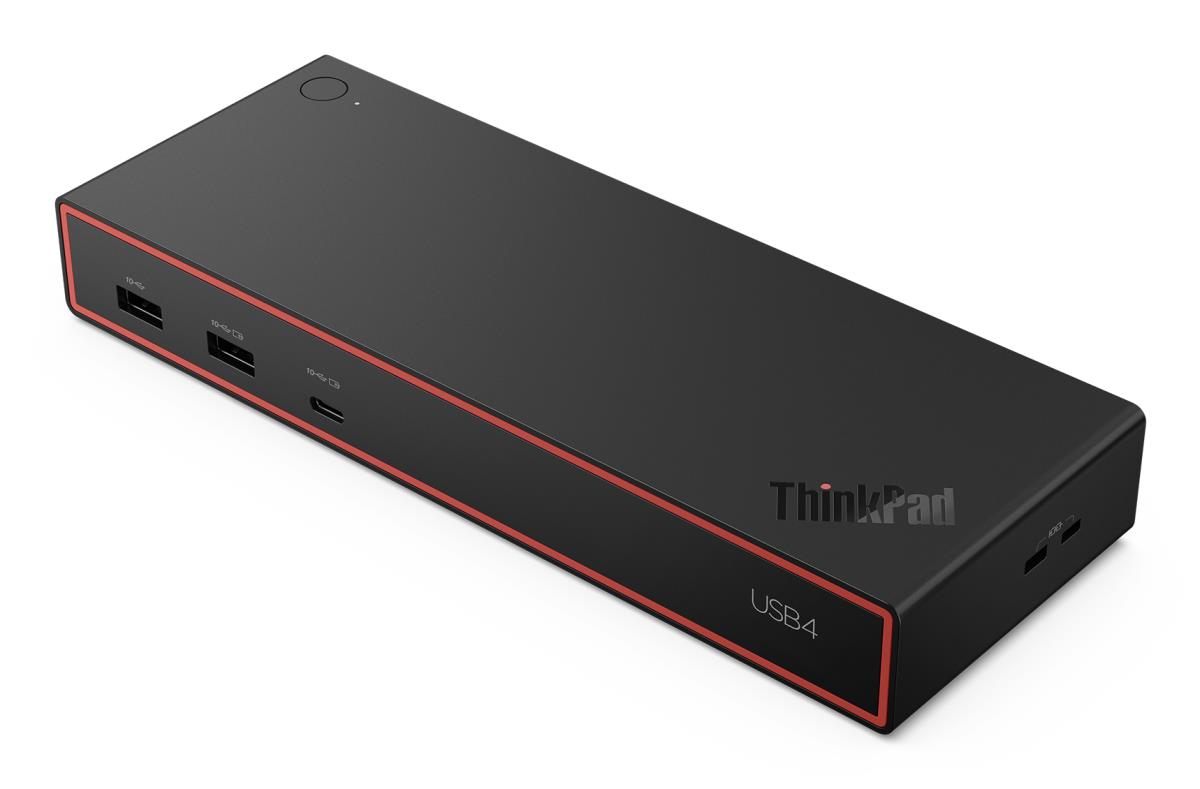

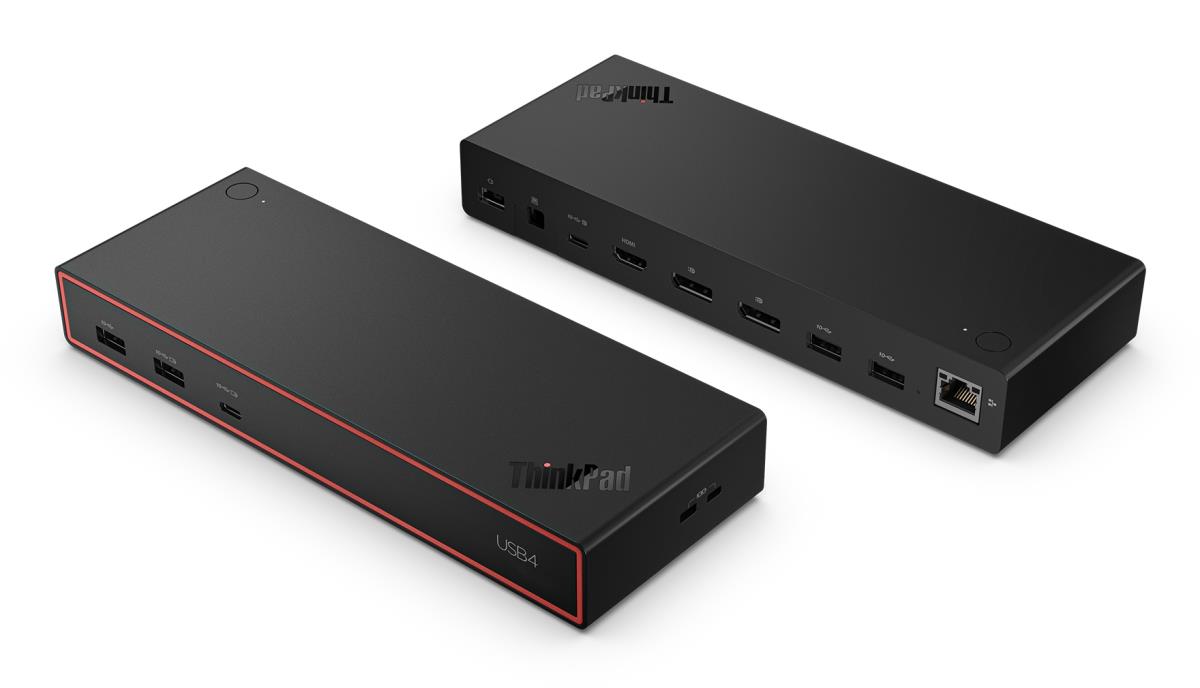

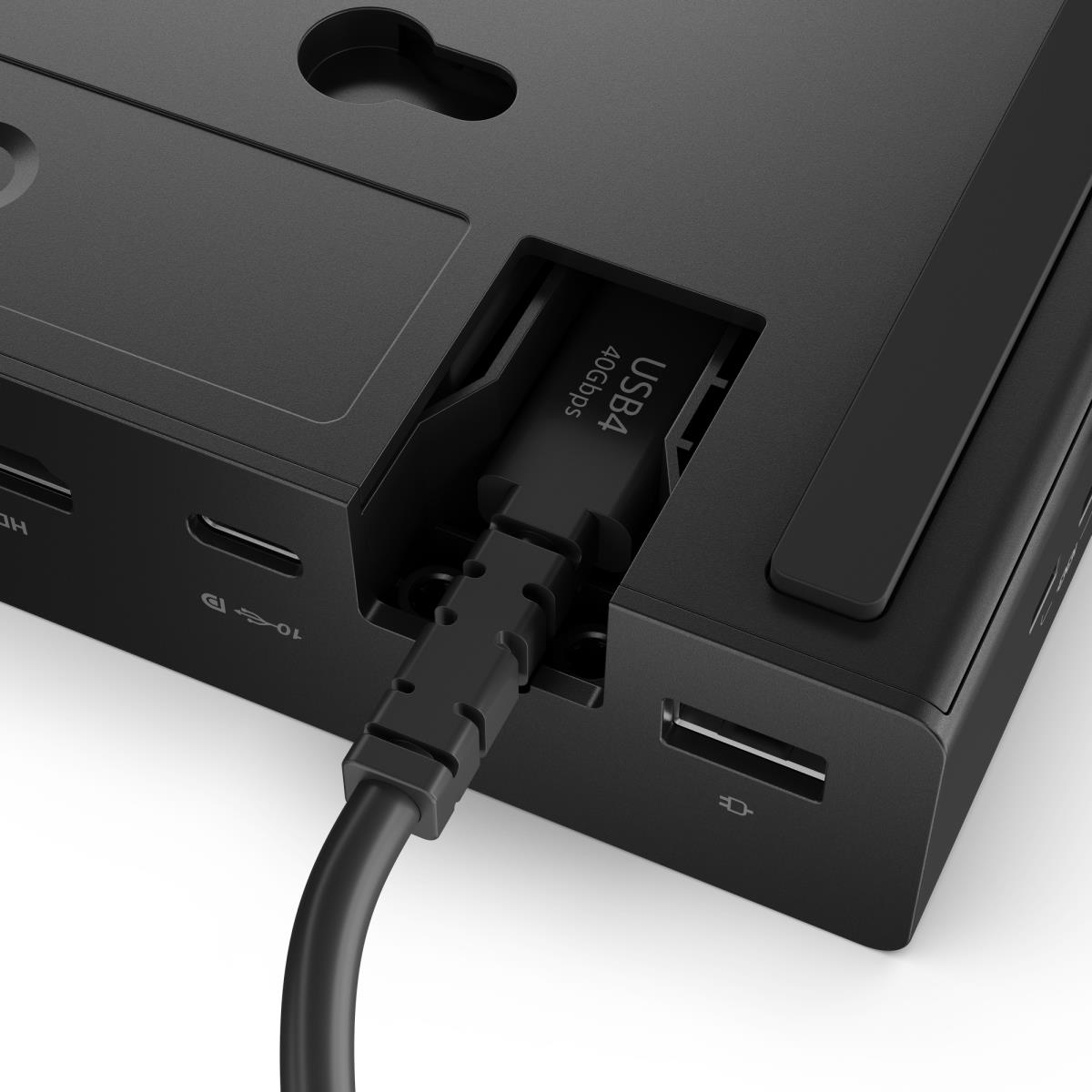

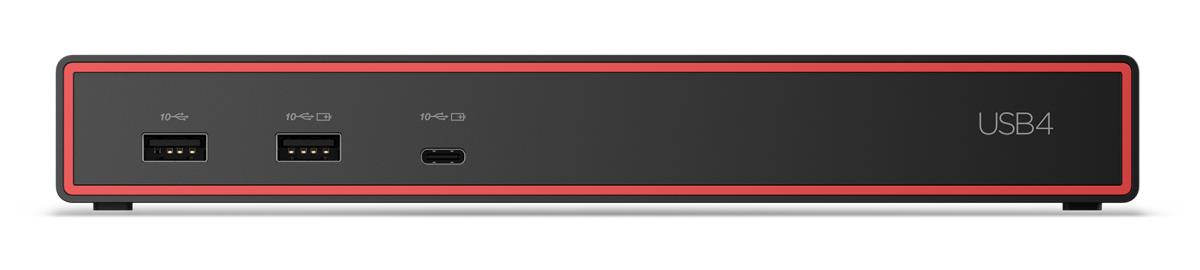

Designed to enhance everyday productivity, the Lenovo™ ThinkPad® USB4 Dock 5000 is the Successor of our famous Universal USB-C Dock equipped with cutting edge USB4 Technology, The dock can connect to your laptop with 40Gbps bandwidth USB4 upstream connectivity, that allows you to extend your monitor setup with more pixels and higher refresh rates. It can output 65W charge power to your laptop with 100W power adapter, or you can choose a 135W power adapter to boost the charge power up to 100W to you laptop.

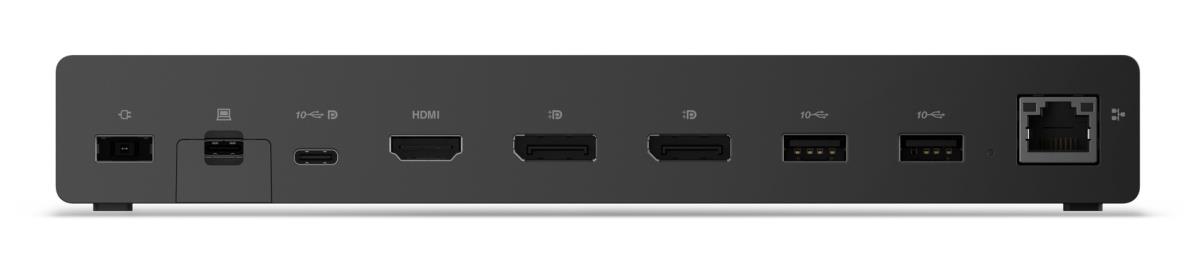

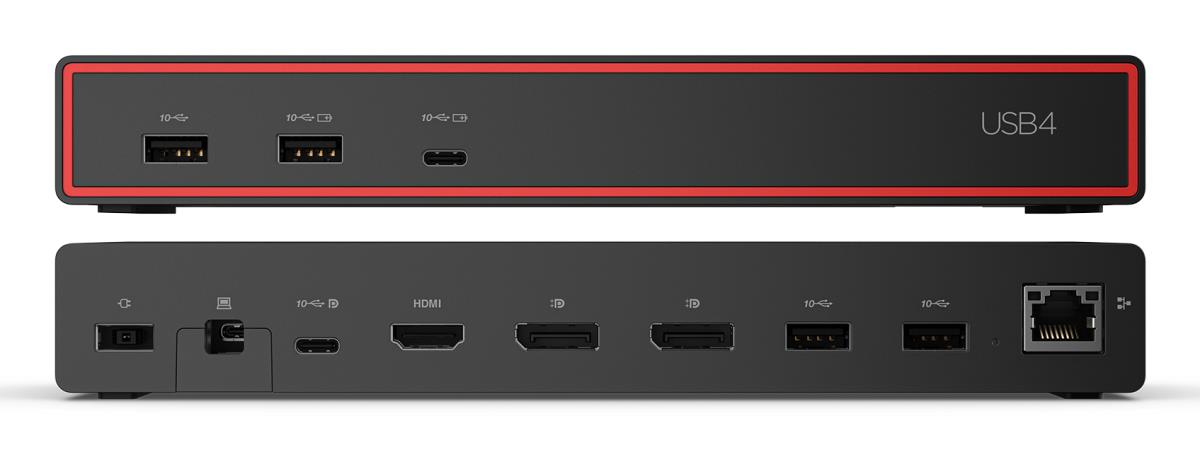

Ports & interfaces
Connectivity technology
Wired
Host interface
Thunderbolt 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
USB Power Delivery (USB PD)
Yes
USB Power Delivery revision
3.1
USB Power Delivery up to
65 W
HDMI ports quantity
1
HDMI version
2.1
DisplayPorts quantity
2
DisplayPort version
1.4
Microphone in
No
USB Type-C DisplayPort Alternate Mode
Yes
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
1000 Mbit/s
Performance
Colour name
Eclipse Black
Card reader integrated
No
Maximum digital resolution
3840 x 2160 pixels
Number of displays supported
4
Cable lock slot
Yes
Cable lock slot type
Kensington
Product colour
Black
Certification
FCC/ICES
CE
KCC
RCM
BSMI
VCCI
CB
cULus
EAC
TUV- Mark
LoA
Ukraine DoC
NOM
Power
Power source type
DC
Power supply
100 W
Software
Windows operating systems supported
Windows 11
Mac operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 95%
Weight & dimensions
Width
218 mm
Depth
80 mm
Height
31.5 mm
Weight
470 g
Packaging data
Package width
240 mm
Package depth
145 mm
Package height
77 mm
Package weight
1.03 kg

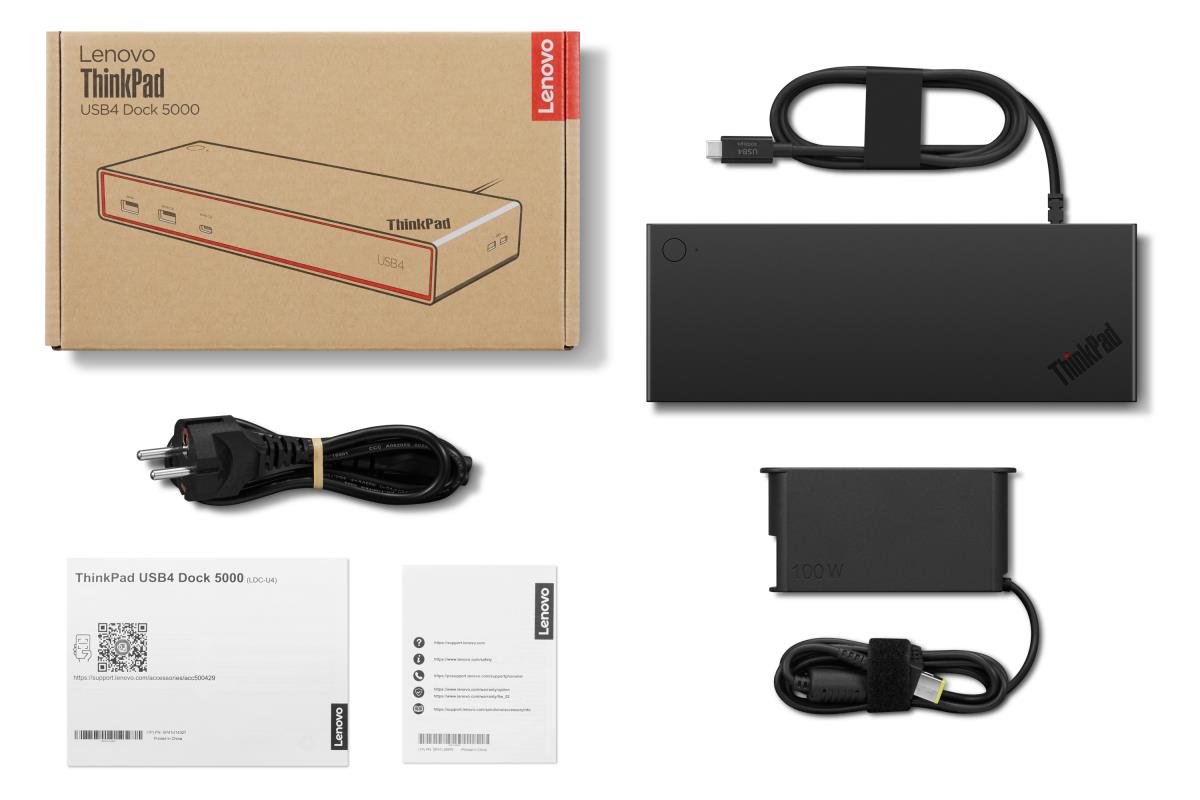

Packaging content
Warranty card
Yes
Cables included
AC, USB
AC adapter included
Yes
Quick start guide
Yes
Information
| Part Number: | 40BF0100UK |
