Product Details
Introduction
Step into Microsoft Teams Rooms for Richer Collaboration
- Compact compute purposely refreshed & certified by Microsoft Teams Rooms
- 13th Gen Intel® Core™ i3 processor & Windows 11 for cohesive experience
- Free up your laptops for a productive & streamlined meeting experience

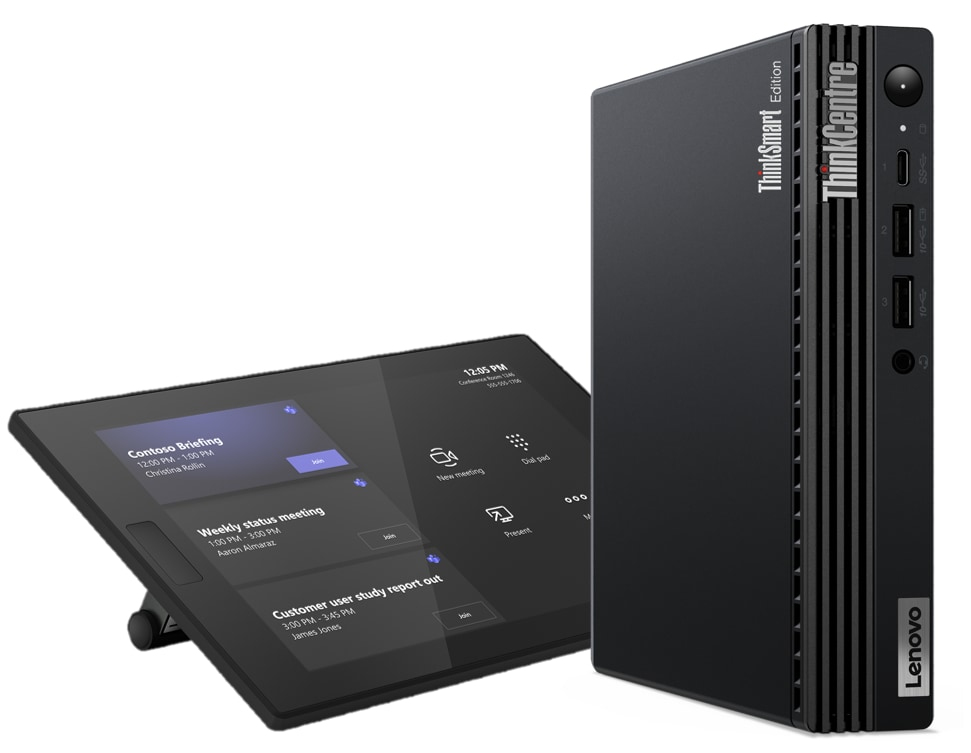

- ThinkSmart Controller with impeccable display to control & share content
Processor
Processor manufacturer
Intel
Processor family
Intel® Core™ i3
Processor generation
Intel Core i3-13xxx
Processor model
i3-13100T
Processor cores
4
Processor threads
8
Processor boost frequency
4.2 GHz
Performance cores
4
Performance-core Max Turbo Frequency
4.2 GHz
Performance-core base frequency
2.5 GHz
Processor cache
12 MB
Processor cache type
Smart Cache
Processor base power
35 W
Maximum turbo power
69 W
Memory
Internal memory
16 GB
Maximum internal memory
16 GB
Internal memory type
DDR4-SDRAM
Memory layout (slots x size)
2 x 8 GB
Memory slots
2x SO-DIMM
Memory clock speed
3200 MHz
Memory channels
Dual-channel
Storage
Total storage capacity
256 GB
Storage media
SSD
Optical drive type
No
Number of storage drives installed
1
Total SSDs capacity
256 GB
Number of SSDs installed
1
SSD capacity
256 GB
SSD interface
PCI Express 4.0
NVMe
Yes
SSD form factor
M.2
Graphics
Discrete graphics card
No
On-board graphics card
Yes
Discrete graphics card model
Not available
On-board GPU manufacturer
Intel
On-board graphics card family
Intel® UHD Graphics
On-board graphics card model
Intel UHD Graphics 730
Network
Ethernet LAN
Yes
Ethernet LAN data rates
100,1000 Mbit/s
Cabling technology
10/100/1000Base-T(X)
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
Wi-Fi 6E (802.11ax)
WLAN controller manufacturer
Intel
WLAN controller model
Intel Wi-Fi 6E AX211
Antenna type
2x2
Bluetooth
Yes
Bluetooth version
5.3
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
HDMI ports quantity
1
HDMI version
2.1
Ethernet LAN (RJ-45) ports
1
Combo headphone/mic port
Yes
Design
Chassis type
Mini PC
Colour name
Black
VESA mounting
Yes
Cable lock slot
Yes
Cable lock slot type
Kensington
Product colour
Black
Performance
Motherboard chipset
Intel Q670
Audio chip
Realtek ALC256-VB
Audio system
High Definition Audio
Password protection
Yes
Password protection type
BIOS, HDD, Power on, Supervisor
Trusted Platform Module (TPM)
Yes
Product type
Mini PC
Trusted Platform Module (TPM) version
2.0
Software
Operating system architecture
64-bit
Operating system language
English
Operating system installed
Windows 11 IoT Enterprise
Power
Power supply
90 W
Operational conditions
Operating temperature (T-T)
5 - 35 °C
Storage temperature (T-T)
-40 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
10 - 90%
Operating altitude
0 - 3048 m
Non-operating altitude
0 - 12192 m
Weight & dimensions
Width
179 mm
Depth
182.9 mm
Height
36.5 mm
Weight
2.65 kg
Package width
313 mm
Package depth
242 mm
Package height
327 mm
Package weight
4.9 kg
Display
Display included
Yes
Display diagonal
25.6 cm (10.1")
Display resolution
1280 x 800 pixels
Native aspect ratio
16:10
Display brightness
340 cd/m²
Technical details
Box contents
HDMI Ingest Dongle
Information
| Part Number: | 12XH0008UK |
