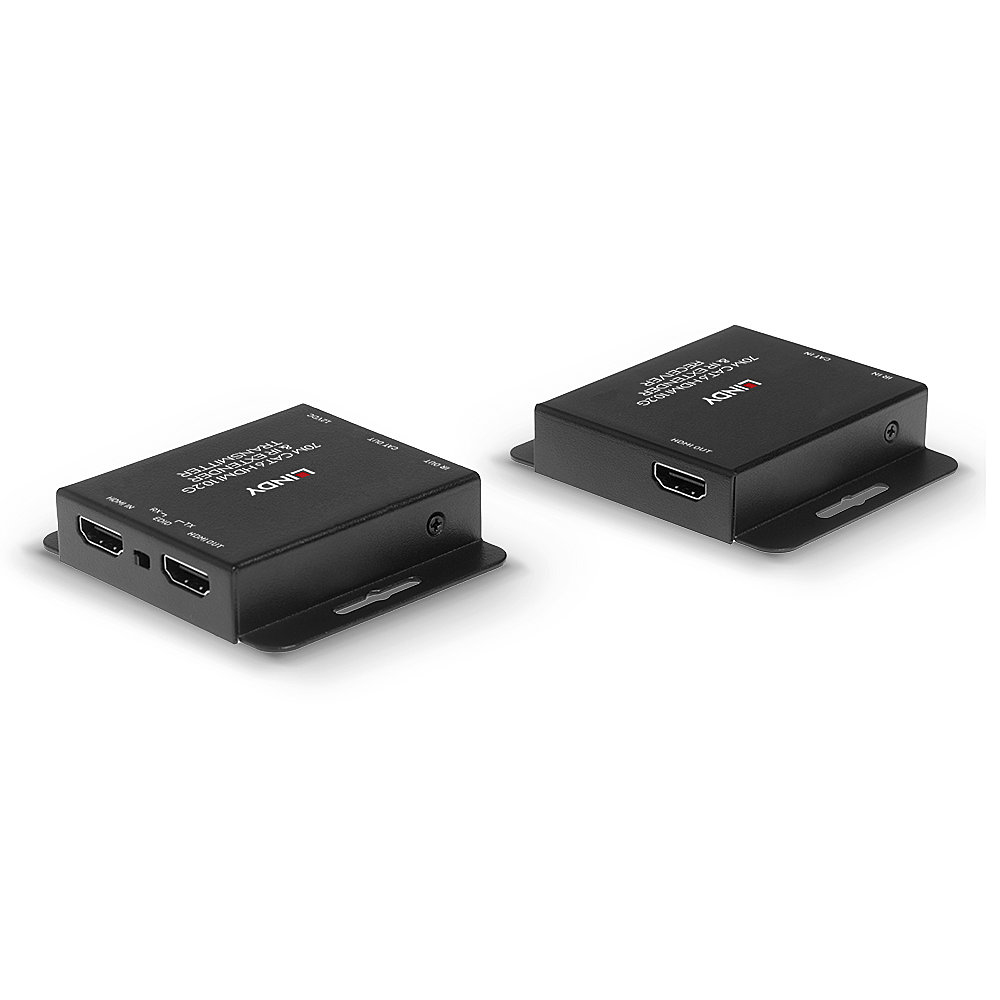

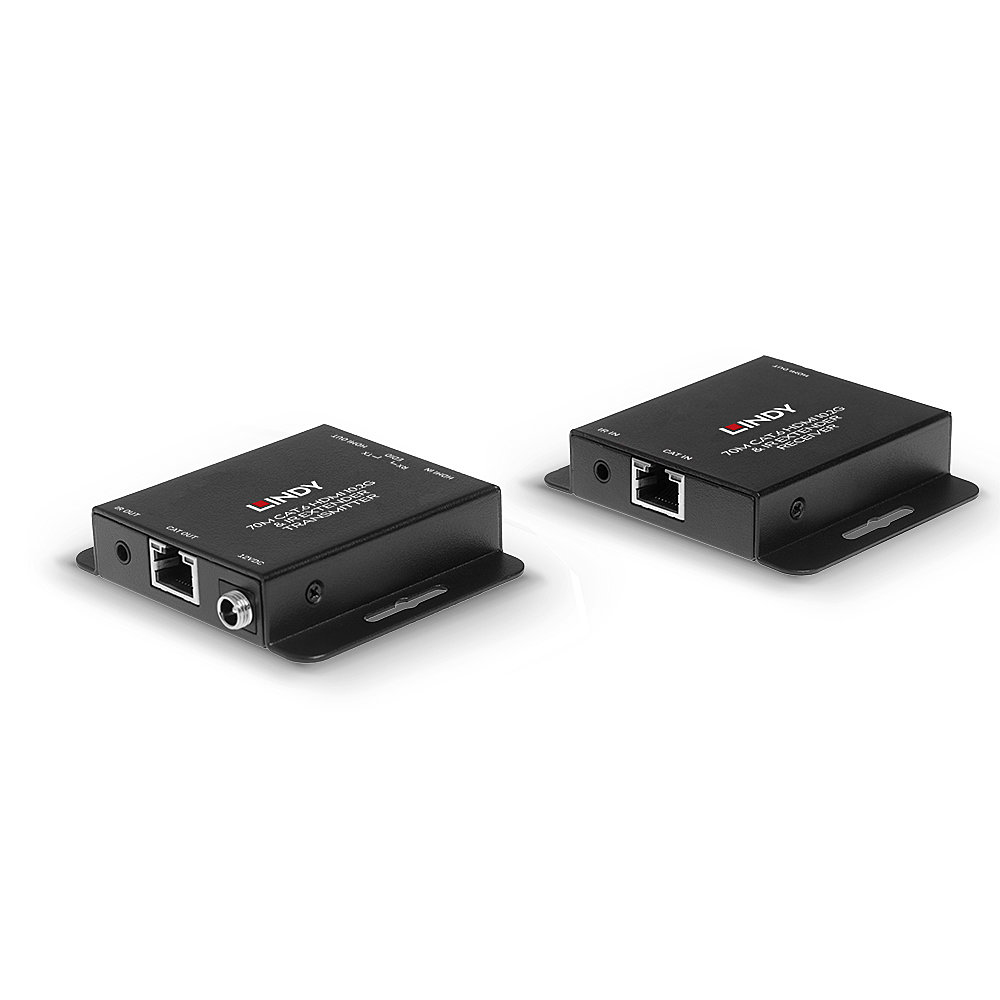

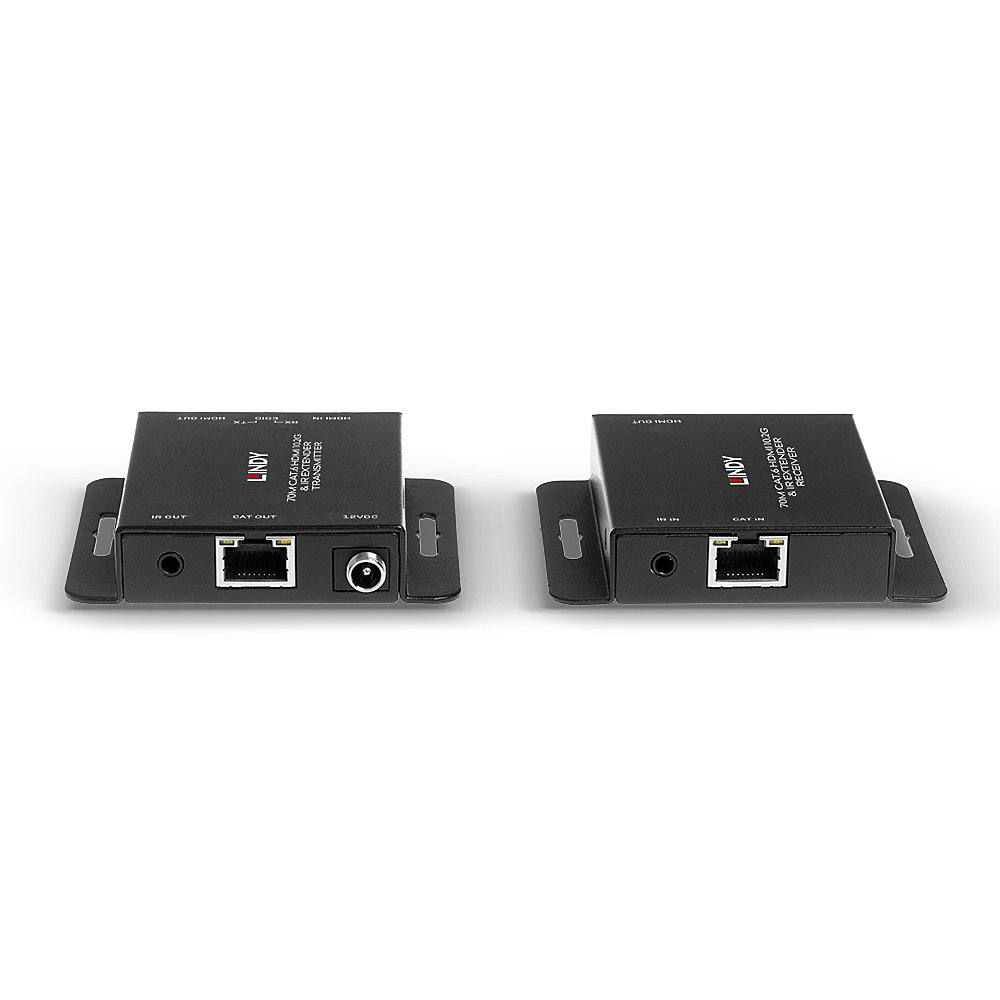

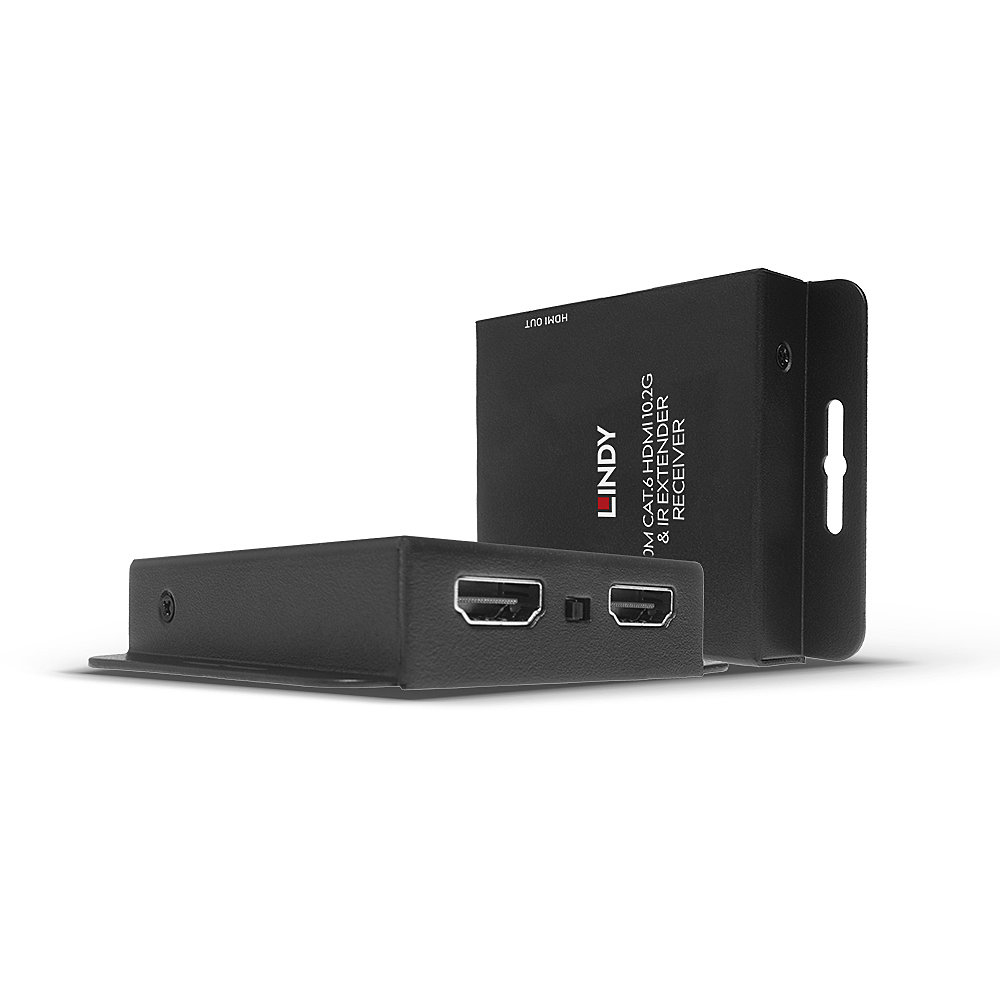

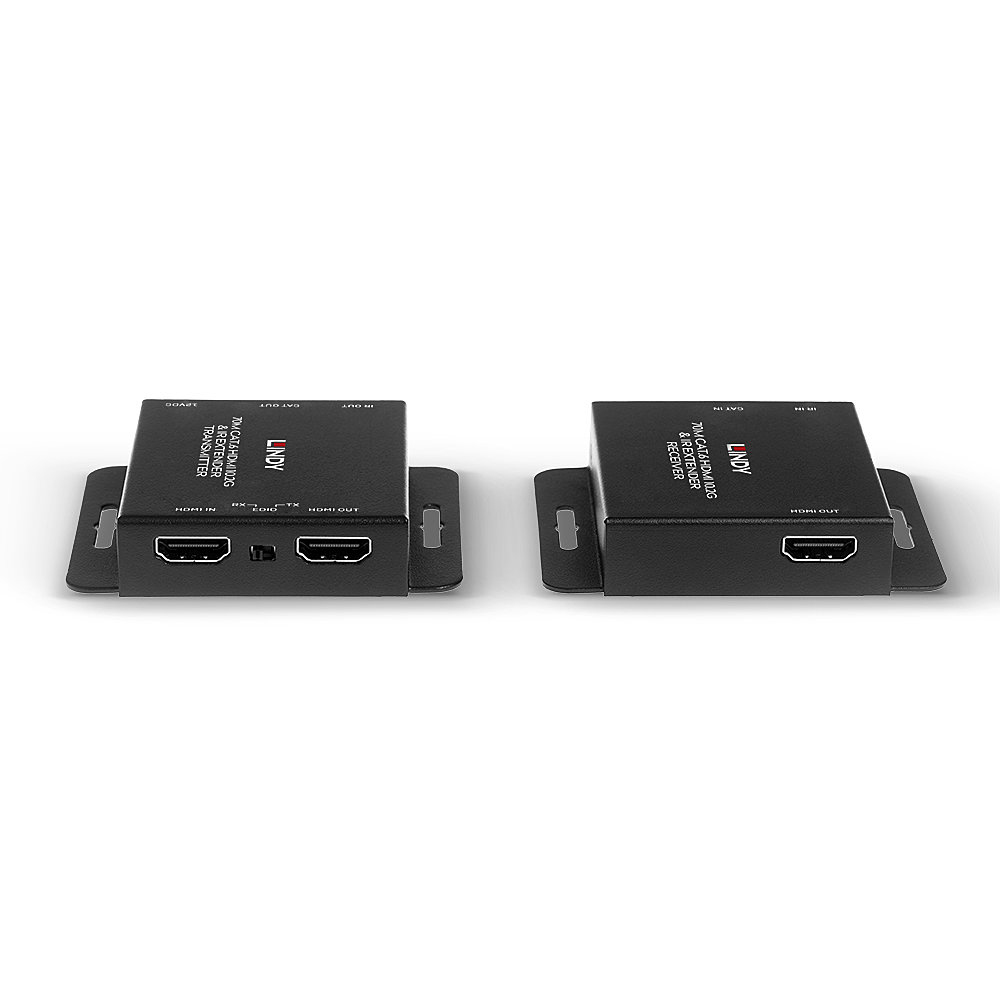

LINDY CAT6 Hdmi 10.2g Extender 70m

Introduction

Extends HDMI & IR Signals up to 70m using a single Cat.6 Cable_x000D_
Supports resolutions up to 3840x2160@30Hz 4:4:4 8bit_x000D_
Features a loop-through HDMI output on the Transmitter for local monitoring_x000D_
Supports power over Cable, only a single power supply is required_x000D_
2-year warranty_x000D_
_x000D_
Cat.6 extenders allow for cost effective, reliable extension of audio or video signals over longer distances that are not possible with passive cable or active repeater solutions._x000D_
_x000D_
The Lindy 70m Cat.6 HDMI 10.2G & IR Extender is a simple to use solution which lets the user extend HDMI signals up to 70m using a single low cost Cat.6 U/UTP cable (not included). For added convenience, IR signals (20-60 kHz) can also be extended using the supplied IR receiver and emitter cables._x000D_
_x000D_
Supporting 4K resolutions up to 3840x2160@30Hz 4:4:4 8bit, video content can be seen with incredible clarity at distances up to 70m, perfect for use in a variety of AV and digital signage applications in a range of settings including residential setups, education, business, retail and healthcare._x000D_
_x000D_
This extender features an HDMI loop-out port on the transmitter for local simultaneous viewing so that a local display can be connected for monitoring or to create an additional viewing zone. To ensure the maximum compatibility when two displays are connected, the EDID data, which determines the supported video and audio formats, can be copied from either the local display connected to the transmitter or the remote display connected to the receiver._x000D_
_x000D_
Power over Cable (PoC) functionality enables the extender to operate from a single power supply connected to the transmitter, allowing the receiver to be located where there is limited access to mains power sockets, making it ideal for minimalist, discreet installations._x000D_
_x000D_
In addition to PoC functionality the extender's slim design allow it to be easier to install in limited spaces behind flat screen monitors or TVs._x000D_
_x000D_
Please Note: The quoted lengths and resolutions are possible with a direct connection between Transmitter and Receiver using good quality Cat.6 solid core cable. Using a different cable type, or introducing wall plates, couplers or patch panels will result in a reduction of possible distances._x000D_

Technical details

Features

Ports & interfaces

Power

Operational conditions

Weight & dimensions

Packaging data

Packaging content
