LINDY 4k60 Hdmi Over Ip Streaming Encoder

Introduction

The Lindy 4K60 HDMI® over IP Encoder is designed to stream AV content over IP networks using the H.265 or H.264 video compression standard,it supports resolutions up to 3840x2160@60Hz 4:4:4 8bit with a HDMI® loop out port for a local display.

Support RTSP/UDP, RTSP/TCP, RTP/UDP, TS/UDP, RTMP/RTMPS and SRT stream standards for the most popular services such as YouTube, Facebook Live, Twitch or custom-specified servers.

Mainstream and substreams can be configured with bit rates, simultaneous streaming and audio-only streaming is also supported.

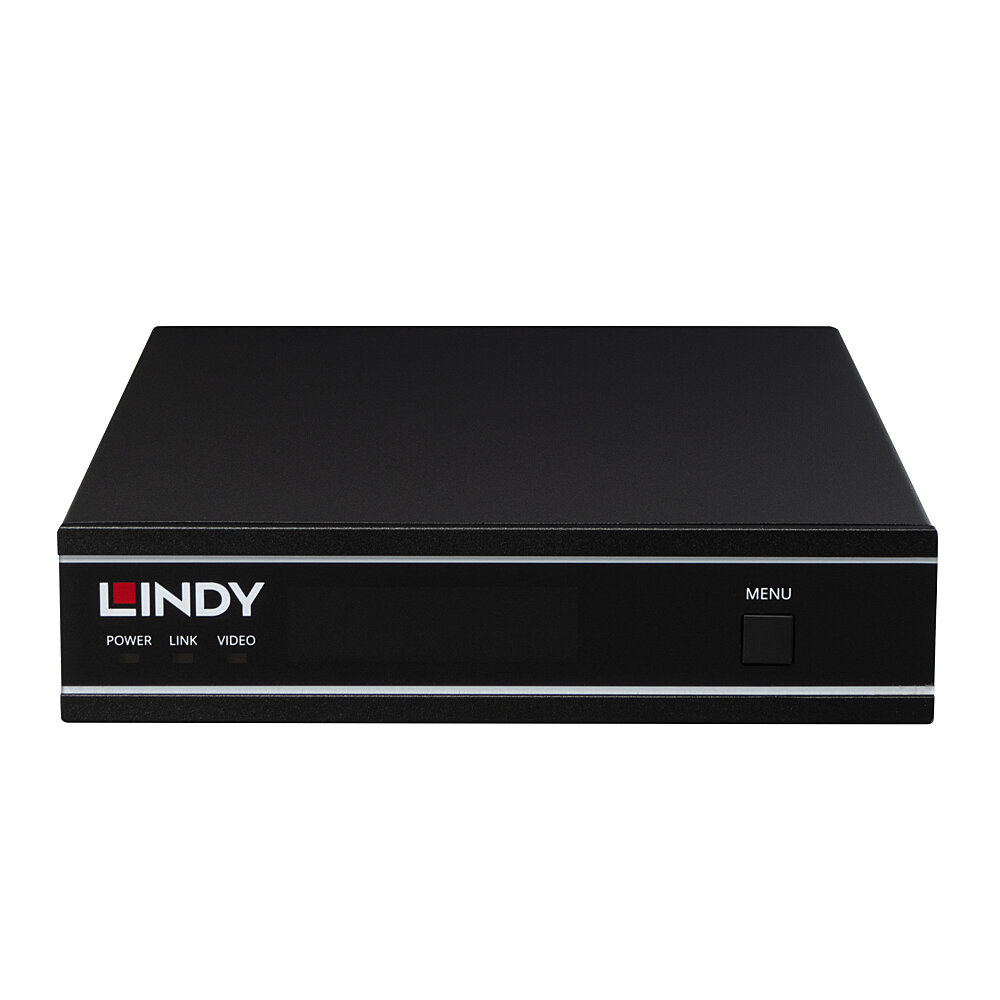

This extender provides status LEDs and OLED display to show the IP address and have access to menu features, a web gui for the complete configuration and API commands to achieve flexible configurations including from third party control systems.

In addition the 1G Network port has PoE function to power the unit without a PSU.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Video

Design

Network

Ports & interfaces

Power

Weight & dimensions

Packaging data

Operational conditions

Sustainability
