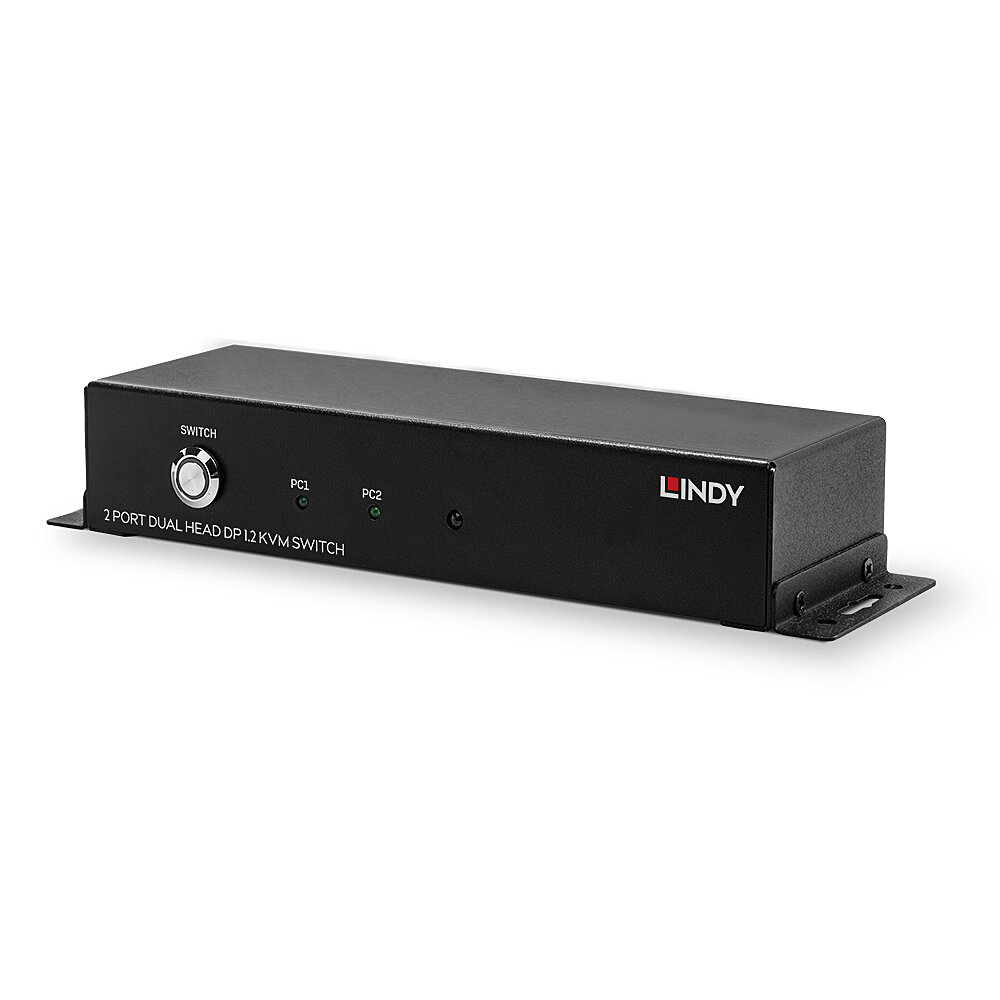

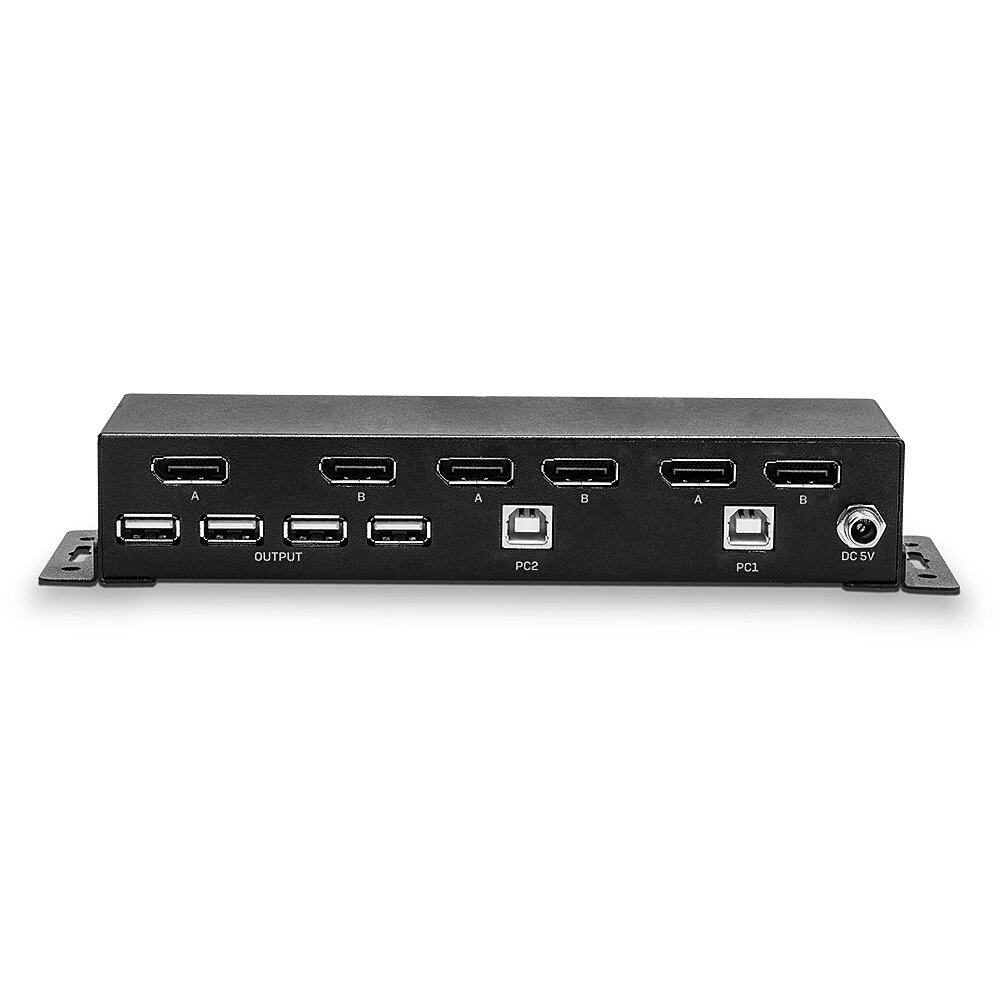

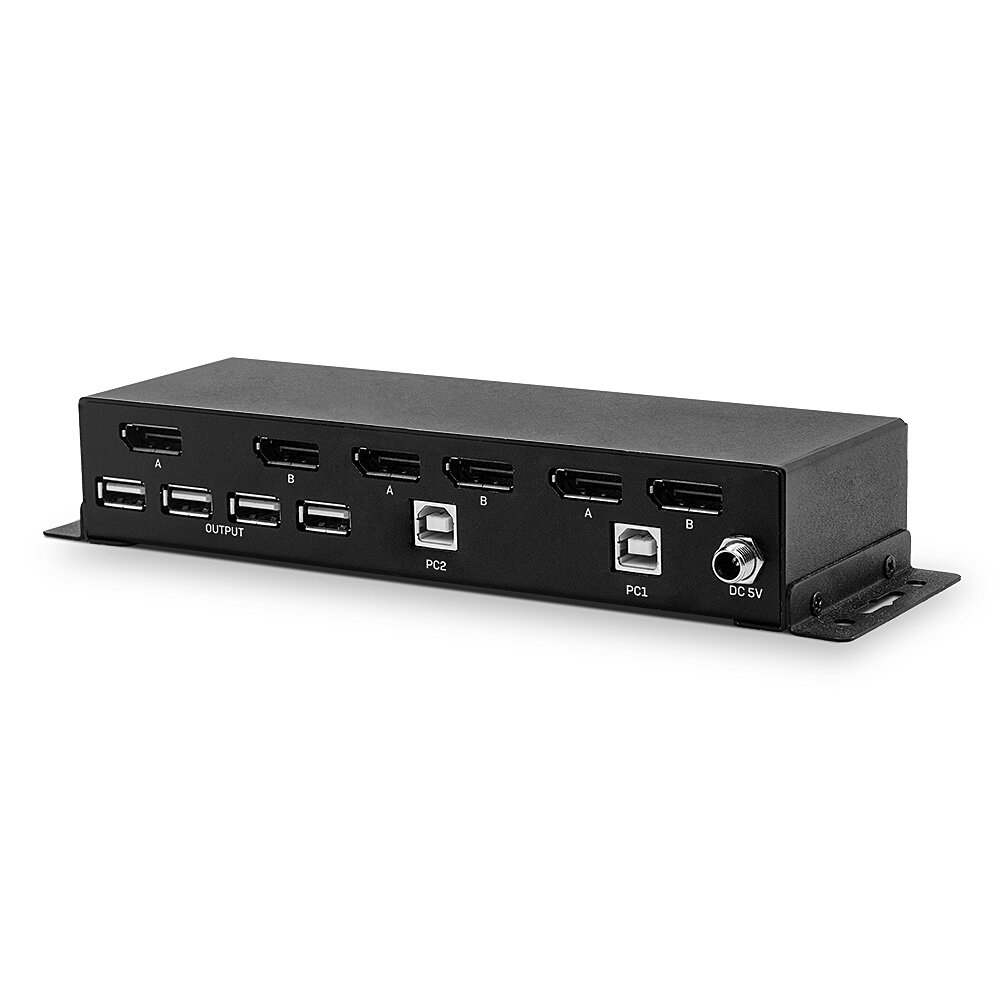

LINDY KVM Switch 2 Port Dual Head DisplayPort 1.2

£178.17

Part Number: 39306
Delivery: 1 - 2 days

Product Details

Introduction

Provides control of two DisplayPort equipped computers using a keyboard, mouse & two displays_x000D_
Ultra-high definition resolutions of up to 3840x2160@60Hz provide exceptional visual performance_x000D_
Compatible with various USB devices including printers, storage devices and human interface devices (HID) such as mice and keyboards_x000D_
Switch between host PC’s with ease with an IR remote control or front panel button_x000D_
2 Year warranty_x000D_
_x000D_
The Lindy 2 Port Dual Head DP 1.2 KVM Switch is a powerful, compact solution for providing access and control over two dual head, DisplayPort equipped PCs using a single set of peripherals and displays. Four USB 2.0 ports allow for the connection and sharing of USB peripherals & storage devices between host PC’s seamlessly._x000D_
_x000D_
Supporting the highest, practical, digital video resolutions up to 3840x2160@60Hz on two displays simultaneously, this switch is ideal for the most demanding office based tasks such as computer-aided design, videography, rendering and more, only made possible by its proficiency in outputting a combined resolution of 7680x2160._x000D_
_x000D_
Support for a wide-range of USB devices ensure maximum compatibility with existing keyboards, mice, headsets, printers and more, virtually guaranteeing integration of the switch in existing environments will be completely hassle-free. Female DisplayPort connectors provide flexibility and hands the user jurisdiction to use existing cabling in appropriate lengths._x000D_
_x000D_
Installation within new & existing set-ups is uncomplicated, thanks in part to its small form factor, as well as the pre-installed mounting hardware. An industrial, locking DC power connector provides peace of mind as accidental disconnections are almost impossible, perfect for mission critical medical or manufacturing applications._x000D_
_x000D_
Please Note: connection cables are not included_x000D_

Technical details

Compliance certificates REACH, RoHS

Ports & interfaces

Number of computers controlled 2
Keyboard port type USB
Mouse port type USB
Video port type DisplayPort
HDCP Y
DisplayPorts quantity 4
DisplayPort version 1.2
USB 2.0 Type-B ports quantity 2
Console ports DisplayPort, USB A
Console USB ports quantity 4

Performance

HD type 4K Ultra HD
Maximum resolution 3840 x 2160 pixels

Design

Product colour Black
Housing material Metal

Power

Power source DC
DC input voltage 5 V

Sustainability

Sustainability certificates REACH, RoHS

Operational conditions

Operating temperature (T-T) 0 - 55 °C
Storage temperature (T-T) -20 - 75 °C
Operating relative humidity (H-H) 0 - 90%

Weight & dimensions

Width 184 mm
Depth 35 mm
Height 60 mm
Weight 674 g

Packaging data

Package width 235 mm
Package depth 63 mm
Package height 198 mm
Package weight 860 g
Package type Box

Packaging content

Cables included DC
Manual Y

Logistics data

Harmonized System (HS) code 85176200
