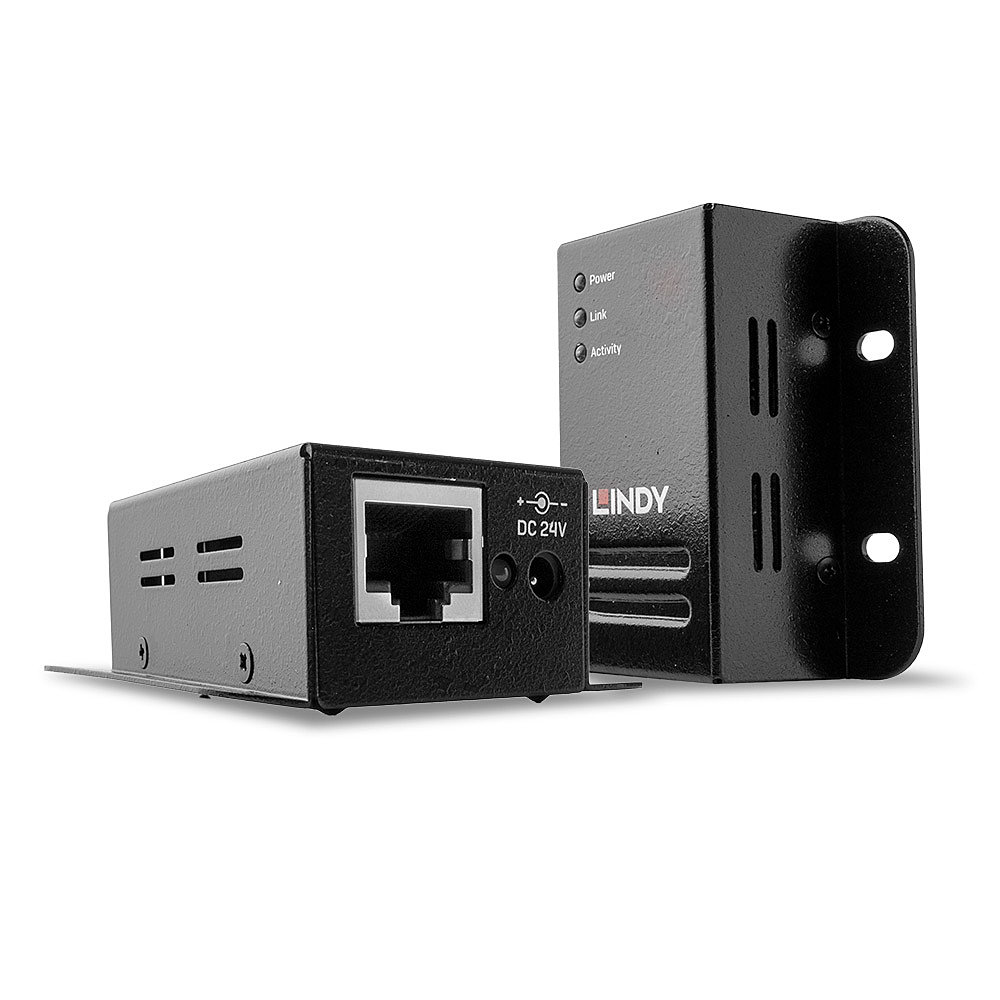

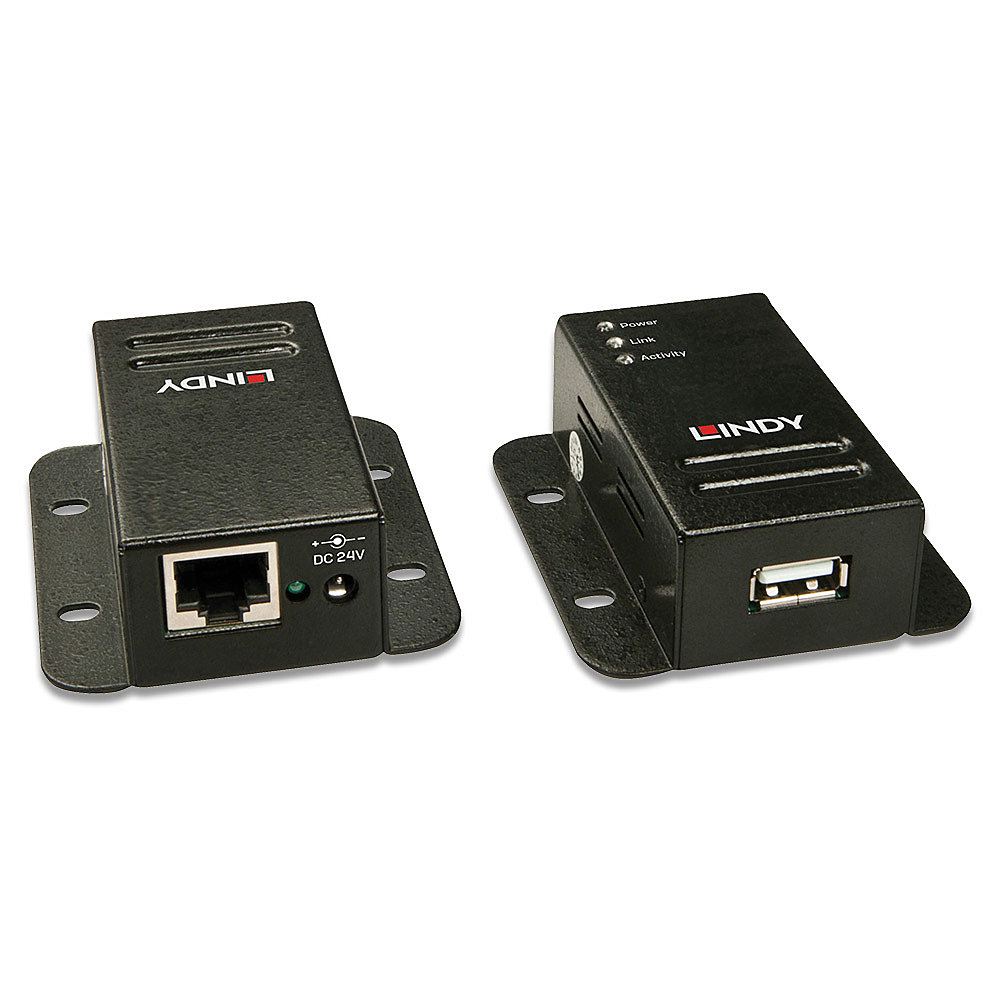

LINDY USB 2.0 Cat.5 Extender 50m

£89.23 (incl. VAT)

Qty:

Add to basket

Part Number:	42680
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

Extend a USB 2.0 port up to 50m using low cost CAT5/5e/6 network cable (not included)_x000D_
Power over Cable requires a single power supply to be connected to the transmitter only_x000D_
Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed_x000D_
Plug & Play installation_x000D_
2 year warranty_x000D_
_x000D_
The Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between a USB peripheral device and the host computer by up to 50m. A standard, low cost Cat.5/5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables._x000D_
_x000D_
The Extender features Power over Cable, which requires a single power supply only to be connected to the transmitter unit. This handy feature allows the receiver unit and connected devices to be located more freely as no power supply is required. With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments._x000D_

Performance

Type Network transmitter & receiver

Maximum transfer distance 50 m

Data transfer rate 480 Mbit/s

Cable types supported Cat5,Cat5e,Cat6

Chipset NS1021

Plug and Play Y

Technical details

Harmonized System (HS) code 85176990

Ports & interfaces

RJ-45 ports quantity (transmitter) 1

RJ-45 ports quantity (receiver) 1

USB 2.0 ports quantity 2

DC-in jack Y

Design

Product colour Black

Housing material Metal

LED indicators Y

Certification CE, UKCA, FCC, RoHS, REACH

Power

Input current 0.25 A

Output voltage 24 V

Output current 0.5 A

Power over Ethernet (PoE) Y

Power note 3.5/1.35mm DC

Included power plug types AU,EU,UK,US

Operational conditions

Operating temperature (T-T) 0 - 70 °C

Storage temperature (T-T) -20 - 80 °C

Operating relative humidity (H-H) 0 - 90%

Storage relative humidity (H-H) 0 - 90%

Weight & dimensions

Weight 300 g

Transmitter width 6 cm

Transmitter depth 6.7 cm

Transmitter height 2.3 cm

Receiver width 6 cm

Receiver depth 6.7 cm

Receiver height 2.3 cm

Packaging content

Cables included USB Type-A to USB Type-B

Manual Y

Packaging data

Package type Box

Package width 185 mm

Package depth 140 mm

Package height 55 mm

Package weight 400 g
