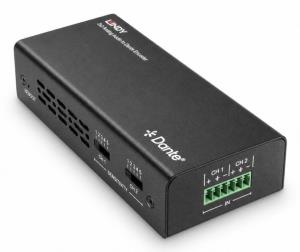

LINDY 2ch Analog Audio To Dante Encoder

Introduction

Bring Analogue Audio into Dante® Networks
The Lindy 2ch Analog Audio to Dante® Encoder provides a reliable and scalable way to convert analogue audio into Dante® network audio, enabling seamless integration of legacy audio equipment within modern AV and IP-based audio systems.

Professional Analogue to Dante® Conversion with Flexible Gain Control
Designed for professional AV, live sound and broadcast environments, this compact encoder converts two channels of balanced or unbalanced analogue audio into high quality Dante® and AES67 network audio. Adjustable input sensitivity, selectable gain settings and support for sample rates up to 96kHz at 24-bit resolution provide the flexibility and audio precision required for demanding workflows.

Integrates analogue audio into Dante® systems

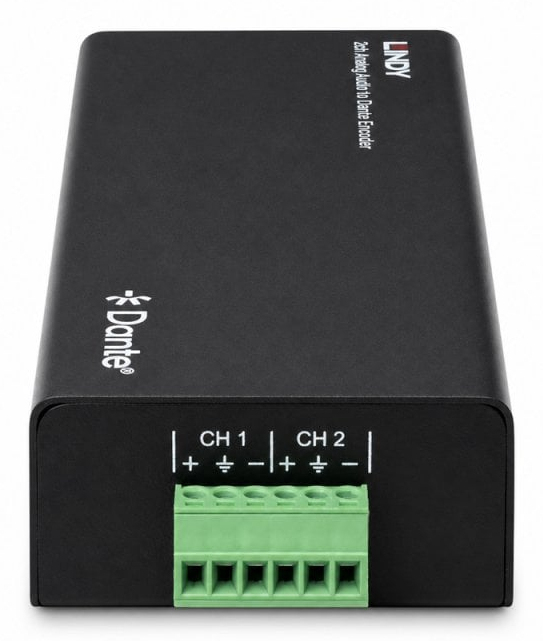

Converts balanced and unbalanced analogue audio into Dante® and AES67 network audio, enabling legacy equipment to operate within modern IP-based AV infrastructures.

Supports high quality audio performance
Sample rates up to 96kHz at 24-bit resolution provide accurate and dependable audio conversion for professional AV, broadcast and live sound environments.

Flexible gain and sensitivity adjustment

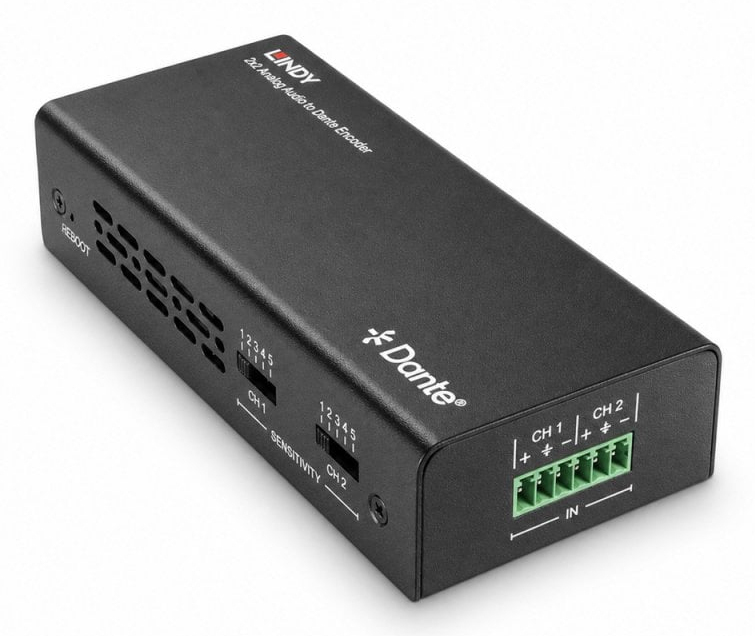

Independent sensitivity control and 5-position DIP switches allow precise input level matching for a wide range of source equipment and installation scenarios.

Simple scalable deployment
Plug and play functionality with automatic Dante® discovery allows quick installation and straightforward expansion within larger networked audio systems.

Flexible powering options

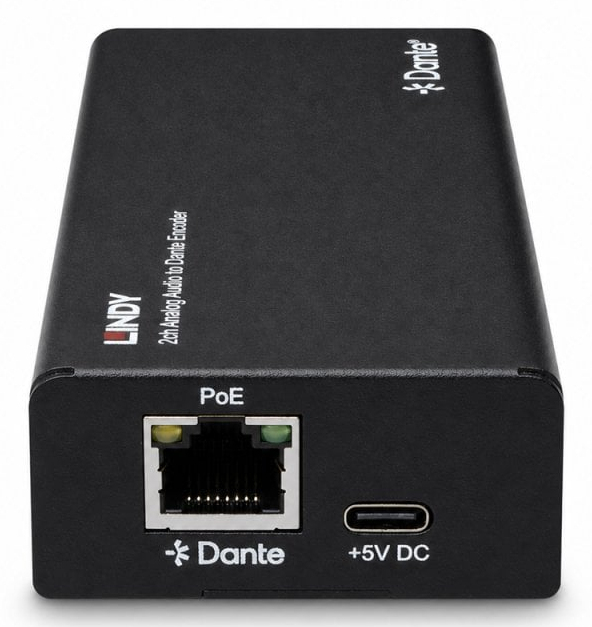

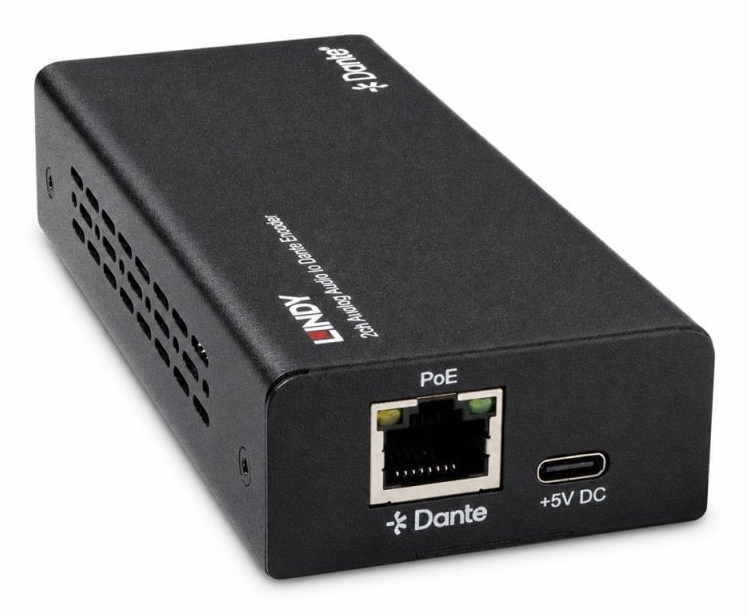

802.3af PoE support enables single-cable installation, while optional USB-C power provides additional flexibility where PoE is unavailable.

Designed for professional AV environments

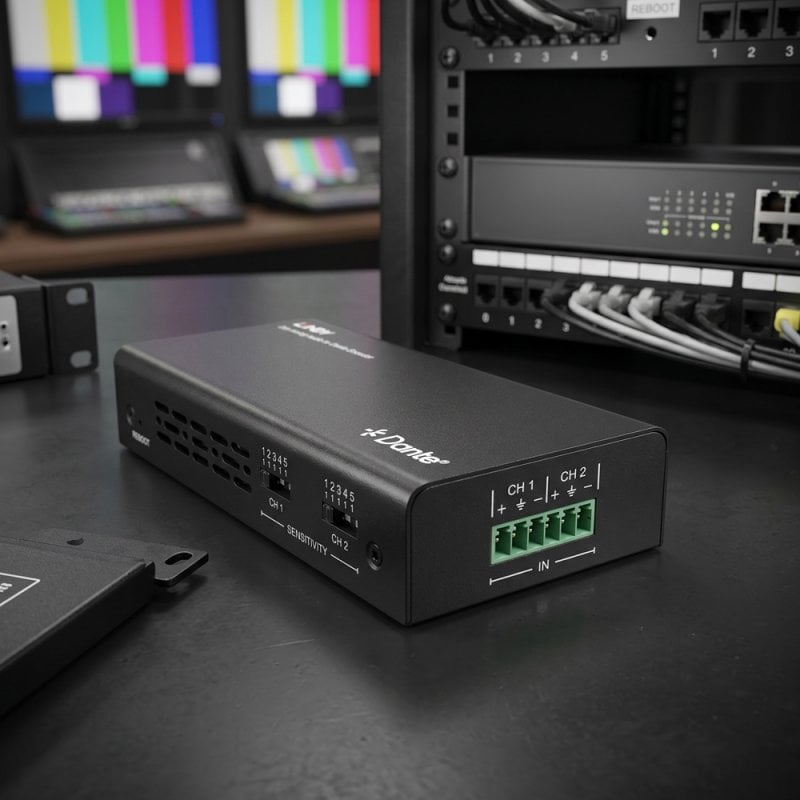

The robust metal housing and compact footprint make the encoder suitable for AV racks, broadcast facilities, meeting spaces and portable production systems.

Typical Applications
The 2ch Analog Audio to Dante® Encoder is ideal for integrating analogue mixing consoles, amplifiers, computers and audio distribution equipment into Dante® audio networks. It is well suited to corporate AV systems, education environments, broadcast facilities, live sound setups and distributed audio installations requiring dependable IP-based audio transport.
