Product Details
Introduction
LINDY USB 2.0 Type C cables feature double shielded construction with copper conductors for premium performance and corrosion resistance. Nickel connectors and gold plated contacts maintain signal integrity and reliability.
Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.

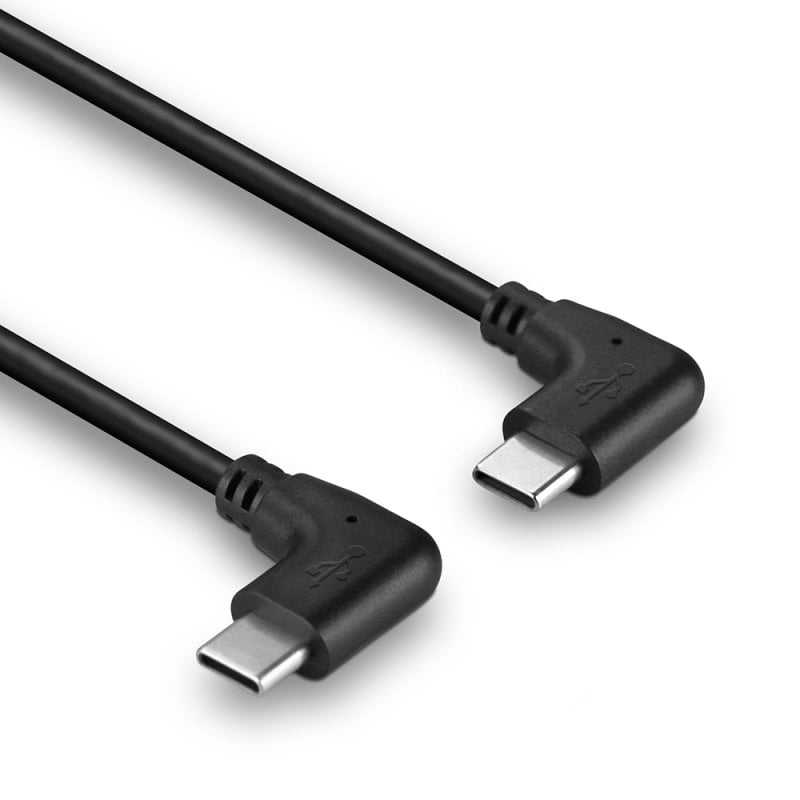

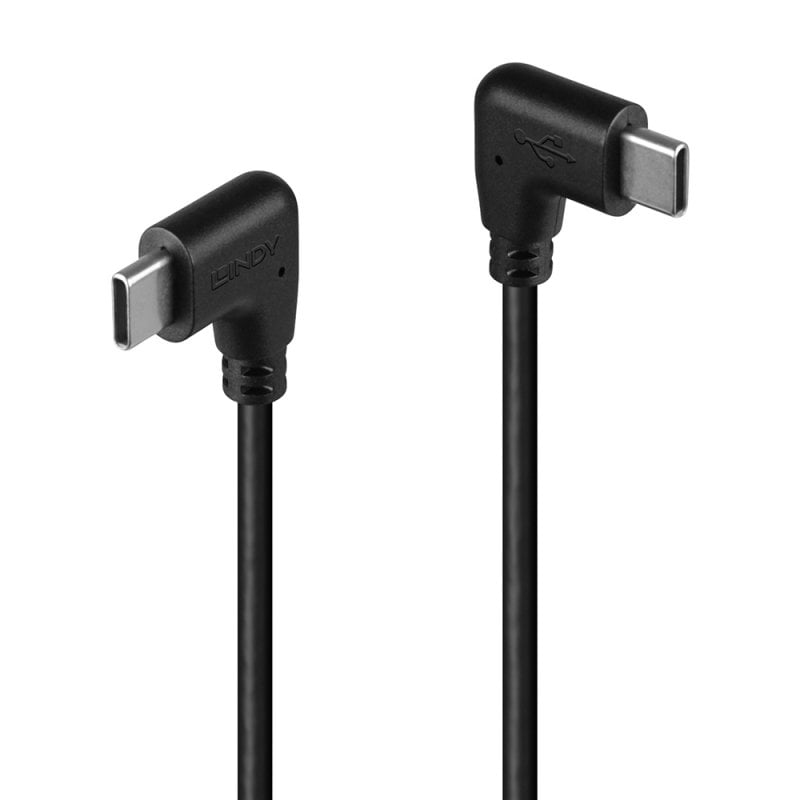

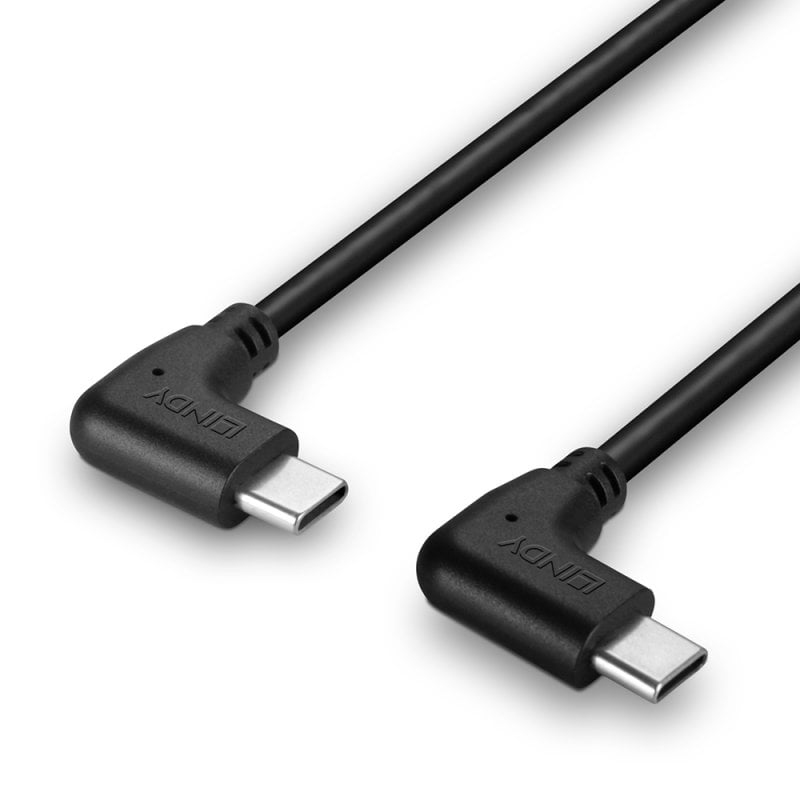

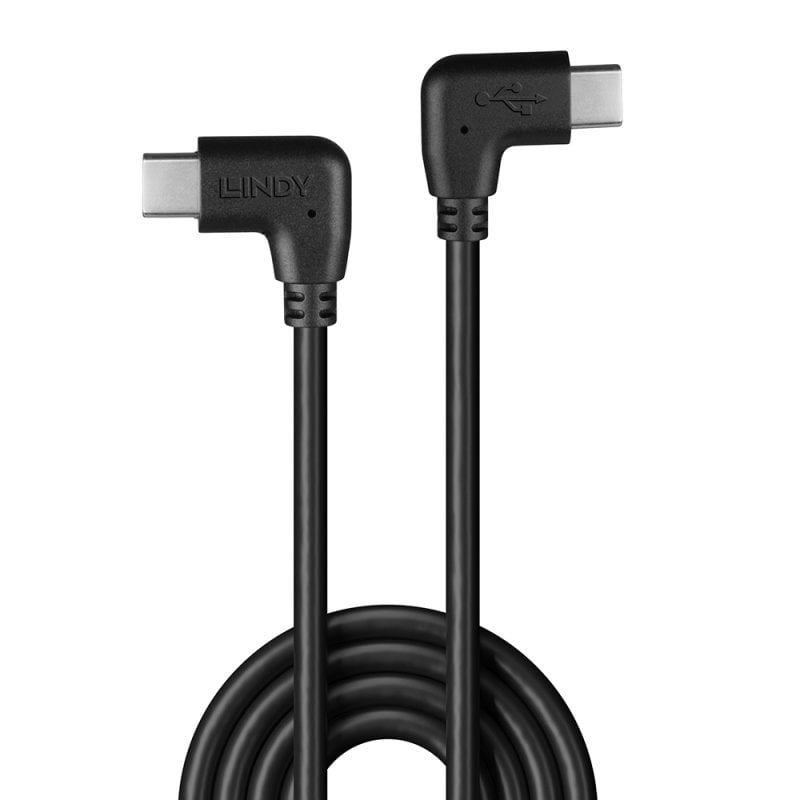

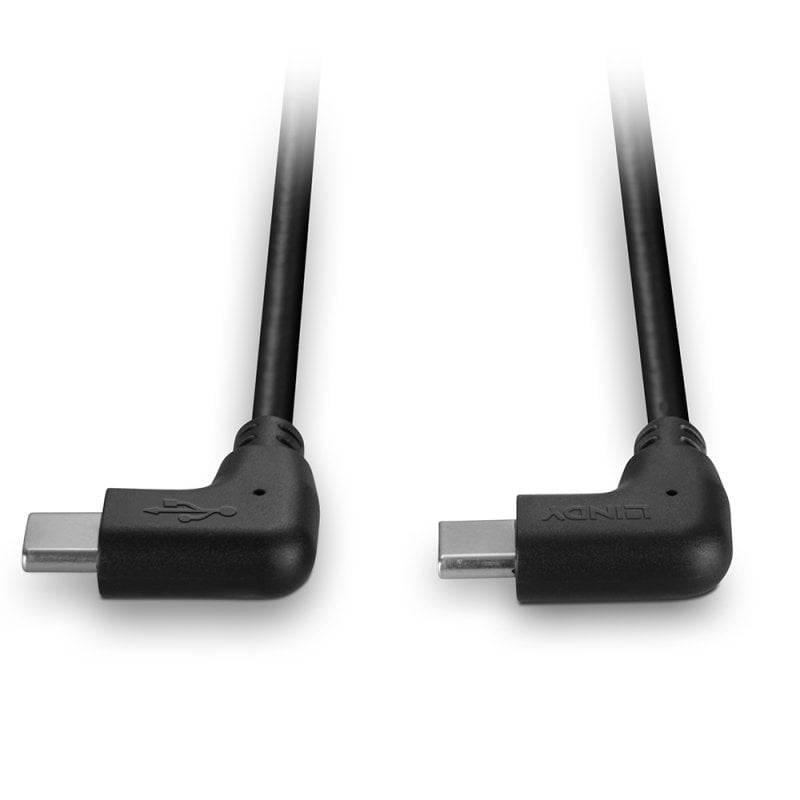

USB 2.0 Type C, 2 x 90° Right Angle cables are available in the following lengths: 0.5m, 1m.
Features
USB version
USB 2.0
Connector 1
USB C
Connector 2
USB C
Connector 1 gender
Male
Connector 2 gender
Male
Connector 1 form factor
Angled
Connector 2 form factor
Angled
AWG wire size
22/28
Connector material
Gold
Connector contacts plating
Nickel
Cable jacket material
Nylon/Polyvinyl Chloride (PVC)
Conductor material
Copper
Connector shielding
Yes
Connector shield material
Aluminium
Product colour
Black
Cable type
Round cable
USB Power Delivery up to
60 W
Nominal attenuation
0.5Mhz- 400Mhz < 5.8db
Weight & dimensions
Cable length
1 m
Cable diameter
3.8 mm
Bend radius (min)
5 cm
Connector 1 dimensions (WxDxH)
7.5 x 27 x 15 mm
Connector 2 dimensions (WxDxH)
7.5 x 27 x 15 mm
Packaging data
Package type
Polybag
Packaging content
Quantity per pack
1 pc(s)
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
0 - 70 °C
Certificates
Compliance certificates
REACH, RoHS
Certification
RoHS, REACH, California Proposition 65
Logistics data
Warranty period
10 year(s)
Information
| Part Number: | 32009 |
