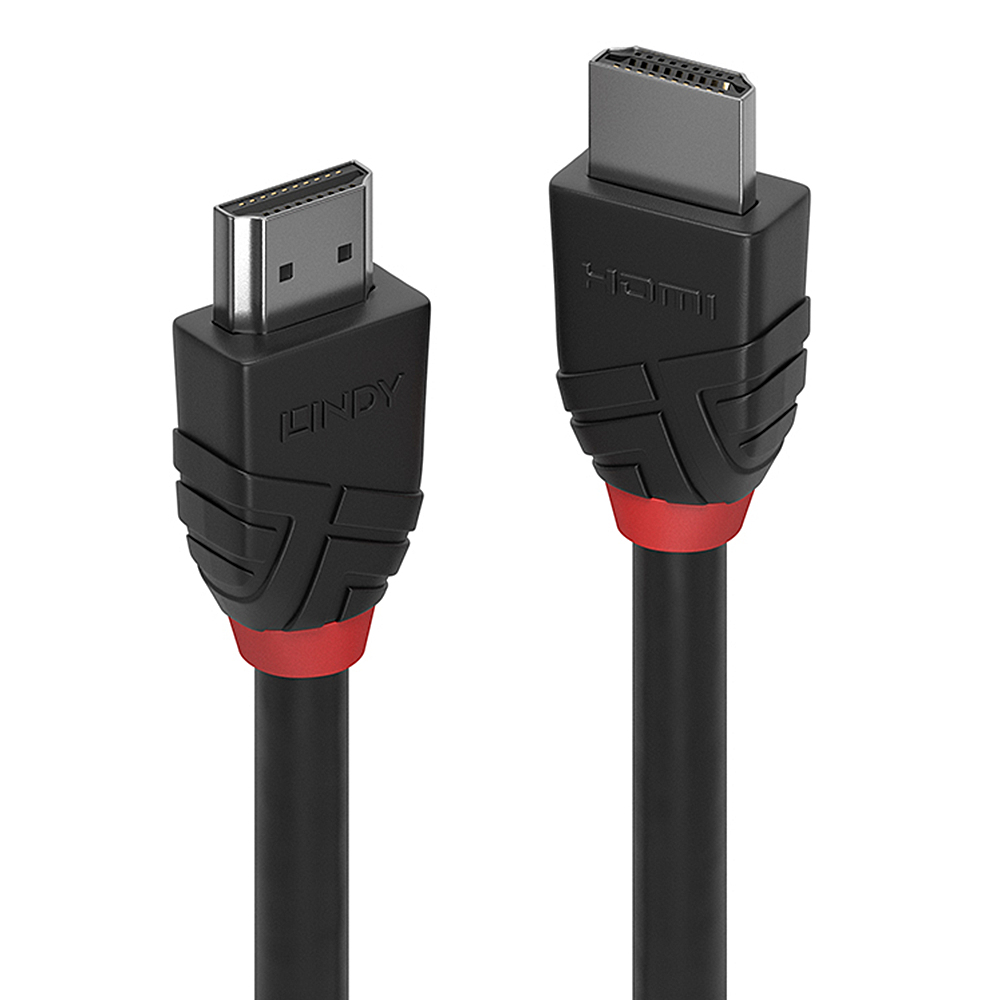

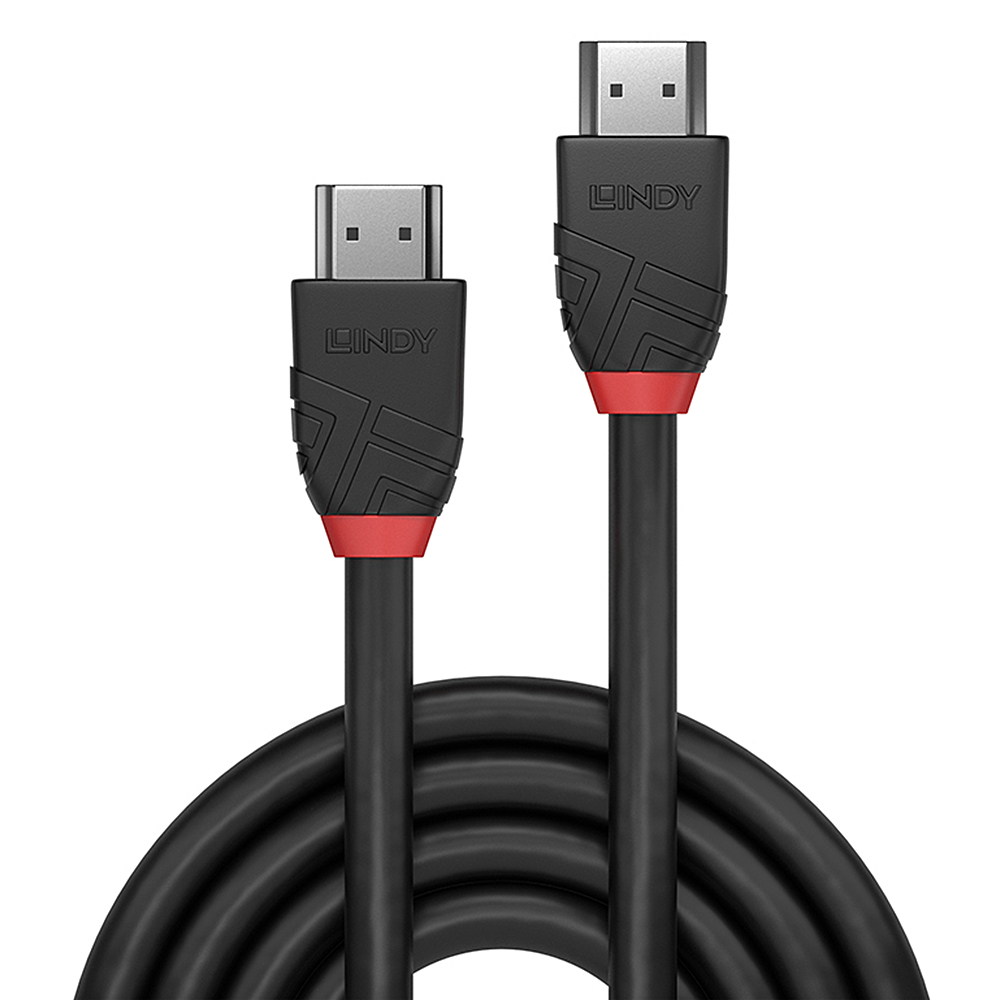

LINDY Cable - Hdmi - 5m - Blackline

£5.89 (incl. VAT)

Qty:

Add to basket

Part Number:	36474
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

Entry level High Speed HDMI 2.0 cable for home and small office applications_x000D_
Supports UHD resolutions up to 4096x2160@60Hz 4:4:4 8bit_x000D_
Robust PVC housing, nickel connectors, 24K gold plated contacts_x000D_
Triple shielded cable, corrosion resistant copper coated steel 30AWG conductors_x000D_
HDMI 2.0 compliant: 3D, 4K, 18Gbps, HEC, ARC, CEC, Dolby True HD, DTS-HD Master Audio; 10 year warranty_x000D_
_x000D_
From the lines cable connectivity concept developed by Lindy, Black Line High Speed HDMI cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use._x000D_
_x000D_
Black Line High Speed HDMI cables feature triple shielded construction with 30AWG copper coated steel conductors for premium performance and corrosion resistance. Nickel connectors and gold flashed contacts maintain signal integrity and reliability._x000D_
_x000D_
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 8bit are supported. Black Line HDMI cables are also capable of transmitting 32 channel audio and Dolby True HD._x000D_
_x000D_
The HDMI 2.0 specification is supported for 18Gbps bandwidth capacity in cable lengths up to 5m._x000D_
_x000D_
Black Line HDMI cables are available in lengths from 0.5m, 1m, 2m, 3m and 5m_x000D_
_x000D_

Logistics data

Harmonized System (HS) code 84733080

Features

Cable length 5 m

Connector 1 HDMI Type A (Standard)

Connector 2 HDMI Type A (Standard)

Connector 1 gender Male

Connector 2 gender Male

Connector 1 form factor Straight

Connector 2 form factor Straight

Product colour Black

HDMI version 2.0

Supported graphics resolutions 4096 x 2160

HDMI Ethernet channel Y

Data transfer rate 18 Gbit/s

Maximum resolution 4096 x 2160 pixels

AWG wire size 30

Contact material Phosphor bronze

Connector contacts plating Gold

Connector housing material Polyvinyl chloride (PVC)

Connector material Nickel

Cable material Copper-clad steel (CCS)

Cable type Round cable

Cable jacket material Polyvinyl chloride (PVC)

Shield material Aluminium

Bending radius (min) 6 cm

Colour depth 8 bit

Colour sampling 4:4:4

Nominal attenuation 300kHz-825MHz 5dB, 825MHz-2.475GHz 5dB, 2.475GHz-4.125GHz 12dB, 4.125GHz-5.1GHz 20dB

Certification RoHS, REACH, UL

Quantity per pack 1 pc(s)

Operational conditions

Operating temperature (T-T) -10 - 80 °C

Storage temperature (T-T) -10 - 80 °C

Weight & dimensions

Cable diameter 6 mm

Connector 1 dimensions (WxDxH) 19.2 x 34.1 x 10.6 mm

Connector 2 dimensions (WxDxH) 19.2 x 34.1 x 10.6 mm

Package type Polybag
