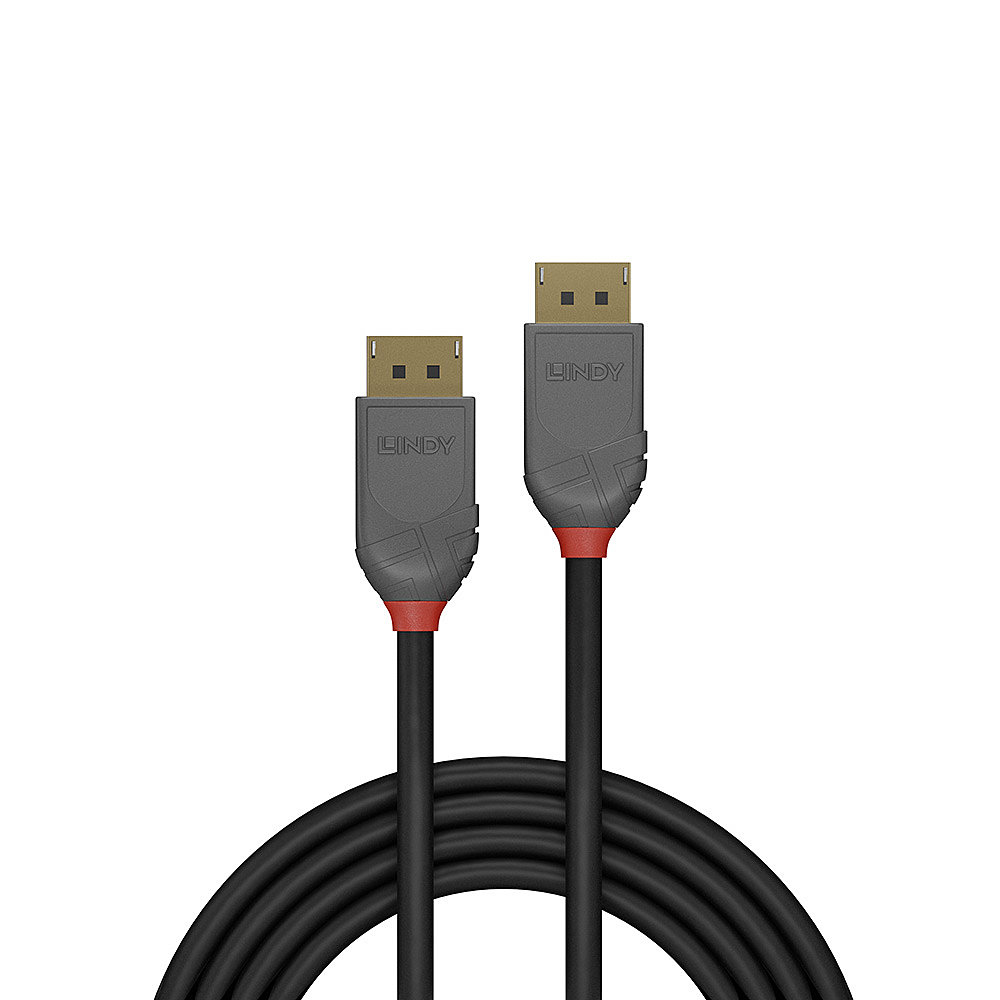

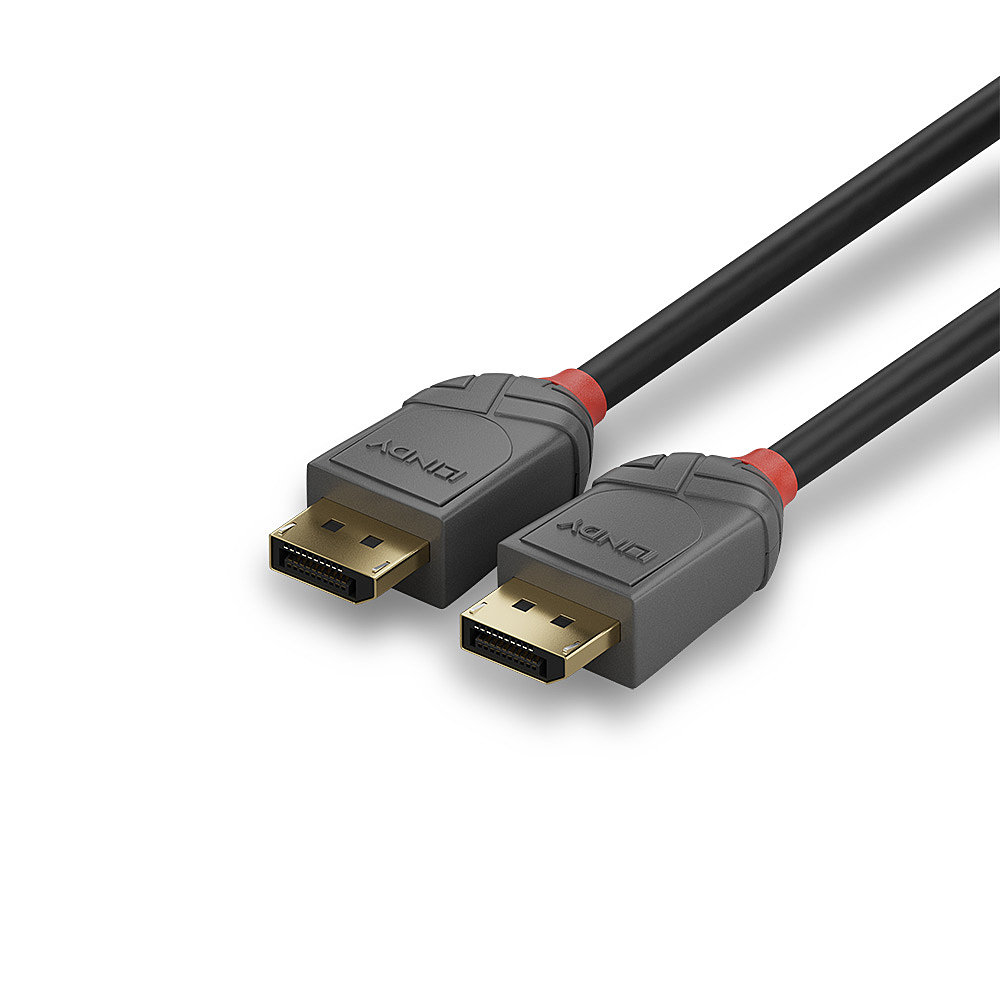

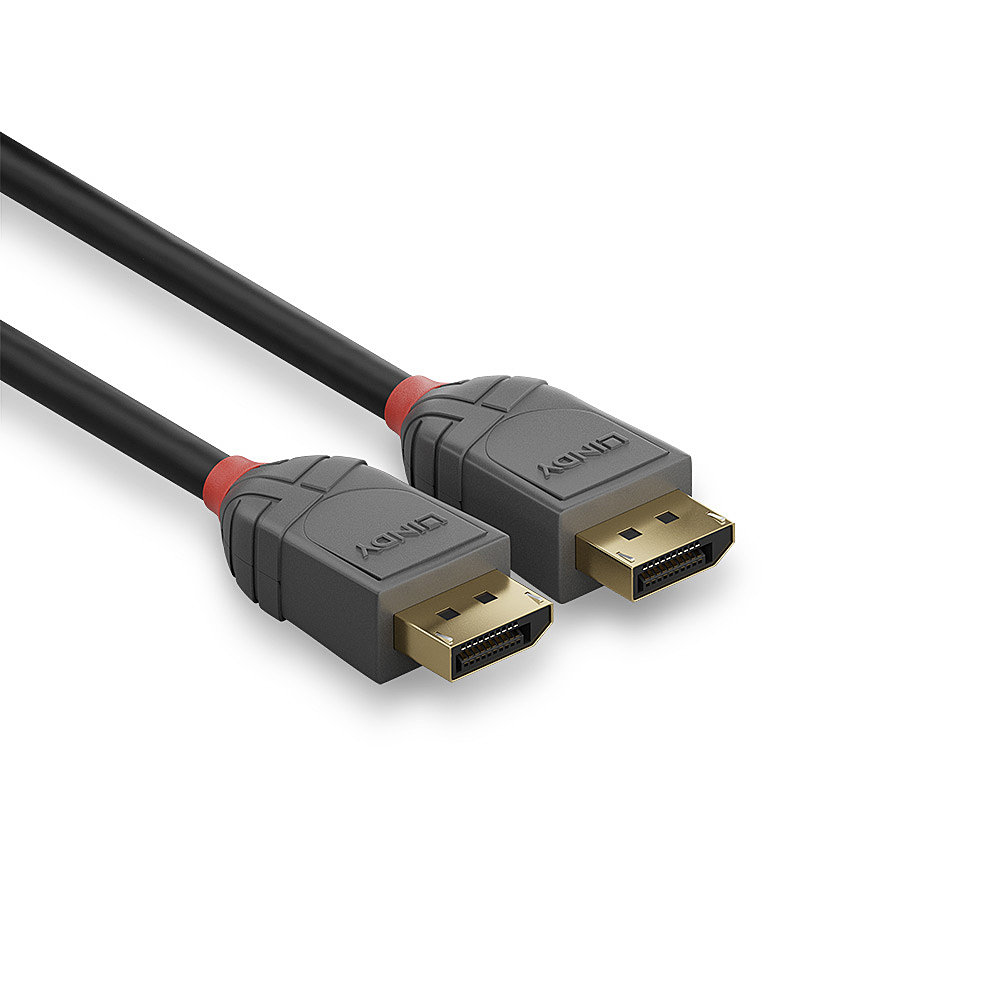

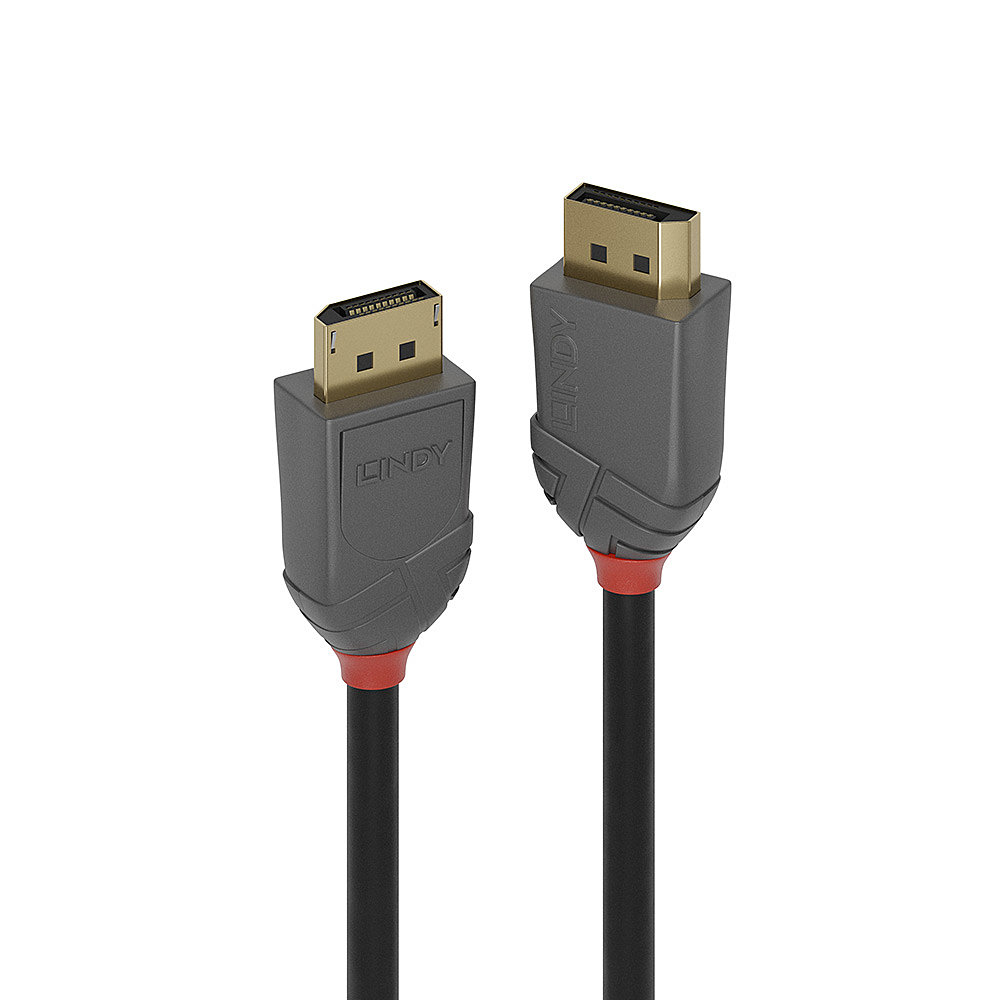

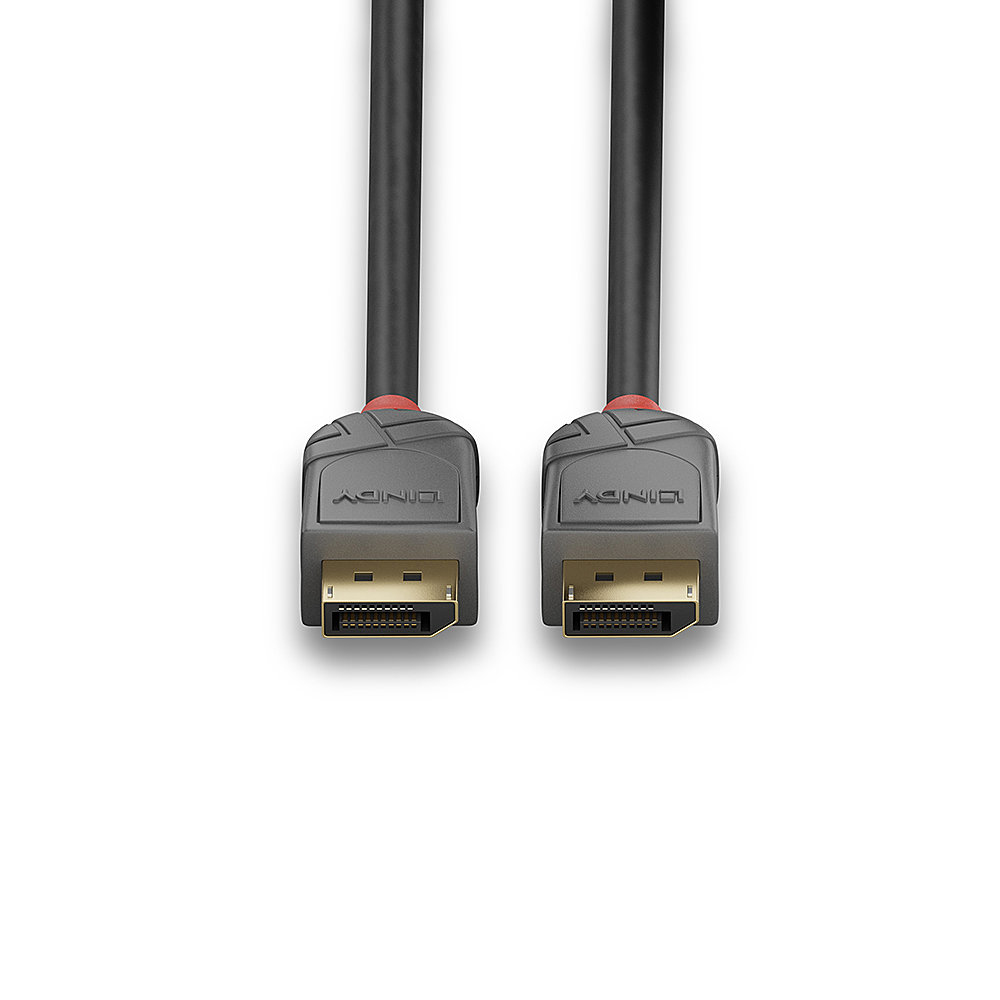

LINDY Cable - DisplayPort - Anthraline - 5m

£15.70

Part Number: 36484
Delivery: 1 - 2 days

Product Details

Introduction

Professional choice DisplayPort 1.2 cable for commercial and high performance AV and IT installations_x000D_
Supports UHD resolutions up to 4096x2160@60Hz 4:4:4 10bit_x000D_
Robust ABS housing 24K gold plated connectors and contacts_x000D_
Triple shielded cable, corrosion resistant tinned copper 28AWG conductors_x000D_
DisplayPort 1.2, 4K, 3D, 21.6Gbps; 10 year warranty_x000D_
_x000D_
From the Lines cable connectivity concept developed by Lindy, Anthra Line DisplayPort cables are the professional choice for high performance connections in commercial AV and IT installations._x000D_
_x000D_
Anthra Line DisplayPort cables are premium connections that feature triple shielded with 28AWG tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability._x000D_
_x000D_
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 10bit are supported. Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby True HD. Black Line DisplayPort cables are capable of delivering 4:4:4 colour spacing for the most accurate colour representation possible._x000D_
_x000D_
Anthra Line DisplayPort cables are available in lengths: 0.5m, 1m, 2m, 3m, 5m, 7.5m and 10m._x000D_

Technical details

Harmonized System (HS) code 84733080

Features

Connector 1 form factor Straight
Connector 2 form factor Straight
Connector contacts plating Gold
DisplayPort version 1.2
Maximum resolution 4096 x 2160 pixels
Supported graphics resolutions 4096 x 2160
Supported video modes 2160p
Maximum refresh rate 120 Hz
Cable length 5 m
Connector 1 DisplayPort
Connector 2 DisplayPort
Connector 1 gender Male
Connector 2 gender Male
Product colour Black, Grey
Cable material Tinned copper
Cable shielding Copper
Jacket material Polyvinyl chloride (PVC)
Connector housing material Acrylonitrile butadiene styrene (ABS)
AWG wire size 28
Data transfer rate 21.6 Gbit/s
Contact material Phosphor bronze
Connector material Gold
Plug and Play Y
Bend radius (min) 5.84 cm
Colour sampling 4:2:2
Cable type Round cable
Nominal attenuation 100MHz-450MHz 5.1dB, 450MHz-8100MHz 33.28dB
Certification RoHS, REACH, UL

Operational conditions

Operating temperature (T-T) -20 - 80 °C
Storage temperature (T-T) -25 - 85 °C

Packaging data

Cable diameter 7.3 mm
Connector 1 dimensions (WxDxH) 21 x 38.9 x 13.6 mm
Connector 2 dimensions (WxDxH) 21 x 38.9 x 13.6 mm
Quantity per pack 1 pc(s)
Package type Polybag

Information

Part Number: 36484
