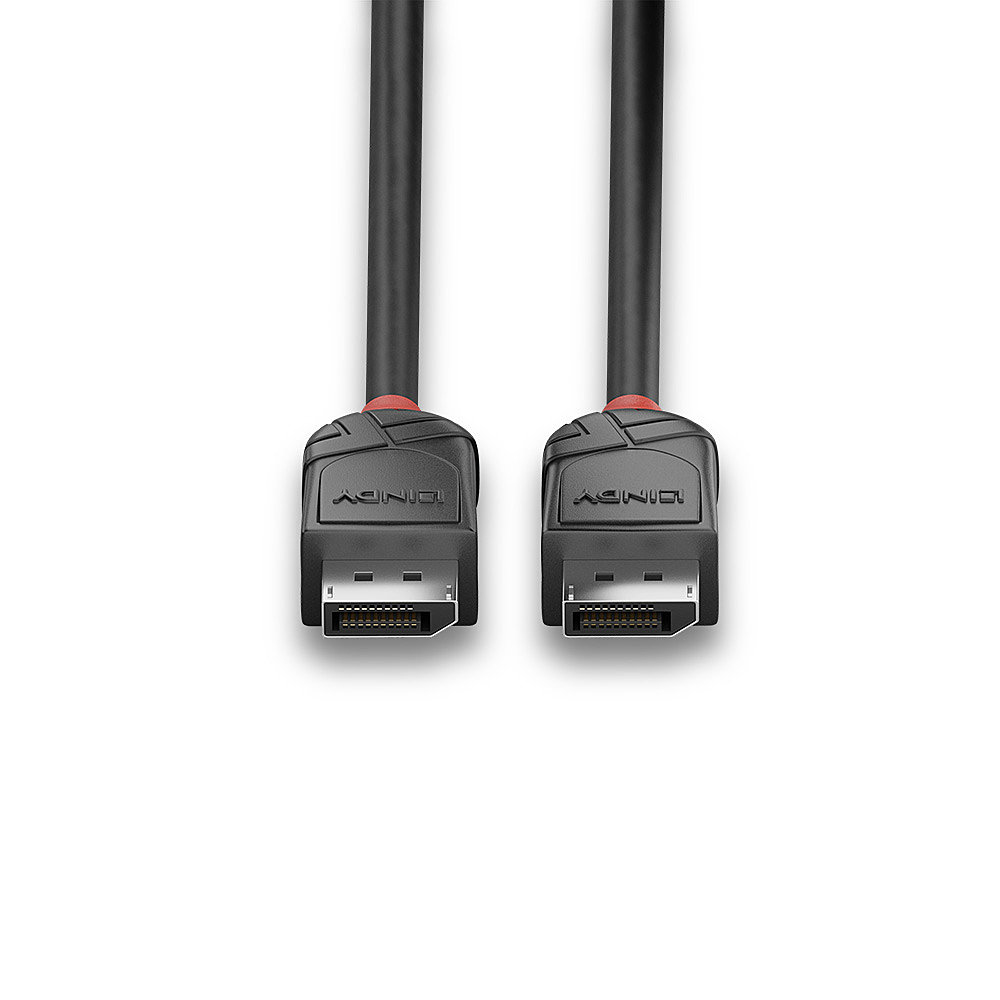

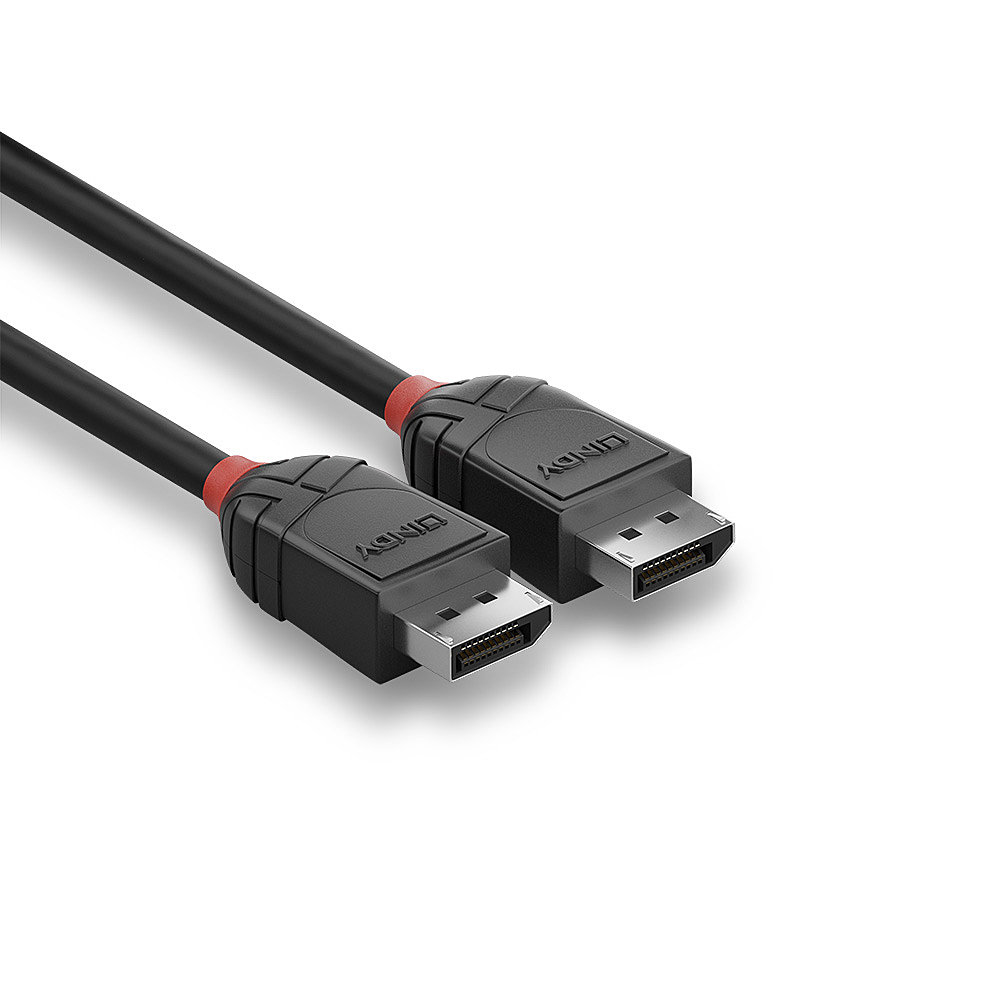

LINDY Cable - DisplayPort - Black Line - 2m

LINDY Cable - DisplayPort - Black Line - 2m

£6.82 (incl. VAT)

Qty:

Add to basket

Part Number:	36492
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

Entry level DisplayPort cable for home and small office applications_x000D_
Supports UHD resolutions up to 4096x2160@60Hz 4:4:4 10bit_x000D_
Robust PVC housing, nickel connectors, 24K gold plated contacts_x000D_
Triple shielded cable, corrosion resistant copper 30AWG conductors_x000D_
DisplayPort 1.2, 4K, 3D, 21.6Gbps; 10 year warranty_x000D_
_x000D_
From the Lines cable connectivity concept developed by Lindy, Black Line DisplayPort cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use._x000D_
_x000D_
Black Line DisplayPort cables feature triple shielded construction with 30AWG copper conductors for performance and corrosion resistance. Nickel connectors and 24K gold plated contacts maintain signal integrity and reliability._x000D_
_x000D_
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 10bit are supported. Black Line DisplayPort cables are also capable of transmitting 32 channel audio and Dolby True HD. Black Line DisplayPort cables are capable of delivering 4:4:4 colour spacing for the most accurate colour representation possible._x000D_
_x000D_
Black Line DisplayPort cables are available in lengths: 0.5m, 1m, 1.5m, 2m and 3m_x000D_
_x000D_

Certificates

Compliance certificates REACH, RoHS, UL

Features

Maximum refresh rate 60 Hz

Connector 1 form factor Straight

Connector 2 form factor Straight

Connector contacts plating Gold

DisplayPort version 1.2

Maximum resolution 4096 x 2160 pixels

Supported graphics resolutions 4096 x 2160

Cable length 2 m

Connector 1 DisplayPort

Connector 2 DisplayPort

Connector 1 gender Male

Connector 2 gender Male

Product colour Black

Cable material Copper

Cable shielding Copper

Jacket material Polyvinyl chloride (PVC)

Connector housing material Acrylonitrile butadiene styrene (ABS)

AWG wire size 30

Data transfer rate 21.6 Gbit/s

Contact material Phosphor bronze

Connector material Nickel

Plug and Play Y

Bend radius (min) 4.8 cm

Colour sampling 4:4:4

Cable type Round cable

Nominal attenuation 300kHz-825MHz - 5dB, 825MHz-2.475GHz - 5dB, 2.475GHz-4.125GHz - 12dB, 4.125GHz-5.1GHz - 20dB

Certification RoHS, REACH, UL

Technical details

Housing material Acrylonitrile butadiene styrene (ABS)

Harmonized System (HS) code 84733080

Logistics data

Products per master (outer) case 60 pc(s)

Packaging data

Package width 194 mm

Package depth 174 mm

Package height 20 mm

Cable diameter 6 mm

Connector 1 dimensions (WxDxH) 21 x 38.9 x 13.6 mm

Connector 2 dimensions (WxDxH) 21 x 38.9 x 13.6 mm

Quantity per pack 1 pc(s)

Package type Polybag

Other features

Connector(s) DP Male to DP Male

Depth 42.6 mm

Width 20.7 mm

Operational conditions

Operating temperature (T-T) -20 - 80 °C

Storage temperature (T-T) -25 - 85 °C
