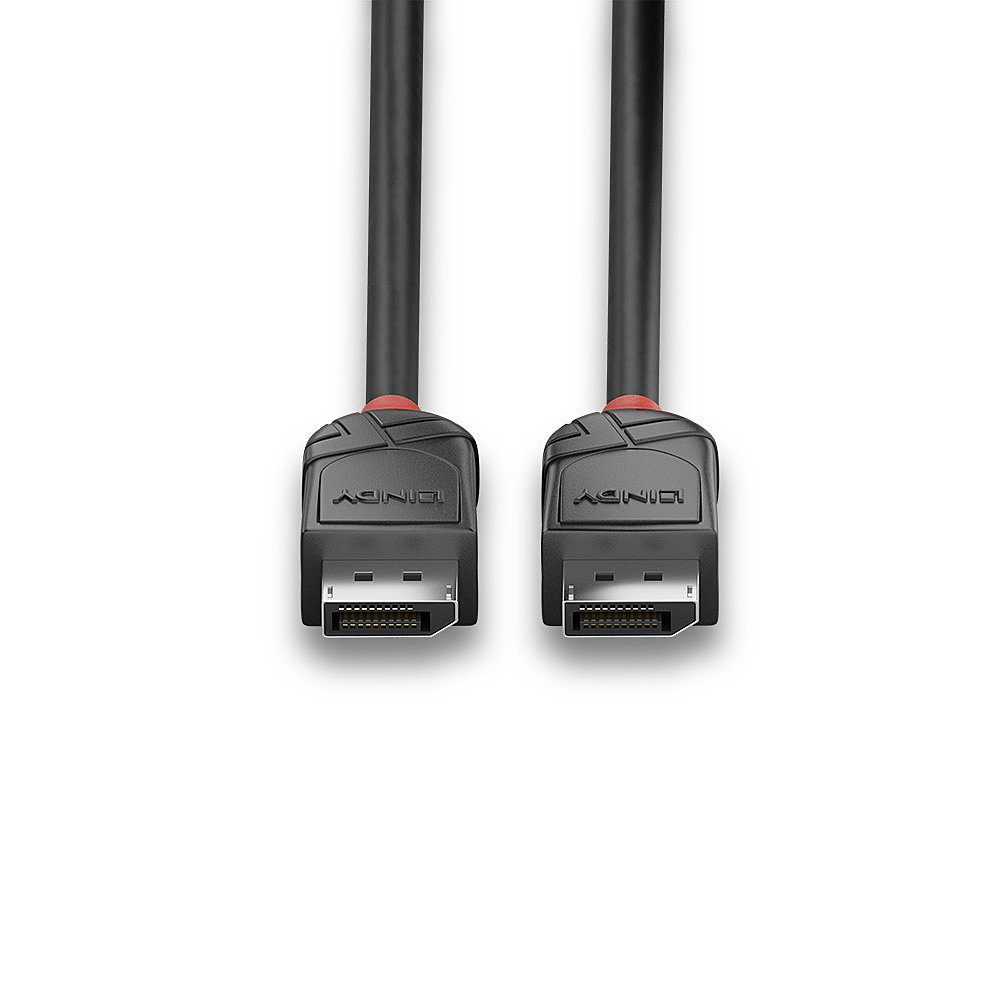

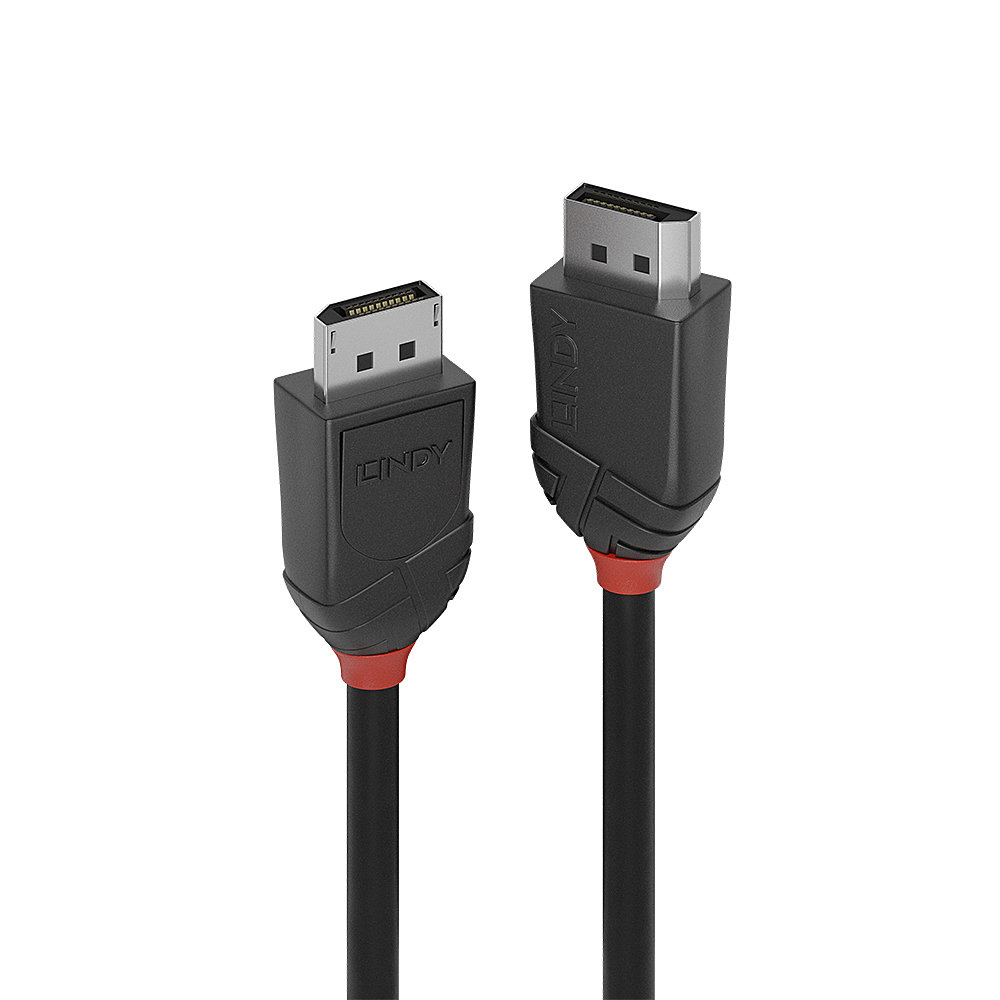

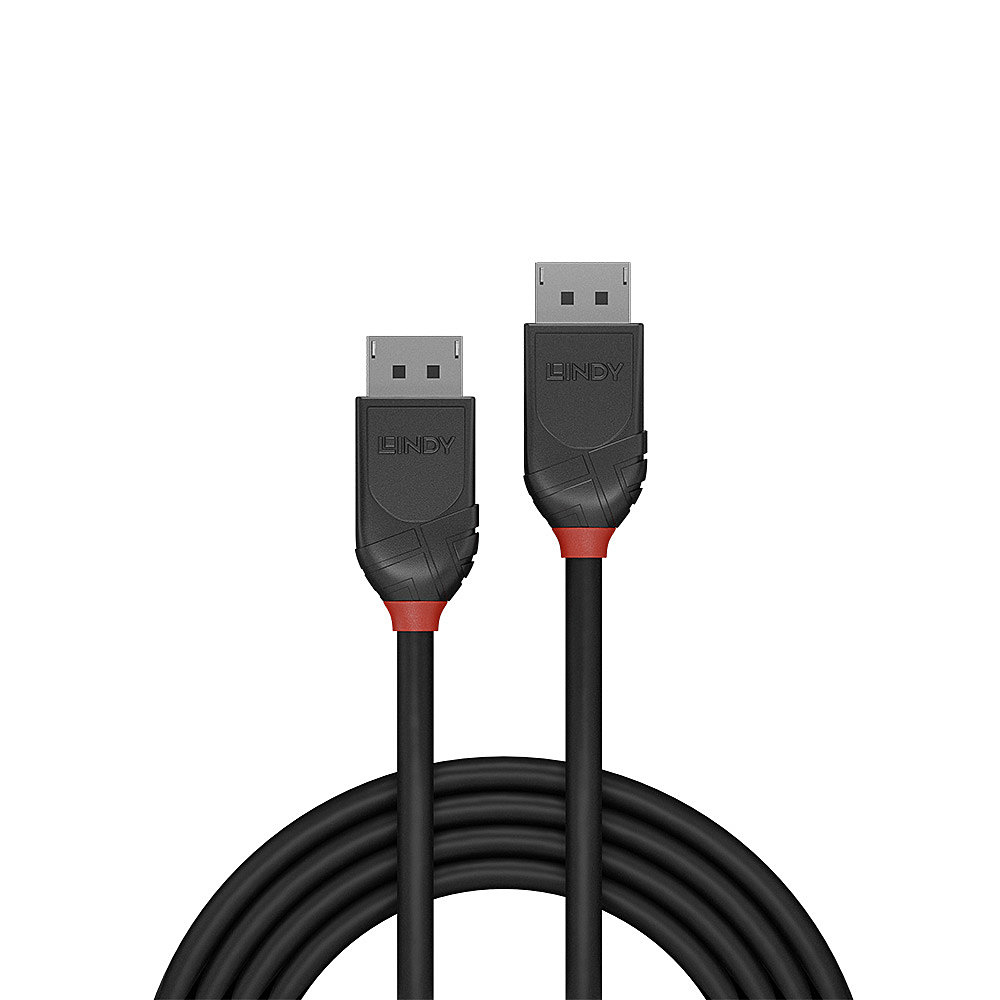

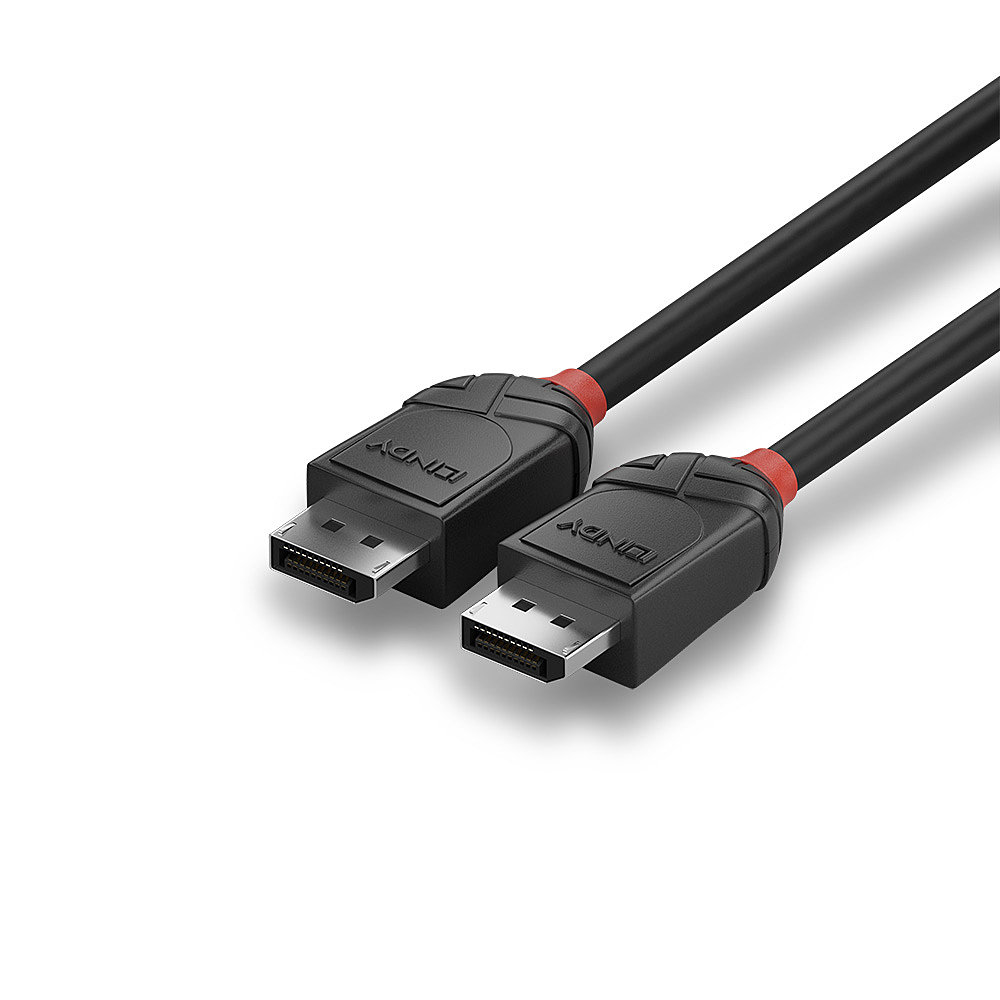

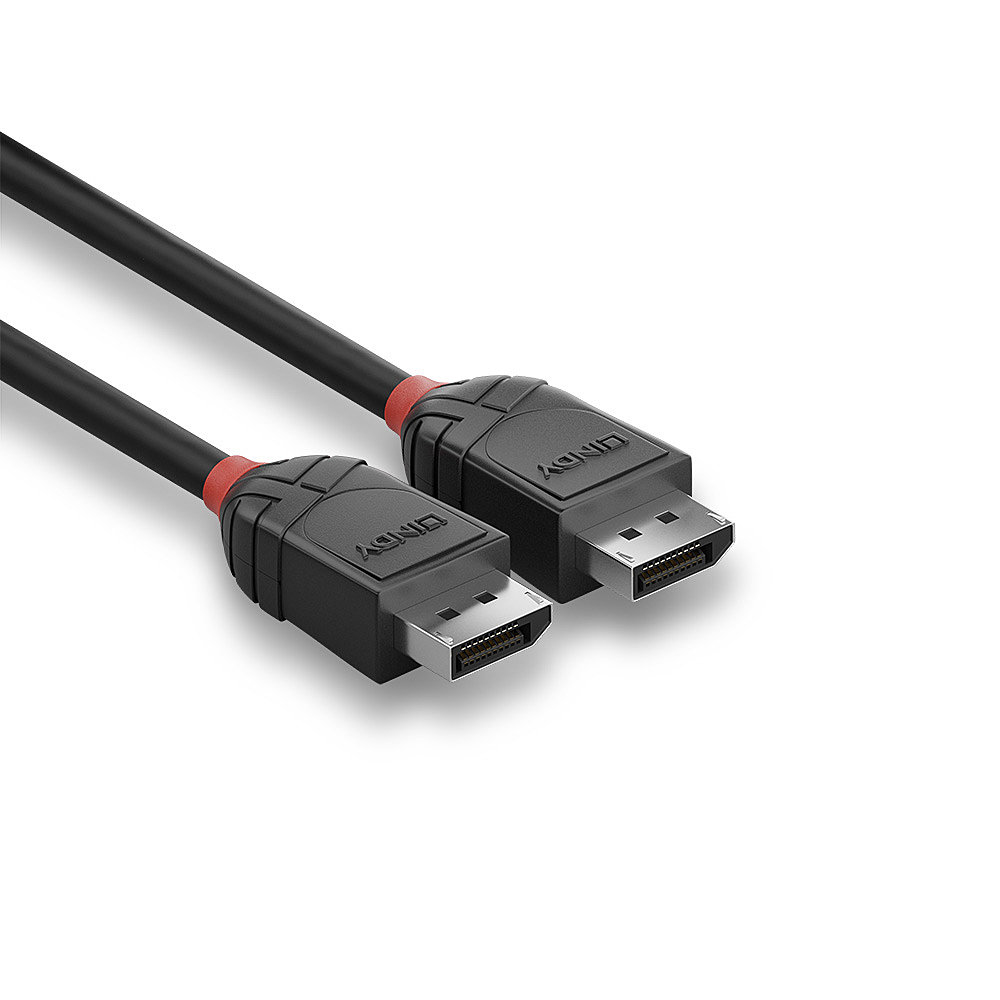

LINDY Cable - DisplayPort - Black - 3m

£8.30

Part Number: 36493
Delivery: 1 - 2 days

Product Details

Introduction

Entry level DisplayPort cable for home and small office applications_x000D_
Supports UHD resolutions up to 4096x2160@60Hz 4:4:4 10bit_x000D_
Robust PVC housing, nickel connectors, 24K gold plated contacts_x000D_
Triple shielded cable, corrosion resistant copper 30AWG conductors_x000D_
DisplayPort 1.2, 4K, 3D, 21.6Gbps; 10 year warranty_x000D_
_x000D_
From the Lines cable connectivity concept developed by Lindy, Black Line DisplayPort cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use._x000D_
_x000D_
Black Line DisplayPort cables feature triple shielded construction with 30AWG copper conductors for performance and corrosion resistance. Nickel connectors and 24K gold plated contacts maintain signal integrity and reliability._x000D_
_x000D_
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 10bit are supported. Black Line DisplayPort cables are also capable of transmitting 32 channel audio and Dolby True HD. Black Line DisplayPort cables are capable of delivering 4:4:4 colour spacing for the most accurate colour representation possible._x000D_
_x000D_
Black Line DisplayPort cables are available in lengths: 0.5m, 1m, 1.5m, 2m and 3m_x000D_
_x000D_

Technical details

Harmonized System (HS) code 84733080

Features

Connector 1 form factor Straight
Connector 2 form factor Straight
Connector contacts plating Gold
DisplayPort version 1.2
Maximum resolution 4096 x 2160 pixels
Supported graphics resolutions 4096 x 2160
Maximum refresh rate 60 Hz
Cable length 3 m
Connector 1 DisplayPort
Connector 2 DisplayPort
Connector 1 gender Male
Connector 2 gender Male
Product colour Black
Cable material Copper
Cable shielding Copper
Jacket material Polyvinyl chloride (PVC)
Connector housing material Acrylonitrile butadiene styrene (ABS)
AWG wire size 30
Data transfer rate 21.6 Gbit/s
Contact material Phosphor bronze
Connector material Nickel
Plug and Play Y
Bend radius (min) 4.8 cm
Colour sampling 4:4:4
Cable type Round cable
Nominal attenuation 300kHz-825MHz - 5dB, 825MHz-2.475GHz - 5dB, 2.475GHz-4.125GHz - 12dB, 4.125GHz-5.1GHz - 20dB
Certification RoHS, REACH, UL

Operational conditions

Operating temperature (T-T) -20 - 80 °C
Storage temperature (T-T) -25 - 85 °C

Packaging data

Cable diameter 6 mm
Connector 1 dimensions (WxDxH) 21 x 38.9 x 13.6 mm
Connector 2 dimensions (WxDxH) 21 x 38.9 x 13.6 mm
Quantity per pack 1 pc(s)
Package type Polybag
