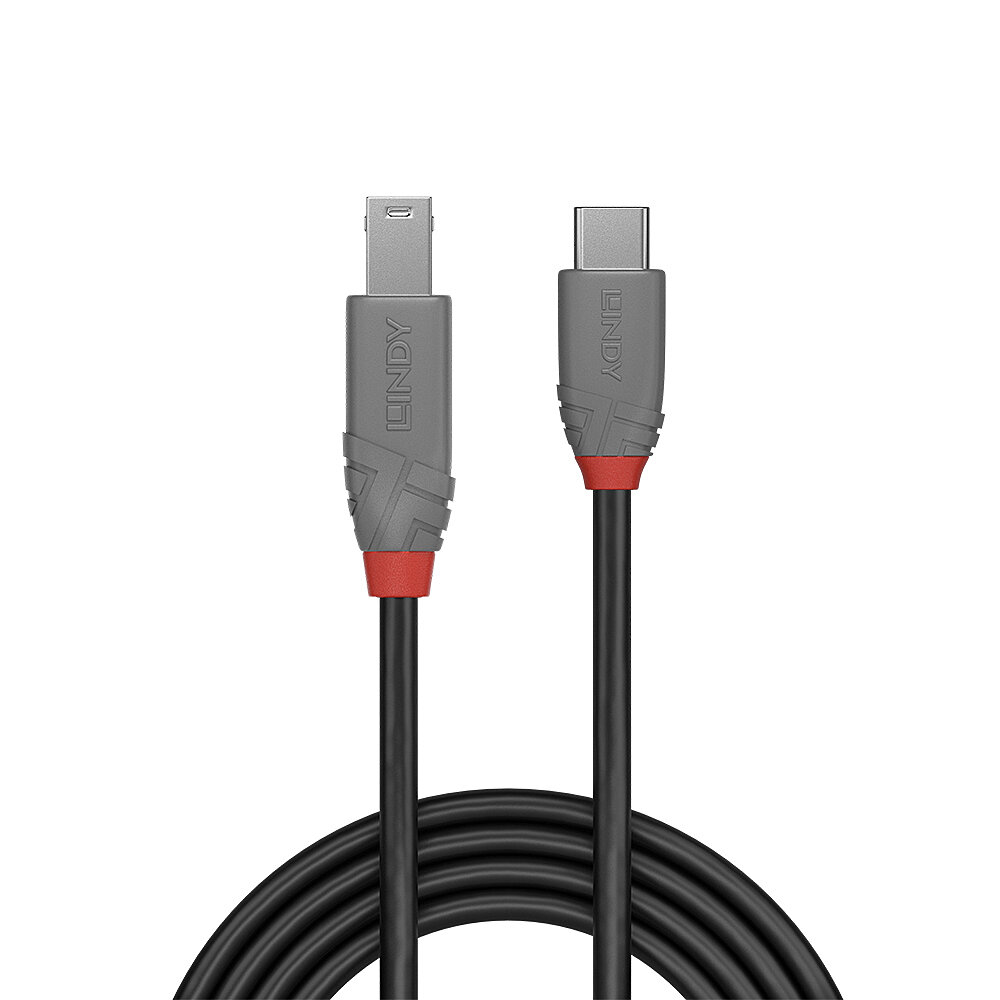

LINDY Cable - USB 3.2 - USB-c - USB-b - Anthraline - 50cm (36665)

LINDY Cable - USB 3.2 - USB-c - USB-b - Anthraline - 50cm (36665)

£3.82 (incl. VAT)

Qty:

Add to basket

Part Number:	36665
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

Professional choice USB 3.2 Gen 1 Type C to B cable for commercial and high performance AV and IT installations_x000D_
SuperSpeed USB - supports data transfer speeds up to 5Gbps (USB 3.0, USB 3.1 Gen 1)_x000D_
Robust PVC housing, gold plated contacts and nickel plated connectors_x000D_
Triple shielded cable, corrosion resistant tinned copper conductors_x000D_
10 year warranty_x000D_
_x000D_
The Anthra Line USB 3.2 Type C to B cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations._x000D_
_x000D_
They are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability._x000D_
_x000D_
USB bandwidths up to 5Gbps are supported for rapid transfer of large data volumes._x000D_
_x000D_
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation._x000D_
_x000D_
Anthra Line USB 3.2 Type C to B cables are available in the following lengths: 0.5m, 1m, 2m and 3m._x000D_
_x000D_
Information about USB generations_x000D_
_x000D_
We have adapted the naming of our USB 3 cables to follow the updated USB specification._x000D_
_x000D_
USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps_x000D_
_x000D_
USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps_x000D_
_x000D_
USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps_x000D_
_x000D_
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface._x000D_
_x000D_

Features

Cable length 0.5 m

USB version USB 3.2 Gen 1 (3.1 Gen 1)

Connector 1 USB C

Connector 2 USB B

Connector 1 gender Male

Connector 2 gender Male

Connector 1 form factor Straight

Connector 2 form factor Straight

AWG wire size 22/30

Connector contacts plating Nickel

Cable jacket material Nylon/Polyvinyl Chloride (PVC)

Conductor material Tinned copper

Connector shielding Y

Connector shield material Copper

Maximum data transfer rate 500 Mbit/s

Product colour Black

Cable type Round cable

Certification RoHS, REACH, California Proposition 65, UL

Weight & dimensions

Cable diameter 4.3 mm

Bend radius (min) 2.5 cm

Connector 1 dimensions (WxDxH) 10.8 x 32 x 7.8 mm

Connector 2 dimensions (WxDxH) 12.2 x 46 x 10 mm

Packaging data

Quantity per pack 1 pc(s)

Package type Polybag

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) 0 - 70 °C
