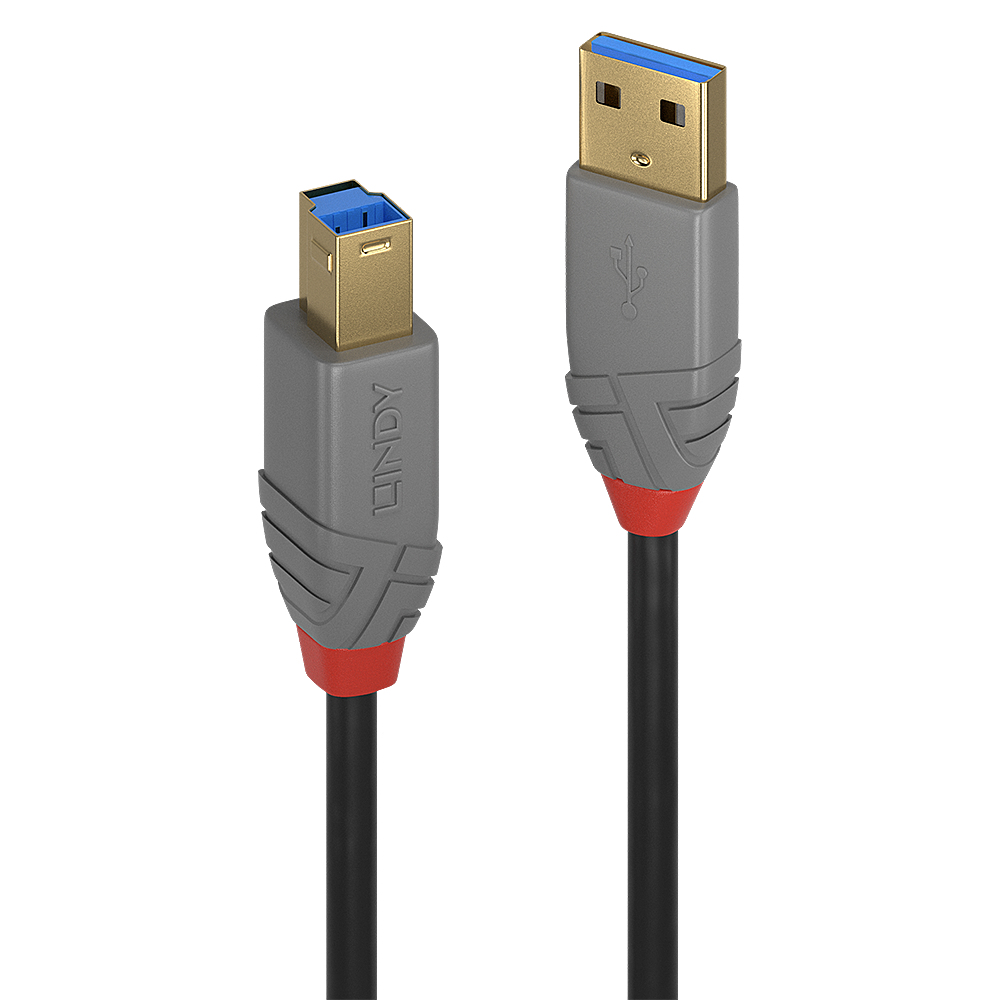

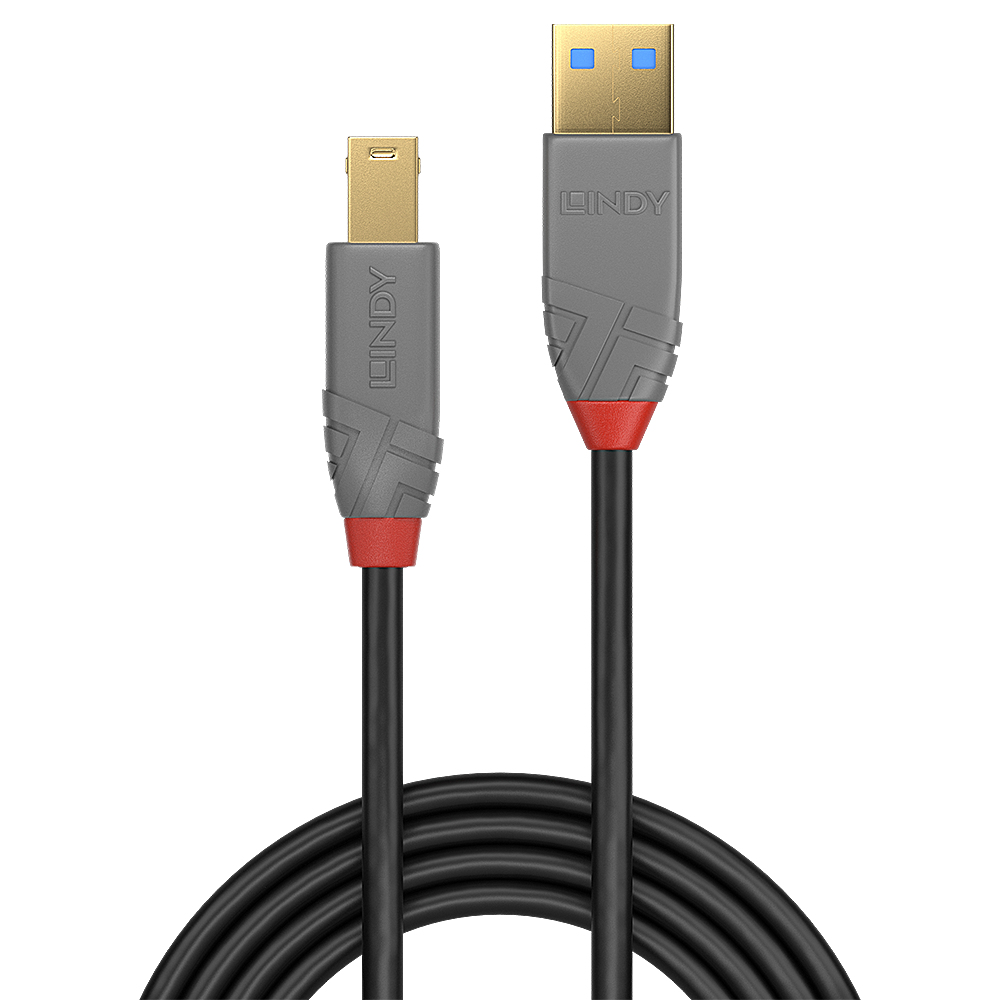

LINDY Cable - USB3.0 Type A To Type B - 2m - Anthraline

£4.75

Part Number: 36742
Delivery: 1 - 2 days

Product Details

Introduction

Professional choice USB 3.2 Gen 1 Type A to B cable for commercial and high performance AV and IT installations_x000D_
SuperSpeed USB - supports data transfer speeds up to 5Gbps (USB 3.0, USB 3.1 Gen 1)_x000D_
Robust PVC housing, gold plated connectors and contacts_x000D_
Triple shielded cable, corrosion resistant tinned copper conductors_x000D_
10 year warranty_x000D_
_x000D_
The Anthra Line USB 3.2 Type A to B cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations._x000D_
_x000D_
Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability._x000D_
_x000D_
USB bandwidths up to 5Gbps are supported for rapid transfer of large data volumes._x000D_
_x000D_
Anthra Line USB 3.2 Type A to B cables are available in the following lengths: 0.5m, 1m, 2m, 3m and 5m._x000D_
_x000D_
We have adapted the naming of our USB 3 cables to follow the updated USB specification._x000D_
_x000D_
USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps_x000D_
_x000D_
USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps_x000D_
_x000D_
USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps_x000D_

Features

Maximum data transfer rate 5 Gbit/s
Cable length 2 m
USB version USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1 USB A
Connector 2 USB B
Connector 1 gender Male
Connector 2 gender Male
Connector 1 form factor Straight
Connector 2 form factor Straight
AWG wire size 24/28/30
Connector material Gold
Contact material Copper
Connector contacts plating Gold
Magnetically shielded Y
Cable jacket material Polyvinyl chloride (PVC)
Conductor material Tinned copper
Connector shielding Y
Connector shield material Aluminium
Connector housing material Polyvinyl chloride (PVC)
Maximum data transfer rate 5000 Mbit/s
Product colour Black, Grey
Cable type Round cable
Nominal attenuation 0.5-5m: 0.5MHz-7.5GHz
Certification RoHS, REACH, UL

Technical details

Harmonized System (HS) code 84733080

Weight & dimensions

Cable diameter 5.5 mm
Bend radius (min) 4.8 cm
Connector 1 dimensions (WxDxH) 15.5 x 35 x 7.8 mm
Connector 2 dimensions (WxDxH) 12.2 x 35 x 13.5 mm

Packaging data

Quantity per pack 1 pc(s)
Package type Polybag

Other features

Operating temperature (T-T) 0 - 60 °C
Storage temperature (T-T) 0 - 60 °C
