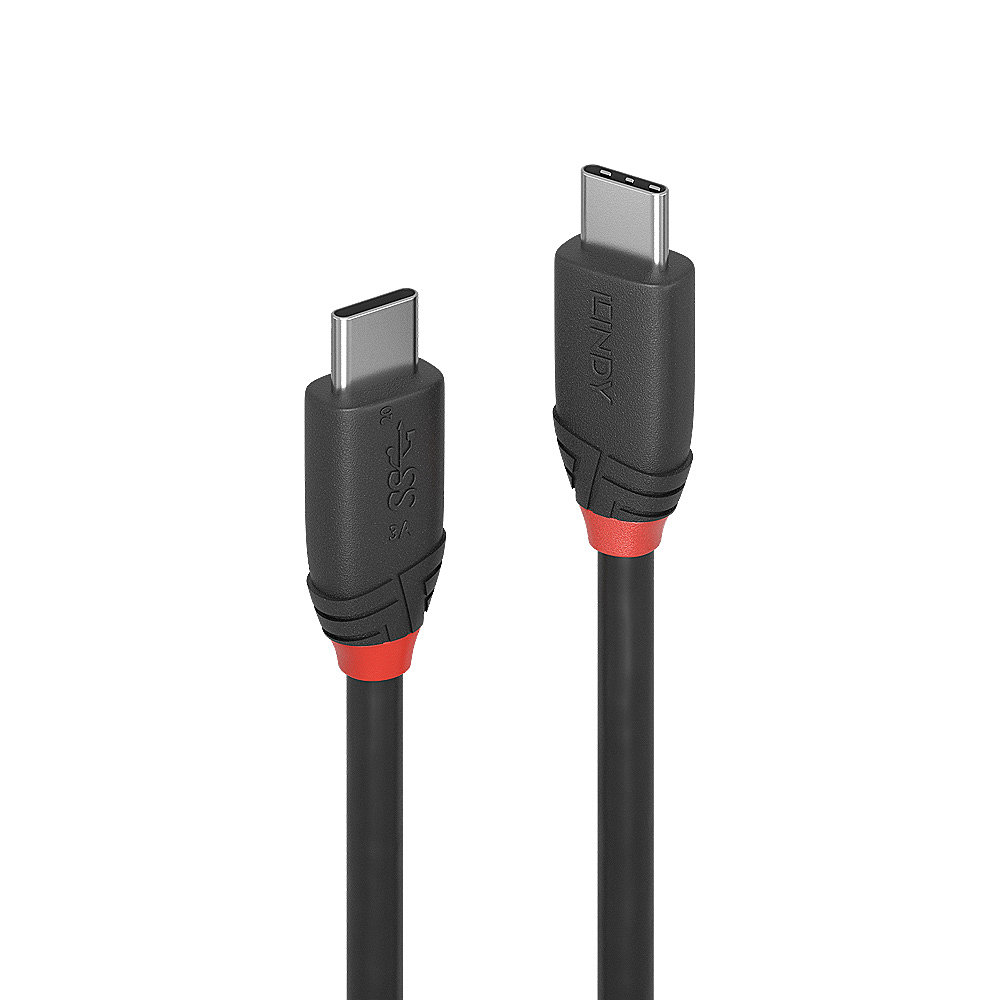

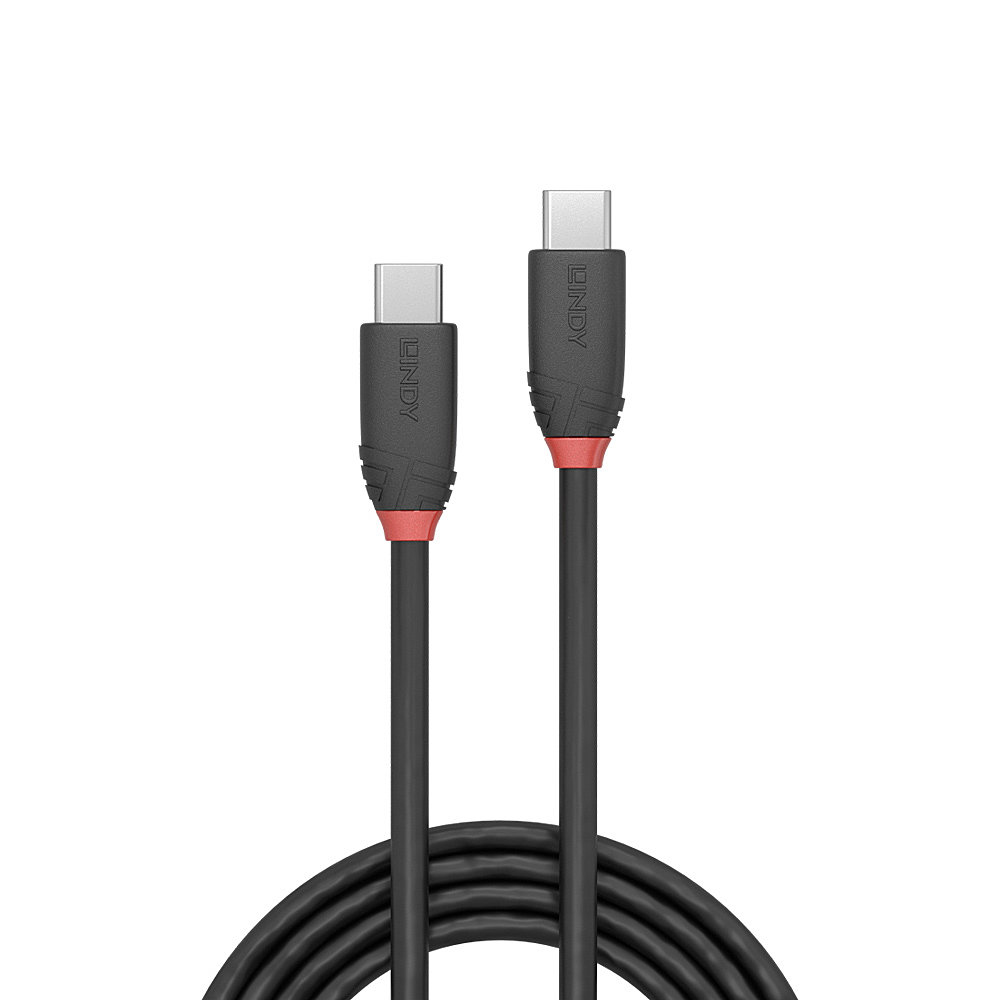

LINDY Cable - USB 3.1 Type C Male To Male 3a - Black Line - 1m

£8.17

Part Number: 36906
Delivery: 1 - 2 days

Product Details

Introduction

Entry level USB 3.2 Gen 2x2 Type C to C, 3A (60W), cable for home and small office applications_x000D_
SuperSpeed USB 20Gbps - supports data transfer speeds up to 20Gbps_x000D_
Robust PVC housing, nickel connectors, gold plated contacts_x000D_
Triple shielded cable, corrosion resistant tinned copper conductors_x000D_
10 year warranty_x000D_
_x000D_
The Black Line USB 3.2 Type C to C cables from Lindy's Cable Lines concept are fully featured, entry level high resolution connection solutions, perfect for home and small office use._x000D_
_x000D_
Black Line USB 3.2 Type C to C cables feature triple shielded construction with tinned copper conductors for premium performance and corrosion resistance. Nickel connectors and gold plated contacts maintain signal integrity and reliability._x000D_
_x000D_
USB bandwidths up to 20Gbps are supported for rapid transfer of large data volumes._x000D_
_x000D_
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation._x000D_
_x000D_
Black Line USB 3.2 Type C to C cables are available in the following lengths: 0.5m, 1m and 1.5m._x000D_
_x000D_
We have adapted the naming of our USB 3 cables to follow the updated USB specification._x000D_
_x000D_
USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps_x000D_
_x000D_
USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps_x000D_
_x000D_
USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps_x000D_
_x000D_
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.  _x000D_

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Logistics data

Products per master (outer) case 150 pc(s)

Technical details

Housing material Polyvinyl chloride (PVC)
Compliance certificates RoHS
Harmonized System (HS) code 84733080
Sustainability certificates RoHS

Features

Maximum data transfer rate 10 Gbit/s
Cable length 1 m
USB version USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1 USB C
Connector 2 USB C
Connector 1 gender Male
Connector 2 gender Male
Connector 1 form factor Straight
Connector 2 form factor Straight
AWG wire size 26/32
Connector contacts plating Nickel/Gold
Cable jacket material Polyvinyl chloride (PVC)
Conductor material Copper
Maximum data transfer rate 10000 Mbit/s
Product colour Black
Cable colour Black
Plug and Play Y
Certification REACH, UL

Packaging data

Quantity per pack 1 pc(s)
Package type Polybag

Information

Part Number: 36906
