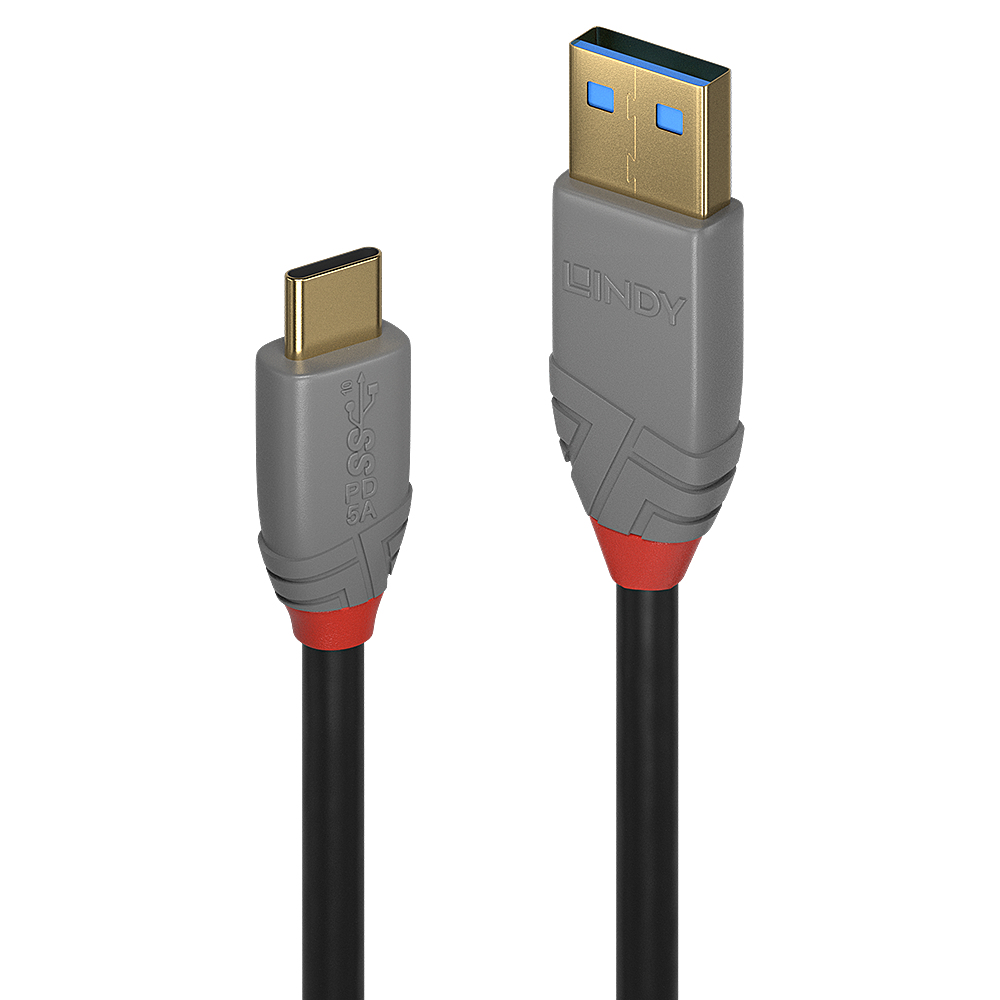

LINDY Cable - USB Type A Male To C Male 5a Pd - Anthraline - 1.5m - Black

LINDY Cable - USB Type A Male To C Male 5a Pd - Anthraline - 1.5m - Black

£13.50 (incl. VAT)

Qty:

Add to basket

Part Number:	36912
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

Professional choice USB 3.2 Gen 2 Type A to C, 5A (100W), cable for commercial and high performance AV and IT installations_x000D_
SuperSpeed USB 10Gbps - supports data transfer speeds up to 10Gbps (USB 3.1, USB 3.1 Gen 2)_x000D_
Robust PVC housing, 24K gold plated connectors and contacts_x000D_
Triple shielded cable, corrosion resistant tinned copper conductors_x000D_
2 year warranty_x000D_
_x000D_
The Anthra Line USB 3.2 Type A to C, 5A, cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations._x000D_
_x000D_
Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability._x000D_
_x000D_
USB bandwidths up to 10Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 100W (5A) of power to devices using the most efficient power delivery profiles._x000D_
_x000D_
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation._x000D_
_x000D_
Anthra Line USB 3.2 Type A to C, 5A cables are available in the following lengths: 0.5m, 1m and 1.5m._x000D_
_x000D_
We have adapted the naming of our USB 3 cables to follow the updated USB specification._x000D_
_x000D_
USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps_x000D_
_x000D_
USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps_x000D_
_x000D_
USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps_x000D_
_x000D_
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface. _x000D_

Features

Maximum data transfer rate 10 Gbit/s

Cable length 1.5 m

USB version USB 3.2 Gen 2 (3.1 Gen 2)

Connector 1 USB C

Connector 2 USB A

Connector 1 gender Male

Connector 2 gender Male

Connector 1 form factor Straight

Connector 2 form factor Straight

AWG wire size 24/30/32

Connector material Gold

Contact material Phosphor bronze

Connector contacts plating Gold

Magnetically shielded Y

Cable jacket material Polyvinyl chloride (PVC)

Conductor material Tinned copper

Connector shielding Y

Connector shield material Copper

Connector housing material Polyvinyl chloride (PVC)

Maximum data transfer rate 10000 Mbit/s

Product colour Black, Grey

Cable type Round cable

Nominal attenuation 0.5Mhz €“ 15Ghz 40db

Certification RoHS, REACH, UL

Technical details

Harmonized System (HS) code 84733080

Weight & dimensions

Cable diameter 4.5 mm

Bend radius (min) 4.5 cm

Connector 1 dimensions (WxDxH) 15.5 x 35 x 7.8 mm

Connector 2 dimensions (WxDxH) 12.7 x 30.8 x 7.3 mm

Packaging data

Quantity per pack 1 pc(s)

Package type Polybag

Other features

Operating temperature (T-T) -20 - 80 °C

Storage temperature (T-T) -25 - 85 °C

Information

Part Number:

36912
