Introduction
Connects a DisplayPort equipped device to a 4K UHD HDMI display or projector_x000D_
Supports resolutions up to 3840x2160@30Hz_x000D_
Supports video mirroring and extended desktop modes_x000D_
Audio pass-through if supported by the video source_x000D_
2 year warranty_x000D_
_x000D_

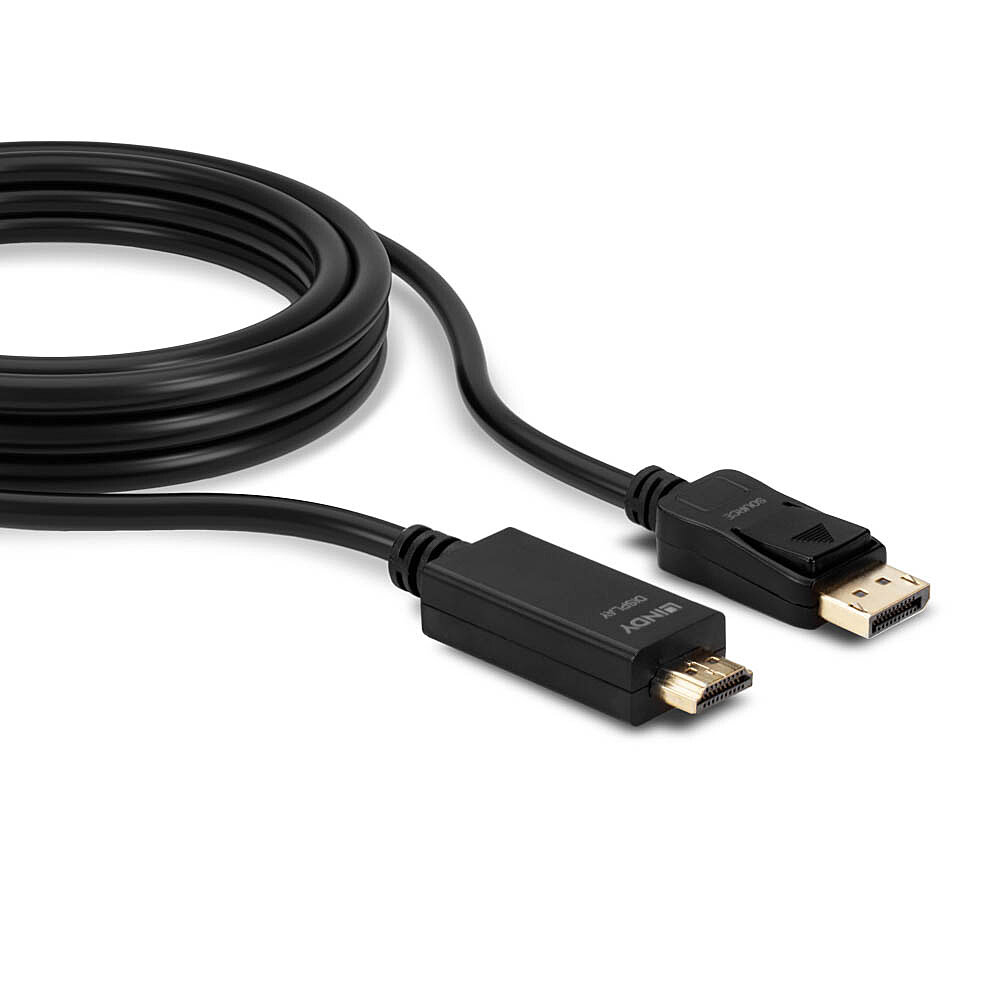

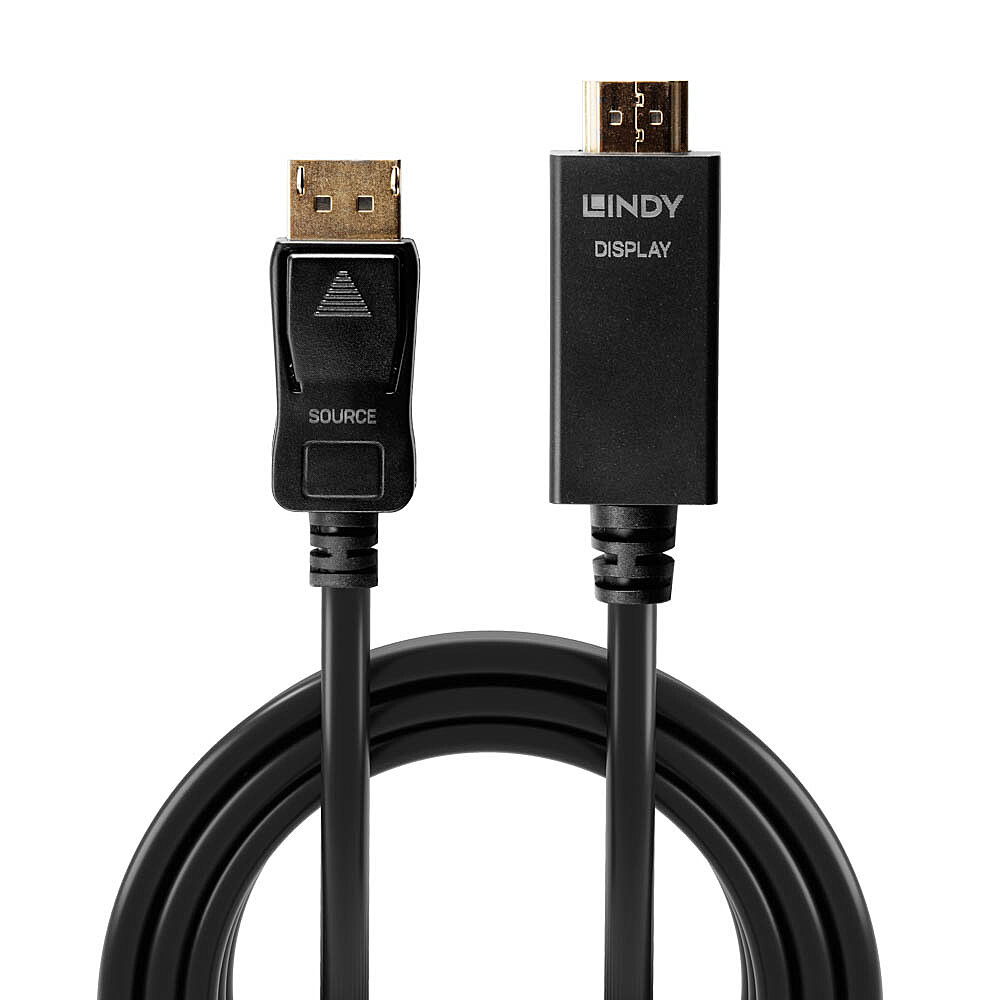

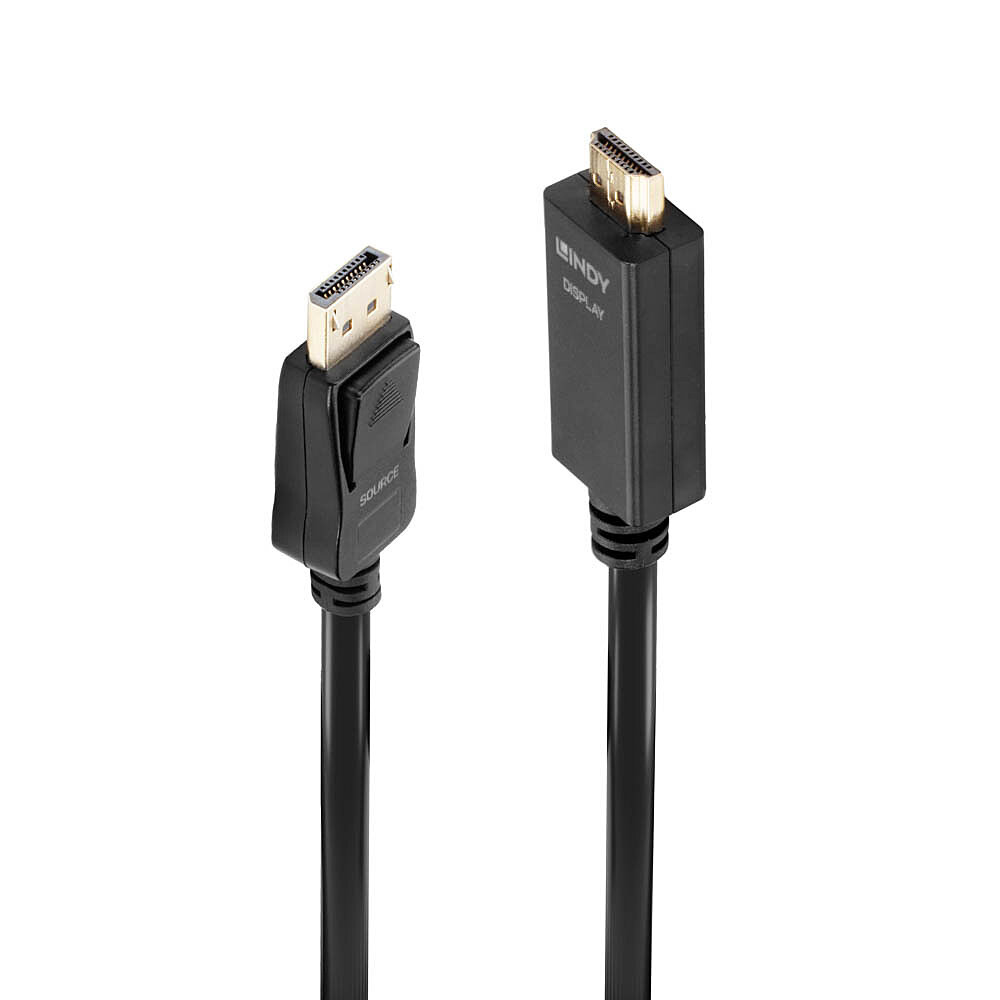

The Lindy DisplayPort to HDMI Cable is ideal for connecting a DisplayPort equipped source such as a PC or laptop to an HDMI display. Supporting 4K UHD resolutions up to 3840x2160@30Hz, this cable is ideal for ensuring video is displayed in superior clarity. This cable can also be used to add another display to extend the available desktop workspace and increase productivity, great for use in residential or workplace office setups._x000D_
_x000D_
The DisplayPort to HDMI Cable supports uncompressed 7.1 Audio and compressed Audio such as DTS-HD Master Audio, Dolby TrueHD. Please note that audio output over HDMI is only supported when the graphics card of the laptop or desktop computer supports audio output over DisplayPort._x000D_
_x000D_
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
Logistics data
Products per master (outer) case
80 pc(s)
Weight & dimensions
Width
45 mm
Depth
21.8 mm
Height
12.4 mm
Cable diameter
7.3 mm
Connector 1 dimensions (WxDxH)
36.4 x 20.5 x 9.4 mm
Connector 2 dimensions (WxDxH)
37.5 x 20.5 x 10.5 mm
Packaging data
Package width
194 mm
Package depth
174 mm
Package height
30 mm
Quantity per pack
1 pc(s)
Package type
Polybag
Other features
Connector(s)
DP Male to HDMI A Male
Supported resolutions
4 8bit
Features
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Connector contacts plating
Gold
Cable length
1 m
Connector 1
DisplayPort
Connector 2
HDMI Type A (Standard)
Connector 1 gender
Male
Connector 2 gender
Male
HDMI version
1.4
DisplayPort version
1.2
Maximum resolution
3840 x 2160 pixels
Supported video modes
1080p
Data transfer rate
10.2 Gbit/s
Bend radius (min)
7.3 cm
Product colour
Black
Conductor material
Tinned copper
Nominal attenuation
100MHz~450MHz -2.44--5.099dB
450MHz~8100MHz -5.094~32.906dB
Jacket material
Polyvinyl chloride (PVC)
Cable type
Round cable
Connector housing material
Polyvinyl chloride (PVC) / Acrylonitrile butadiene styrene (ABS)
Contact material
Copper
AWG wire size
28
Colour depth
8 bit
Colour sampling
4:4:4
Cable shielding
Aluminium braid
Certification
CE, UKCA, FCC, RoHS, REACH, UL, California Proposition 65
Technical details
Harmonized System (HS) code
84733080
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-10 - 80 °C
