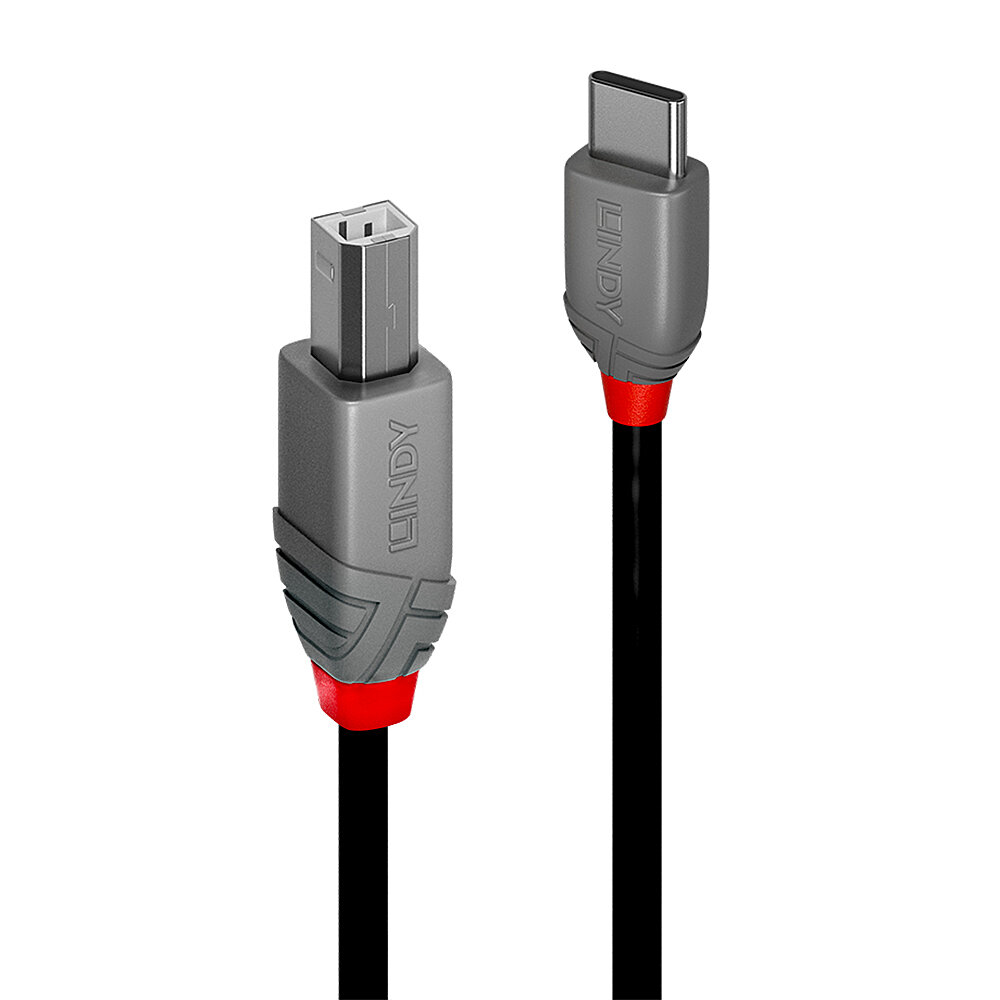

LINDY Cable - USB 2.0 - USB-c Male - USB-b Male - Anthraline - 2m

£4.15

Part Number: 36942
Delivery: 1 - 2 days

Product Details

Introduction

Professional choice USB 2.0 Type C to B cable for commercial and high performance AV and IT installations_x000D_
Supports data transfer speeds up to 480Mbps_x000D_
Robust PVC housing, nickel connectors and gold plated contacts_x000D_
Double shielded cable, corrosion resistant tinned copper conductors_x000D_
10 year warranty_x000D_
_x000D_
The Anthra Line USB 2.0 Type C to B cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations._x000D_
_x000D_
They are premium connections that feature double shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability._x000D_
_x000D_
Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes._x000D_
_x000D_

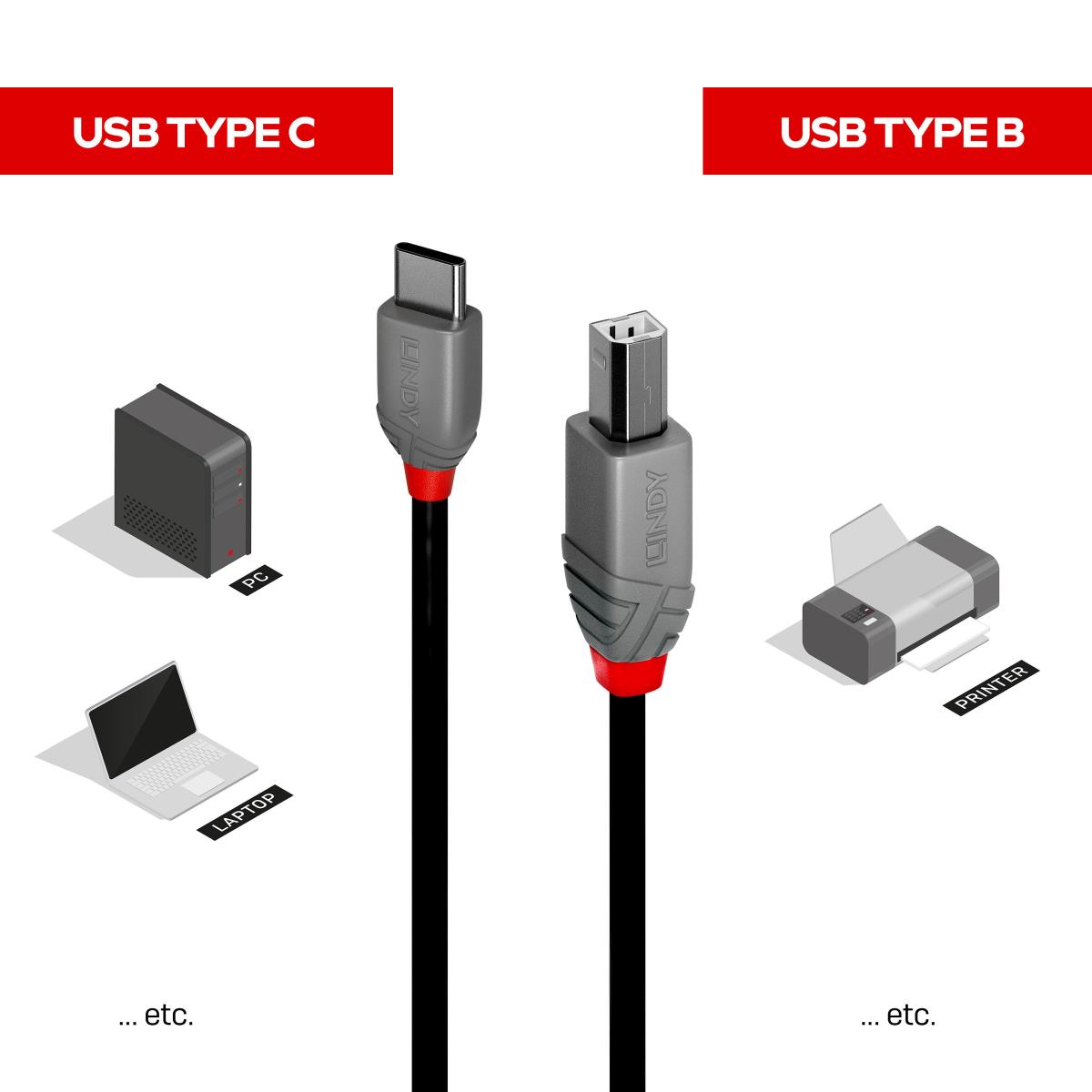

USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation._x000D_
_x000D_
Anthra Line USB 2.0 Type C to B cables are available in the following lengths: 0.5m, 1m, 2m and 3m._x000D_
_x000D_

Features

Maximum data transfer rate 0.48 Gbit/s
Cable length 2 m
USB version USB 2.0
Connector 1 USB C
Connector 2 USB B
Connector 1 gender Male
Connector 2 gender Male
Connector 1 form factor Straight
Connector 2 form factor Straight
AWG wire size 26/28
Contact material Brass
Connector contacts plating Nickel
Cable jacket material Polyvinyl chloride (PVC)
Conductor material Tinned copper
Connector shielding Y
Maximum data transfer rate 480 Mbit/s
Product colour Black
Cable type Round cable
Nominal attenuation 1-400MHz < 5.8dB

Technical details

Compliance certificates REACH, RoHS
Harmonized System (HS) code 84733080
Sustainability certificates REACH, RoHS

Weight & dimensions

Cable diameter 4.4 mm
Bend radius (min) 2.5 cm
Connector 1 dimensions (WxDxH) 10.9 x 28.3 x 7.2 mm
Connector 2 dimensions (WxDxH) 11.8 x 47 x 10.2 mm

Packaging data

Quantity per pack 1 pc(s)
Package type Polybag

Other features

Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) 0 - 70 °C

Information

Part Number: 36942
