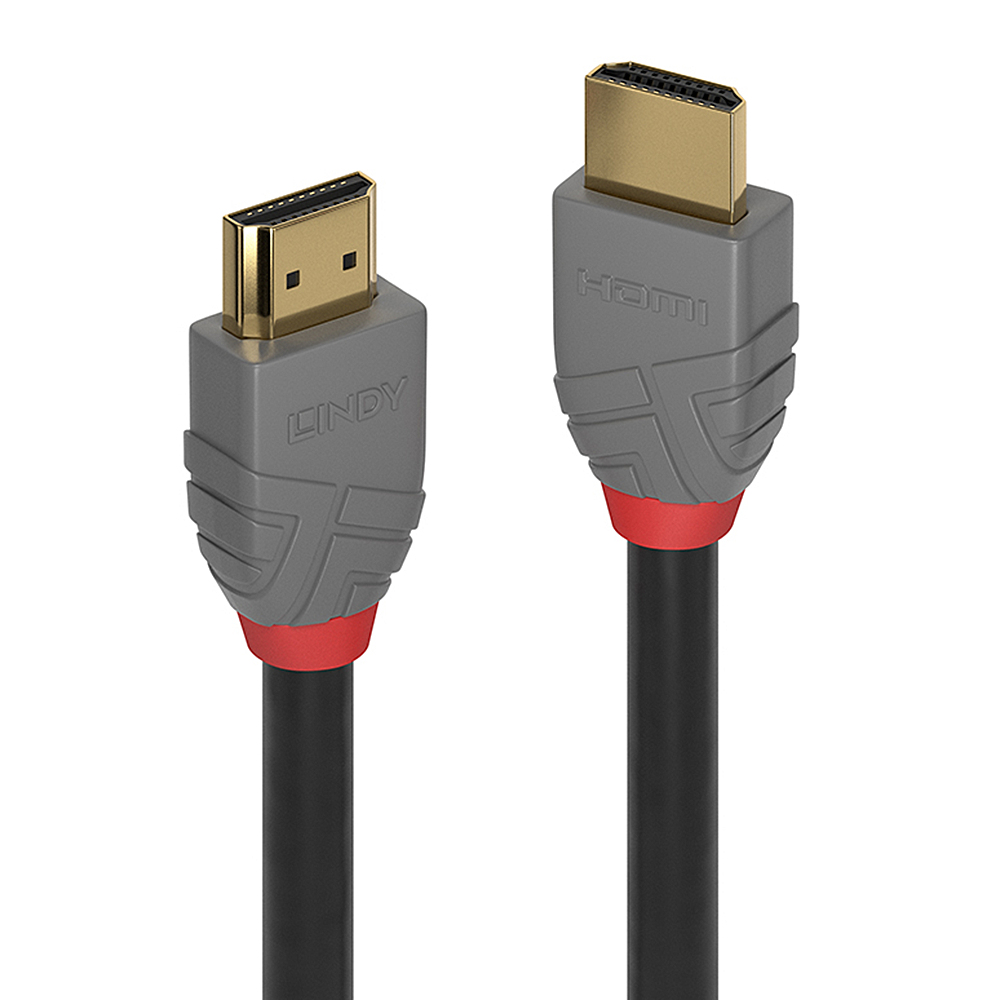

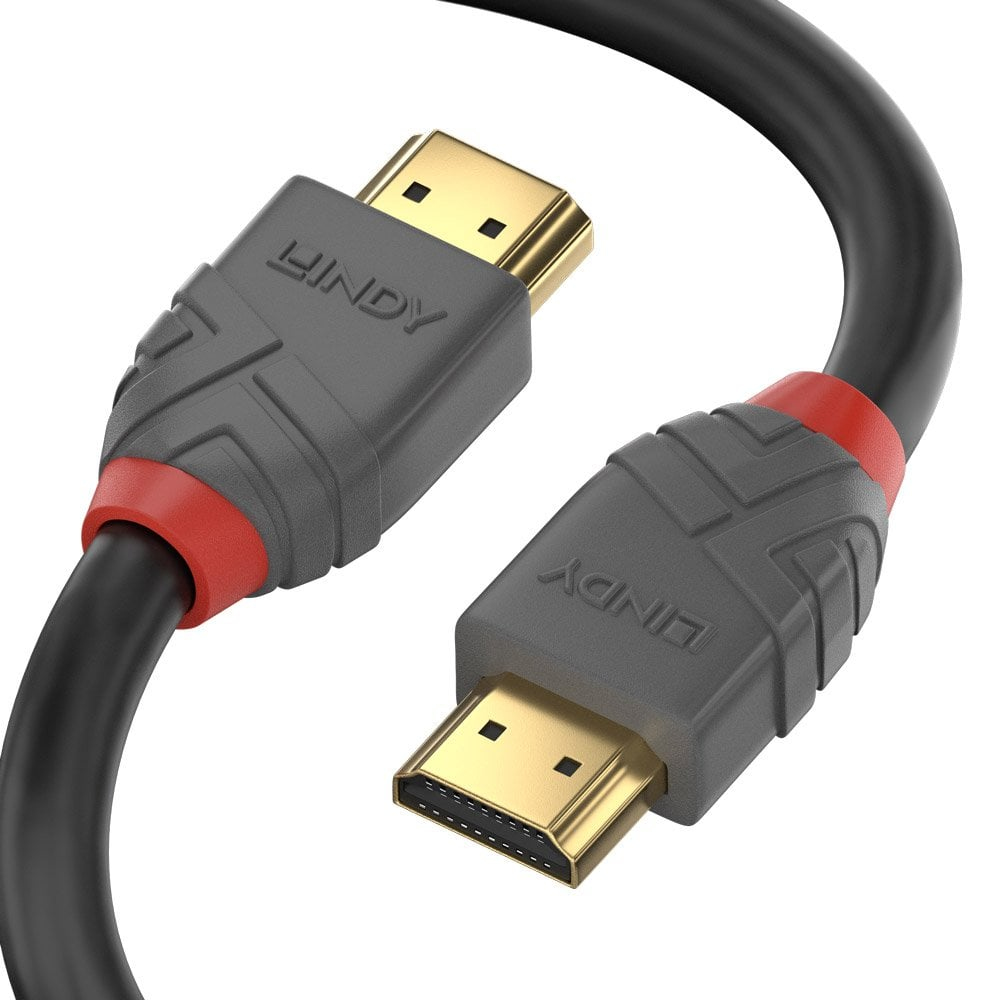

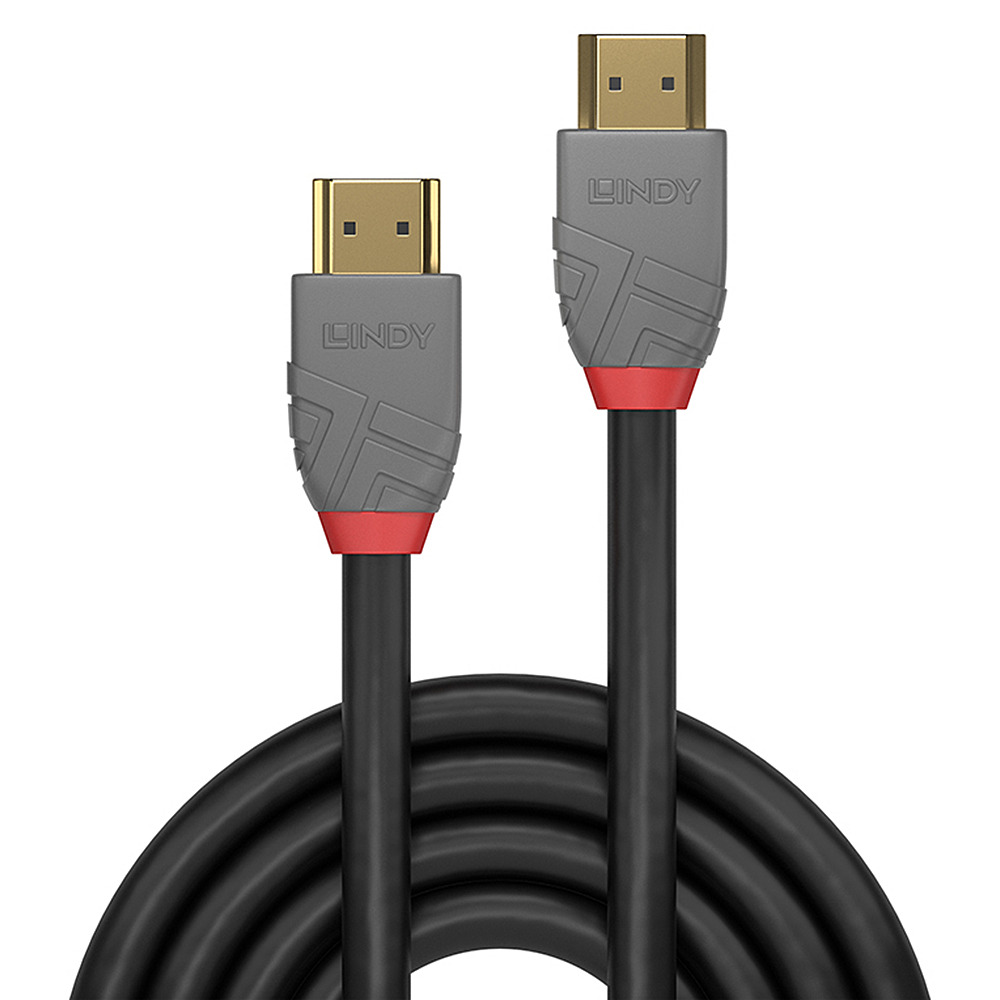

LINDY Cable - Hdmi Anthra Line - Black - 1m

LINDY Cable - Hdmi Anthra Line - Black - 1m

£5.31 (incl. VAT)

Qty:

Add to basket

Part Number:	36962
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

Professional choice High Speed HDMI 2.0 cable for commercial and high performance AV and IT installations_x000D_
Supports UHD resolutions up to 4096x2160@60Hz and HDTV resolutions up to 1080p_x000D_
Robust PVC housing, 24K gold plated connectors and contacts_x000D_
Triple shielded cable, corrosion resistant tinned copper 30AWG conductors_x000D_
HDMI 2.0 compliant: 3D, 4K, 18Gbps, HEC, ARC, CEC, Dolby® True HD, DTS-HD Master Audio; HDMI ATC certified_x000D_
10 year warranty_x000D_
_x000D_
From the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI cables are the professional choice for high performance connections in commercial AV and IT installations._x000D_
_x000D_
Anthra Line HDMI cables are premium connections that feature triple shielded with 30AWG copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability._x000D_
_x000D_
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 8bit are supported. Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD._x000D_
_x000D_
The HDMI 2.0 specification is supported for 18Gbps bandwidth capacity in cable lengths up to 5m._x000D_
_x000D_
Anthra Line HDMI cables are available in lengths from 0.3m to 5m._x000D_
_x000D_

Logistics data

Harmonized System (HS) code 84733080

Features

Cable length 1 m

Connector 1 HDMI Type A (Standard)

Connector 2 HDMI Type A (Standard)

Connector 1 gender Male

Connector 2 gender Male

Connector 1 form factor Straight

Connector 2 form factor Straight

Product colour Black, Grey

HDMI version 2.0

Supported graphics resolutions 4096 x 2160

Supported video modes 2160p

HDMI Ethernet channel Y

Data transfer rate 18 Gbit/s

Maximum resolution 4096 x 2160 pixels

AWG wire size 30

Contact material Phosphor copper

Connector contacts plating Gold

Connector housing material Polyvinyl chloride (PVC)

Connector material Gold

Cable material Copper

Cable type Round cable

Cable jacket material Polyvinyl chloride (PVC)

Shield material Copper

Bending radius (min) 4.8 cm

Colour depth 8 bit

Plug and Play Y

Colour sampling 4:4:4

Nominal attenuation 300kHz-825MHz 5dB, 825MHz-2.475GHz 5dB, 2.475GHz-4.125GHz 12dB, 4.125GHz-5.1GHz 20dB

Certification RoHS, REACH, UL, ATC

Quantity per pack 1 pc(s)

Operational conditions

Operating temperature (T-T) -10 - 80 °C

Storage temperature (T-T) -10 - 80 °C

Weight & dimensions

Cable diameter 6 mm

Connector 1 dimensions (WxDxH) 20 x 34.2 x 10.9 mm

Connector 2 dimensions (WxDxH) 20 x 34.2 x 10.9 mm

Package type Polybag
