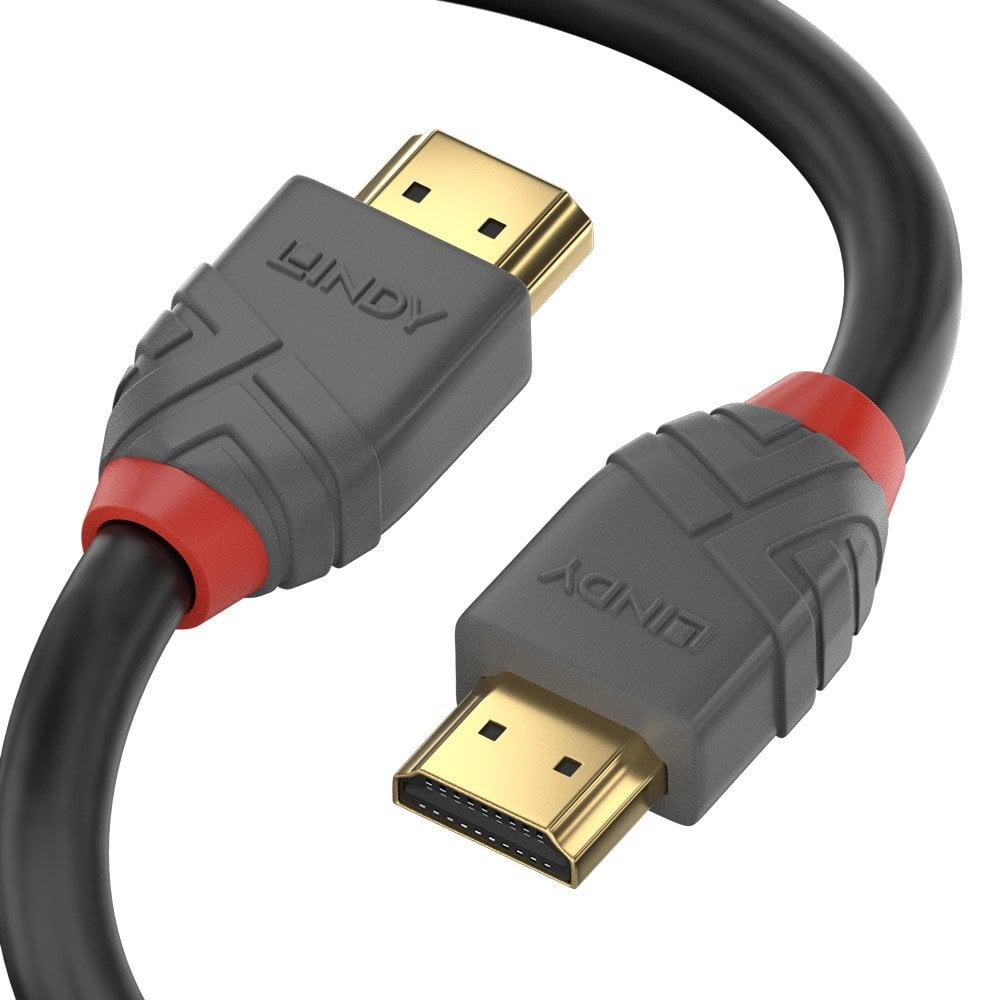

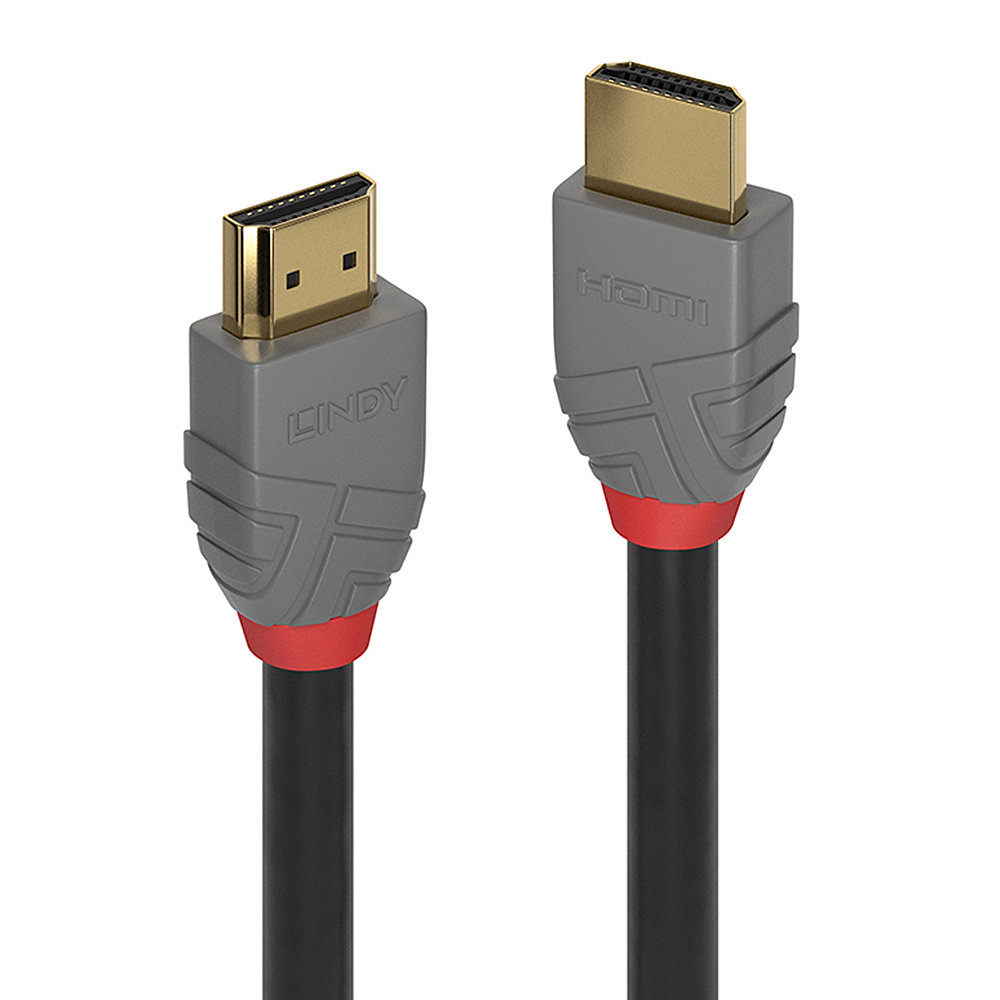

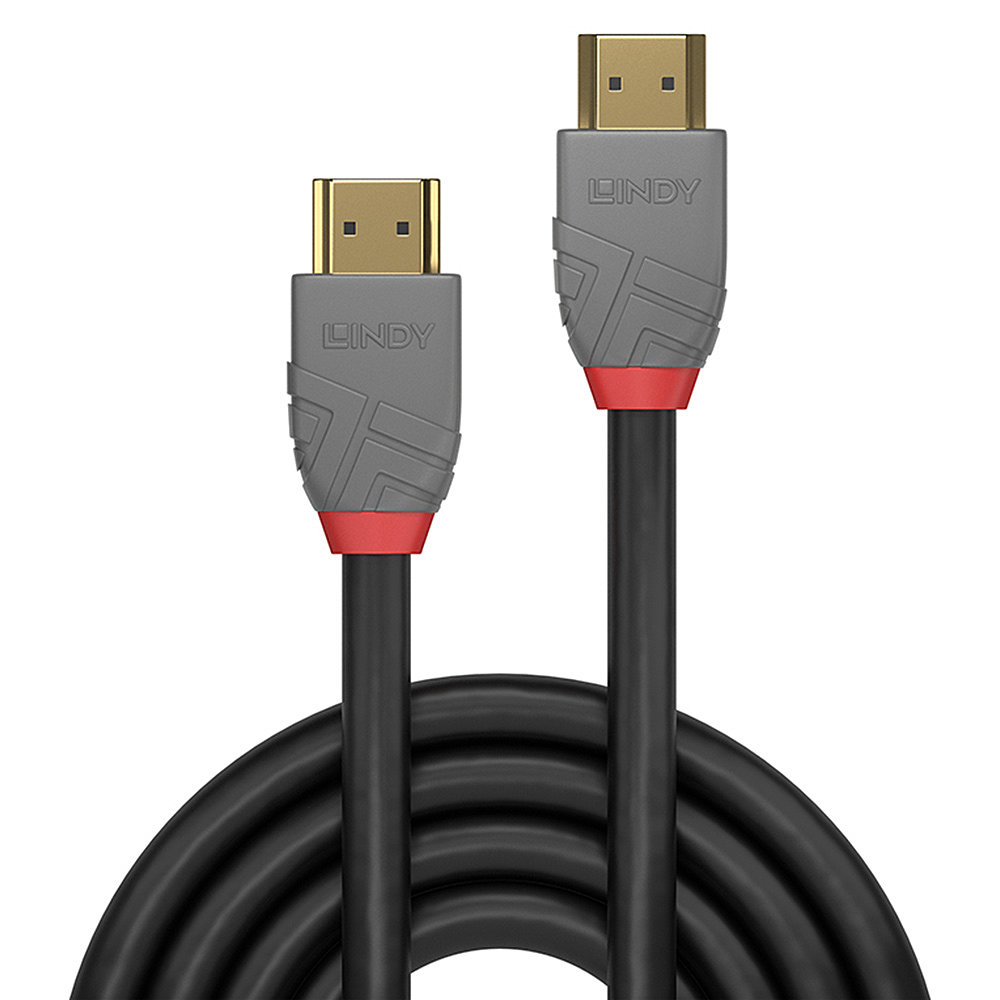

LINDY Cable - Standard Hdmi - 10m - Anthra Line

LINDY Cable - Standard Hdmi - 10m - Anthra Line

£37.19 (incl. VAT)

Qty:

Add to basket

Part Number:	36967
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

Superior performance and design Standard HDMI 2.0 cable_x000D_
Supports UHD resolutions up to 4096x2160@60Hz 4:2:0 8bit_x000D_
Robust PVC housing, gold plated connectors and contacts_x000D_
Triple shielded cable, corrosion resistant bare copper 24AWG conductors_x000D_
HDMI 2.0 compliant, 3D, 4K, 10.2Gbps, HEC, ARC, CEC, Dolby® True HD, DTS-HD Master Audio; 10 year warranty_x000D_
_x000D_
From the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI cables are the professional choice for high performance connections in commercial AV and IT installations._x000D_
_x000D_

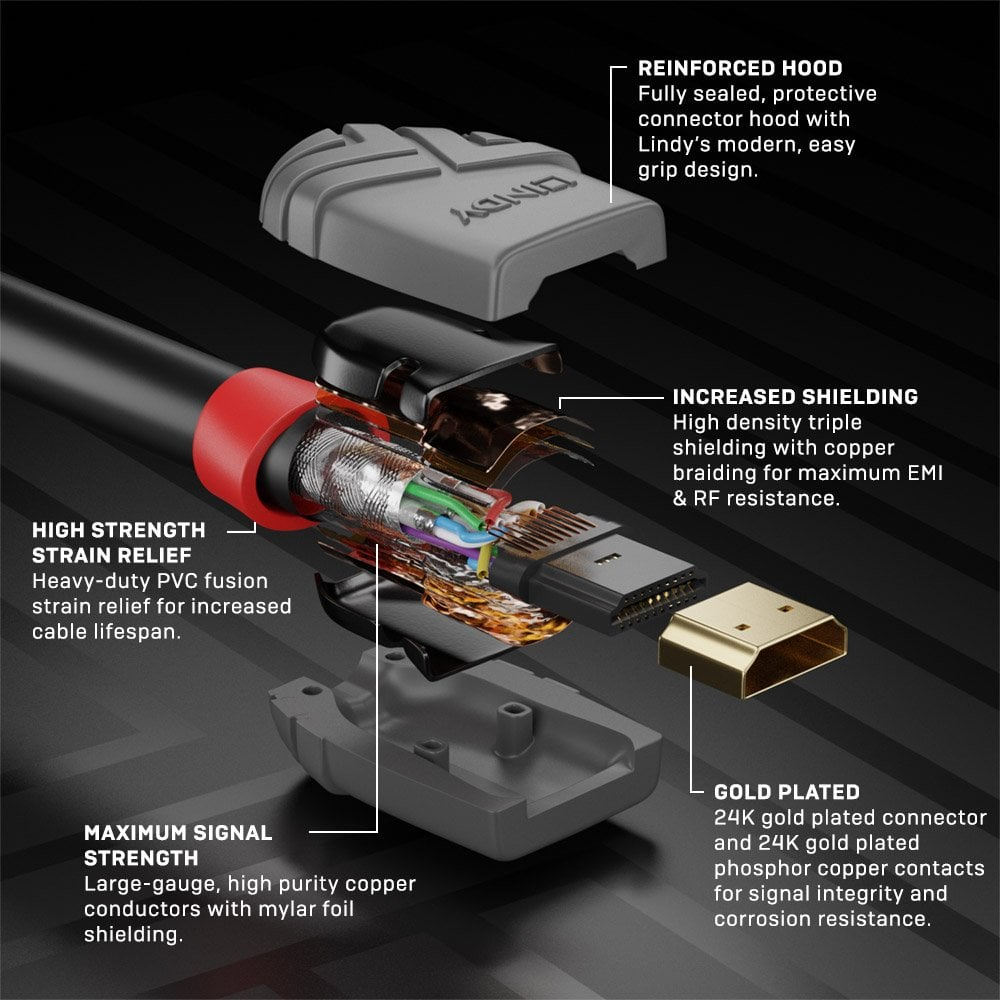

Anthra Line HDMI cables are premium connections that feature triple shielded with 24AWG copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability._x000D_
_x000D_
UHD resolutions up to 4K 4096x2160@60Hz 4:2:0 8bit are supported. Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD._x000D_
_x000D_
These HDMI 2.0 cables support 10.2Gbps bandwidth capacity in cable lengths from 7.5m up to 20m. _x000D_
_x000D_
Anthra Line HDMI cables are available in lengths from 0.3m to 20m._x000D_

Technical details

Compliance certificates RoHS

Sustainability certificates RoHS

Logistics data

Harmonized System (HS) code 84733080

Features

Cable length 10 m

Connector 1 HDMI Type A (Standard)

Connector 2 HDMI Type A (Standard)

Connector 1 gender Male

Connector 2 gender Male

Connector 1 form factor Straight

Connector 2 form factor Straight

Product colour Black, Grey

HDMI version 2.0

3D Y

Supported graphics resolutions 3840 x 2160,4096 x 2160

Supported video modes 2160p

Dolby technologies DTS-HD,Dolby TrueHD

Data transfer rate 10.2 Gbit/s

Maximum refresh rate 60 Hz

AWG wire size 24

Contact material Phosphor bronze

Connector contacts plating Gold

Connector housing material Polyvinyl chloride (PVC)

Connector material Gold

Cable material Copper

Cable type Round cable

Cable jacket material Polyvinyl chloride (PVC)

Shield material Aluminium

Bending radius (min) 9.8 cm

Colour sampling 4:2:0

Nominal attenuation 300kHz-825MHz --- 15dB 825MHz-2.475GHz --- 15 - 29dB 2.475GHz-4.125GHz --- 29 - 44dB 4.125GHz-5.1GHz --- 44 - 48dB

Certification RoHS, REACH, UL

Quantity per pack 1 pc(s)

Operational conditions

Operating temperature (T-T) -20 - 80 °C

Storage temperature (T-T) -25 - 85 °C

Weight & dimensions

Cable diameter 9.8 mm

Connector 1 dimensions (WxDxH) 21.4 x 41.44 x 12.7 mm

Connector 2 dimensions (WxDxH) 21.4 x 41.44 x 12.7 mm

Package type Polybag
