Introduction

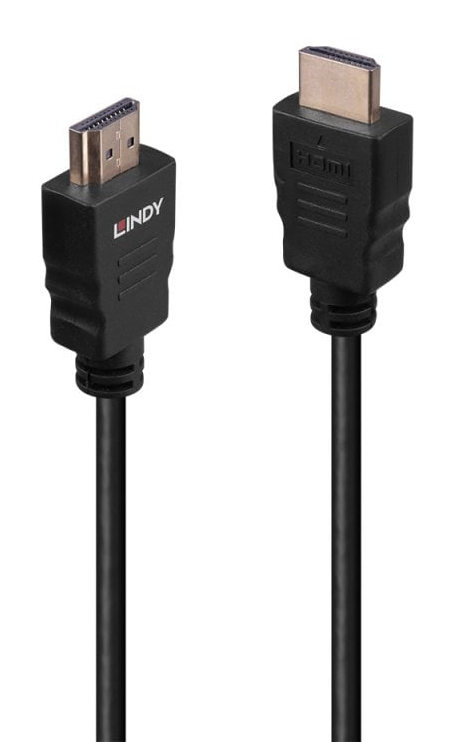

Advanced, high speed cable for the next generation of HDMI devices!
Our new Premium Gold High Speed HDMI cable features cutting edge design and construction to provide the highest quality, most reliable high speed HDTV connection available. This 'future proof' cable is fully certified by the HDMI Authorised Test Centre for High Speed compliance which means it will support all currently available HDMI equipped devices at resolutions of up to an amazing 2160p and even higher.
The triple shielded, low attenuation cable provides superb clarity, definition and detail, even over longer transmission distances, whilst the 24K gold plated connectors allow for excellent, consistent signal transfer.
- 24K gold plated connectors;
- HDMI ATC (Authorised Test Centre) certified for High Speed HDMI compliance;
- Slimline, full metal connector greatly reduces interference and avoids obstructing adjacent HDMI ports.
Features
Cable length
0.5 m
Connector 1
HDMI Type A (Standard)
Connector 2
HDMI Type A (Standard)
Product colour
Blue
Connector gender
Male/Male
Connector 1 gender
Male
Connector 2 gender
Male
Connector 1 form factor
Straight
Connector 2 form factor
Straight
HDMI cable type
High Speed HDMI cable
3D
Yes
Supported graphics resolutions
3840 x 2160
Supported video modes
2160p
Dolby technologies
Dolby TrueHD, DTS-HD Master Audio
Audio Return Channel (ARC)
Yes
HDMI Ethernet channel
Yes
Data transfer rate
18 Gbit/s
Maximum resolution
3840 x 2160 pixels
Maximum refresh rate
60 Hz
AWG wire size
30
Connector contacts plating
Gold
Connector housing material
Thermoplastic elastomer (TPE)
Cable type
Round cable
Cable material
Copper
Cable jacket material
Thermoplastic elastomer (TPE)
Bending radius (min)
4.8 cm
Cable shielding
Aluminum mylar foil
Plug and Play
Yes
Colour sampling
4:4:4
Nominal attenuation
300kHz-825MHz <5dB
825MHz-2.475GHz <5dB
2.475GHz-4.125GHz <12dB
4.125GHz-5.1GHz <20dB
Operational conditions
Operating temperature (T-T)
-30 - 80 °C
Storage temperature (T-T)
-10 - 85 °C
Sustainability
Sustainability certificates
Global Recycled Standard (GRS)
Doesn't contain
Lead, Mercury, Cadmium
Certificates
Compliance certificates
RoHS, REACH
Weight & dimensions
Cable diameter
6 mm
Connector 1 dimensions (WxDxH)
20.3 x 35.8 x 10.5 mm
Connector 2 dimensions (WxDxH)
20.3 x 35.8 x 10.5 mm
Packaging data
Package type
Polybag
Quantity per pack
1 pc(s)
Logistics data
Warranty period
10 year(s)
