Product Details
Introduction

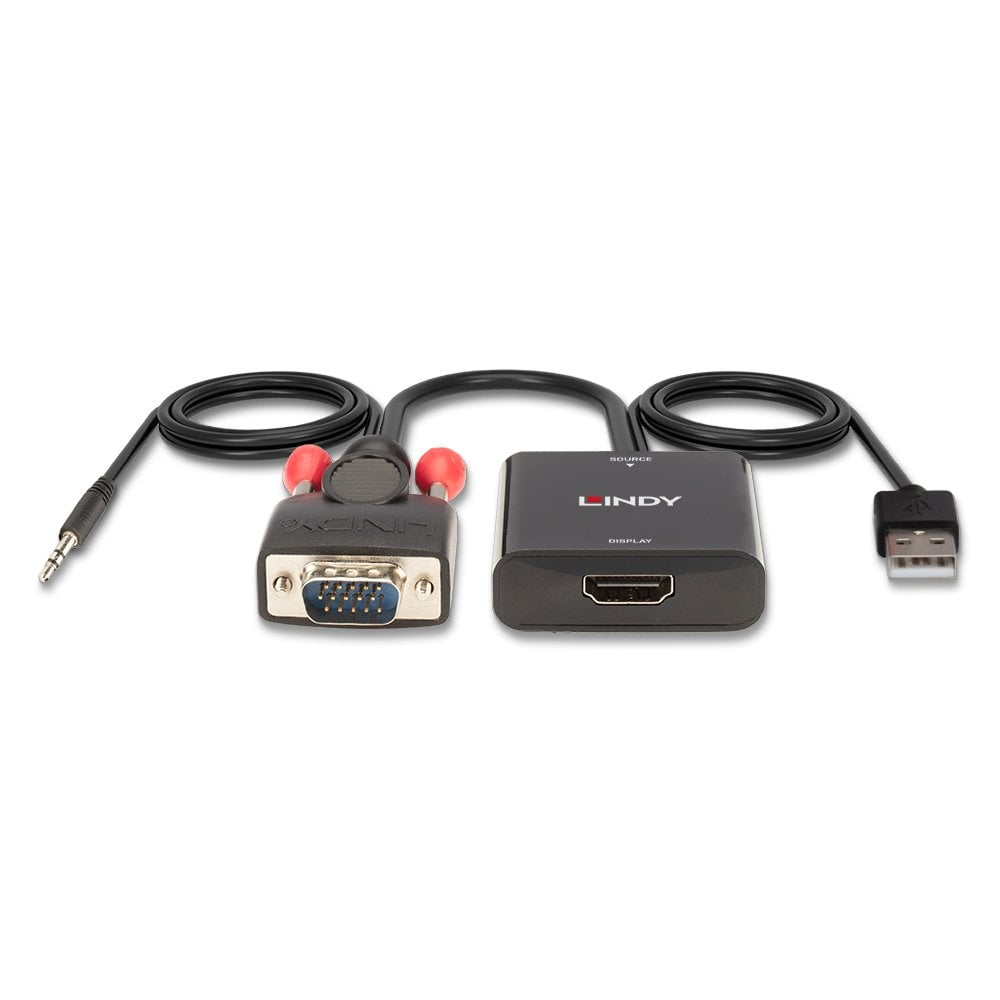

The Lindy VGA & Audio to HDMI Converter combines analogue video and stereo audio signals and converts them into a HDMI signal, perfect for using legacy PC and AV equipment with HDMI displays. It supports resolutions up to 1920x1080. The integrated USB cable can be connected to a USB port or USB power supply to power the converter.
The converter is also ideally suited for travelling due to its compact, lightweight form factor and convenient Plug & Play installation.
Logistics data
Products per master (outer) case
80 pc(s)
Weight & dimensions
Cable diameter
3 mm
Weight
81 g
Width
45 mm
Depth
45 mm
Height
16 mm
Packaging data
Package depth
174 mm
Quantity per pack
1 pc(s)
Package width
176 mm
Package height
194 mm
Package type
Polybag
Package weight
120 g
Manual
Y
Other features
Connector(s)
VGA Male to HDMI A Female
Features
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Power source
USB
Connector 1
VGA (D-Sub) + 3.5mm
Connector 2
HDMI + USB
Connector 1 gender
Male
Connector 2 gender
Female
HDMI version
1.3
Maximum resolution
1920 x 1080 pixels
Data transfer rate
4.95 Gbit/s
Maximum refresh rate
60 Hz
Product colour
Black
Chipset
AG02EX
Jacket material
Polyvinyl chloride (PVC)
Plug and Play
Y
Converter type
Active video converter
Certification
CE, FCC, RoHS & REACH, CP65
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
0 - 60 °C
Operating relative humidity (H-H)
10 - 85%
Technical details
Harmonized System (HS) code
84733080
Information
| Part Number: | 38284 |
