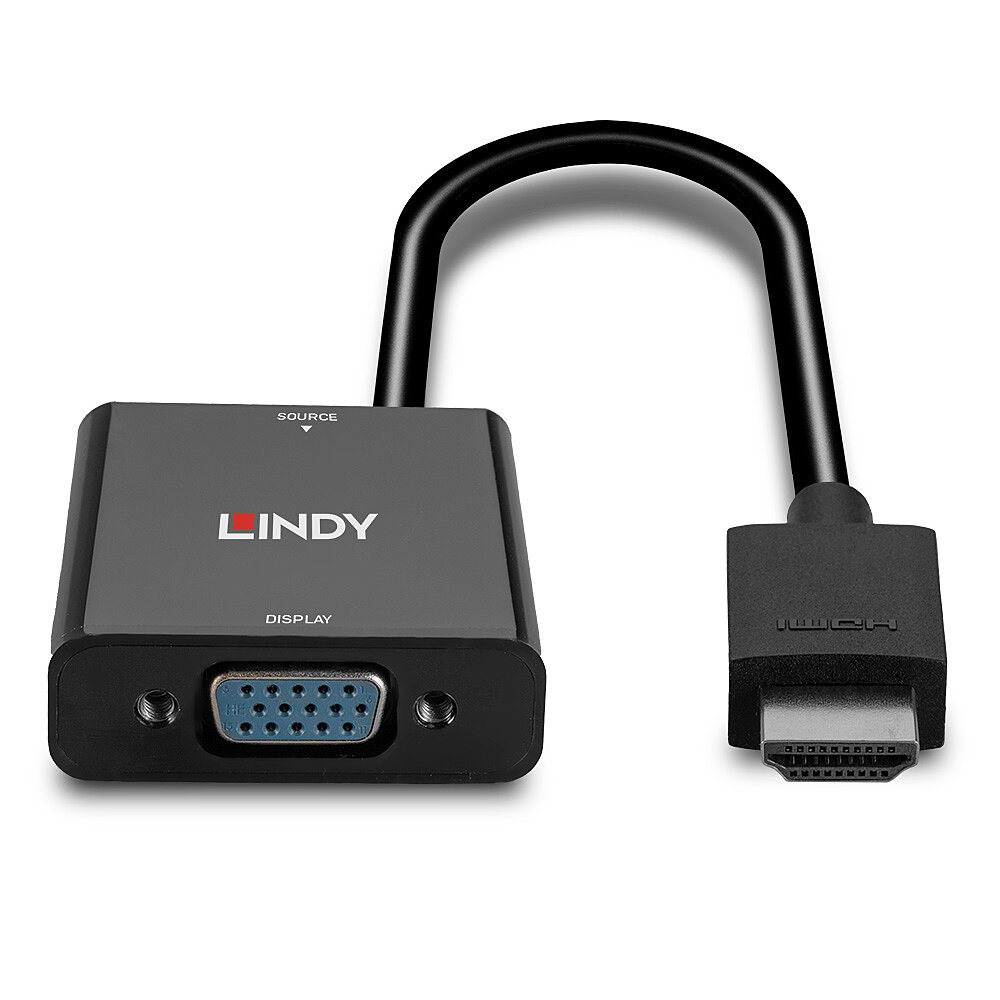

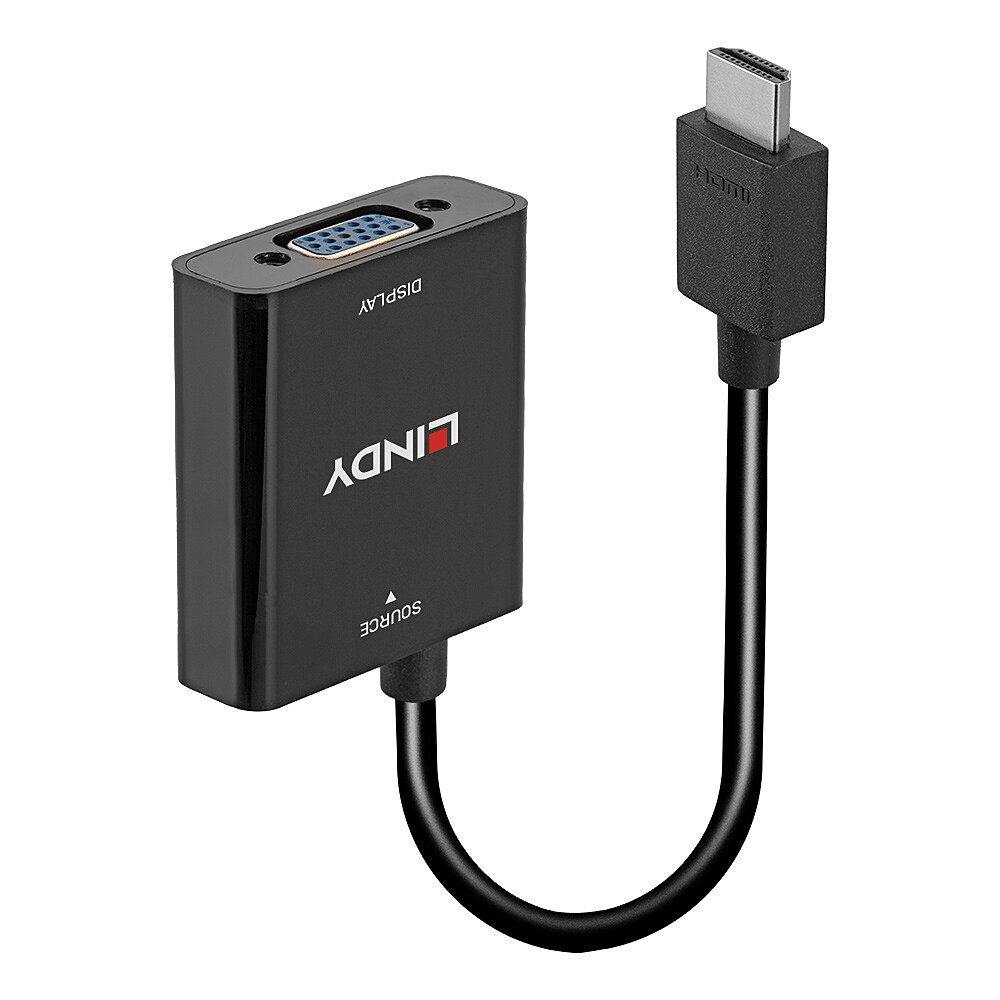

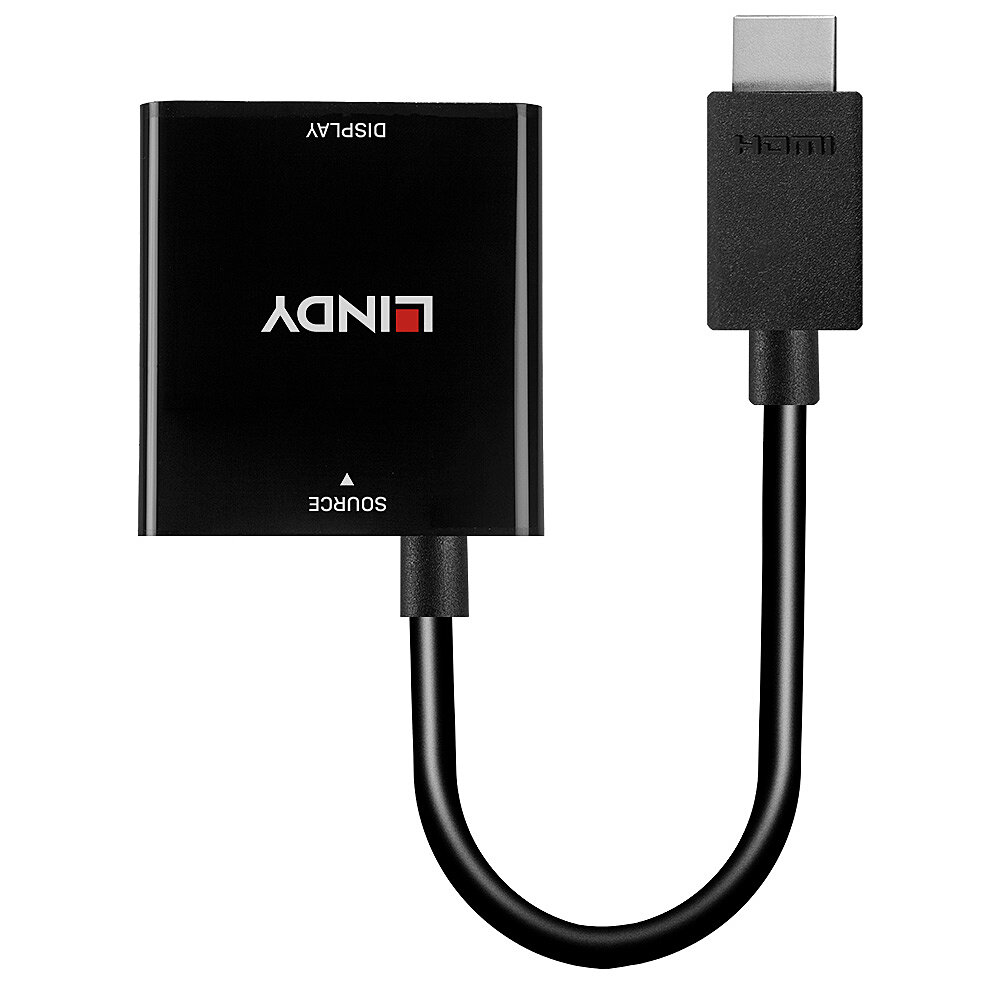

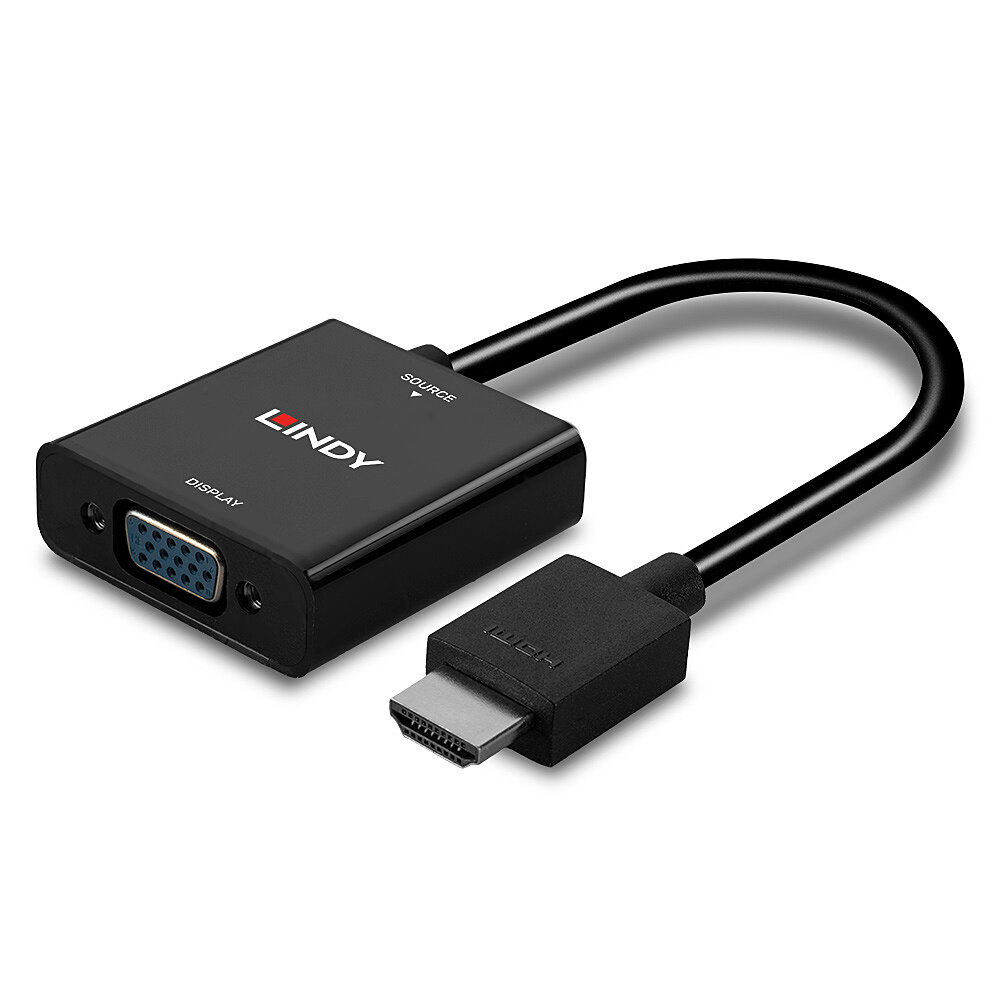

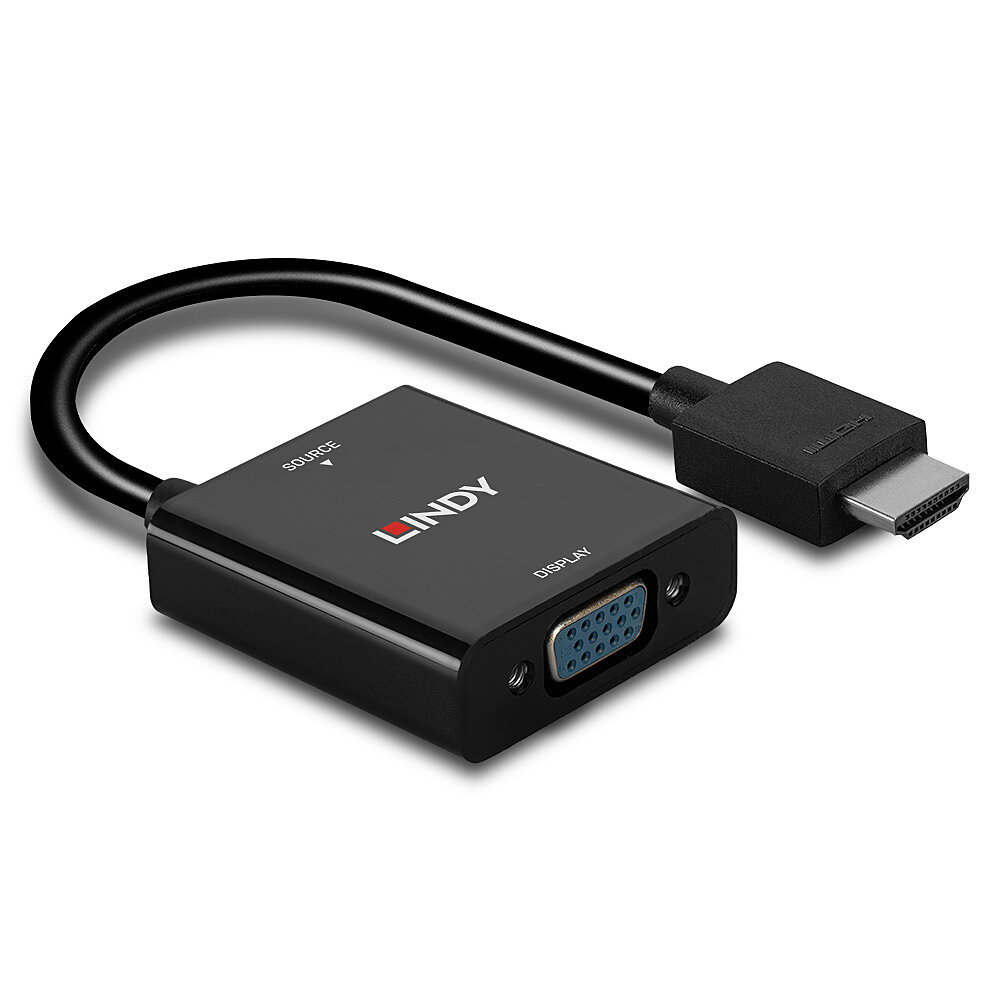

LINDY Cable Converter - Hdmi - Vga

£14.73 (incl. VAT)

Qty:

Add to basket

Part Number:	38291
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

Connects an HDMI equipped device to a VGA display_x000D_
Supports resolutions up to 1920x1200 including 1080p_x000D_
Direct signal conversion, without scaling_x000D_
Compact dimensions for easy installation and use_x000D_
2 year warranty_x000D_
_x000D_
The Lindy HDMI to VGA converter converts signals from an HDMI equipped source into an analogue VGA signal. It supports resolutions up to 1080p and 1920x1200 for PC VGA displays. This allows the connection of modern HDMI capable devices, such as PC’s, notebooks and ultrabooks, to an older VGA display or projector._x000D_
_x000D_
The compact dimensions mean it can be easily installed in restricted spaces, allowing for tidy installation behind PCs or for use with laptop workstations. The converter provides connectivity without the expense of having to replace legacy displays and cabling when upgrading to modern PCs or laptops._x000D_

Features

Connector 1 form factor Straight

Connector 2 form factor Straight

Cable length 0.1 m

Connector 1 HDMI Type A (Standard)

Connector 2 VGA (D-Sub)

Connector 1 gender Male

Connector 2 gender Female

HDMI version 1.3

Maximum resolution 1920 x 1080 pixels

Supported graphics resolutions 1920 x 1080 (HD 1080),1920 x 1200 (WUXGA)

Supported video modes 1080p

Data transfer rate 4.95 Gbit/s

Maximum refresh rate 60 Hz

Product colour Black

Chipset Algoltek AG6200A

Jacket material Polyvinyl chloride (PVC)

Connector housing material Acrylonitrile butadiene styrene (ABS)

Colour depth 12 bit

Plug and Play Y

Certification CE, UKCA, FCC, RoHS, REACH

Technical details

Harmonized System (HS) code 84733080

Operational conditions

Operating temperature (T-T) 0 - 70 °C

Storage temperature (T-T) -10 - 80 °C

Operating relative humidity (H-H) 5 - 95%

Weight & dimensions

Cable diameter 4.8 mm

Connector 1 dimensions (WxDxH) 37 x 42 x 14.5 mm

Connector 2 dimensions (WxDxH) 21 x 17.4 x 9.6 mm

Weight 27 g

Packaging data

Quantity per pack 1 pc(s)

Package width 160 mm

Package depth 20 mm

Package height 160 mm

Package type Polybag

Package weight 37 g
