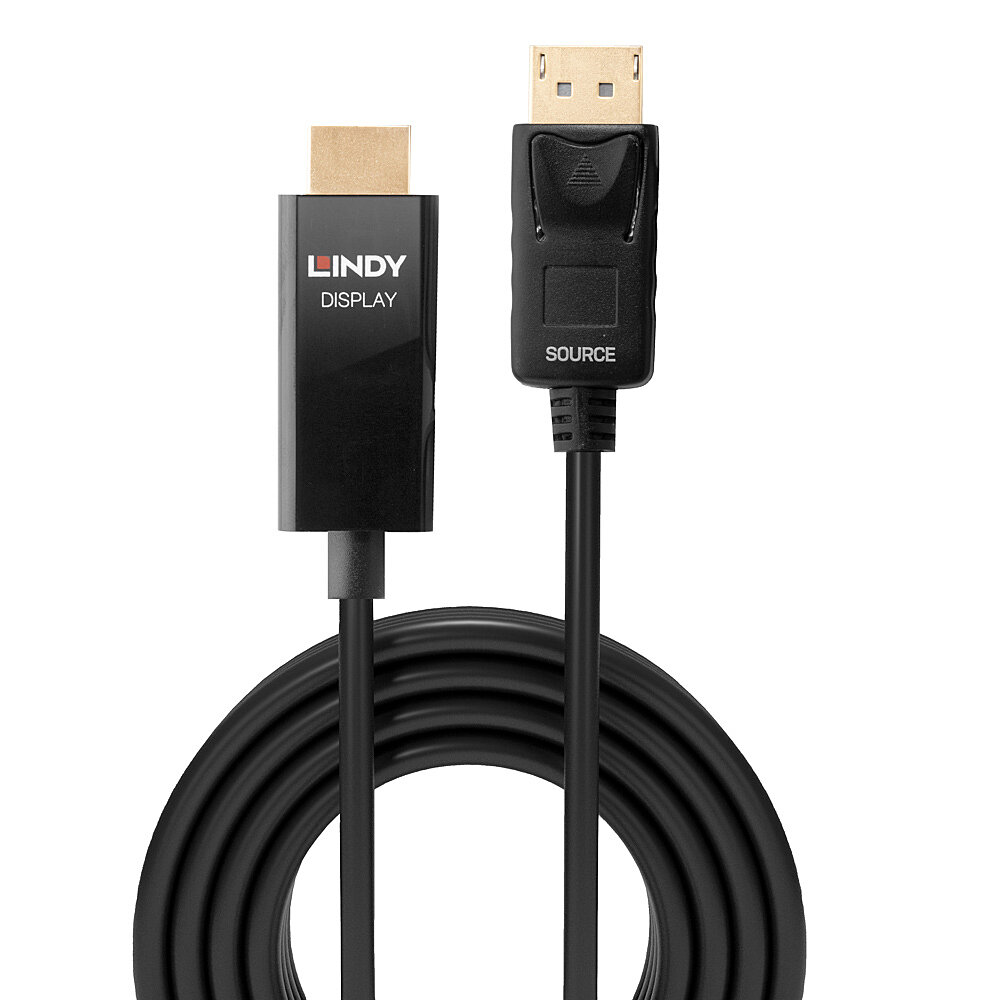

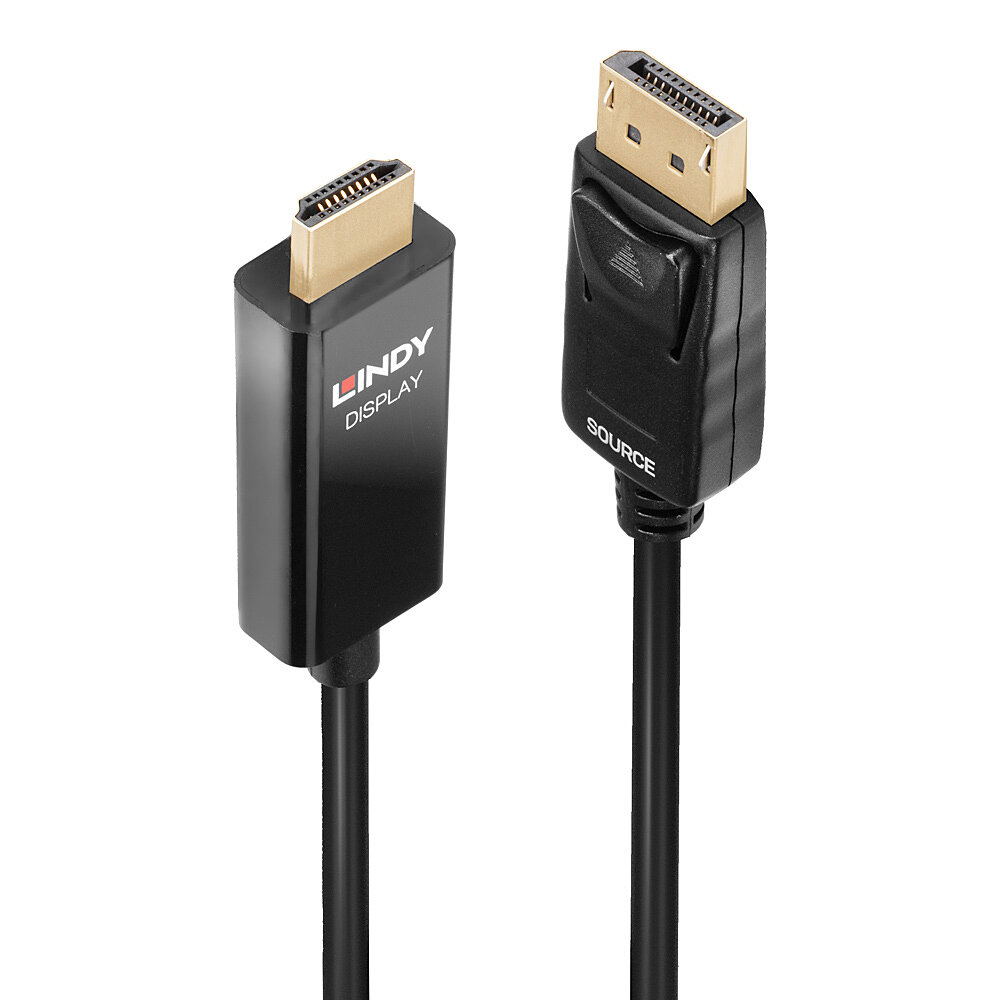

LINDY Cable - Active DisplayPort - Hdmi - Black - 5m With Hdr

£30.52

Part Number: 40928
Delivery: 1 - 2 days

Product Details

Introduction

Connect a DisplayPort equipped device to a 4K HDMI display or projector_x000D_
Supports high quality resolutions up to 4K@60hz_x000D_
High Dynamic Range support provids deeper blacks, brighter whites and a wider colour gamut_x000D_
Active chipset for enhanced compatibility with various graphic cards_x000D_
2 year warranty_x000D_
_x000D_
Lindy’s Active DisplayPort to HDMI Cable range combine superior performance with stylish design to provide a high quality conversion of DisplayPort 4K@60Hz signals to output to a HDMI display or projector. This range of active cables come with an in-built chipset to not only provide a reliable connection, but also enhance compatibility with both dual mode and non-dual mode graphic cards and source devices, perfect for use with DP graphics cards, laptops and PC’s, while avoiding the need for additional adapters._x000D_
_x000D_
With support for resolutions up to 4096x2160@60Hz and with additional support for High Dynamic Range, 4K content can be viewed with crystal clear clarity, enhanced contrast and more lifelike colour. These cables are great for creating eye-catching retail displays, innovative working environments or immersive video playback in sports bars and home cinema installations, while support for uncompressed multi-channel audio allows for an impressive three-dimensional surround sound performance to compliment detailed, clear video._x000D_
_x000D_
Support for AMD Eyefinity technology also brings the user a cost effective way of creating a non-standard aspect ratio or ultra-high resolution display made up from up to 3 or more monitors. This feature also allows the user to run multiple applications simultaneously on separate screens, improving productivity in the workplace or creating a widescreen gaming experience._x000D_
_x000D_
Please note:_x000D_
_x000D_
Audio output over HDMI is only supported when the graphics card of the notebook or desktop computer supports audio output over DisplayPort. Several on-board graphics adapters such as Mobile Intel 4 Series Express Chipset in Notebooks do NOT support audio output over DisplayPort, even when HDMI support (Intel High Definition Audio HDMI Service) is installed for audio controllers. In such instances a separate audio connection has to be set up._x000D_
_x000D_
Please note: Some of Nvidia's latest drivers do not work correctly at 4k@60Hz 4:4:4 when converting from DP/mDP to HDMI and will only work at 4k@60Hz 4:2:2_x000D_
_x000D_

Features

Connector 1 form factor Straight
Connector 2 form factor Straight
Connector contacts plating Gold
Cable length 5 m
Connector 1 DisplayPort
Connector 2 HDMI Type A (Standard)
Connector 1 gender Male
Connector 2 gender Male
HDMI version 2.0
DisplayPort version 1.2
High Dynamic Range (HDR) supported Yes
Maximum resolution 4096 x 2160 pixels
Supported graphics resolutions 4096 x 2160
Maximum refresh rate 60 Hz
Refresh rate at maximum resolution 60 Hz
Bend radius (min) 6 cm
Product colour Black
Conductor material Tinned copper
Nominal attenuation -12dB@825-2475MHz -20dB@ 2475-4125MHz -25dB@4125-5100MHz
Jacket material Polyvinyl chloride (PVC)
Cable type Round cable
Connector housing material Acrylonitrile butadiene styrene (ABS)
Connector material Gold
AWG wire size 32
Cable shielding Copper braid
Certification California Proposition 65

Operational conditions

Operating temperature (T-T) -20 - 70 °C
Storage temperature (T-T) -25 - 85 °C

Sustainability

Sustainability compliance Yes
Sustainability certificates CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA

Weight & dimensions

Cable diameter 5 mm
Connector 1 dimensions (WxDxH) 36 x 20 x 7.5 mm
Connector 2 dimensions (WxDxH) 45.1 x 21.8 x 12.2 mm

Packaging data

Quantity per pack 1 pc(s)
Package type Polybag

Technical details

Warranty period 2 year(s)
Compliance certificates CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA

Information

Part Number: 40928
