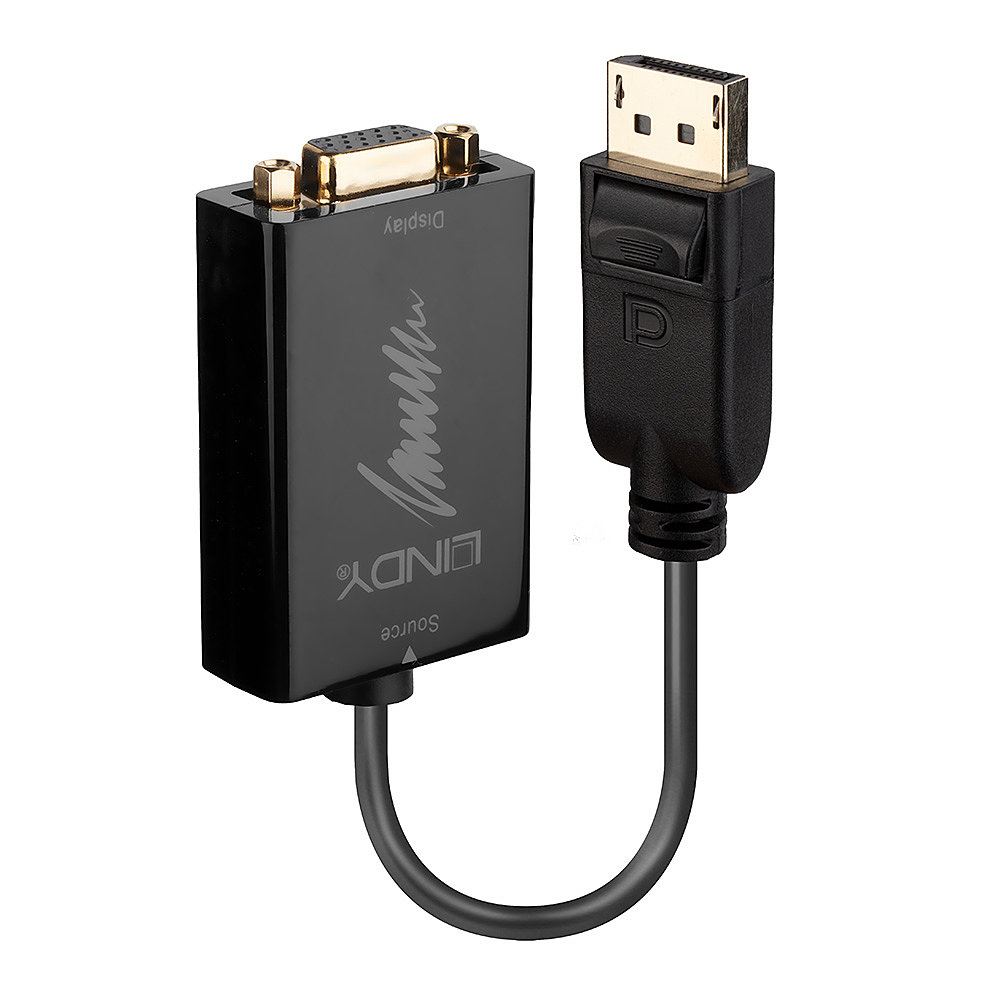

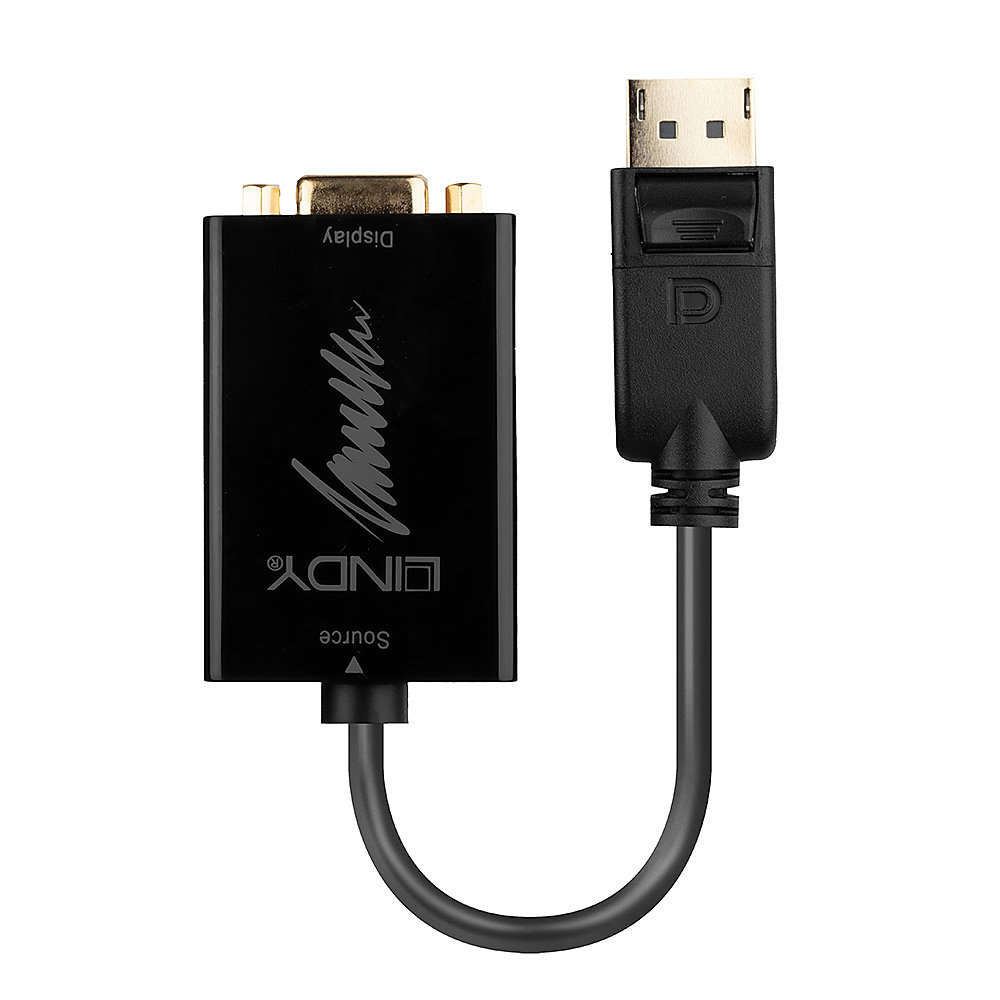

LINDY DisplayPort Male To Vga Female Fhd Active Converter

LINDY DisplayPort Male To Vga Female Fhd Active Converter

£15.66 (incl. VAT)

Qty:

Add to basket

Part Number:	41006
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

Converts a DisplayPort signal into VGA_x000D_
Supports resolutions up to 1920x1080@60Hz_x000D_
Can be used to add a secondary monitor for extended or mirrored desktop_x000D_
Compact dimensions for easy installation and use_x000D_
2 year warranty_x000D_
_x000D_

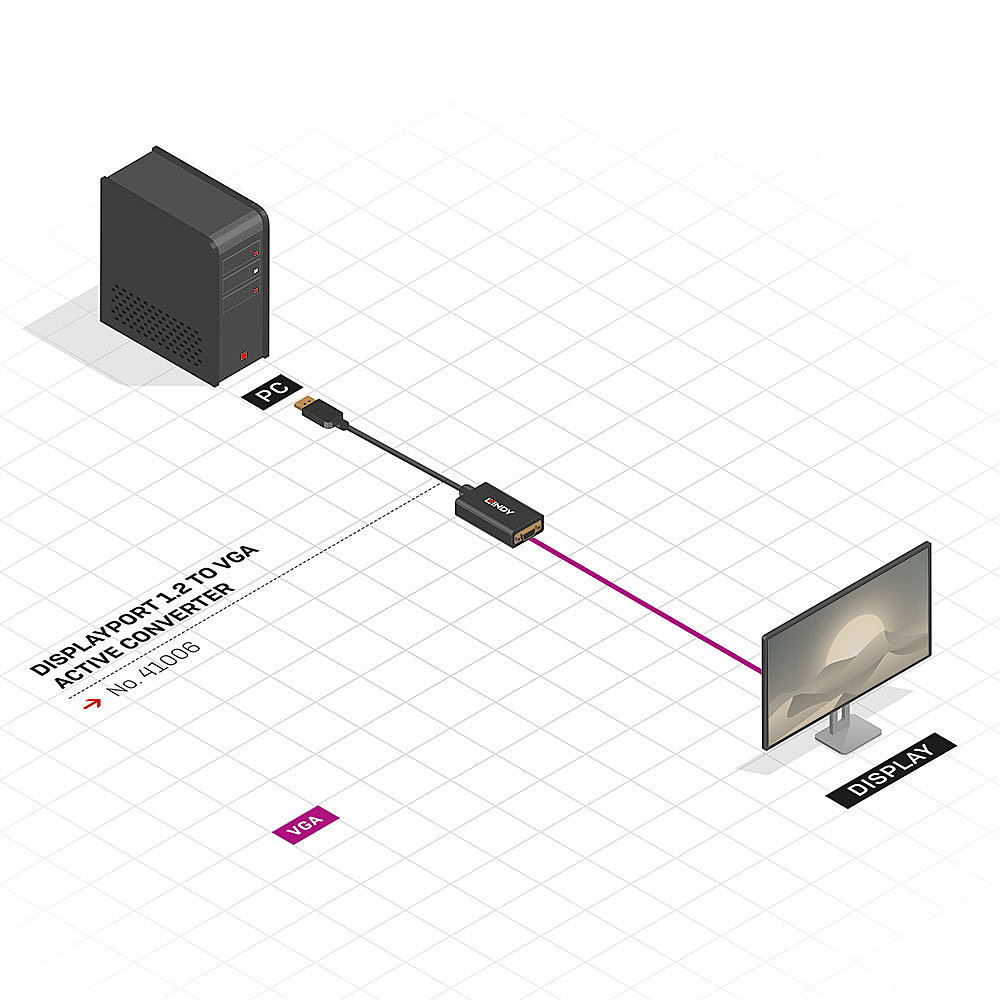

The Lindy DisplayPort to VGA Converter is ideal for connecting a DisplayPort equipped source such as a PC or laptop to a VGA monitor. It supports high definition video resolutions up to 1920x1080@60Hz. Active conversion ensures compatibility with various graphics cards including AMD Eyefinity, NVIDIA surround and Intel Collage._x000D_
_x000D_

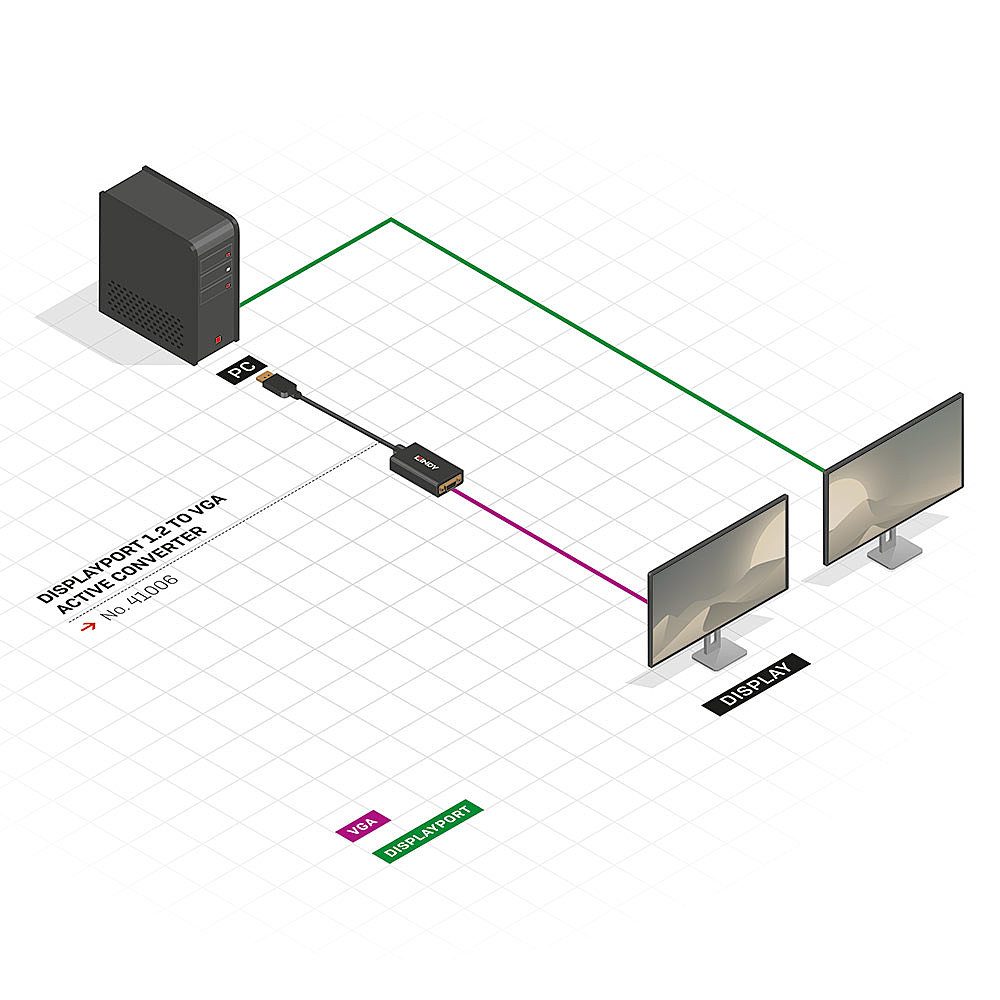

This converter can also be used to add a secondary monitor for extended or mirrored desktop modes to increase productivity and screen real estate. Internal copper shielding provides enhanced reliability and compatibility. The converter is also ideally suited for travelling due to its compact, lightweight form factor and convenient plug & play installation._x000D_

Technical details

Harmonized System (HS) code 84733080

Features

Connector 1 form factor Straight

Connector 2 form factor Straight

Connector contacts plating Gold

Cable length 0.15 m

Connector 1 VGA (D-Sub)

Connector 2 DisplayPort

Connector 1 gender Male

Connector 2 gender Female

DisplayPort version 1.2

Maximum resolution 1920 x 1080 pixels

Supported graphics resolutions 1920 x 1080 (HD 1080)

Data transfer rate 10.8 Gbit/s

Maximum refresh rate 60 Hz

Bend radius (min) 7 cm

Product colour Black

Chipset ANX9833

Jacket material Polyvinyl chloride (PVC)

Connector housing material Thermoplastic elastomer (TPE)

Plug and Play Y

Certification CE, UKCA, FCC, RoHS, REACH

Operational conditions

Operating temperature (T-T) -20 - 80 °C

Storage temperature (T-T) -20 - 70 °C

Operating relative humidity (H-H) 20 - 90%

Weight & dimensions

Cable diameter 6.5 mm

Connector 1 dimensions (WxDxH) 38 x 61 x 17 mm

Connector 2 dimensions (WxDxH) 20 x 36 x 11 mm

Weight 45 g

Packaging data

Quantity per pack 1 pc(s)

Package width 160 mm

Package depth 20 mm

Package height 160 mm

Package type Polybag

Package weight 49 g
